ETC CSFRESVMAXMV ColorSource Fresnel V MAX ETL with Multiverse

ETC CSFRESVMAXMV ColorSource Fresnel V MAX ETL with Multiverse

SoundPro Item: 152544 | Part Number: CSFRESVMAXMV

$1,995.00
$1,995.00 $1,995.00
Your Price Sold out
MSRP: $1,995.00 | MAP: $1,995.00

Usually ships in 5-7 business days

  • Five-Color Array Delivers Broad Creative Looks
  • Motorized Zoom Adapts Coverage Quickly
  • Wireless DMX/RDM Supports Cleaner Installs
  • NFC Setup Speeds Mobile Configuration
  • Quiet Operation Suits Noise-Sensitive Rooms
  • TRUE1 Power Thru Simplifies Fixture Linking
  • Tour-Ready Aluminum Housing Adds Durability
Log in or register for YOUR best price

The ETC CSFRESVMAXMV ColorSource Fresnel V MAX is a professional LED wash light built for venues that need broad, controllable coverage with flexible system integration. Its five-color array combines red, green, blue, indigo, and lime emitters to support both soft pastel looks and bold saturated output from a single fixture. A motorized 13°-44° zoom helps crews adapt the beam to changing stage, platform, and room layouts without swapping optics.

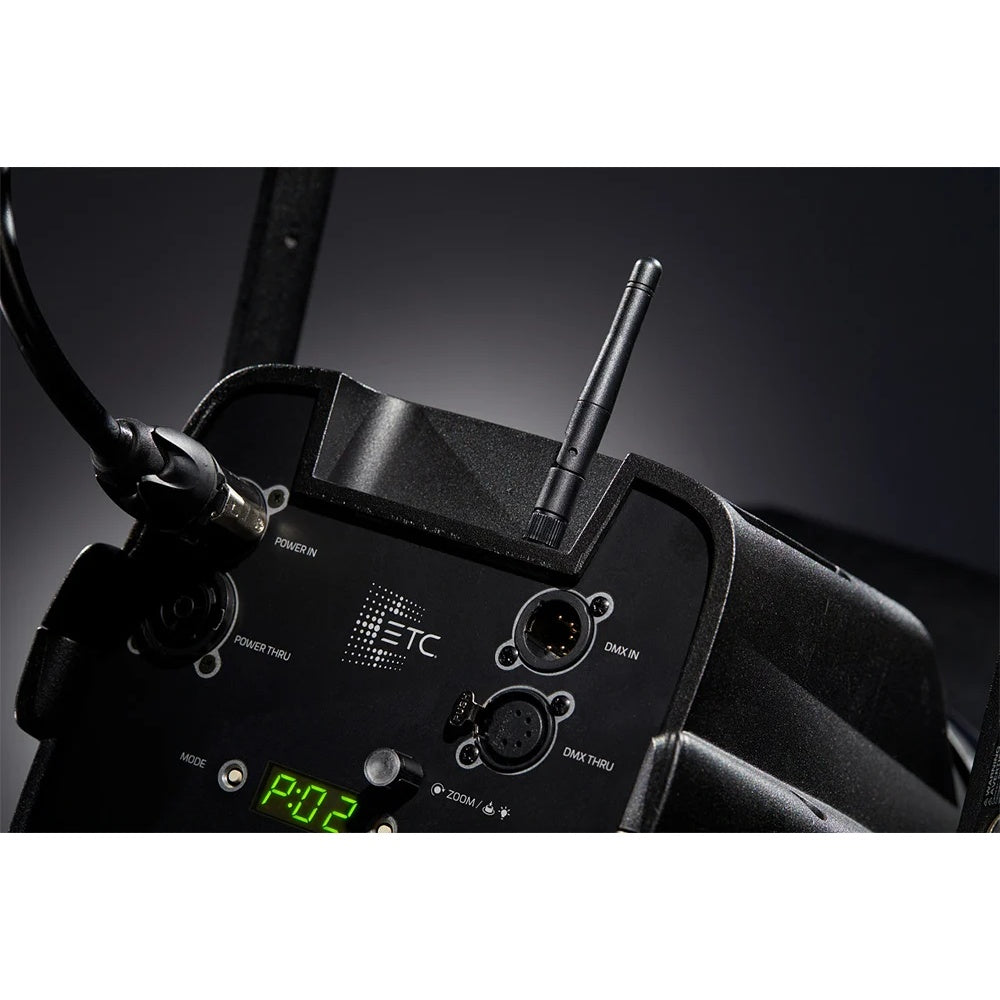

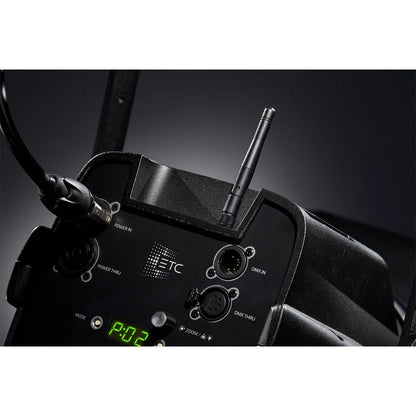

This fixture is well suited for theaters, houses of worship, schools, hospitality spaces, retail environments, exhibition centers, meeting rooms, clubs, and multipurpose venues. Control options include 5-pin XLR DMX, RDM, City Theatrical Multiverse wireless DMX/RDM, and NFC configuration for streamlined setup workflows. The seven-segment display, three-button interface, and Focus encoder support local access when a console is not practical.

For permanent installs and production inventories alike, the ColorSource Fresnel V MAX pairs a tour-ready cast and extruded aluminum housing with practical connectivity such as powerCON TRUE1 TOP power in and thru. Additional operational advantages include optically calibrated output, LED droop compensation, onboard presets, FixtureLink support, and selectable camera-friendly refresh behavior through RDM.

Downloads

View full details

Specifications

Source
LED Details
60 Lumileds LUXEON C ES LEDs
Max Lumens
Field 9,293 / Sphere 10,100
Lumens Per Watt
Field 44.7 / Sphere 48.6
L70 Rating
54,000 hours
Color
Colors Used
Red, Green, Blue, Indigo, Lime
Color Temperature Range
Color mixing
Calibrated Array
Yes
Red Shift
No
Optical
Beam Angle Range
13°-44°
Gate Size
N/A
Aperture Size
190 mm (7.48 in)
Pattern Projection
No
Pattern Size
N/A
Camera Flicker Control/Hz Range
5,000 Hz (default) and 25,000 Hz (via RDM)
Control
Input Method
5-Pin XLR, Multiverse wireless, and NFC
Protocols
DMX-512, RDM, City Theatrical Multiverse, NFC
Modes (Footprint)
6 modes
RDM Configuration
Yes
UI Type
Seven-segment display, three-button interface, Focus encoder
Local Control
Yes
Onboard Presets
Yes (12)
Onboard Sequences
Yes (5)
Onboard Effects
No
FixtureLink
Yes
Notes
15-bit virtual dimming engine
Wireless
Band
2.400-2.480 GHz
Range
100 m indoors, 500 m line of sight (subject to conditions)
Max Receivers
DMX: No limit / RDM: Varies by transmitter used / Multiverse SHoW Baby: 585 / Multiverse Transmitter: 5,000
Broadcast Power
100 mW
Electrical
Voltage Range
100-240 VAC 50/60 Hz
Input Method
powerCON TRUE1 TOP power in and thru
Inrush (First Half-Cycle)
120 V: 36 A / 240 V: 57 A
Fixtures Per Circuit On Standard R20 Breaker
4 (link up to 3 via Power Thru connector)
Note
TRUE1 connector rated for 20 A (120 V / 60 Hz) and 16 A (240 V / 50 Hz)
Wattage (Typical)
120 V: 208 W / 230 V: 205 W
Current Draw
120 V: 1.75 A / 230 V: 0.95 A
Thermal
Ambient Operating Temp
0°C-40°C (32°F-104°F)
Fan (Controllable)
Yes
Droop Compensation
Yes
Average dB
23.6 dBA
BTUs/Hour (120 V)
709
Physical
Materials
Cast and extruded aluminum
Color Options
Black, white, silver, or custom color
Mounting Options
Yoke
IP Rating
IP20
Weight
6.24 kg (13.75 lb)
Included Accessories
Yoke, power cable
Warranty
Fixture
5 years
LED Array
10 years
Regulatory And Compliance
Approved Regulatory Standards
cETLus Listed; Conforms to UL 1598; Complies to CSA C22.2 No. 250.0 and 141; CE & UKCA compliant
