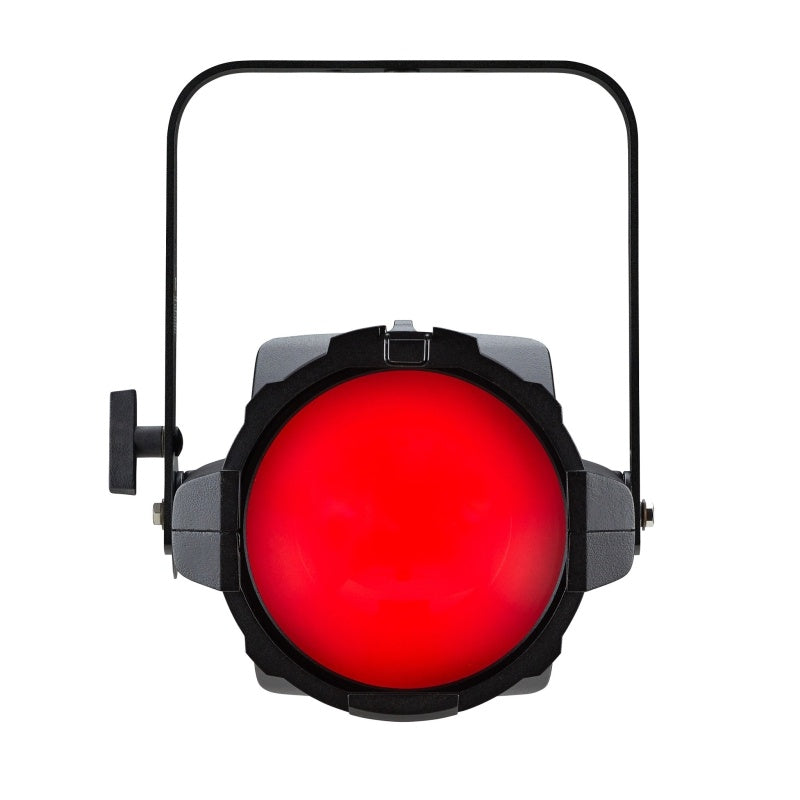

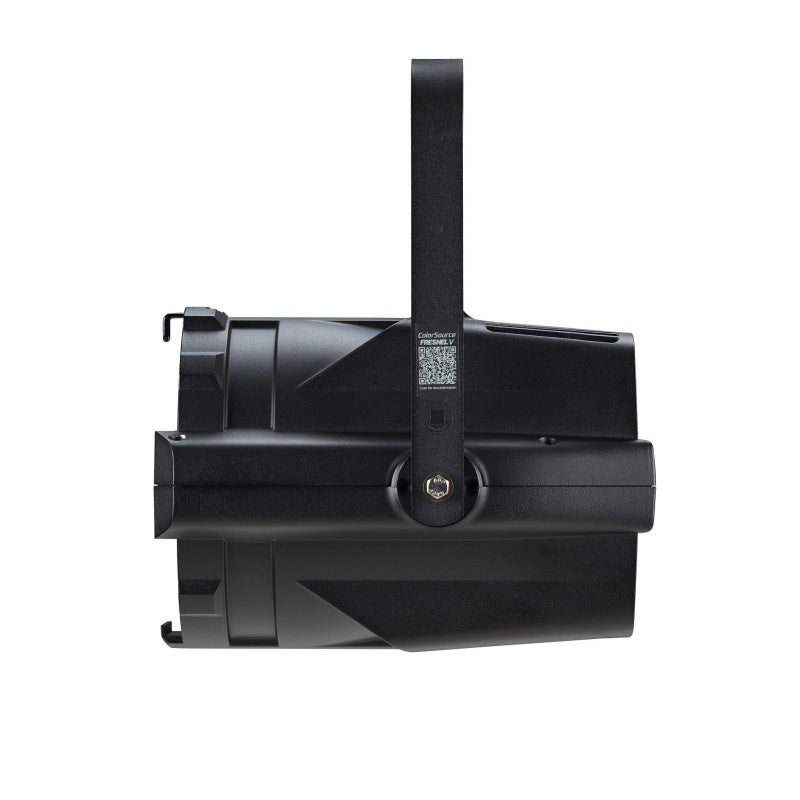

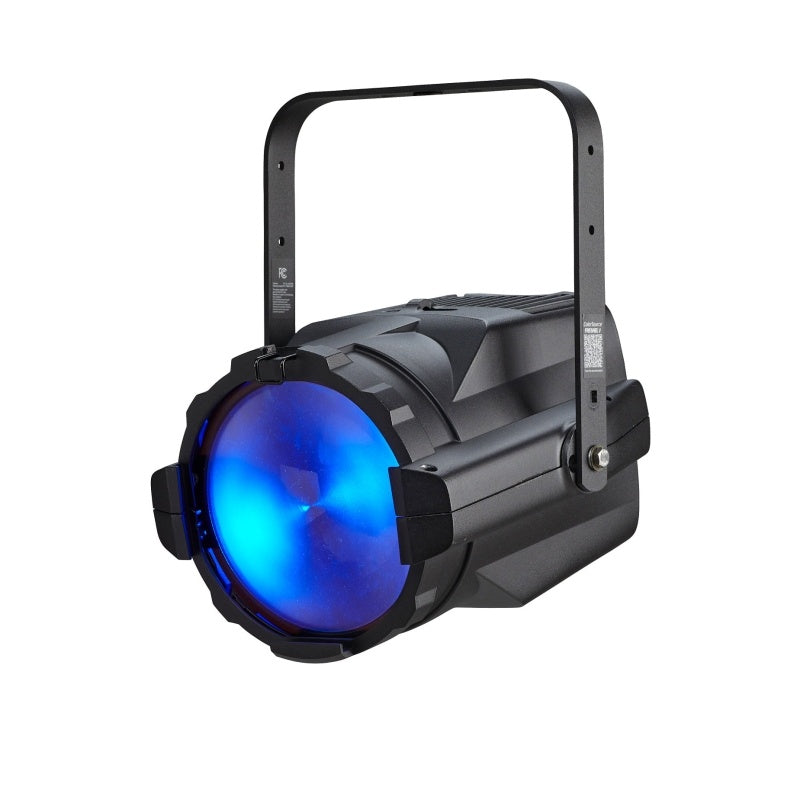

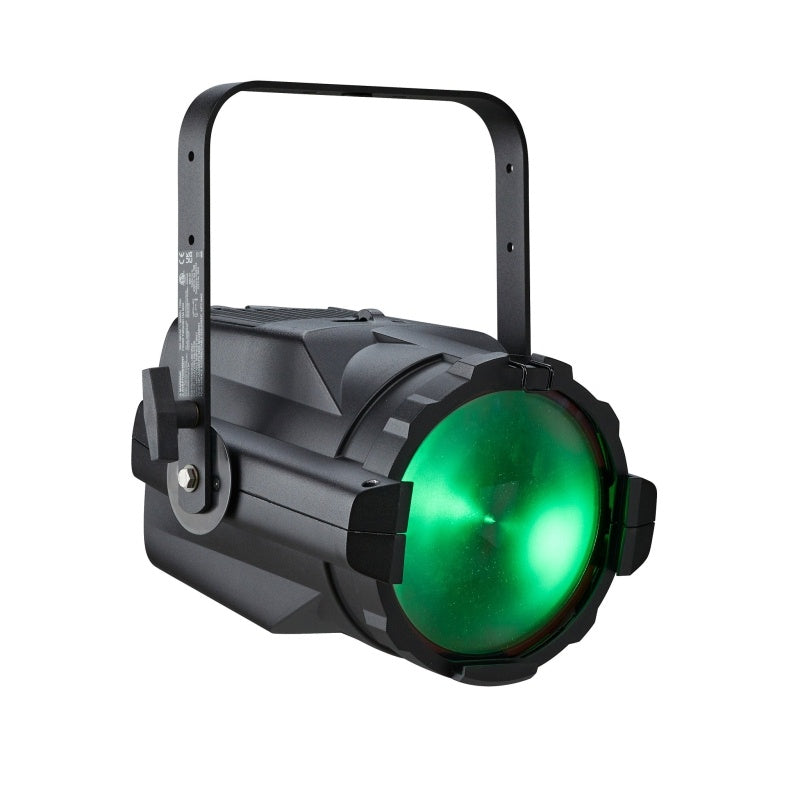

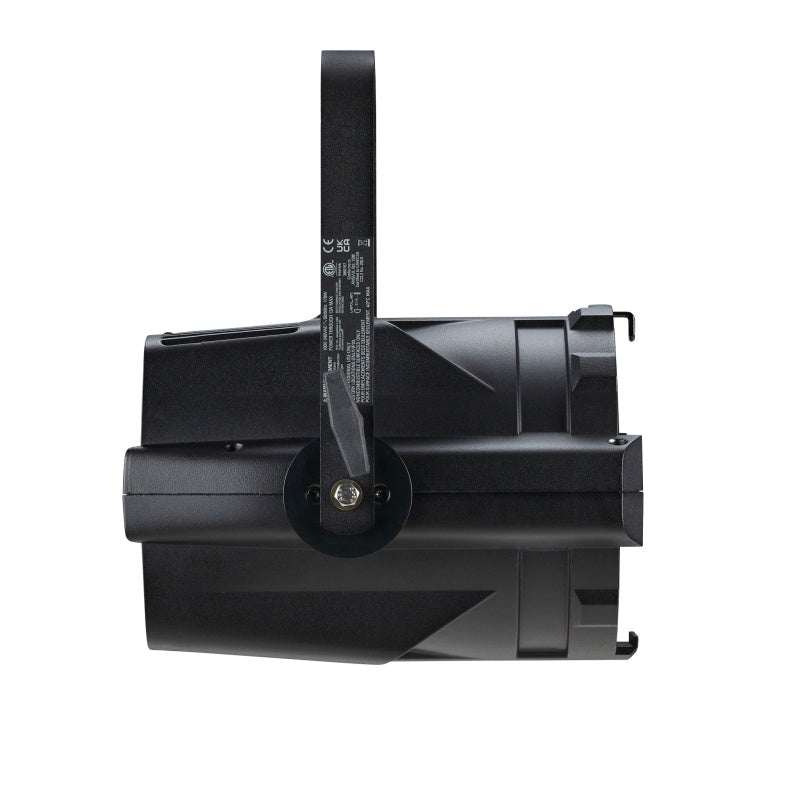

ETC CSFRESVMV ColorSource Fresnel V Static Wash Light With Multiverse

ETC CSFRESVMV ColorSource Fresnel V Static Wash Light With Multiverse

SoundPro Item: 144078 | Part Number: CSFRESVMV

$1,695.00
$1,695.00 $1,695.00
Your Price Sold out
MSRP: $1,695.00 | MAP: $1,695.00

Usually ships in 5-7 business days

  • Five-Color Array Delivers Rich Mixed Hues
  • Motorized Zoom Adapts Coverage From Console
  • NFC Setup Speeds Configuration On Site
  • Wireless DMX/RDM Support Simplifies Installs
  • TRUE1 Power Thru Streamlines Fixture Linking
  • Quiet Operation Suits Noise-Sensitive Rooms
Log in or register for YOUR best price

The ETC CSFRESVMV ColorSource Fresnel V is a static wash fixture built for venues that need refined color, flexible beam control, and straightforward system integration. Its five-color LED array combines red, green, blue, indigo, and lime to produce both delicate pastel tones and deep saturated looks from a single luminaire. That makes it a practical choice for theatres, houses of worship, schools, hospitality spaces, retail environments, and multiuse rooms where one fixture may need to cover a wide range of scenes.

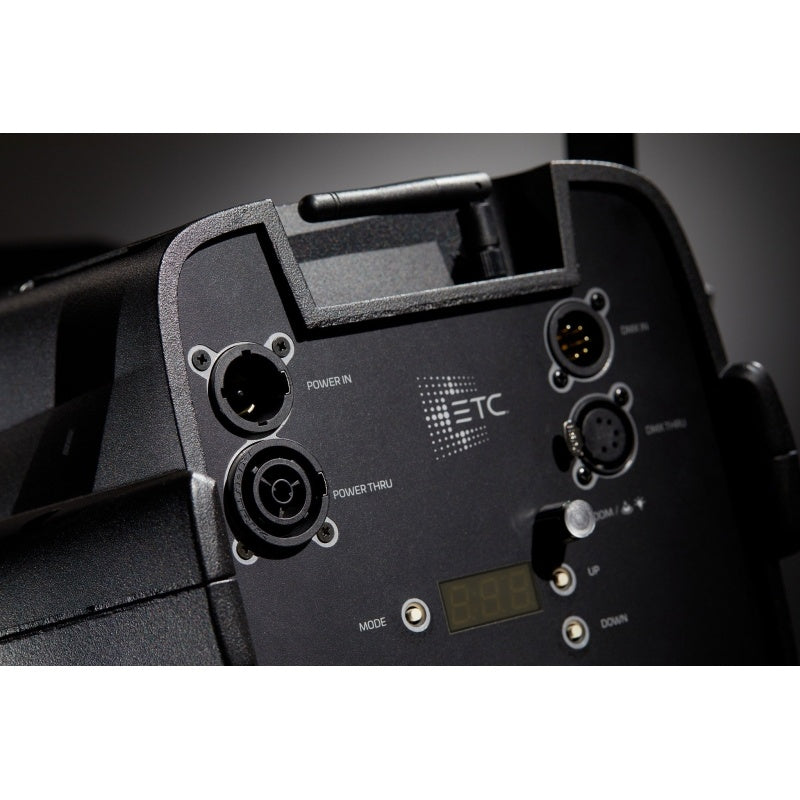

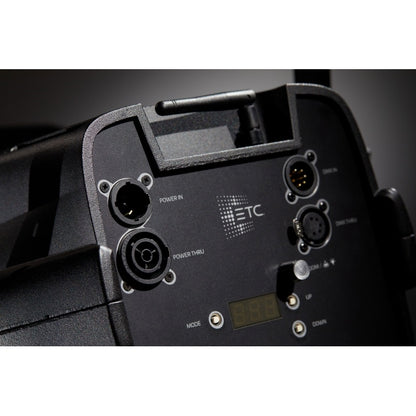

For installers and production teams, this fixture supports multiple control approaches without complicating deployment. A motorized 13°-44° zoom can be adjusted over DMX or locally from the rear, while DMX-512, RDM, optional Multiverse wireless operation, and NFC configuration expand setup options for permanent and temporary systems. The seven-segment display, three-button interface, Focus encoder, onboard presets, and local control help speed commissioning and day-to-day use.

ETC also designed the unit for reliable operation in professional environments. The cast and extruded aluminum construction, powerCON TRUE1 TOP power in and thru, 5-pin XLR DMX/RDM connections, optical calibration, LED droop compensation, controllable fan, and long fixture and LED array warranty coverage support dependable use across performance, presentation, and architectural applications.

Downloads

View full details

Specifications

Source
LED Details
44 Lumileds LUXEON C LEDs
Max Lumens
5330
Lumens Per Watt
36
L70 Rating
54,000 hours
Color
Colors Used
Red, Green, Blue, Indigo, Lime
Color Temperature Range
Color mixing
Calibrated Array
Yes
Red Shift
No
Optical
Beam Angle Range
13°–44°
Gate Size
N/A
Aperture Size
190 mm (7.48 in)
Pattern Projection
No
Pattern Size
N/A
Camera Flicker Control/Hz Range
5,000 Hz (default) and 25,000 Hz (via RDM)
Control
Input Method
5-Pin XLR, Multiverse wireless (optional), and NFC
Protocols
DMX-512, RDM, City Theatrical Multiverse (optional), NFC
Modes (Footprint)
5 modes
RDM Configuration
Yes
UI Type
Seven-segment display, three-button interface, Focus encoder
Local Control
Yes
Onboard Presets
Yes (12)
Onboard Sequences
Yes (5)
Onboard Effects
No
FixtureLink
Yes
Notes
15-bit virtual dimming engine
Wireless
Band
2.400–2.480 GHz
Range
100 m indoors, 500 m line of sight (subject to conditions)
Max Receivers
DMX: No limit / RDM: Varies by transmitter used / Multiverse SHoW Baby: 585 / Multiverse Transmitter: 5,000
Broadcast Power
100 mW
Electrical
Voltage Range
100–240 VAC 50/60 Hz
Input Method
powerCON TRUE1 TOP power in and thru
Inrush (First Half-Cycle)
120 V: 36 A / 240 V: 57 A
Fixtures Per Circuit On Standard R20 Breaker
9 (link up to 8 via Power Thru connector)
Note
TRUE1 connector rated for 20 A (120 V / 60 Hz) and 16 A (240 V / 50 Hz)
Wattage (Typical)
120 V: 148.4 W / 230 V: 147.0 W
Current Draw
120 V: 1.28 A / 230 V: 0.70 A
Thermal
Ambient Operating Temp
0°C to 40°C (32°F to 104°F)
Fan (Controllable)
Yes
Droop Compensation
Yes
Average dB
22.7 dBA
BTUs/Hour (120 V)
508
Physical
Materials
Cast and extruded aluminum
Color Options
Black, white, silver, or custom color
Mounting Options
Yoke
IP Rating
IP20
Weight
6.24 kg (13.75 lb)
Included Accessories
Yoke, power cable
Warranty
Fixture
5 years
LED Array
10 years
Regulatory And Compliance
Approved Regulatory Standards
cETLus Listed; Conforms to UL 1598; Complies to CSA C22.2 No. 250.0 and 141; CE & UKCA compliant
