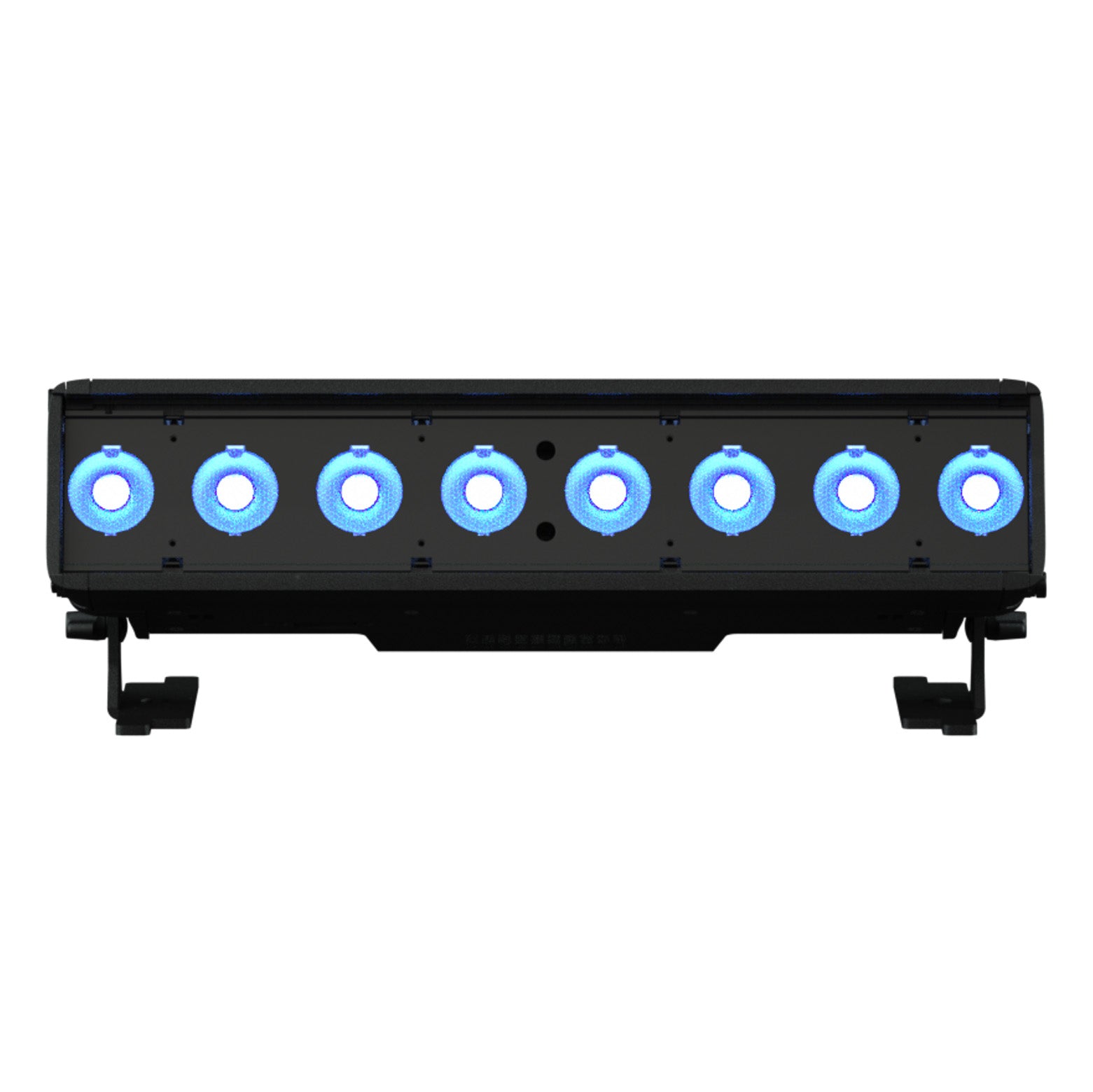

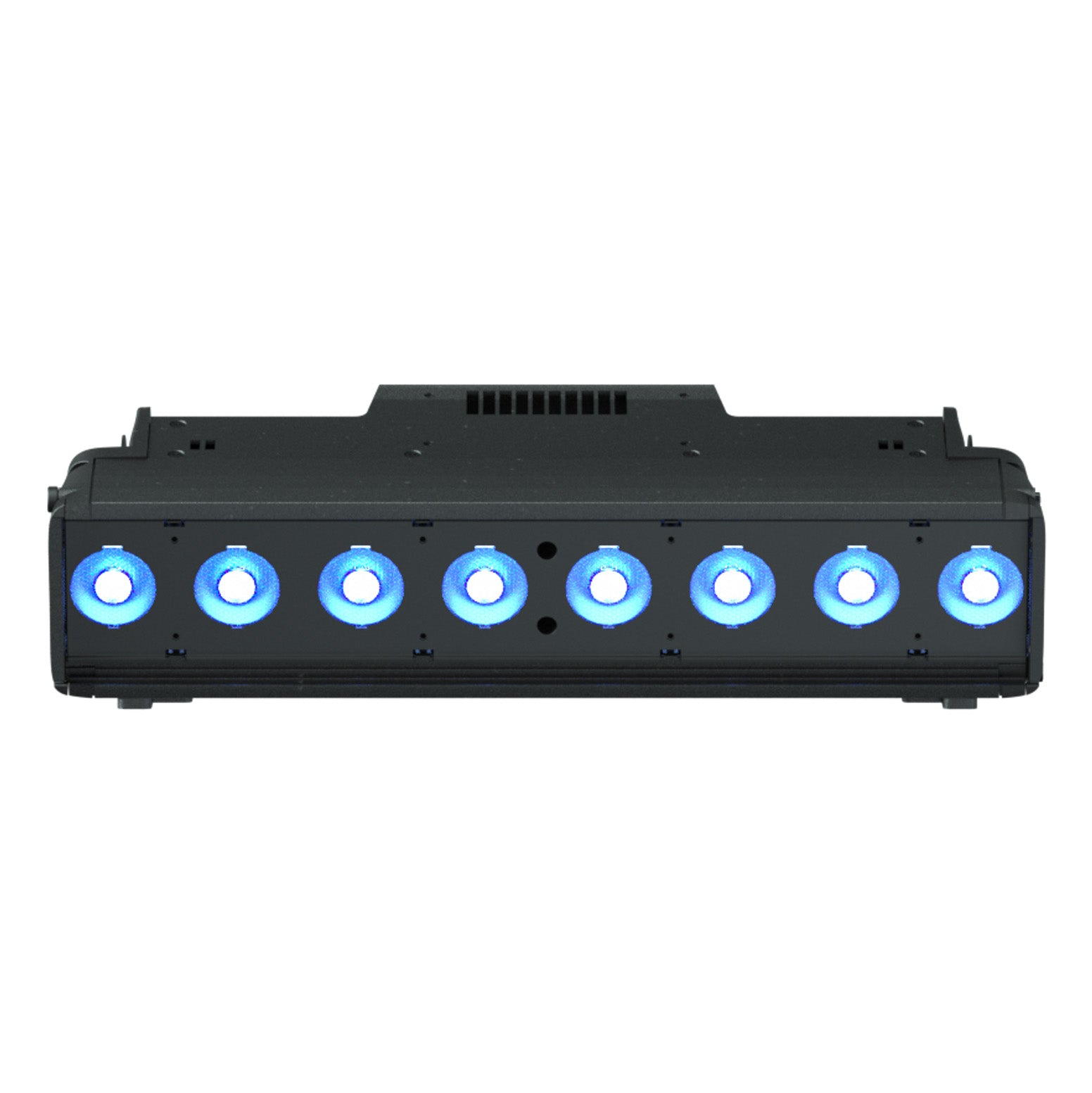

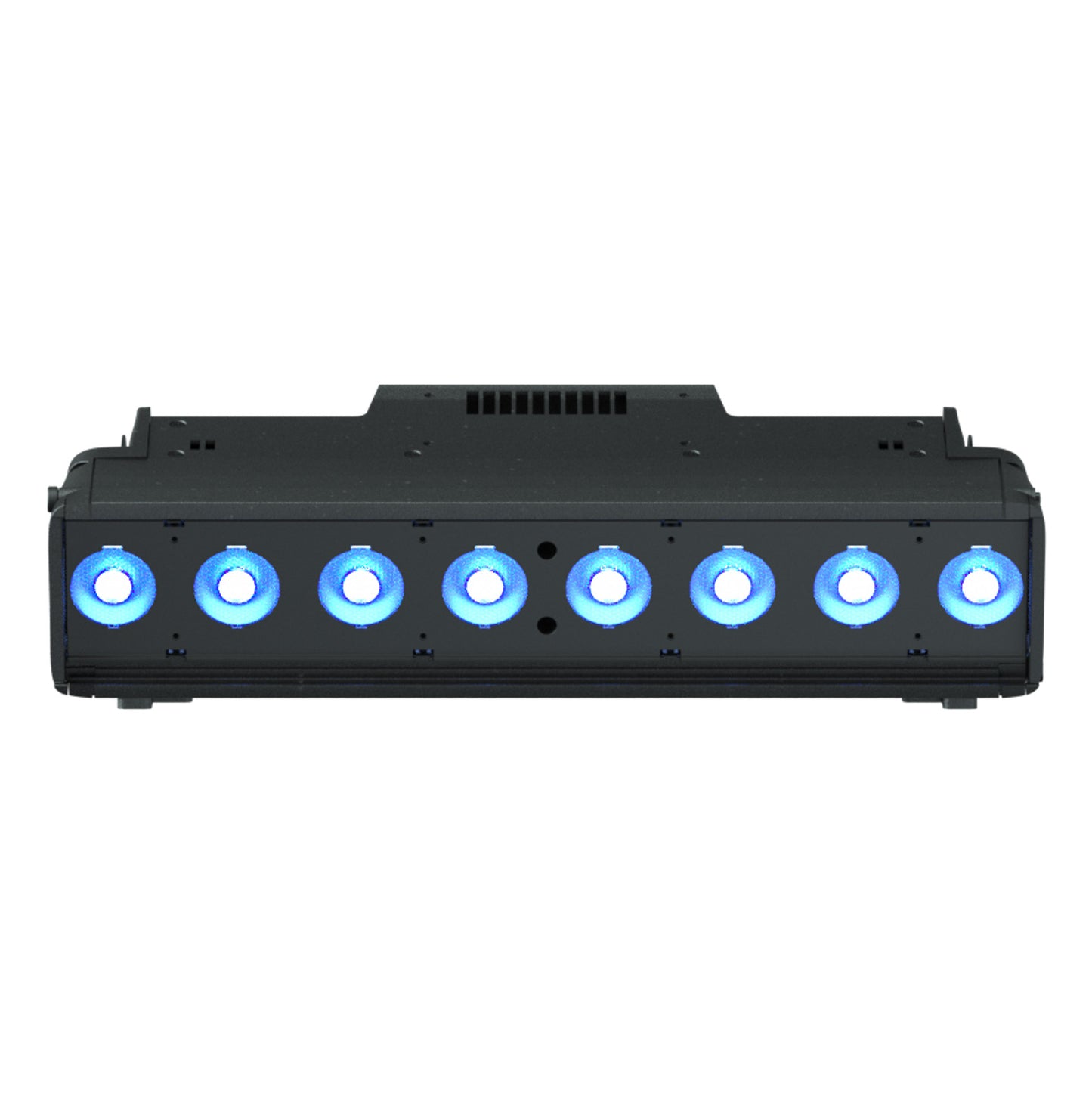

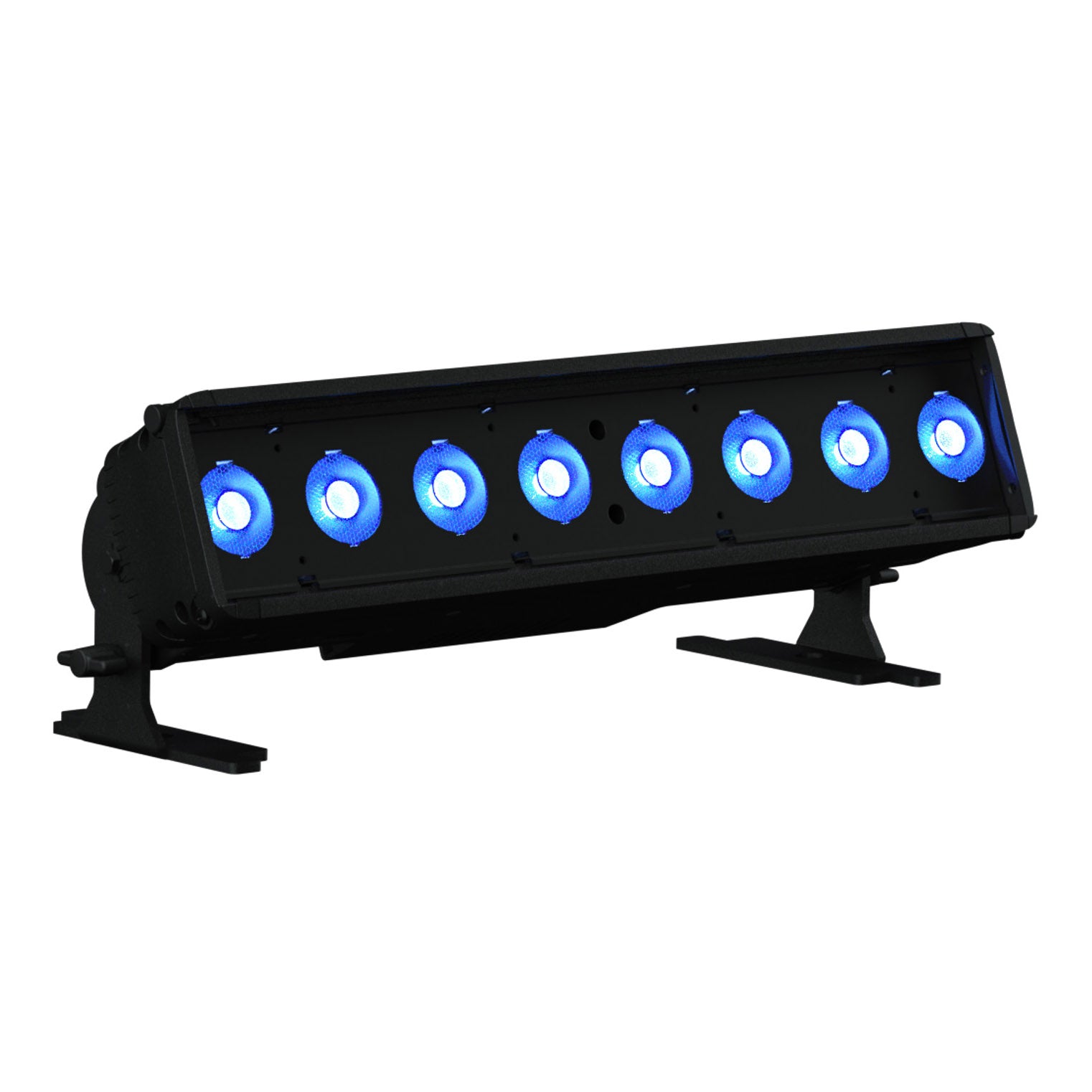

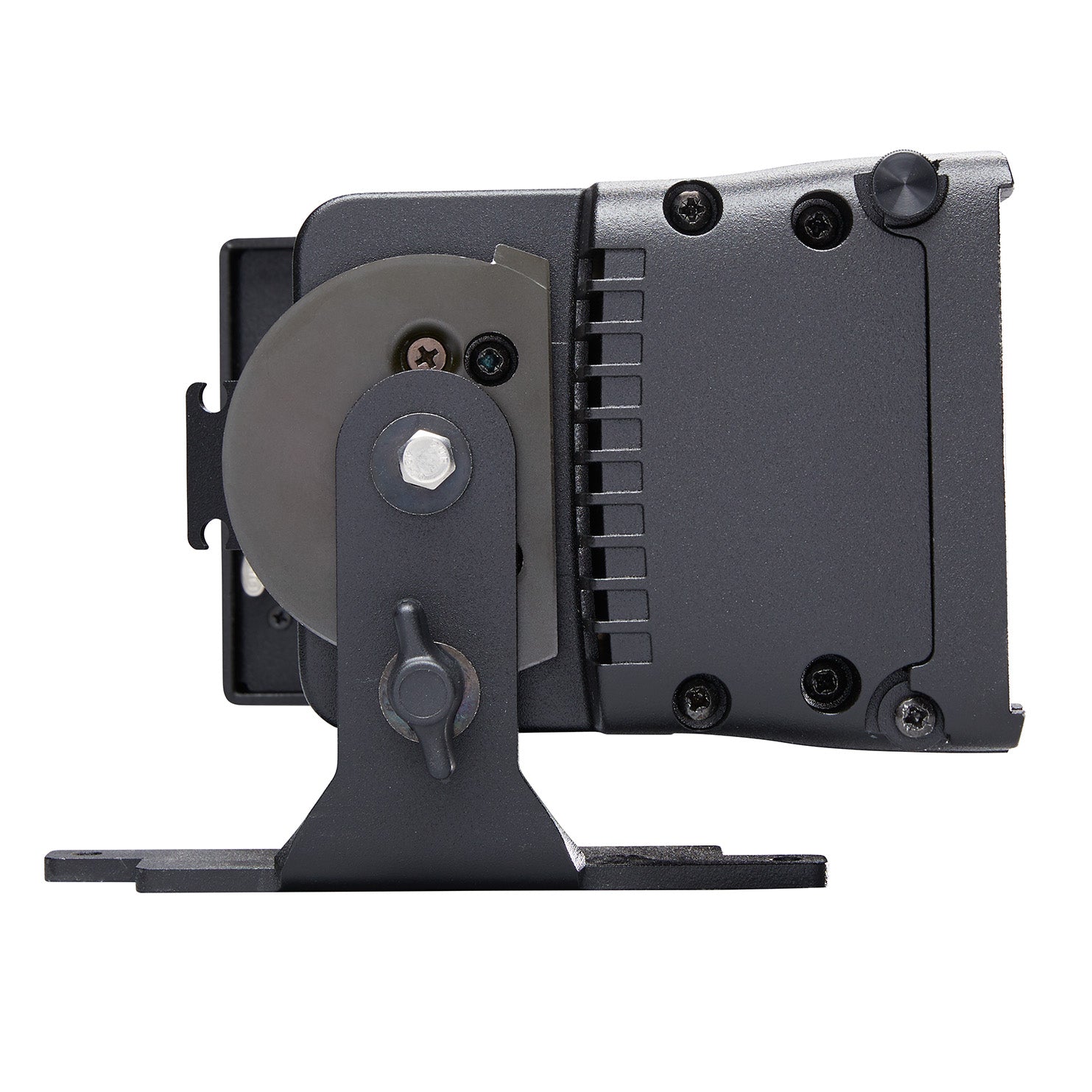

ETC ColorSource Linear 1 LED Wash Light | Color: White
ETC ColorSource Linear 1 LED Wash Light | Color: White
SoundPro Item: 126293 | Part Number: CSLINEAR1-1
Usually ships in 5-7 business days
- Homogenized optics

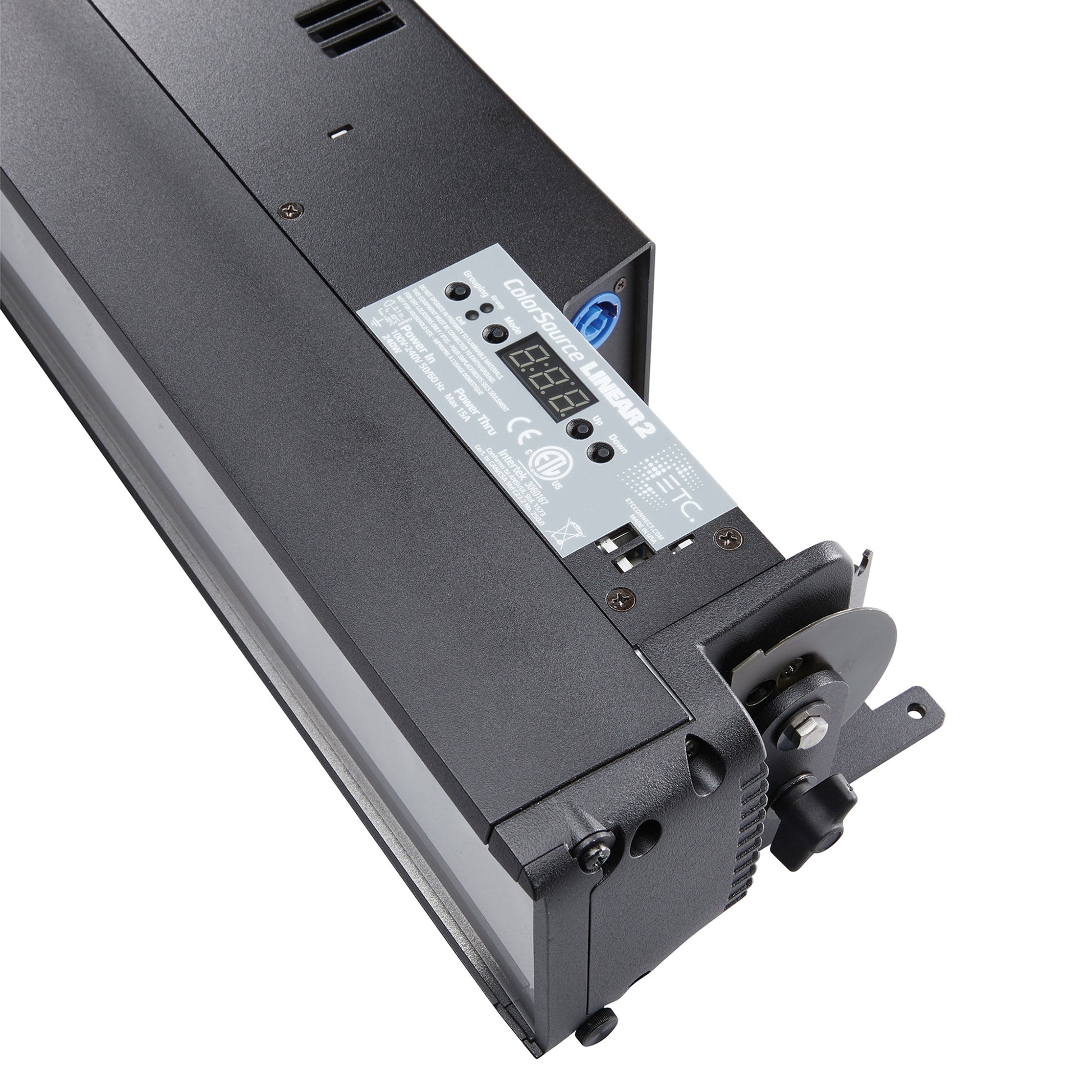

- Simple user interface with seven-segment display

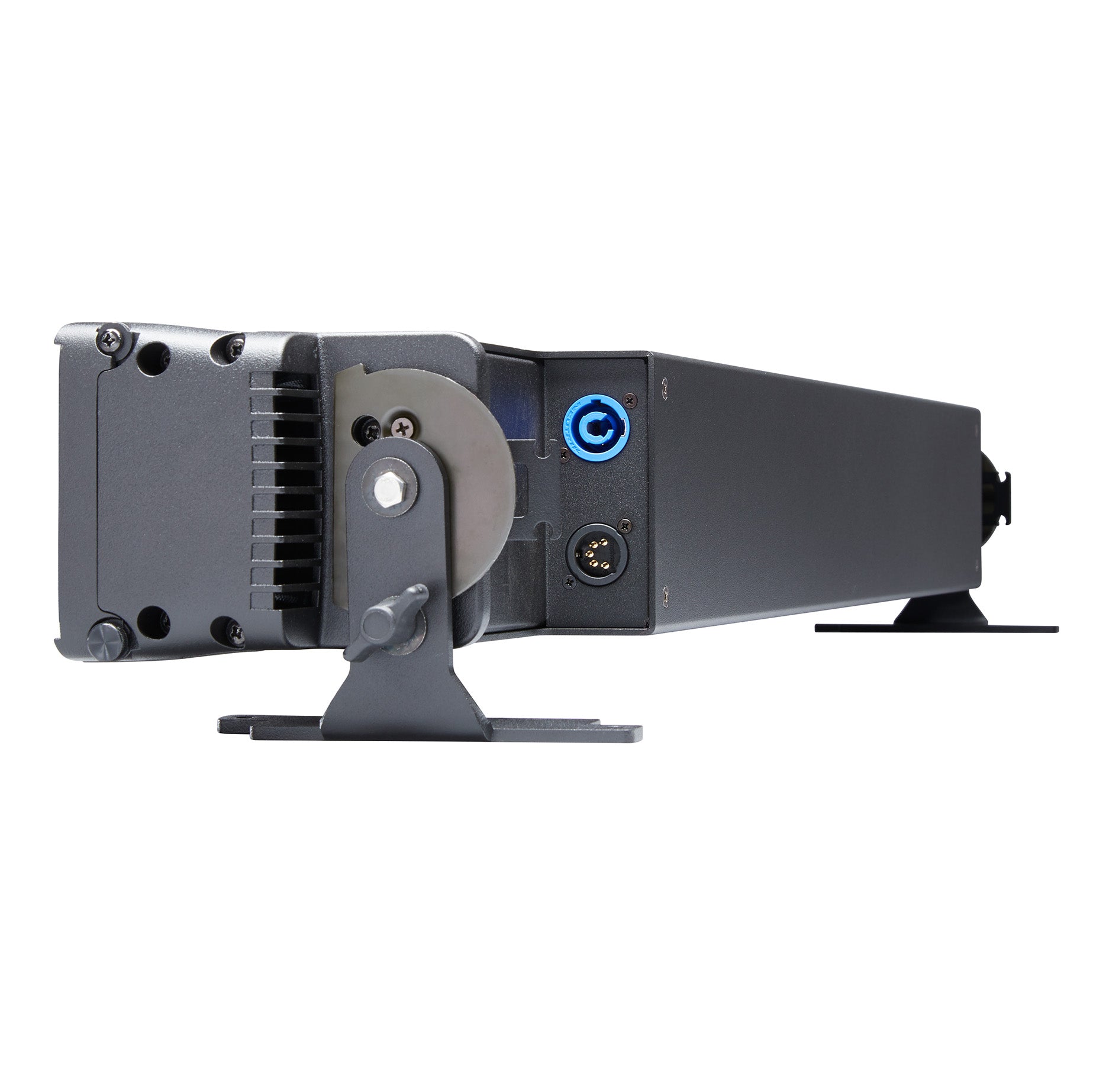

- powerCON® in and thru power connections
- DMX in and thru (5-pin XLR)
- RDM or local configuration
- LED droop compensation for consistent output
- Optically calibrated
- Tour-ready, aluminum housing
The Linear 1 LED Wash Light combines the bright, bold output of the ColorSource family with a sleek linear design to create a versatile and affordable strip light. Whether being used to create a stunning wash of light on your stage or a wall, the ColorSource Linear uses ETC’s unique RGB-L color system to provide beautiful LED lighting.
ColorSource Linear is a high-output, low profile strip light featuring the proven recipe of dual red, green, blue, and lime LEDs - the same mix as found in ColorSource PAR and ColorSource Spot. Unlike many effect-focused batten fixtures on the market, ColorSource Linear is designed for high-quality, high-output theatre-grade stage lighting.
Available in 0.5 meter, 1 meter, and 2 meter lengths, ColorSource Linear enables multiple fixtures to be mounted end to end with even spacing of their homogenized optics.
- Source
- LED details: 40 Lumileds LUXEON® Z LEDs (per segment)
- Max lumens: Linear 1: 3,039; Linear 1 DB: 2,978
- Lumens per watt: Linear 1: 28.1; Linear 1 DB: 27.6
- L70 rating (hours to 70% output): >55,000 hours
- Color
- Colors used: Linear 1: Red, green, blue, lime; Linear 1 DB: Red, green, indigo, lime
- Color temperature range: Color mixing fixture
- Calibrated array: Yes
- Red shift: No
- Optical
- Beam angle range: 15.6° (Secondary lenses available for multiple beam-spread options)
- Gate Size: 80mm
- Aperture size: 7.5 in / 190 mm
- Pattern projection: No
- Pattern size: NA
- Pattern size: NA
- Control
- Input method: DMX-512 via 5-pin XLR connector
- Protocols: DMX512, RDM
- RDM configuration: Yes
- UI type: 7-segment, 3-button interface
- Local control: Yes
- Onboard presets: Yes (12)
- Onboard sequences: Yes (5)
- Onboard effects: No
- Fixture-to-fixture control: Yes
- Notes: 15-bit virtual dimming engine
- Electrical
- Voltage range: 100-240 VAC; 50/60Hz
- Input method: powerCON in and thru
- Inrush (first half-cycle): 35A / 35.6A / 67.5A at 120V; 49A / 85.6A / 153A at 240V
- Fixtures per circuit: 9 cells (15 A power thru connector) or 10 cells (R20 module or similar)
- Wattage typical: 115W / 112W
- Current draw: 0.95A / 0.48A
- Thermal
- Ambient operating temp: 0°-40°C (32°-104°F)
- Fan (controllable): Yes (no)
- Droop compensation: Yes
- dB range: 24.8 dBA
- BTUs/hour (120V/240V): 392.38 / 382.14
- Physical
- Materials: Die-cast, all metal housing
- Color options: Black, white, silver, or custom color

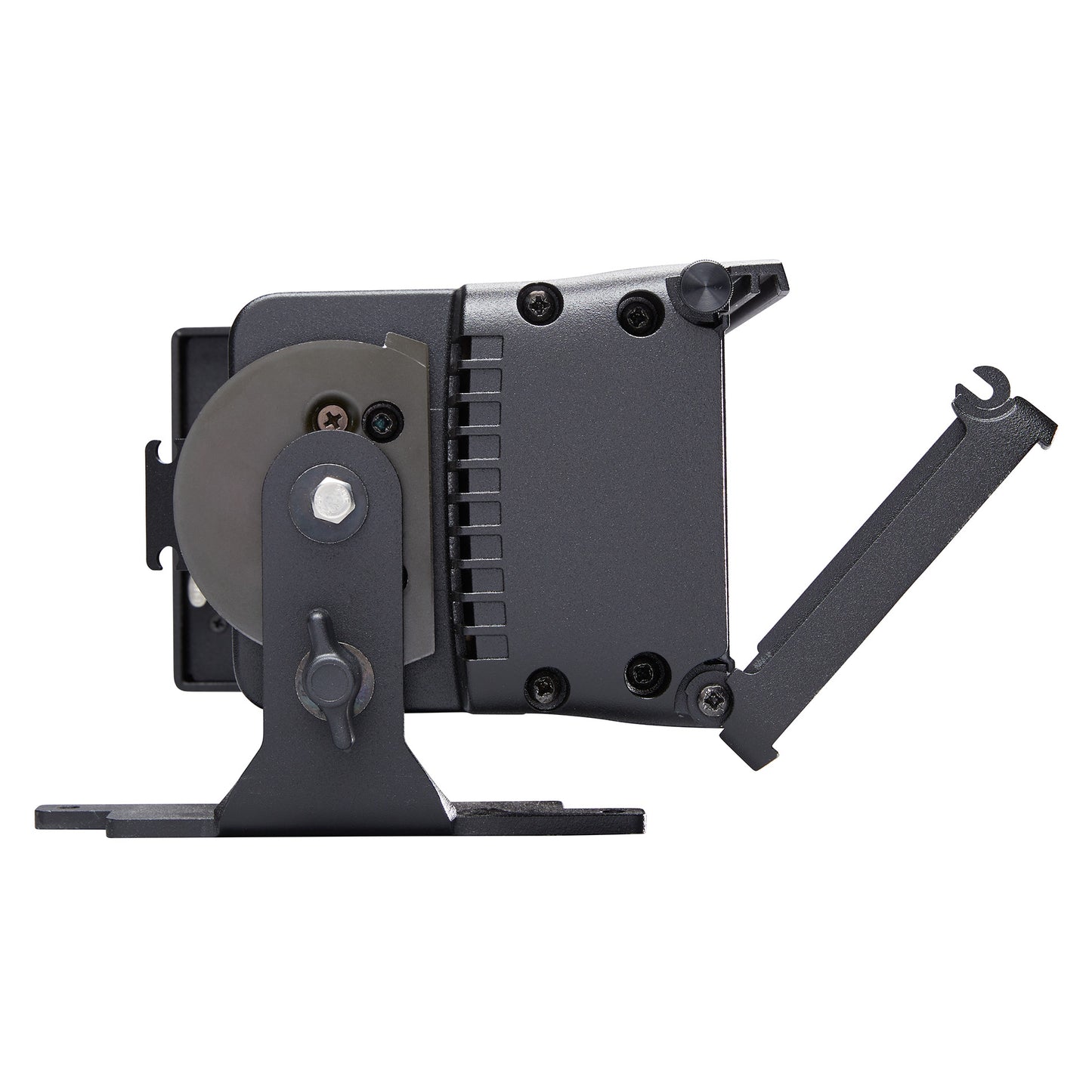

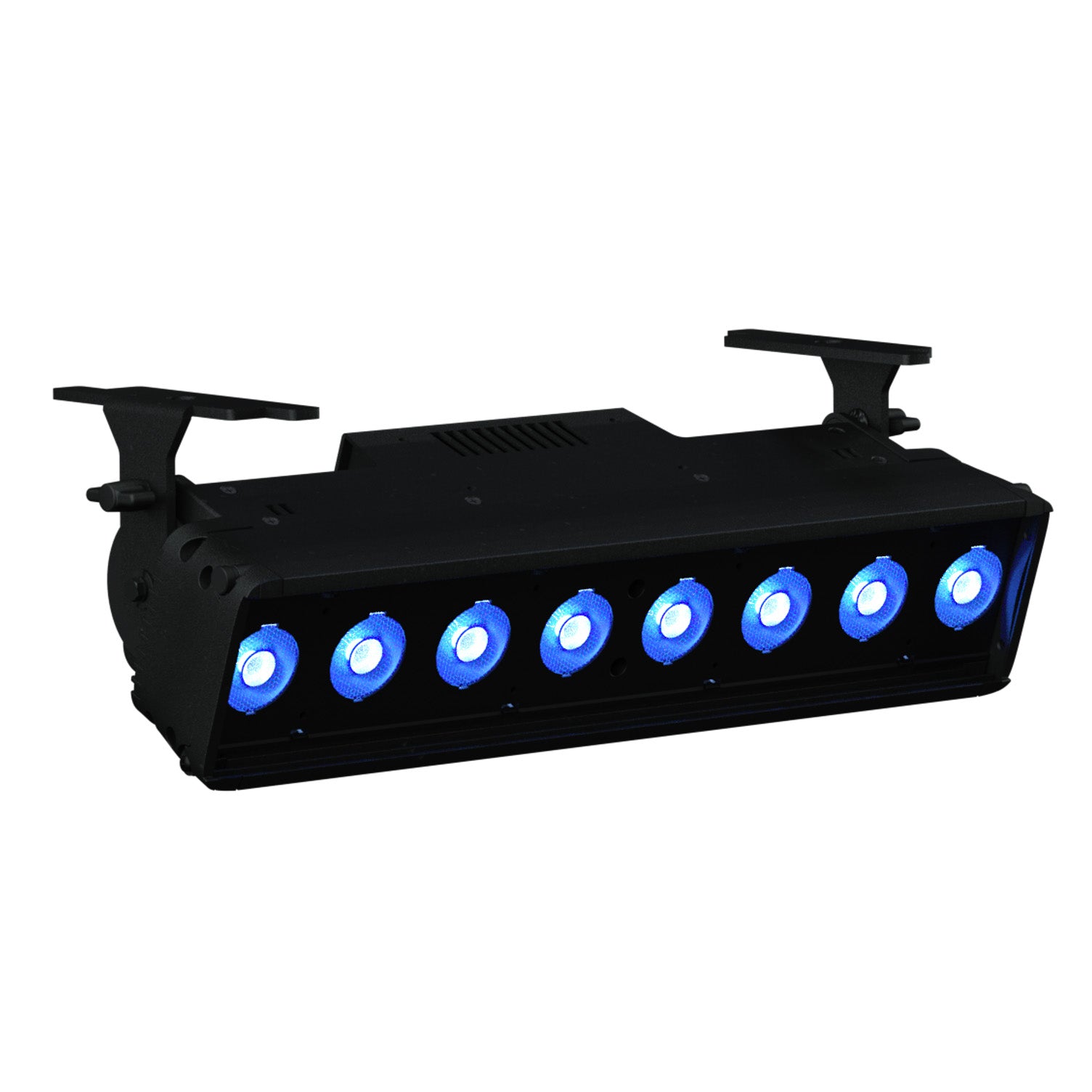

- Mounting options: Yoke (1 cell - optional), trunnions
- IP rating: IP20
- Weight: 5.1/9.2/17.1 kg (11.2/20.1/37.5 lbs)
- Warranty
- Fixture: 5 yrs
- LED array: 10 yrs
- Regulatory & Compliance
- Approved regulatory standards: cETLus Listed; Conforms to UL 1573; Certified to CSA C22.2 No. 166; CE Compliant; EAC Compliant
- Dimensions (LxWxH)6.04x19.61x4.29" 153x499x109mm)
