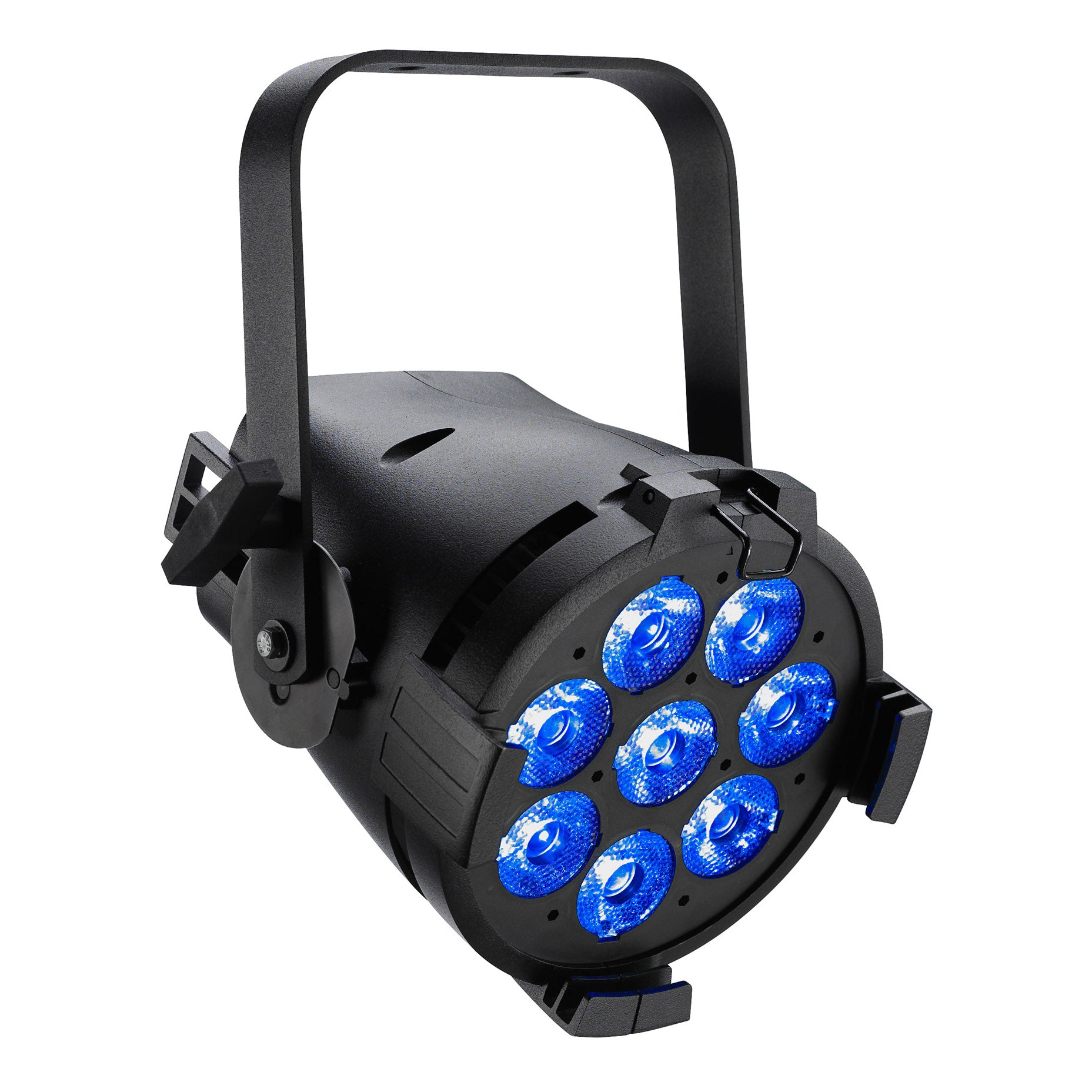

• ETC ColorSource PAR XLR

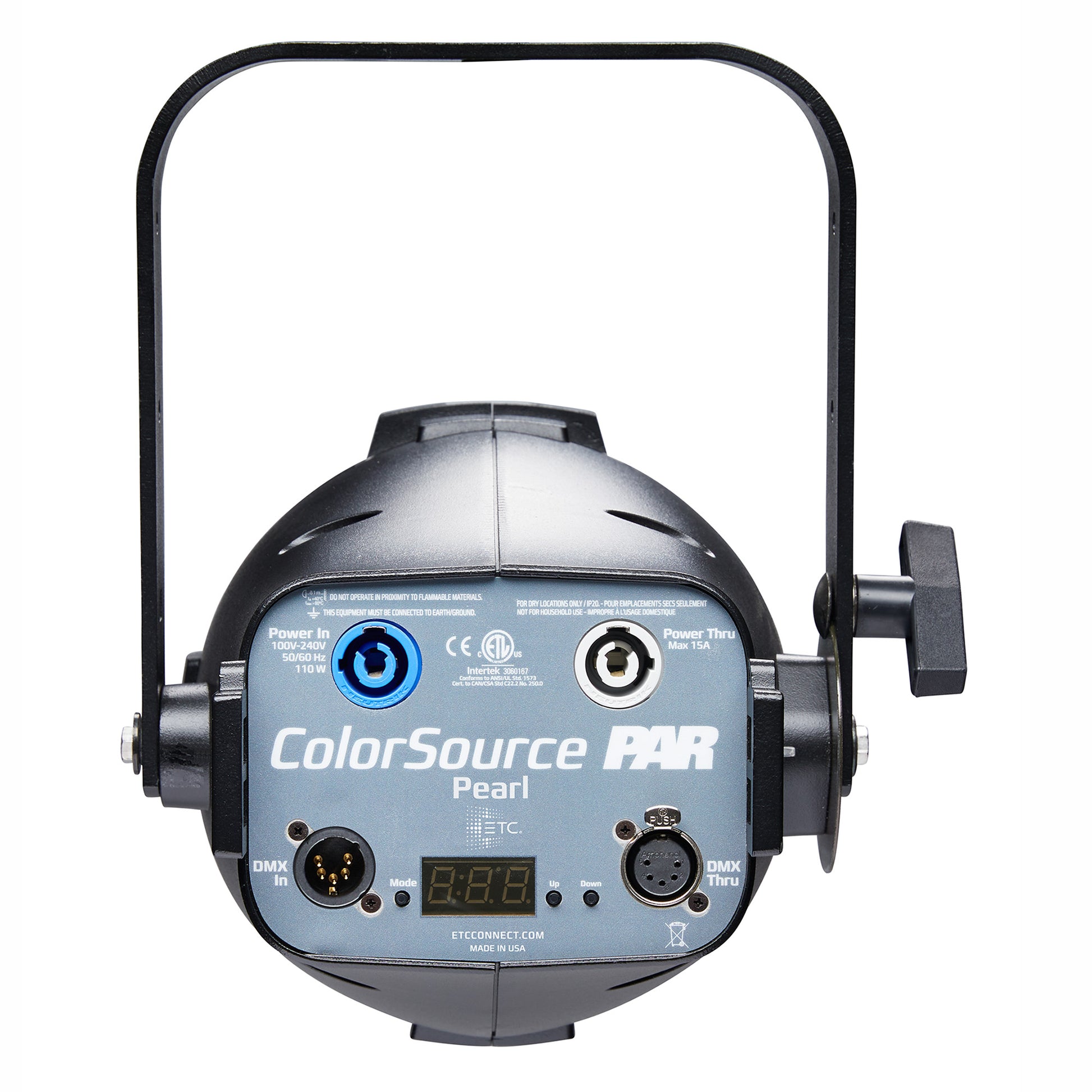

  • ETC ColorSource PAR XLR back

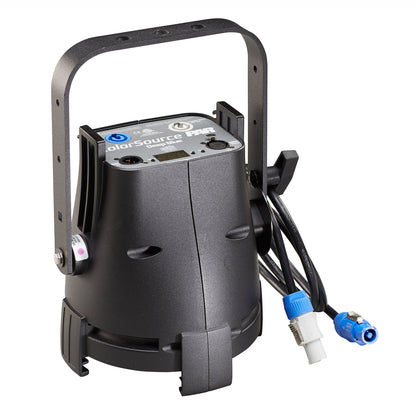

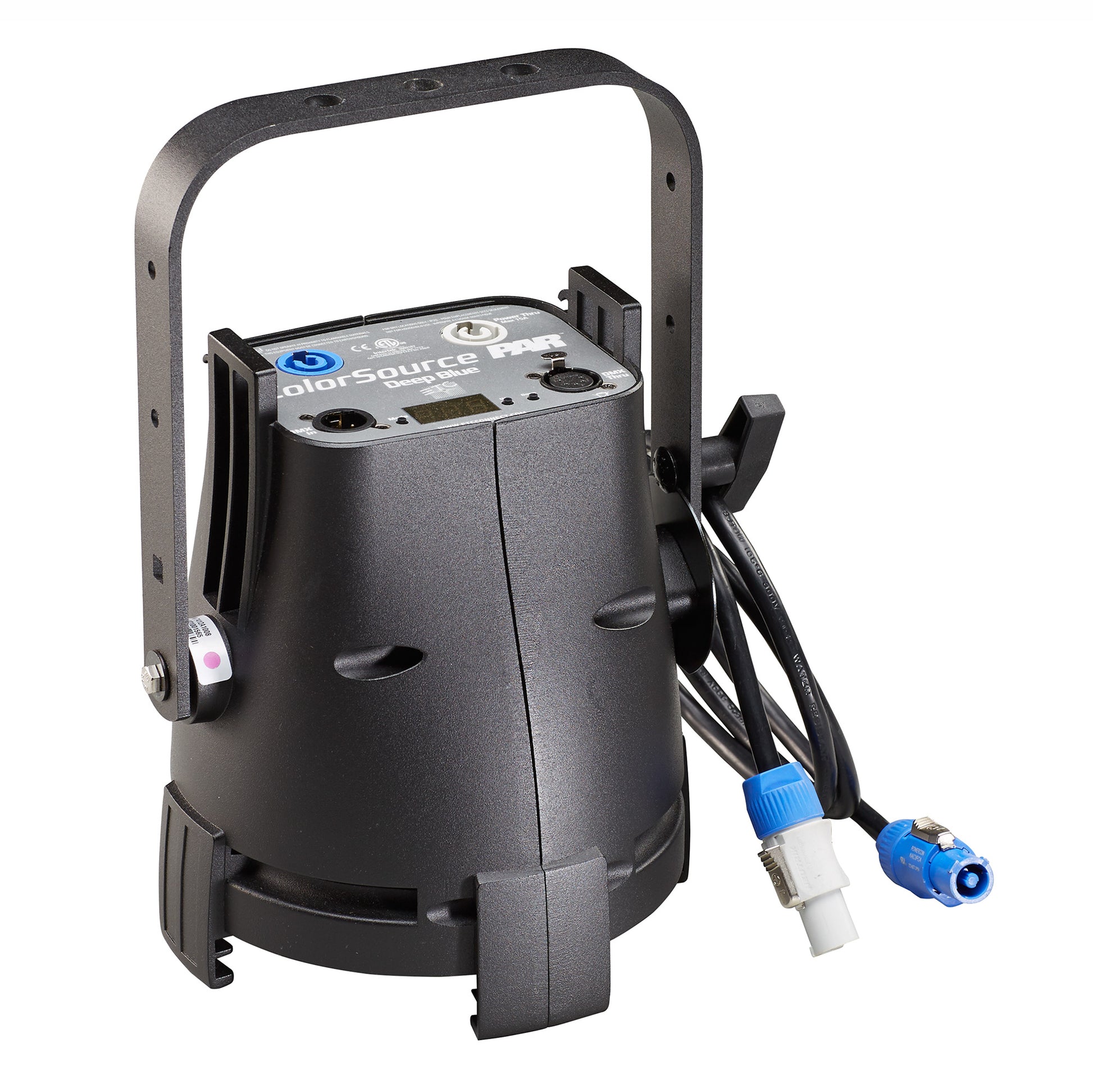

  • ETC ColorSource PAR XLR side

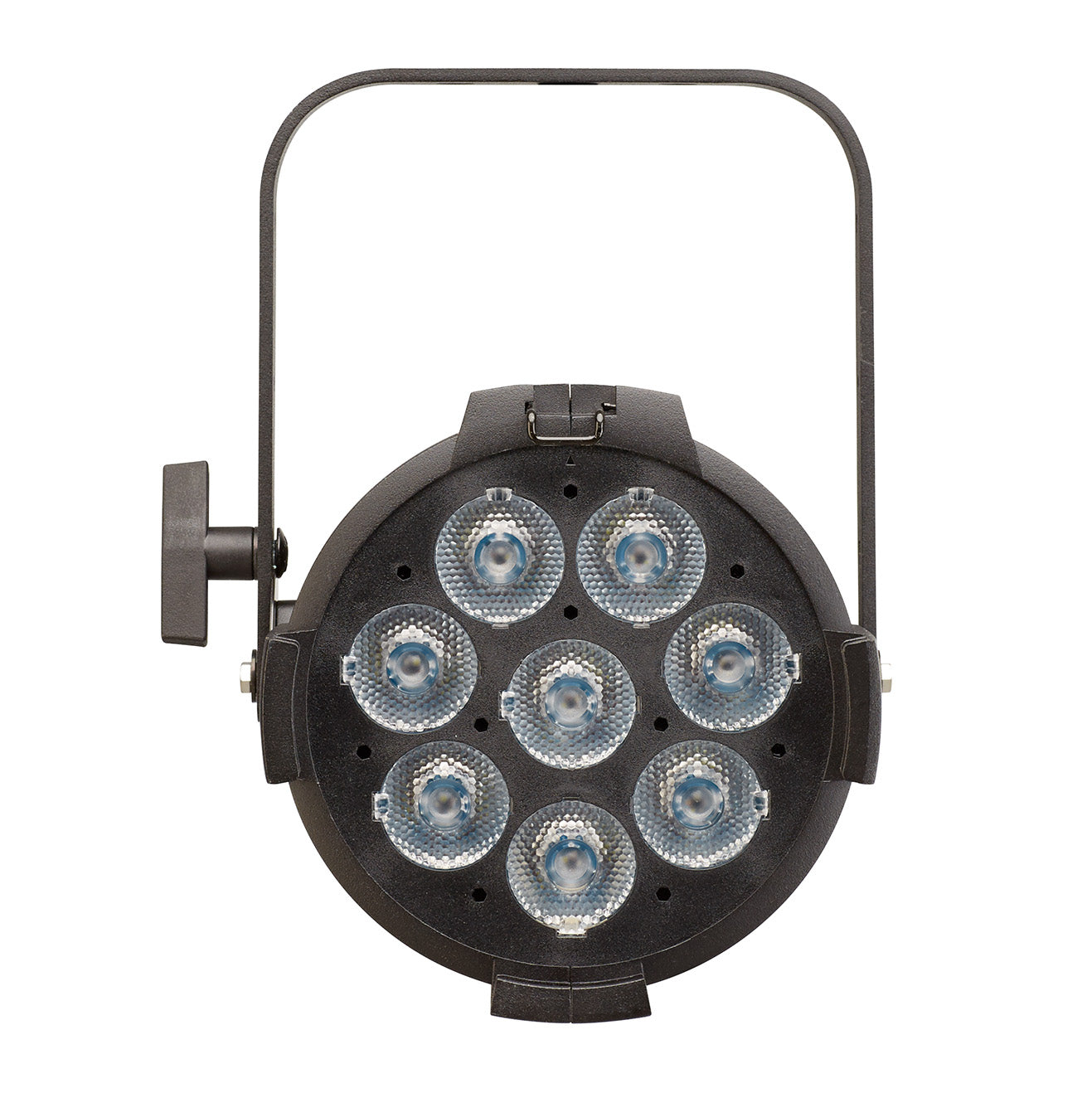

  • ETC ColorSource PAR XLR front

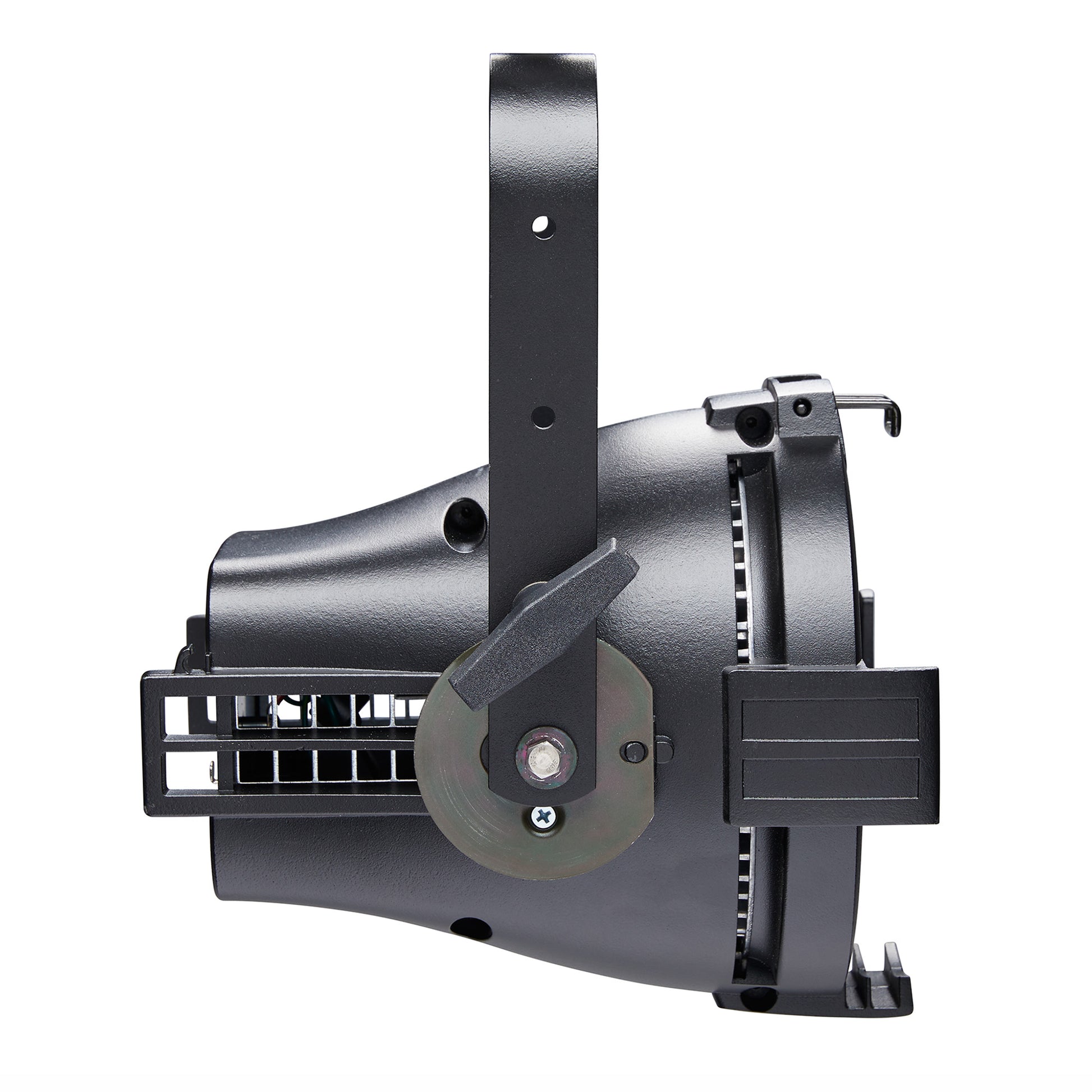

  • ETC ColorSource PAR XLR profile

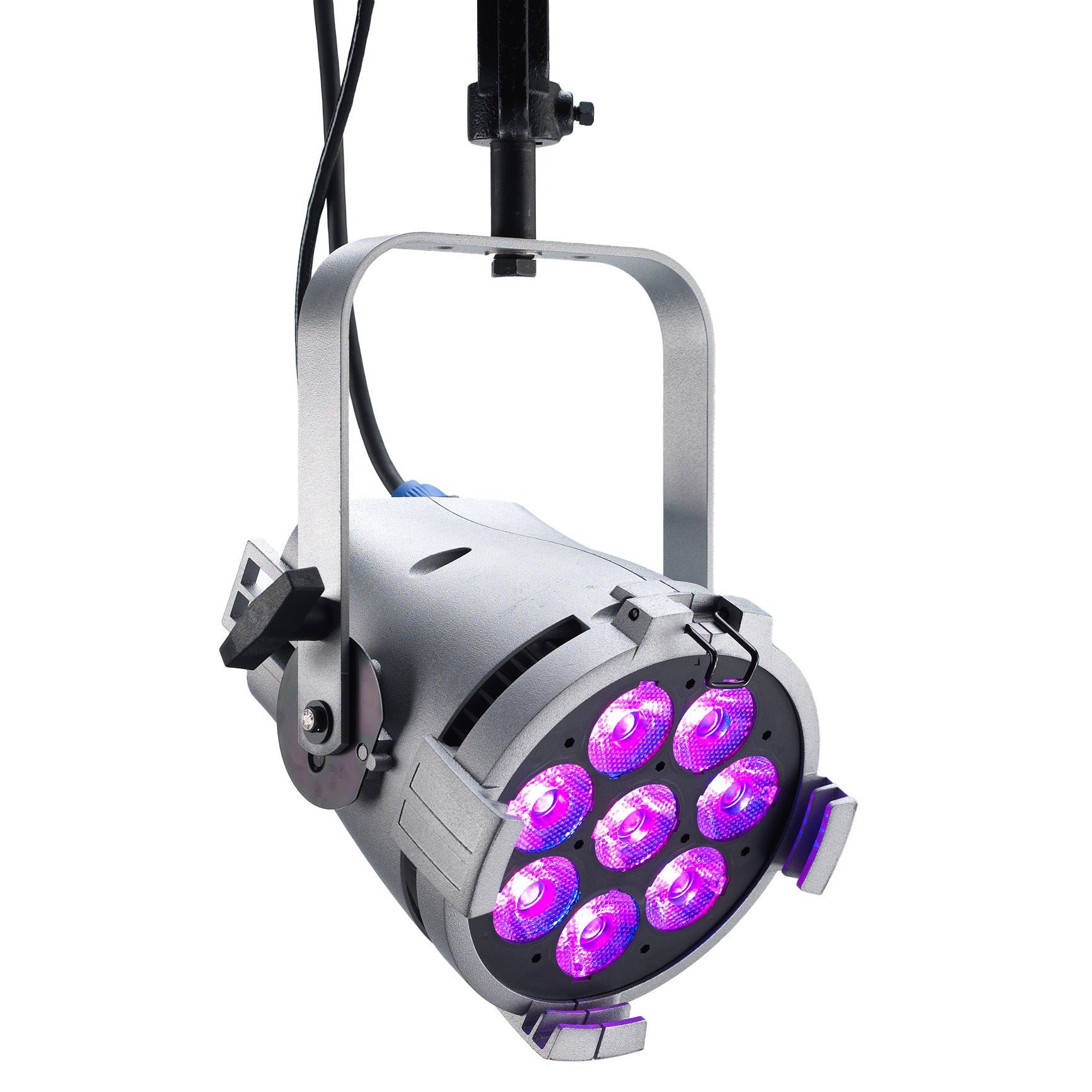

  • ETC ColorSource PAR XLR silver
1 6

ETC ColorSource PAR XLR | Color: White

ETC ColorSource PAR XLR | Color: White

SoundPro Item: 126284 | Part Number: CSPAR-1

$1,195.00
$1,195.00 $1,195.00
Your Price Sold out
MSRP: $1,195.00 | MAP: $1,195.00

Usually ships in 5-7 business days

  • Available in black, white, and silver finishes (white not pictured)
  • Homogenized optics
  • Simple user interface with seven-segment display
  • powerCON® in and thru
  • 5-pin XLR
  • LED droop compensation
  • Optically calibrated
  • Tour-ready, aluminum housing
Log in or register for YOUR best price

An LED luminaire crafted by lighting experts, the ColorSource PAR uses a balanced recipe of red, green, blue, a twist of lime, and an extra dash of red to provide a richness of color only possible from ETC LED luminaires. The extremely lightweight ColorSource PAR outputs bright, beautiful light, is easy to use with or without a lighting desk and lives up to ETC's high standards for quality.

ColorSource luminaires are factory-calibrated to ensure consistency. They feature a four-color mixing system offering bright, vibrant colors and perfectly-mixed pastels.

The thermal management algorithms built into every ColorSource fixture ensure that the colors you choose in rehearsal are the colors you get during the show.

View full details
  • Source
    • LED details: 40 Lumileds LUXEON® Z LED
    • Max lumens: 3,039
    • Lumens per watt: 28.1
    • L70 rating (hours to 70% output)*: 55,000 hours
  • Color
    • Colors used: red, green, blue, lime
    • Color temperature range: Color mixing
    • Calibrated array: Yes
    • Red shift: No
  • Optical
    • Beam angle range 15.3° (secondary lenses available for multiple beam-spread options)
    • Gate size: N/A
    • Aperture size: 7.5 in / 190 mm
    • Pattern projection: No
    • Pattern size: N/A
    • Camera flicker control/Hz range: 1,200 Hz (default) ; 25,000 Hz (via RDM)
  • Control
    • Input method DMX512 via 5-pin XLR connector
    • Protocols DMX512/RDM
    • Modes (footprint) 4 modes, see page 7
    • RDM configuration Yes
    • UI type Seven-segment, three-button interface
    • Local control Yes
    • Onboard presets Yes (12)
    • Onboard sequences Yes (5)
    • Onboard effects No
    • Fixture-to-fixture control Yes
    • Notes 15-bit virtual dimming engine
  • Electrical
    • Voltage range 100-240 VAC 50/60 Hz
    • Input method powerCON power in and thru
    • Inrush
      • 35A at 120V (First half-cycle)
      • 49A at 240V (First half-cycle)
    • Fixtures per circuit* (All measurements are for 120V, 60 Hz. Results may vary in different regions.)
      • 9 (15 A power thru connector)
      • 10 (R20 module or similar)
    • Wattage typical
      • 90W at 120V
      • 89W at 240V
    • Current draw
      • 0.75A at 120V
      • 0.40A at 240V
  • Thermal
    • Ambient operating temp: 0°-40°C (32°-104°F)
    • Fan (controllable): Yes (No)
    • Droop compensation: Yes
    • dB range: 24.8 dBA average at 1 m
    • BTUs/hour (RGB-L / DB): 307 / 303
  • Physical
    • Materials: Die-cast, all metal housing
    • Color options: Black, white, silver, or custom color
    • Mounting options: Yoke, floor stand yoke (available as an accessory)
    • IP rating: IP20
    • Weight: 3.77 kg (8.3 lbs)
    • User interface: Seven-segment, three-button interface
  • Warranty
    • Fixture 5 years
    • LED array 10 years
  • Regulatory and Compliance: Approved regulatory standards
    • cETLus Listed
    • Conforms to UL 1573 Listed
    • Conforms to UL 924 Listed
    • Certified to CSA C22.2 No. 166 Listed
    • Certified to CSA C22.2 No. 141 Listed
    • CE Compliant
    • EAC Compliant
  • Dimensions (HxWxD)12.2x7.98x9.45" (310x203x240mm)
  • Weight8.3 lbs (3.8kg)
  • Shipping Weight10.1 lbs (4.6kg)
