ETC CSSPOTVMV ColorSource Spot V LED Spot Light With Wireless DMX | Black

ETC CSSPOTVMV ColorSource Spot V LED Spot Light With Wireless DMX | Black

SoundPro Item: 145009 | Part Number: CSSPOTVMV

$1,995.00
$1,995.00 $1,995.00
Your Price Sold out
MSRP: $1,995.00 | MAP: $1,995.00

Usually ships in 5-7 business days

  • Five-Color Mixing Supports Pastels And Saturates
  • Wireless DMX/RDM Helps Reduce Cable Runs
  • NFC Setup Speeds Mobile Configuration
  • Source Four Lens Compatibility Adds Flexibility
  • Local Presets Support Fast Onsite Recall
  • All-Metal Housing Suits Professional Use
Log in or register for YOUR best price

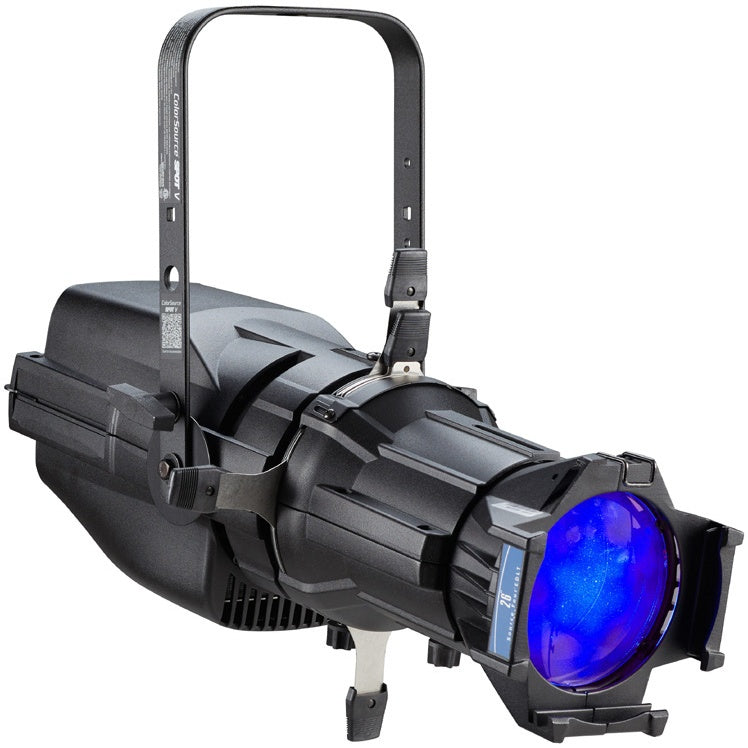

ETC ColorSource Spot V is a professional LED spot luminaire designed for venues that need flexible color mixing, strong output, and practical system integration. Its five-color array combines red, green, blue, indigo, and lime to deliver both soft pastel looks and saturated stage color from a single fixture. For theatres, houses of worship, schools, hospitality spaces, retail environments, and multipurpose rooms, it supports a wide range of front light, pattern projection, and accent applications.

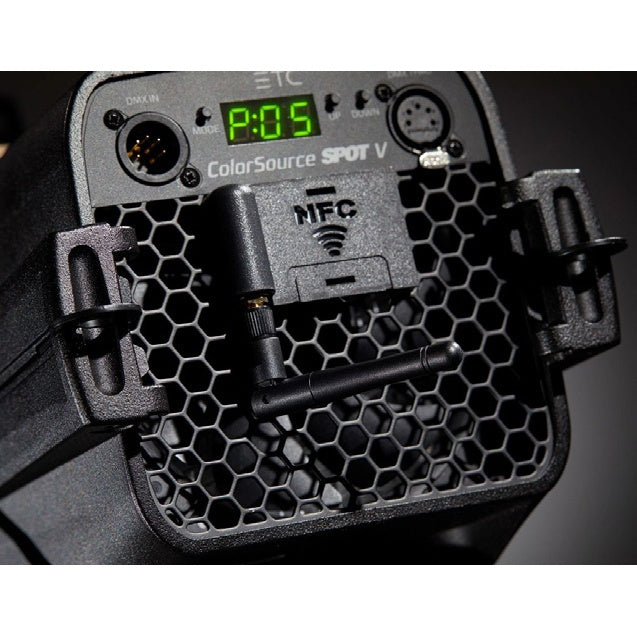

This version includes Multiverse wireless DMX/RDM capability for installations or temporary setups where cable runs need to be minimized, while standard 5-pin XLR DMX/RDM connectivity remains available for wired control. NFC configuration from a mobile device adds another setup option, and the seven-segment interface supports local access when crews need quick adjustments on site. Compatibility with Source Four lens tubes and accessories helps designers and technicians integrate the fixture into existing inventories while selecting beam angles to suit the room and throw distance.

Built with a die-cast all-metal housing and yoke mounting, the ColorSource Spot V is intended for professional use in performance and architectural environments. It also includes a hanging yoke, 1.5 m power cable, and a soft-focus diffuser in an A-size gobo holder.

Downloads

View full details

Specifications

Source
LED Details
60 Lumileds LUXEON C and LUXEON Rebel LEDs
Max Lumens
9,498
Lumens Per Watt
48
L70 Rating
54,000 hours
Color
Colors Used
Red, green, blue, indigo, lime
Color Temperature Range
Color mixing
Calibrated Array
Yes
Red Shift
No
Optical
Beam Angle Range
Swappable lens tubes, 5–90 degrees
Gate Size
80 mm
Aperture Size
6.25–14 in (depending on lens tube)
Pattern Projection
Yes
Pattern Size
A or B
Camera Flicker Control/Hz Range
5,000 Hz (default) and 25,000 Hz (via RDM)
Notes
Can be used with LED CYC and Fresnel adapters
Control
Input Method
DMX512 via 5-pin XLR connector
Protocols
DMX512/RDM
Modes (Footprint)
5 modes
RDM Configuration
Yes
UI Type
Seven-segment, three-button interface
Local Control
Yes
Onboard Presets
Yes (12)
Onboard Sequences
Yes (5)
Onboard Effects
No
FixtureLink
Yes
Notes
15-bit virtual dimming engine
Wireless
Band
2.400–2.480 GHz
Range
100 m indoors, 500 m line of sight (subject to conditions)
Max Receivers
DMX: No limit / RDM: Varies / Multiverse SHoW Baby: 585 / Multiverse Transmitter: 5,000
Broadcast Power
100 mW
Electrical
Voltage Range
100–240 VAC 50/60 Hz
Input Method
powerCON TRUE1 TOP power in and thru
Inrush
55 A at 120 V (first half-cycle); 59 A at 240 V (first half-cycle)
Fixtures Per Circuit
8 fixtures (R20 module or similar)
Wattage Typical / Standby
199 W / 2 W at 100 V; 197 W / 2 W at 120 V; 194 W / 2 W at 240 V
Current Draw Typical / Standby
2 A / 0.07 A at 100 V; 1.65 A / 0.08 A at 120 V; 0.90 A / 0.10 A at 240 V
Thermal
Ambient Operating Temp
0°C to 40°C (32°F to 104°F)
Fan (Controllable)
Yes

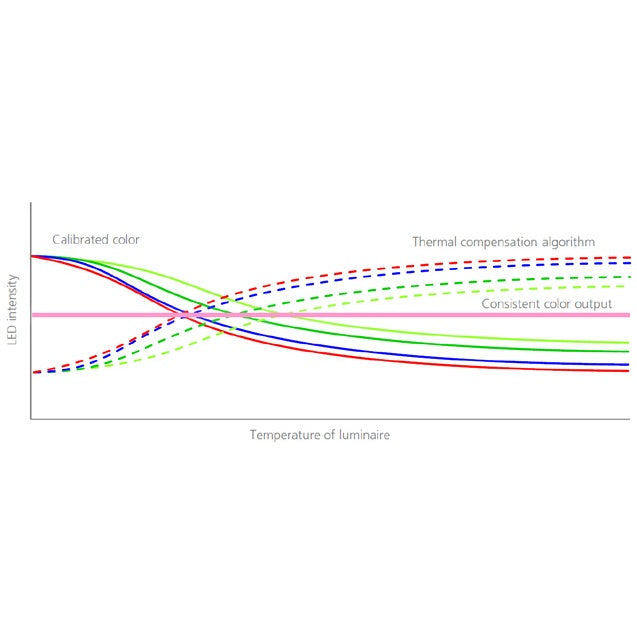

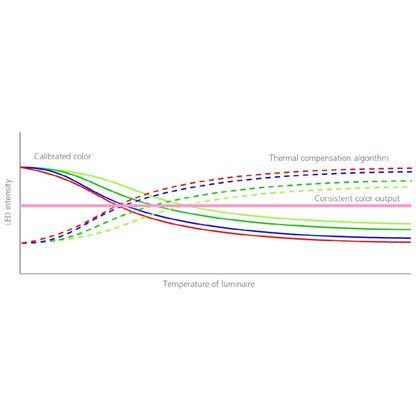

Droop Compensation
Yes
dB Range
24.4 dBA average at 1 m
BTUs/Hour
672
Physical
Materials
Die-cast, all metal housing
Color Options
Black, white, silver, or custom color
Mounting Options
Yoke
IP Rating
IP20
Weight
7.7 kg (17 lb) (without lens)
Included Accessories
Hanging yoke, 1.5 m power cable, soft-focus diffuser in an A-size gobo holder
Warranty
Fixture
5 years
LED Array
10 years
Regulatory And Compliance
Approved Regulatory Standards
cETLus Listed; Conforms to UL 1598 Listed; Conforms to UL 924 Listed; Certified to CSA C22.2 No. 250 Listed; Certified to CSA C22.2 No. 141 Listed; CE, UKCA, RCM, and CCC Compliant
