ETC CSSPOTVMVS-1 ColorSource Spot V LED Spot Light With Wireless DMX | White

ETC CSSPOTVMVS-1 ColorSource Spot V LED Spot Light With Wireless DMX | White

SoundPro Item: 151278 | Part Number: CSSPOTVMVS-1

$2,140.00
$2,140.00 $2,140.00
Your Price Sold out
MSRP: $2,140.00 | MAP: $2,140.00

Usually ships in 5-7 business days

  • Five-Color Mixing Delivers Pastels And Saturated Looks
  • Wireless DMX/RDM Expands Installation Flexibility
  • NFC Setup Simplifies Mobile Configuration Tasks
  • Source Four Compatibility Supports Existing Inventories
  • Optical Calibration Helps Maintain Consistent Output
  • All-Metal Housing Supports Long-Term Reliability
Log in or register for YOUR best price

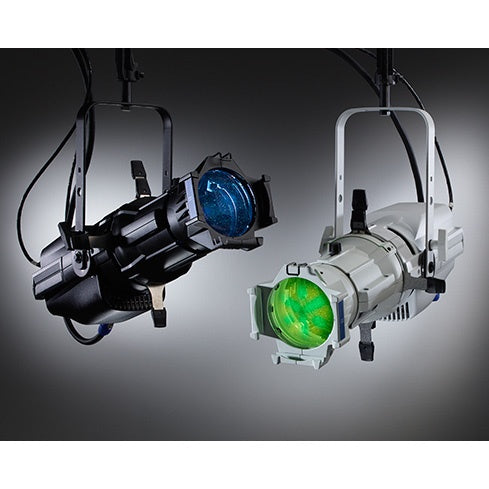

The ETC CSSPOTVMVS-1 ColorSource Spot V is a professional LED spot light designed for venues that need flexible color, modern control options, and dependable output in a familiar fixture format. Its five-color array combines red, green, blue, indigo, and lime LEDs to deliver both soft pastel looks and saturated color from a single luminaire. For installation and production teams working across theatres, worship spaces, schools, hospitality environments, retail, and meeting rooms, it offers a practical balance of performance and system integration.

This fixture supports DMX512 and RDM through 5-pin XLR connections and also adds Multiverse wireless DMX/RDM for cable-free deployment where appropriate. NFC configuration allows setup from a mobile device, while the seven-segment display and three-button interface provide straightforward local access. The optical platform is built to work with the full range of Source Four lens tubes and accessories, helping users adapt beam angles and projection needs without changing fixture families.

With optically calibrated output, LED droop compensation, onboard presets, and a die-cast all-metal housing, the ColorSource Spot V is suited to applications that value repeatable performance and long-term serviceability. Included accessories support immediate deployment, making it a strong choice for fixed installs and event spaces that want versatile LED spotlighting with ETC control ecosystem support.

Downloads

View full details

Specifications

Source
LED details
60 Lumileds LUXEON C and LUXEON Rebel LEDs
Max lumens
9,498
Lumens per watt
48
L70 rating (hours to 70% output)
54,000 hours
Color
Colors used
Red, green, blue, indigo, lime
Color temperature range
Color mixing
Calibrated array
Yes
Red shift
No
Optical
Beam angle range
Swappable lens tubes, 5–90 degrees
Gate size
80 mm
Aperture size
6.25–14 in (depending on lens tube)
Pattern projection
Yes
Pattern size
A or B
Camera flicker control/Hz range
5,000 Hz (default) and 25,000 Hz (via RDM)
Notes
Can be used with LED CYC and Fresnel adapters
Control
Input method
DMX512 via 5-pin XLR connector
Protocols
DMX512/RDM
Modes (footprint)
5 modes
RDM configuration
Yes
UI type
Seven-segment, three-button interface
Local control
Yes
Onboard presets
Yes (12)
Onboard sequences
Yes (5)
Onboard effects
No
FixtureLink
Yes
Notes
15-bit virtual dimming engine
Wireless
Band
2.400–2.480 GHz
Range
100 m indoors, 500 m line of sight (subject to conditions)
Max receivers
DMX: No limit / RDM: Varies / Multiverse SHoW Baby: 585 / Multiverse Transmitter: 5,000
Broadcast power
100 mW
Electrical
Voltage range
100–240 VAC 50/60 Hz
Input method
powerCON TRUE1 TOP power in and thru
Inrush
55 A at 120 V (first half-cycle); 59 A at 240 V (first half-cycle)
Fixtures per circuit
8 fixtures (R20 module or similar)
Wattage typical / standby
199 W / 2 W at 100 V; 197 W / 2 W at 120 V; 194 W / 2 W at 240 V
Current draw typical / standby
2 A / 0.07 A at 100 V; 1.65 A / 0.08 A at 120 V; 0.90 A / 0.10 A at 240 V
Thermal
Ambient operating temp
0°C to 40°C (32°F to 104°F)
Fan (controllable)
Yes (yes)

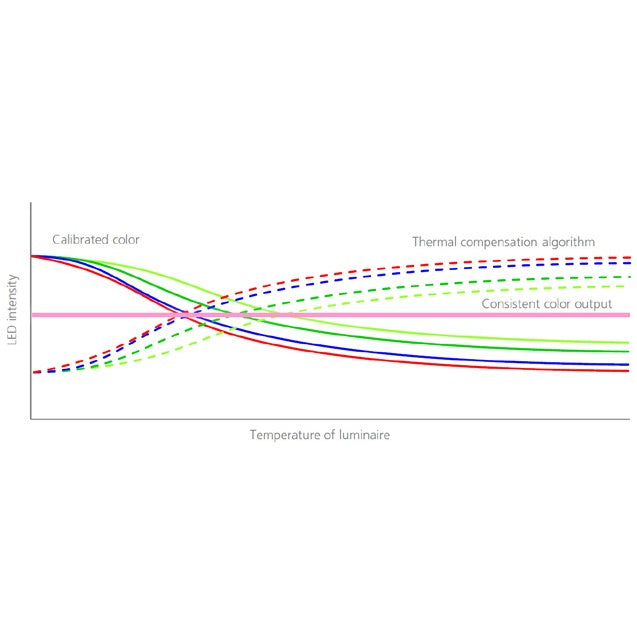

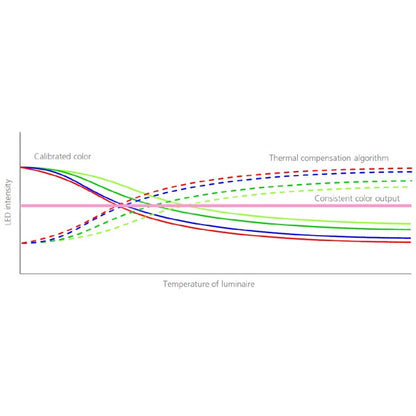

Droop compensation
Yes
dB range
24.4 dBA average at 1 m
BTUs/hour
672
Physical
Materials
Die-cast, all metal housing
Color options
Black, white, silver, or custom color
Mounting options
Yoke
IP rating
IP20
Weight
7.7 kg (17 lb) (without lens)
Included accessories
Hanging yoke, 1.5 m power cable, soft-focus diffuser in an A-size gobo holder
Warranty
Fixture
5 years
LED array
10 years
Regulatory And Compliance
Approved regulatory standards
cETLus Listed; Conforms to UL 1598 Listed; Conforms to UL 924 Listed; Certified to CSA C22.2 No. 250 Listed; Certified to CSA C22.2 No. 141 Listed; CE, UKCA, RCM, and CCC Compliant
