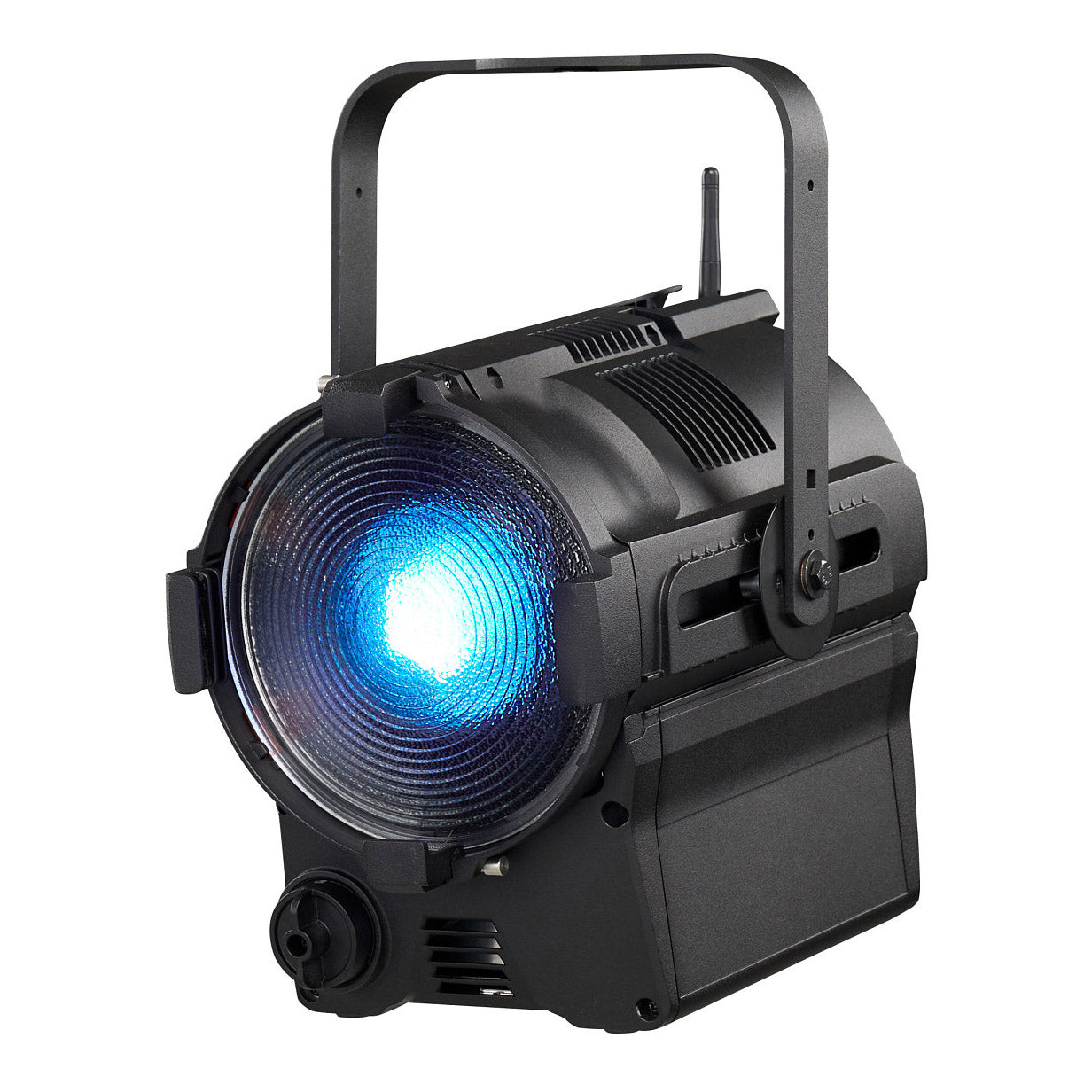

ETC Desire Fresnel | Color: White
ETC Desire Fresnel | Color: White
SoundPro Item: 125967 | Part Number: DFL7-1
Usually ships in 5-7 business days
- Available in black, white, and silver finishes (only black pictured)
- Lustr X8 full-color array
- 7 in glass Fresnel lens aperture
- Smooth wash
- 13-55 degree zoom range
- Multiverse wireless DMX control
- Intuitive user interface
- Mobile app setup with NFC
- Standard 5/10 year LED fixture warranty
- Over 6,100 lumens
Enjoy the best of classic Fresnels paired with modern technology. The Desire Fresnel from ETC is designed to be your new favorite wash light.
Fresnels have been around since the beginning of lighting design. These incandescent workhorse fixtures were known for their smooth wash and adjustable zoom. Combining all of the best features of incandescent Fresnels with the latest technology of LEDs, is a classic reimagined in Desire Fresnel.
- Source
- LED details: Lumileds LUXEON® C
- Max lumens: 6176
- Lumens per watt: 54
- L70 rating (hours to 70% output): >54,000 hours
- Color
- Colors used: Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo
- Color temperature range: 1900-10450K
- Calibrated array: Yes
- Red shift: Yes (selectable)
- Optical
- Beam angle range: 13-55°
- Gate Size: 80mm
- Aperture size: 178 mm (7 in)
- Pattern projection: No
- Pattern size: NA
- Camera flicker control/Hz range: Yes: 5 kHz, 25 kHz
- Control
- Input method: 5-Pin XLR, Multiverse wireless and NFC
- Protocols: DMX-512, RDM, City Theatrical Multiverse, NFC
- RDM configuration: Yes
- UI type: Full color display
- Local control: Yes
- Onboard presets: Yes
- Onboard sequences: Yes
- Onboard effects: Yes (12)
- FixtureLink: Yes
- Electrical
- Voltage range: 100-230 VAC
- Input method: AC via powerCON® TRUE1® TOP
- Inrush: 120V: 28A (first half-cycle); 230V: 46A (first half-cycle)
- Fixtures per circuit: 9 (link up to 8 via Power Thru connector); Note: TRUE1 connector rated for 20 A (120 V / 60 Hz) and 16 A (230 V / 50 Hz)
- Wattage typical: 120V: 138W; 230V: 132W
- Current draw: 120V: 1.2A; 230V: 0.6A
- Thermal
- Ambient operating temp: 0°-40°C (32°-104°F)
- Fan (controllable): Yes (yes)
- Droop compensation: Yes
- dB range: 8.4-37.7 dBA
- BTUs/hour: 606
- Physical
- Materials: Die-cast, all metal housing
- Color options: Black, white, silver, or custom color
- Mounting options: Yoke
- IP rating: IP20
- Weight: With barrel: 8.3 kg (18.3 lbs); Without barrel: 6.5 kg (14.3 lbs)
- Warranty
- Fixture: 5 yrs
- LED array: 10 yrs
- Regulatory & Compliance
- Approved regulatory standards: cETLus Listed; CE Compliant; FCC Compliant
- Wireless
- Band: 2.400-2.480 GHz
- Range: 100m indoors, 500m line of sight (subject to conditions)
- Max receivers: DMX: No limit; RDM: Varies by transmitter used; Multiverse SHoW Baby®: 585; Multiverse Transmitter: 5,000
- Broadcast power: 100 mW
- Dimensions (LxWxH)14x11.95x17.91" (356x304x455mm)
