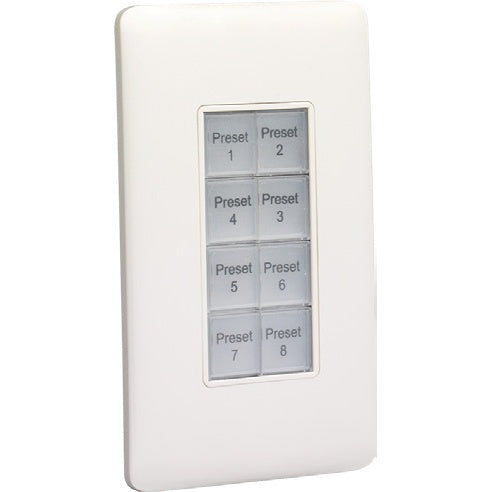

ETC E1008-5 Echo Inspire Button Station | 8-Button | White

ETC E1008-5 Echo Inspire Button Station | 8-Button | White

SoundPro Item: 145566 | Part Number: E1008-5

$260.00
$260.00 $260.00
Your Price Sold out
MSRP: $260.00 | MAP: $260.00

Usually ships in 5-7 business days

  • Supports Preset And Zone Control For Flexible Operation
  • Rear-Lit Buttons Show Clear System Status At A Glance
  • Fastener-Free Faceplate Delivers A Clean Installed Look
  • Field-Configurable Legends Simplify Room Identification
  • Topology-Free Wiring Eases Installation Layout Decisions
Log in or register for YOUR best price

The ETC E1004-5 is an EchoConnect-powered wall station built for installed lighting environments that need straightforward local control. Designed for use across spaces such as classrooms, conference rooms, retail settings, healthcare facilities, hospitality venues, and offices, it provides direct access to preset, zone, and space functions from a compact in-wall station. Its topology-free EchoConnect wiring approach gives integrators flexibility when placing controls where users actually need them.

This station is suited to projects that benefit from clearly indicated button status and a clean finished appearance. Rear-illuminated buttons show active and inactive states, while the fastener-free faceplate system helps maintain a polished architectural look. The station supports field-configurable user legends, making it easier to label controls for the room’s operational needs without specialized tools.

For system designers working with dimmers, relays, and power control panels, the E1004-5 fits into ETC EchoConnect installations where dependable wall-based recall and control are required. Removable connectors simplify termination, and support for multiple wiring methods helps accommodate both new construction and retrofit workflows.

Downloads

View full details

Specifications

Electrical
Connection
EchoConnect control network via low-voltage Class 2 wiring
Wiring Topology
Bus, loop, homerun or any combination
Cable Type
Belden 8471 or equivalent and one #14 ESD drain wire
Optional Cable
Belden 1583A or equivalent with Cat5 termination accessories
Maximum Control Wiring
Up to 500 m (1,640 ft)
Maximum With CAT5
Up to 1,000 ft
Terminations
Removable connectors
Thermal
Ambient Temperature
0°C to 50°C (32°F to 122°F)
Ambient Humidity
5%–95% non-condensing
Compliance
Listings
cULus Listed
Certification
CE Certified
Power
EchoConnect Power
One unit of control power
Auxiliary Power
Not required
Dimensions
Height (in)
4.52
Height (mm)
115
Width (in)
2.76
Width (mm)
71
Depth (in)
0.30
Depth (mm)
8
Weight (oz)
3.68
Weight (g)
105
Shipping Weight (oz)
7.49
Shipping Weight (g)
213
