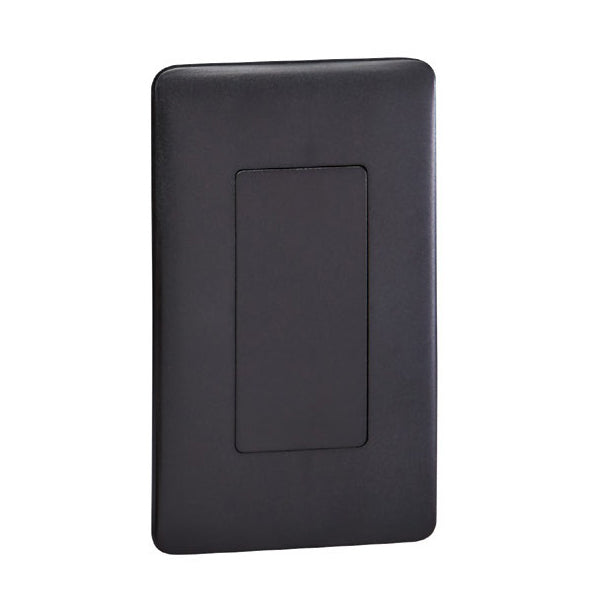

ETC EACC-4 EchoAccess Lighting Control Interface | Black

ETC EACC-4 EchoAccess Lighting Control Interface | Black

SoundPro Item: 127461 | Part Number: EACC-4

$380.00
$380.00 $380.00
Your Price Sold out
MSRP: $380.00 | MAP: $380.00

Usually ships in 5-7 business days

  • Enables Mobile Echo System Access
  • Supports Preset And Zone Control
  • Allows Remote Product Configuration
  • Offers Configurable Security Levels
  • Fits Standard Flush-Mount Backboxes
  • Provides Status Indicators For Diagnostics
Log in or register for YOUR best price

The ETC EACC-4 EchoAccess lighting control interface links the EchoAccess mobile app to devices on the EchoConnect system bus using Bluetooth Smart communication. Built for ETC Unison Echo environments, it gives users a practical way to access lighting functions from supported iOS and Android devices without adding a complex control layer. This makes it well suited for facilities that need mobile access to connected Echo stations, sensors, and output products.

In day-to-day operation, the interface supports app-based management of presets, zones, room combine functions, and color-related adjustments within compatible Echo products. It is also designed for deeper system setup tasks, allowing authorized users to configure product behavior and adjust operational settings from a mobile device. For integrators and facility teams working across education, hospitality, healthcare, offices, conference rooms, meeting rooms, and retail spaces, it provides a straightforward path to remote interaction with the installed lighting control system.

The unit mounts in a standard backbox and connects through the EchoConnect control network with auxiliary 24Vdc power. Topology-free wiring supports flexible installation layouts, while onboard status indicators and a microSD slot support maintenance workflows. With configurable security levels, the EACC-4 can help organizations manage access to both connection and configuration functions across the system.

Downloads

View full details

Specifications

General
Mobile App Availability
Android and iOS
Communication To EchoConnect Bus
Bluetooth Smart
MicroSD Card Slot
Firmware maintenance
Functional
Control Functions
Preset activation/deactivation, record, raise, lower, zone on/off, room combine
Zone Control
Zone intensity, color, tint, color temp
Configuration Support
All Echo control and output products
Security
Configurable security levels for connection and configuration
Mechanical
Gangable
Yes
Included
Enclosed electronics assembly and faceplate
Attachment
No visible means of attachment
Mounting
Flush-mount in industry standard backbox, RACO 690 or equivalent
Surface-Mount Backboxes
Available from manufacturer upon request
Construction
Injection-molded ABS plastic
Color Options
Cream (RAL 9001), Black (RAL 9004), White (RAL 9003)
Indicators
Blue power status indicator; Amber Bluetooth activity indicator
Height (In)
4.52
Height (Mm)
115
Width (In)
2.76
Width (Mm)
71
Depth (In)
0.30
Depth (Mm)
8
Electrical
Network Connection
EchoConnect control network through low-voltage Class 2 wiring + 24Vdc auxiliary power
Wiring
Topology-free over Belden 8471 or equivalent and one #14 ESD drain wire
Auxiliary Power Wiring
Two #16 AWG wires for 24 VDC auxiliary power
Optional Control Wire
Belden 1583A or equivalent Ethernet control wire with Cat5 termination accessories
Wiring Layout
Bus, loop, homerun, or any combination
Maximum Control Wiring Distance
Up to 500 m (1,640 ft)
Maximum Control Wiring Distance With Cat5
Up to 300 m (1,000 ft)
Thermal
Ambient Room Temperature
0°C to 40°C (32°F to 104°F)
Ambient Humidity
5–95% non-condensing
Regulatory And Compliance
cULus Listed
Yes
CE Compliant
Yes
Echo Power Requirements
EchoConnect
One unit of control power
Auxiliary Power
50 mA
Power Count Note
The first EchoAccess Interface in a system does not effect station power counts
