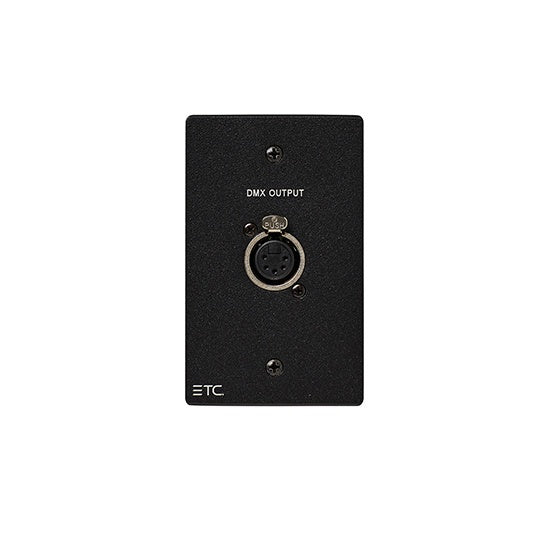

ETC ECPB DMX OUT DMX Output Wall Plate Control Plug-In Station | 1-gang

ETC ECPB DMX OUT DMX Output Wall Plate Control Plug-In Station | 1-gang

SoundPro Item: 200177 | Part Number: ECPB DMX OUT

$190.00
$190.00 $190.00
Your Price Sold out
MSRP: $190.00 | MAP: $190.00

Usually ships in 5-7 business days

  • Provides Distributed DMX Output Access
  • Fits Standard RACO Back Box Openings
  • Supports Clean Contractor Terminations
  • Scratch-Resistant Finish Aids Longevity
  • Allows Surface Or Flush Mounting
  • Accepts Belden 9729 Or Category5
  • ETL Listed For Installed Confidence
Log in or register for YOUR best price

The ETC ECPB DMX OUT provides a fixed DMX512 output connection point for distributed lighting control systems in permanent installations. Designed for venues that need control access from multiple locations, this electronic control plug-in box supports surface or flush-mount installation and is suited to theatres, auditoriums, television studios, houses of worship, museums, casinos, and hospitality environments.

This model is part of ETC’s ECPB family, built to integrate with standard architectural workflows. Most models fit standard RACO back boxes, helping contractors streamline rough-in planning. Low-voltage Class 2 wiring is used for data connections, and voltage barriers are provided when Class 1 and Class 2 terminations share the same faceplate. Terminal blocks are supplied for contractor terminations, supporting clean field wiring in installed systems.

The faceplate is made from 0.80 in aluminum with a fine-texture, scratch-resistant black powder coat and white legends as standard. Custom legends are available when project identification is required. For projects needing different mounting approaches, ETC also supports surface-mount back boxes and an optional U-bolt pipe-mount kit for use with surface-mount back boxes. DMX inputs and outputs support termination of Belden 9729 or equivalent, as well as Category5 cable.

Downloads

View full details

Specifications

Physical
Mounting
Surface or flush mount
Faceplate Material
0.80 in aluminum
Finish
Fine texture, scratch-resistant black powder coat
Legends
White legends standard
Custom Legends
Engraving or custom legends available
Back Box Compatibility
Most models fit in standard RACO back boxes
Flush-Mount Back Box Single Gang
RACO 690 or equivalent
Flush-Mount Back Box Two Gang
RACO 691 or equivalent
Flush-Mount Back Box Three Gang
RACO 697 or equivalent
Flush-Mount Back Box Four Gang
RACO 698 or equivalent
Flush-Mount Back Box Five Gang
RACO 699 or equivalent
Flush-Mount Back Box Six Gang
RACO 965 or equivalent
Flush-Mount Back Box Seven Gang
Provided by ETC
Surface-Mount Option
Surface-mount back boxes available from ETC
Pipe-Mount Option
Optional U-Bolt Pipe-mount kit for use with surface-mount back boxes
Electrical
Wiring Class
Low voltage class 2 wiring for data connections
Voltage Barriers
Provided when Class 1 and Class 2 wiring terminations are included in the same faceplate
Terminations
Terminal blocks supplied for contractor terminations
Connectivity
Connector Type
5-Pin XLR socket connectors for DMX output
Cable Support
Belden 9729 (or equivalent) or Category5 cable
Station Wall Plate Dimensions
Single Gang
2.75 in (70 mm) W x 4.50 in (114 mm) H x 2.50 in (64 mm) D
Two Gang
4.56 in (115 mm) W x 4.50 in (114 mm) H x 2.50 in (64 mm) D
Three Gang
6.38 in (162 mm) W x 4.50 in (114 mm) H x 3.50 in (89 mm) D
Four Gang
8.18 in (208 mm) W x 4.50 in (114 mm) H x 3.50 in (89 mm) D
Five Gang
10.00 in (254 mm) W x 4.50 in (114 mm) H x 3.50 in (89 mm) D
Six Gang
11.81 in (300 mm) W x 4.50 in (114 mm) H x 3.50 in (89 mm) D
Seven Gang
13.63 in (346 mm) W x 4.50 in (114 mm) H x 3.50 in (89 mm) D
Compliance
Listing
ETL Listed
