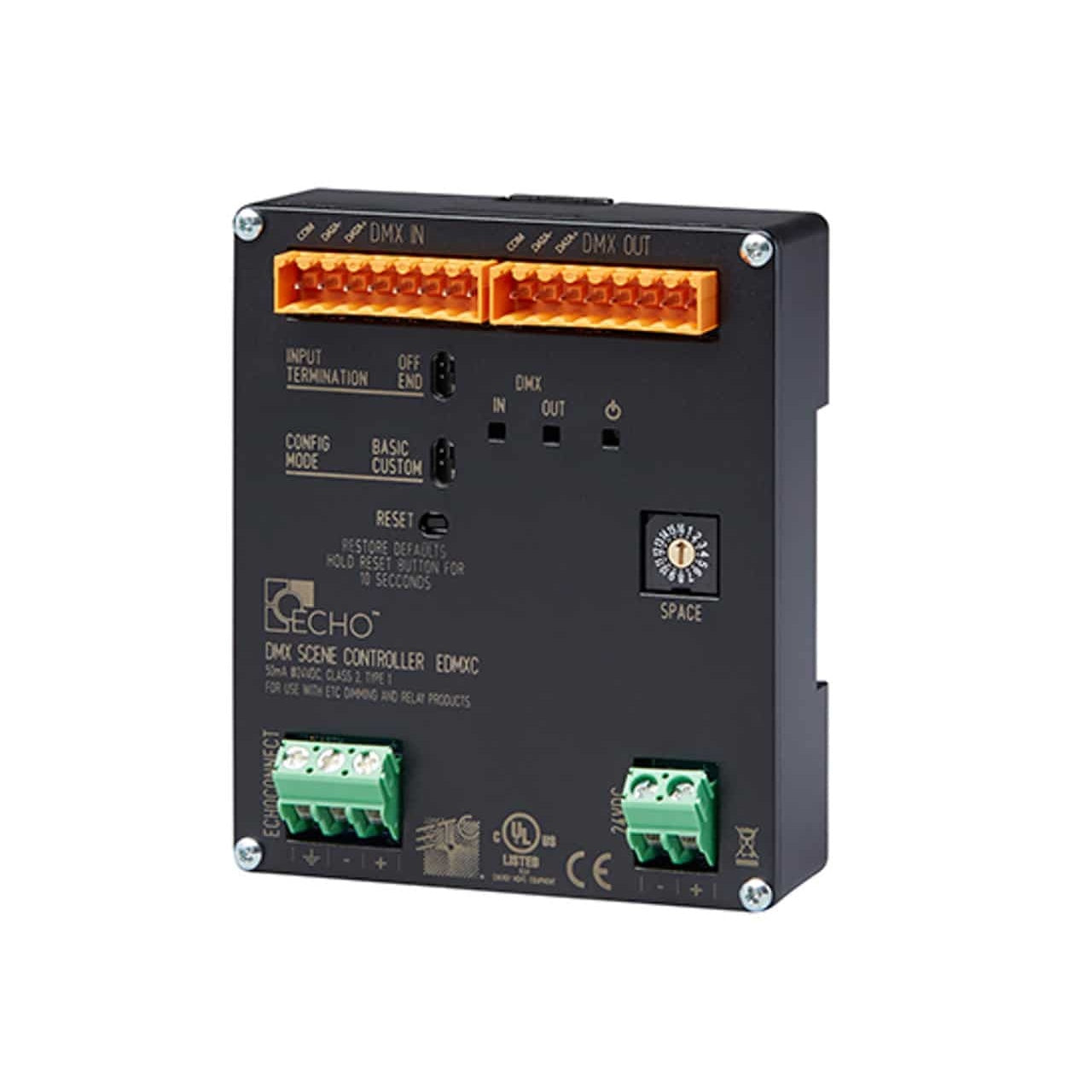

ETC EDMXC Echo DMX Scene Controller

ETC EDMXC Echo DMX Scene Controller

SoundPro Item: 121609 | Part Number: EDMXC

$420.00
$420.00 $420.00
Your Price Sold out
MSRP: $420.00 | MAP: $420.00

Usually ships in 5-7 business days

  • Captures DMX Snapshots For Fast Scene Recall
  • Stores 32 Presets For Repeatable Room Looks
  • Controls 16 Patched Zones For Flexible Operation
  • Supports Sequence Playback For Automated Transitions
  • DIN Mount Design Fits Clean Control Enclosures
  • Topology-Free Wiring Simplifies Station Placement
  • Optically Isolated Input Helps Protect Electronics
Log in or register for YOUR best price

The ETC EDMXC DMX Scene Controller extends the Echo platform with practical scene capture and playback for distributed architectural lighting control. Designed for spaces that need repeatable looks without a full-scale console, it accepts DMX input for snapshot recording, stores up to 32 presets, and supports sequence playback for streamlined operation in theaters, hospitality venues, worship facilities, meeting rooms, healthcare spaces, and retail environments.

When paired within an Echo system, the controller helps integrators and facility teams simplify how zones and fixtures are managed across a property. It supports Echo control of 16 patched DMX zones and works with compatible stations such as EchoAccess and Inspire Four-Button with Fader Station for live adjustment of intensity, hue, saturation, and color temperature. Topology-free EchoConnect wiring adds flexibility during installation, while DIN-rail mounting makes it well suited for centralized control enclosures.

For projects that require reliable architectural DMX integration, the EDMXC combines snapshot-based recall, real-time pass-through behavior during recording, configurable operating actions, and firmware maintenance via microSD. The result is a compact control solution for creating consistent lighting behavior in multi-use spaces where ease of operation matters as much as system capability.

Downloads

View full details

Specifications

Functional
DMX Input
Snapshot capture of lighting scenes
Presets Supported
32
DMX Addresses Supported
512
Sequence Playback
Supported
Echo DMX Zones
16 patched DMX Zones
Fixture Control
Intensity, hue, saturation, color temperature
Modes
Basic and custom-use modes
Configurable Actions
Power On Behavior, DMX Loss Action, DMX Active Action
Demand Response
Supported
DMX Pass-Through
Supported for real-time output when recording snapshots
DMX Standard
USITT DMX-512A
Mechanical
DMX Ports
One integrated DMX-input and one integrated DMX-output port
Enclosure
Five unit wide DIN enclosure compliant with DIN43880 (35/7.5 rail)
Construction
Injection-molded black ABS plastic
Switches
DMX-Termination and Config Mode toggle switches
Indicators
Blue power indicator; bi-color DMX activity indicator
Electrical
Network Connection
Two-wire EchoConnect control network through low-voltage Class 2 wiring + 24 VDC auxiliary power
Control Wiring
Belden 8471 or equivalent and one #14 ESD drain wire
Auxiliary Power Wiring
Two #16 AWG wires for 24 VDC auxiliary power
Max Draw
150 mA at 24 VDC
Optional Control Wire
Belden 1583A or equivalent Ethernet control wire with Cat5 termination accessories
Wiring Topology
Bus, loop, homerun, or any combination
Max Control Wiring Distance
500 m (1,640 ft)
Max Control Wiring Distance With Cat5
300 m (1,000 ft)
Firmware Maintenance
MicroSD card slot
DMX Ports
Connector Type
Eight-position removable pluggable connectors for in and out ports
Connector Cable
Designed for use with Belden 9729 (or equivalent)
Optional Headers
Available for use with Belden 1583A (or equivalent)
Input Isolation
Fully optically isolated from controller electronics
Fault Voltage Withstand
Up to 250 VAC
Termination
Integrated DMX termination
Thermal
Ambient Room Temperature
0° to 50°C (32° to 122°F)
Ambient Humidity
5–95% non-condensing
Regulatory And Compliance
cULusL Listed
Yes
CE Compliant
Yes
Echo Power Requirements
EchoConnect
One unit of control power
Auxiliary Power
150 mA
Echo Presets
Supports 32 Echo Presets
Dimensions
Height (In)
3.5
Height (Mm)
90
Width (In)
3.0
Width (Mm)
76
Depth (In)
1.0
Depth (Mm)
25
Weight (Lb)
0.22
Weight (Kg)
0.10
