ETC ERP-12R1-12B1-ML3P Echo Relay Panel | 12-Position

ETC ERP-12R1-12B1-ML3P Echo Relay Panel | 12-Position

SoundPro Item: 147670 | Part Number: ERP-12R1-12B1-ML3P

$5,180.00
$5,180.00 $5,180.00
Your Price Sold out
MSRP: $5,180.00 | MAP: $5,180.00

Usually ships in 5-7 business days

  • Supports 24 Relay Positions For Flexible Circuit Layouts
  • Built-In Ethernet Simplifies Setup And Management
  • Branch Energy Reporting Aids Load Visibility
  • Local Override Per Circuit Supports Fast Service Access
  • DMX And sACN Integration Fits Modern Control Systems
  • 14" Wide Cabinet Suits Standard Stud Construction
Log in or register for YOUR best price

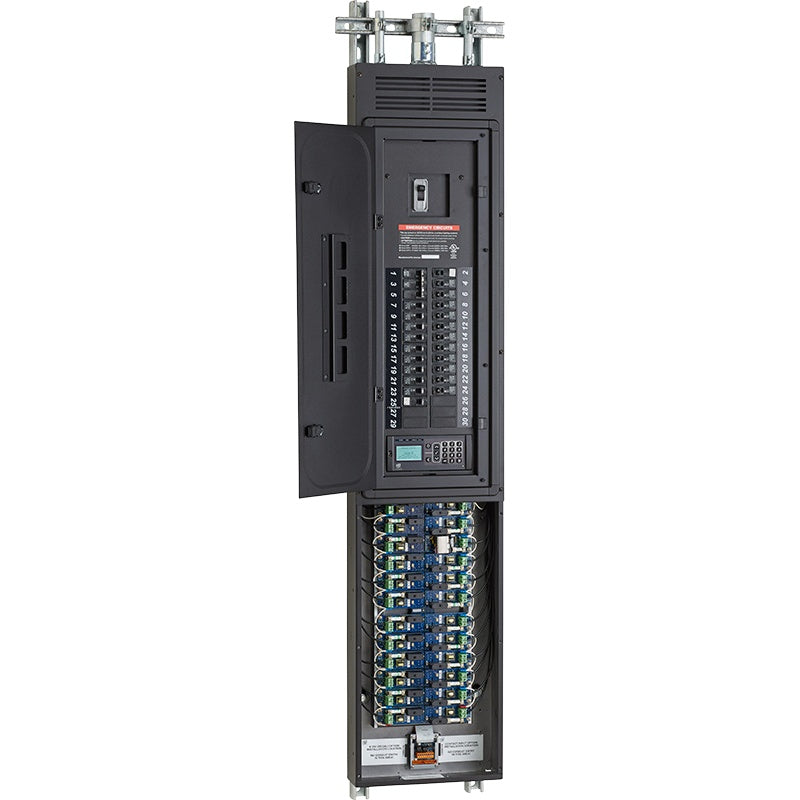

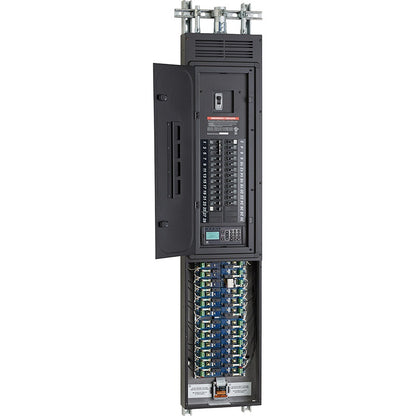

The ETC ERP-12R1-12B1-ML3P is a Unison Echo Relay Panel designed for control-focused lighting power distribution in permanent installations. Built as a main feed relay panel, it supports 24 relay positions and a 30-position breaker subpanel, making it suitable for venues that need centralized branch control with flexible circuit layouts. Support for 1-, 2-, and 3-pole relays and compatibility with 300 W phase-adaptive or forward-phase dimmers allows the panel to serve a wide range of load types in theaters, schools, houses of worship, conference centers, retail spaces, and restaurant environments.

For system integration, the panel supports Echo, DMX-512, streaming ACN, Astronomical TimeClock, and stand-alone operation. An onboard Ethernet port enables web-based configuration and management, while the local interface provides direct access to setup, playback programming, and individual channel control. Built-in EchoConnect power supports multiple Echo control and output devices, and measured energy usage reporting per branch circuit gives facilities added visibility into connected loads.

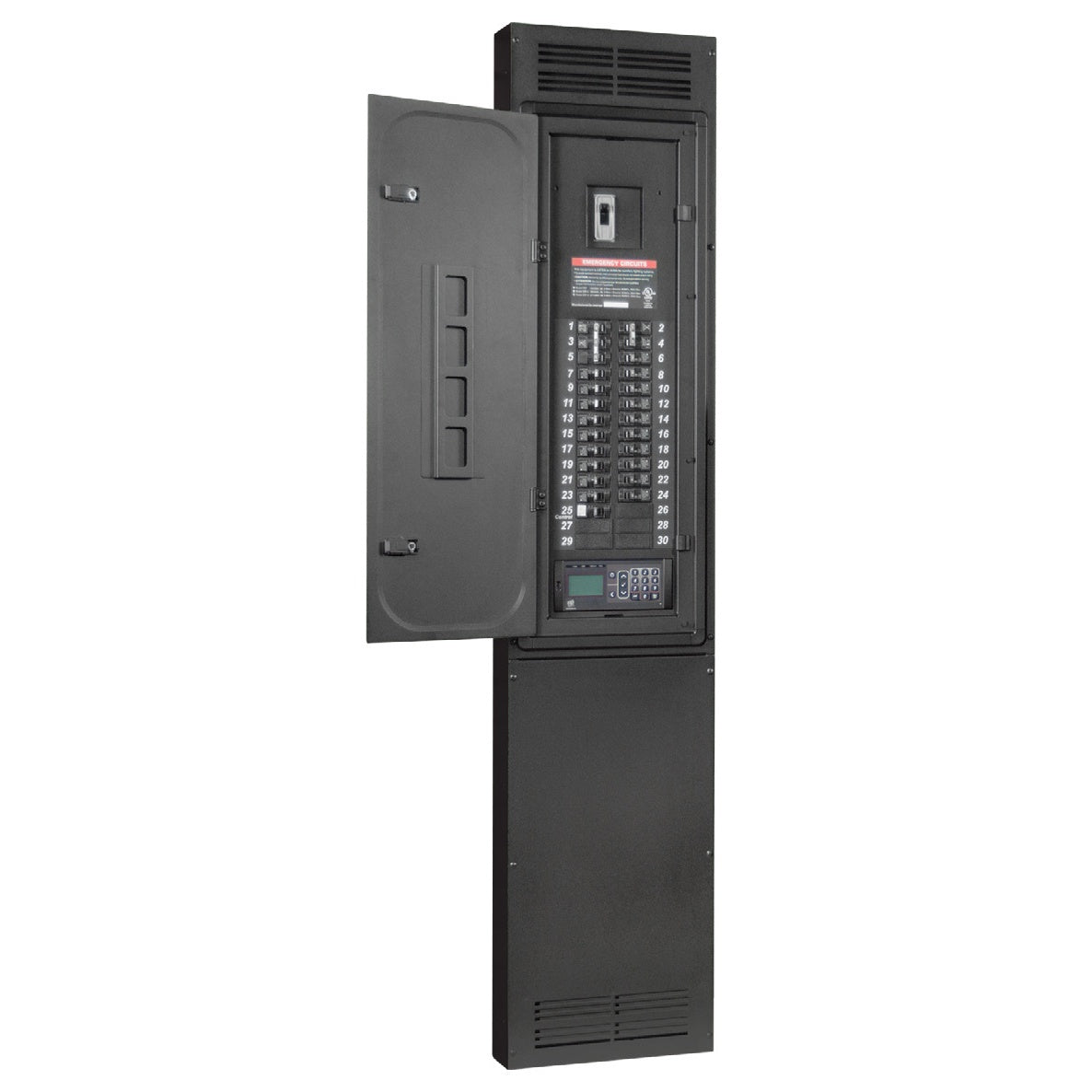

The enclosure is sized for standard stud-width construction with a 14" width and 4" depth for flush or surface mounting. Separate Class 1 and Class 2 wiring areas, removable access covers, manual override per circuit, and optional control card support for 0–10 V, contact input, and DALI help the panel fit cleanly into modern architectural lighting control systems.

Downloads

View full details

Specifications

General
Panel Positions
24-position relay panel
Breaker Subpanel
30-position breaker subpanel
Relay Pole Support
1-, 2-, or 3-pole relays
Breaker Pole Support
1-, 2-, or 3-pole breakers
Mounting Width
14 in
Mounting Depth
4 in
Mounting Options
Flush- or surface-mounted
Control
Control Protocols
Echo, sACN, DMX-512, Astronomical TimeClock, stand-alone
EchoConnect Power Supply
Up to 6 Echo control products and 5 output products
Ethernet Port
Built-in
Web UI
Onboard web UI for configuration and management
Local User Interface
Panel configuration, programming, playback, individual channel control
USB Interface
Upload of setup and software updates
Optional Control Cards
0–10 V, contact input, DALI
Electrical
Main Feed Options
120/208 V three-phase four-wire plus ground; 120/240 V single-phase three-wire plus ground
Max Input Current
200 A
Main Circuit Breaker Options
100 A and 200 A
Subfeed Support
Up to 100 A
Short-Circuit Rating
10,000–42,000 amps symmetrical
Branch Breakers
10 A, 15 A and 20 A, 1-, 2-, or 3-pole; 80% rated
GFCI Breakers
15 A or 20 A, 1- or 2-pole 120 V available upon request
Inrush-Pulse Tolerance
8–10.5 times rated current for half-cycle at 60 Hz
Control Electronics Input
100–277 V (+/-15%), 50/60 Hz, <16 A
Control Wiring
Class 2
Control Terminations
Removable connectors
Relay Ratings
Ballast (HID)
20 A
Electronic Ballast
16 A
Tungsten
20 A
Motor Load
20 A
Isolation
4000 V RMS
Relay State
Latching; mechanically held
Life At Full Resistive Load
100,000 cycles
Life At Motor/Inductive/Tungsten
30,000 cycles
Current-Reporting Accuracy
+/- 5% of connected load
Dimmer Ratings
Phase-Adaptive (DA)
300 W resistive or electronic load capacity
Forward-Phase (DM)
300 W magnetic or resistive load capacity
Max Loaded Dimmers
Up to 24
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Relay Thermal Load
52.38 BTU/hr
Dimmer Thermal Load
11.78 BTU/hr
Humidity
5%–95%, non-condensing
Compliance
cULus Listed
Yes
UL508 Listed
Yes
UL67 Listed
Yes
UL924 Listed
Yes
DMX Standard
ANSI E1.11 DMX512-A
sACN Standard
ANSI E1.31 streaming ACN
