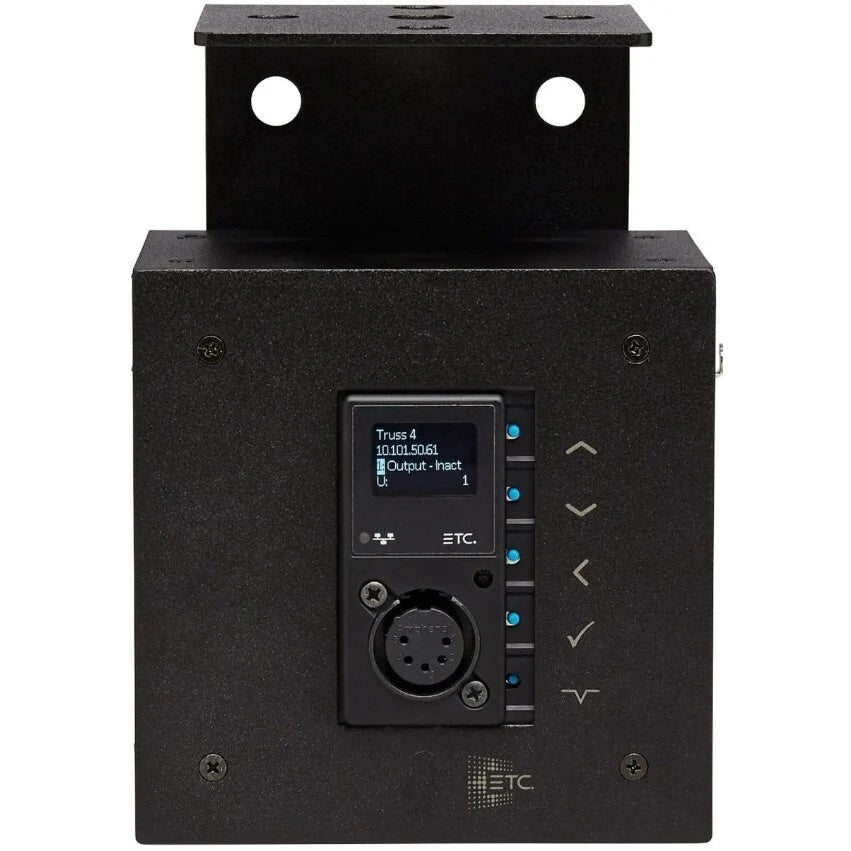

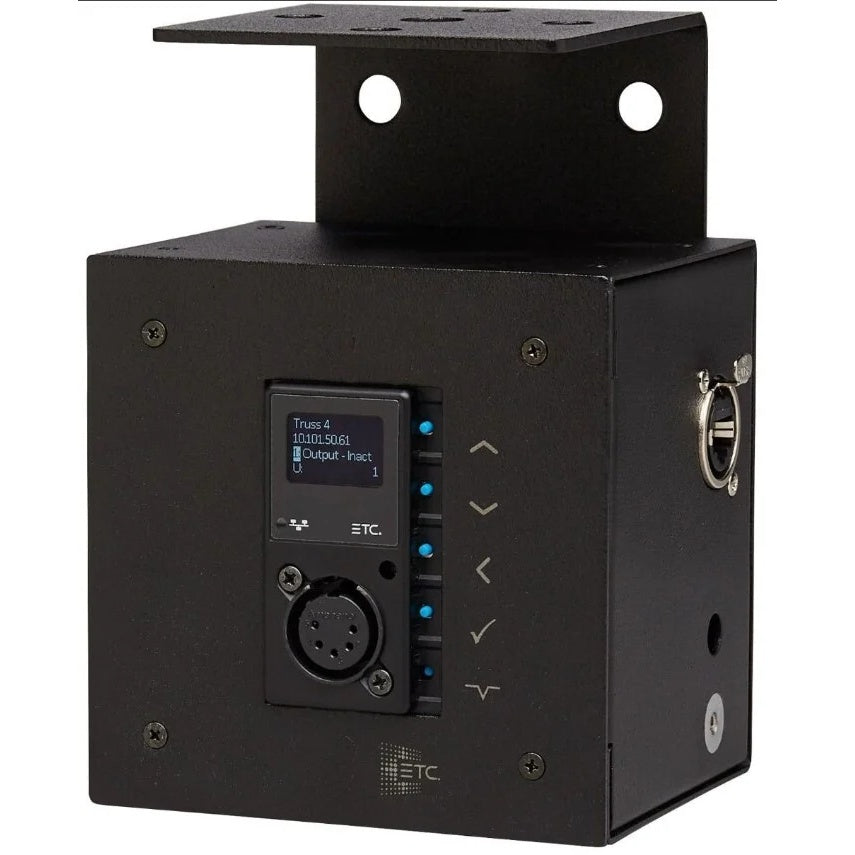

ETC RSN-DMX1-I-1 Response Mk2 One-Port DMX/RDM Input Gateway

ETC RSN-DMX1-I-1 Response Mk2 One-Port DMX/RDM Input Gateway

SoundPro Item: 127492 | Part Number: RSN-DMX1-I-1

$825.00
$825.00 $825.00
Your Price Sold out
MSRP: $825.00 | MAP: $825.00

Usually ships in 5-7 business days

  • Configurable DMX Or RDM Port For Flexible Use
  • PoE Or DC Power Simplifies Installation
  • Onboard Display Speeds Local Setup Tasks
  • Concert Support Enables Remote Configuration
  • Net3 And sACN Support Fits ETC Networks
  • Touch To Wake Aids Fast Status Access
Log in or register for YOUR best price

The ETC RSN-DMX1-I-1 Response Mk2 one-port gateway is designed for lighting systems that need dependable DMX and RDM transport over Ethernet in a compact wall-mount format. Built for ETC Net3 environments using industry-standard sACN, this gateway supports configurable DMX/RDM input or output on a single port, making it a practical choice for tech tables, stage manager panels, road houses, university theaters, convention halls, and integrated control locations.

Local setup is handled from the onboard display and four-button interface, while remote configuration is available through Concert software for streamlined system management. Power can be supplied through PoE or an external 12–24VDC source, which helps simplify deployment in both new and retrofit installations. Network and power indicators, a touch-to-wake sensor, and a reset function support day-to-day operation and service access.

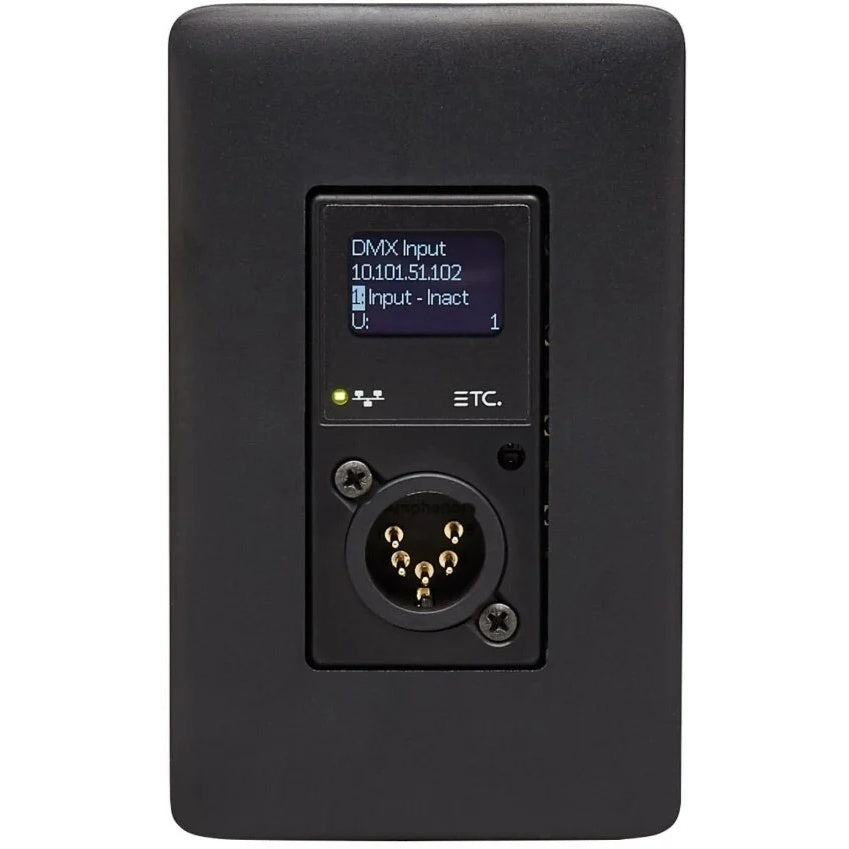

This wall-mount version includes an enclosed electronics assembly and faceplate with a clean flush-mount appearance for use with an industry-standard backbox such as the RACO 690 or equivalent. For professional lighting networks that require standards-based DMX distribution with ETC control integration, the RSN-DMX1-I-1 offers a focused solution for single-port data access at the point of use.

Downloads

View full details

Specifications

Functional
Protocols
Net3/ACN (ANSI E1.31 and E1.17)
RDM Support
ANSI E1.20
DMX Support
USITT DMX512-A (ANSI E1.11)
DMX Compliance
USITT DMX512 and ANSI E1.11 DMX512-A compliant
Output Patch
512-address universe may begin at any output address
Input Patch
Advanced Input Patch
Priority
Per-address- or per-universe-level priority
Input To Output Delay
Not greater than one packet time
DMX Refresh Rate
Selectable, maximum at least 40Hz
Maximum RDM Devices
Up to 256 total
Environmental
Operating Temperature
0°–40°C (32°–104°F)
Operating Humidity
5–95% non-condensing
Storage Temperature
-40°–70°C (-40°–158°F)
Electrical
Ethernet Compliance
IEEE 802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3af PoE
Power Input
12–24VDC for non-PoE systems
Maximum Current Draw
4 watts
Configuration
Local Configuration
Yes
Remote Configuration
Concert
DMX Addresses Per Port
Up to 512
Streaming ACN Universes
Up to 63,999
Port Mode
DMX data input or output configurable by user
Source Combining
Multiple sources with independent priority per source or address
Port Start Address And Offset
Individual user configurable
Labeling
User-configurable
Regulatory And Compliance
Safety Listing
cETLus Listed
CE
Compliant
RoHS
Compliant
WEEE
Yes
Mechanical
Interface
Four-button interface
Display
Onboard display for identification, status and configuration
Construction
Enclosed electronics assembly and faceplate included
Attachment
No visible means of attachment
Mounting
Flush-mount in industry standard backbox, RACO 690 or equivalent
Surface-Mount Backboxes
Available from ETC upon request
Material
Injection-molded ABS plastic
Color
Cream (RAL 9001)
Network Indicator
Green LED
Network Connection
RJ45
Reset
Hard reset or forced reboot
Dimensions
Height (In)
4.52
Height (Mm)
115
Width (In)
2.76
Width (Mm)
70
Depth (In)
0.30
Depth (Mm)
7.6
Weight (Lb)
0.40
Weight (Kg)
0.18
Shipping Weight (Lb)
1.90
Shipping Weight (Kg)
0.86
