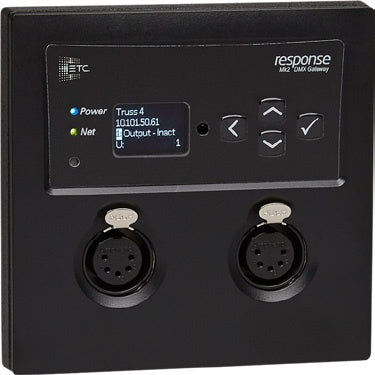

ETC RSN-DMX2-O-P-4 Response Mk2 Two-Port DMX/RDM Output Gateway | Black

ETC RSN-DMX2-O-P-4 Response Mk2 Two-Port DMX/RDM Output Gateway | Black

SoundPro Item: 127511 | Part Number: RSN-DMX2-O-P-4

$1,405.00
$1,405.00 $1,405.00
Your Price Sold out
MSRP: $1,405.00 | MAP: $1,405.00

Usually ships in 5-7 business days

  • Dual Ports Support Flexible Networked Control
  • Configurable I/O Adapts To System Changes
  • PoE Or DC Power Simplifies Deployment
  • Onboard Display Speeds Local Setup
  • Concert Support Streamlines Remote Management
  • Flush Wall Design Suits Clean Installations
Log in or register for YOUR best price

The ETC RSN-DMX2-O-P-4 is a wall-mount two-port gateway designed for lighting systems that need dependable DMX and RDM transport across Ethernet infrastructure. Built for ETC Net3 environments and industry-standard sACN, it helps connect control data between networked lighting systems and field devices in theaters, convention spaces, tech tables, and integrated architectural installations. Local controls and an onboard display make it practical for commissioning, troubleshooting, and day-to-day operation at the point of use.

This model supports user-configurable DMX/RDM input or output per port, giving system designers added flexibility when adapting to changing control needs. It can be powered by PoE for simplified network deployment or by an external 12–24VDC source in systems where PoE is not available. The enclosed wall-mount assembly is intended for flush installation in a standard backbox, delivering a clean appearance with no visible attachment method on the finished face.

For facilities standardizing on ETC networked control, this gateway provides a straightforward way to extend data where it is needed without adding unnecessary complexity. Concert software support enables remote configuration, while the front-panel interface, status indicators, and touch-to-wake functionality assist technicians working directly at the device.

Downloads

View full details

Specifications

Functional
Supports Net3/ACN (ANSI E1.31 and E1.17)
Yes
Supports RDM (ANSI E1.20)
Yes
Supports USITT DMX512-A (ANSI E1.11)
Yes
DMX Compliance
USITT DMX512 and ANSI E1.11 DMX512-A compliant
Flexible Output Patch
512-address universe may begin at any output address
Advanced Input Patch
Yes
Priority Support
Per-address or per-universe level
Maximum Input To Output Delay
Not greater than one packet time
Selectable DMX Refresh Rate
Maximum at least 40Hz
Supports Total RDM Devices
Up to 256
Environmental
Ambient Operating Temperature
0°–40°C (32°–104°F)
Operating Humidity
5–95% non-condensing
Storage Temperature
-40°–70°C (-40°–158°F)
Electrical
Ethernet Compliance
IEEE 802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3af PoE
Power Input
12–24VDC
Maximum Current Draw
Four watts
Configuration
Local Configuration
Yes
Remote Configuration
Concert
DMX Addresses Per Port
Up to 512
Streaming ACN Universes
Up to 63,999
DMX Data Direction
Input or output configurable by user
Source Combining
Multiple sources with independent priority by source or address
Port Start Address And Offset
Individual port configurable
User Labeling
Configurable
Regulatory And Compliance
cETLus Listed
Yes
CE Compliant
Yes
RoHS Compliant
Yes
WEEE
Yes
Mechanical
Interface
Four-button interface
Display
Onboard display for identification, status and configuration
Assembly
Enclosed electronics assembly and faceplate included
Visible Attachment
None
Backbox Compatibility
RACO 690 or equivalent
Construction
Injection-molded ABS plastic
Available Colors
Cream (RAL 9001), Gray (RAL 7001), Black (RAL 9004), White (RAL 9003)
Portable Unit Colors
Black and White
Network Activity Indicator
Green LED
Network Connection
RJ45
Reset Button
Hard reset or forced reboot
