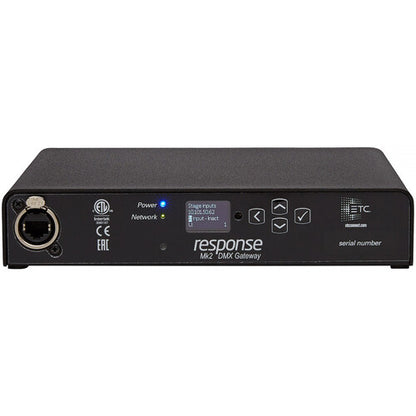

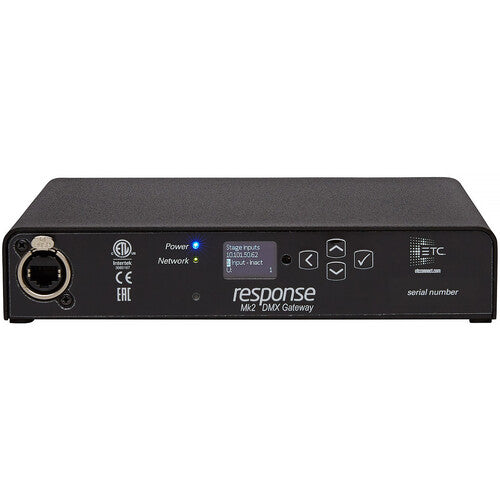

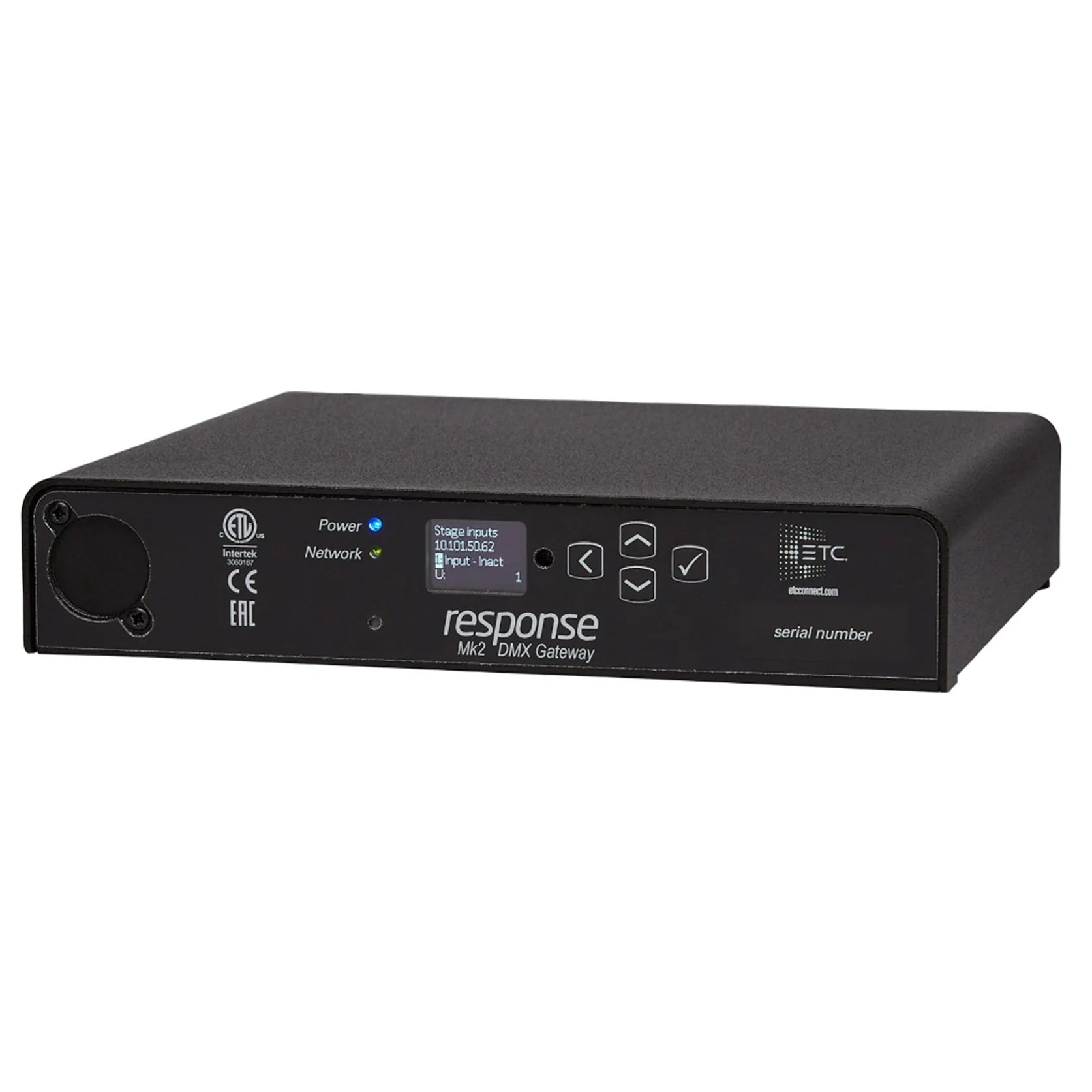

ETC RSN-DMX4-O DMX Response Mk2 Four-Port DMX/RDM Output Gateway

ETC RSN-DMX4-O DMX Response Mk2 Four-Port DMX/RDM Output Gateway

SoundPro Item: 93571 | Part Number: RSN-DMX4-O

$1,455.00
$1,455.00 $1,455.00
Your Price Sold out
MSRP: $1,455.00 | MAP: $1,455.00

Usually ships in 5-7 business days

  • Configurable Port I/O For Flexible System Design
  • PoE Or DC Power For Install Flexibility
  • Onboard Display For Fast Local Setup
  • Concert Support For Remote Configuration
  • Status LEDs Help Speed Troubleshooting
Log in or register for YOUR best price

The ETC RSN-DMX4-O Response Mk2 Four-Port Gateway is built for lighting networks that need dependable DMX and RDM distribution across Ethernet infrastructure. Designed for Net3 operation using industry-standard sACN, DMX, and RDM, it gives production and installed systems a practical way to move control data between networked devices and field connections. Each port is user-configurable for input or output operation, making the unit adaptable for changing system layouts in theaters, convention spaces, touring rigs, and integration projects.

For day-to-day deployment, the gateway supports both local access and software-based management. An onboard display with a four-button interface provides direct status and setup at the rack, while Concert software enables remote configuration within larger systems. Power can be supplied by PoE or by an external 12–24VDC source for installations where network power is not available. Status indicators for power, network, and port direction help technicians confirm operation quickly during setup and service.

The half-rack format is suited to compact control locations such as tech tables, stage manager panels, and equipment racks where space efficiency matters. With support for advanced patching, configurable port addressing, and broad standards compliance, this gateway fits applications that require flexible data routing without adding unnecessary complexity.

Downloads

View full details

Specifications

Functional
Protocols
Supports Net3/ACN (ANSI E1.31 and E1.17)
RDM Support
Supports RDM (ANSI E1.20)
DMX Support
Supports USITT DMX512-A (ANSI E1.11)
DMX Compliance
USITT DMX512 and ANSI E1.11 DMX512-A compliant
Output Patch
512-address universe may begin at any output address
Input Patch
Advanced Input Patch
Priority
Per-address- or per-universe-level priority
Input To Output Delay
Not greater than one packet time
DMX Refresh Rate
Selectable, maximum at least 40Hz
RDM Device Capacity
Supports up to 256 total RDM devices
Environmental
Ambient Operating Temperature
0°–40°C (32°–104°F)
Operating Humidity
5–95% non-condensing
Storage Temperature
-40°–70°C (-40°–158°F)
Electrical
Ethernet Compliance
IEEE 802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3af PoE
Power Input
12–24VDC for non-PoE systems
Maximum Current Draw
Four watts
Configuration
Local Configuration
Supported
Remote Configuration
Provided by Concert
DMX Addresses Per Port
Up to 512
Streaming ACN Universes
Up to 63,999
Port Mode
DMX data input or output configurable by user
Source Combination
Multiple sources may be combined with independent priority
Port Addressing
Individual port start address and offset
Labeling
User-configurable
Regulatory And Compliance
Listings
cETLus Listed
CE
Compliant
RoHS
Compliant
WEEE
Compliant
Mechanical
Interface
Intuitive four-button interface
Display
Onboard display for identification, status and configuration
Construction
16-gauge cold-rolled steel
Finish
Black, fine-textured, powder-coat finish
Rack Width
Half 19” equipment rack width
Rack Capacity
Up to eight DMX ports in 1U height
Indicators
Blue power, green network activity, bi-color DMX activity
Network Connector
RJ45 configurable for front or rear positioning
Reset
Button for hard reset or forced reboot
