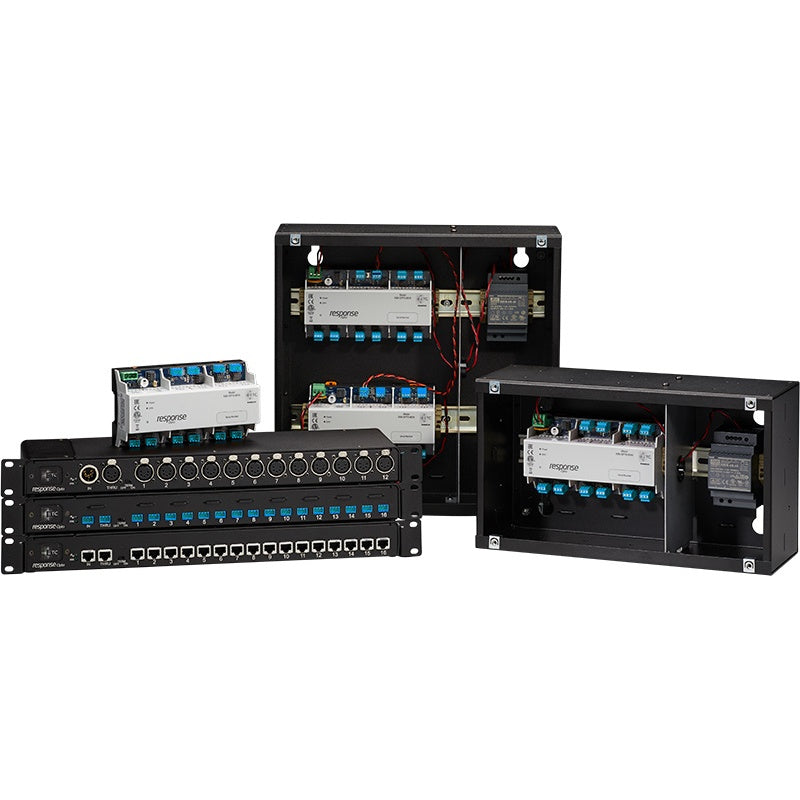

ETC RSN-OPTO-8DIN Response Opto-Splitter 8 Port DIN Rail Mounted

ETC RSN-OPTO-8DIN Response Opto-Splitter 8 Port DIN Rail Mounted

SoundPro Item: 127530 | Part Number: RSN-OPTO-8DIN

$1,365.00
$1,365.00 $1,365.00
Your Price Sold out
MSRP: $1,365.00 | MAP: $1,365.00

Usually ships in 5-7 business days

  • No Configuration Required For Fast Deployment
  • Optically Isolated Outputs Help Protect DMX Runs
  • RDM Support Enables Device Communication
  • DMX Input And Thru Simplify Signal Distribution
  • LED Status Indicators Speed Troubleshooting
  • DIN Rail Housing Fits Installed Control Systems
Log in or register for YOUR best price

The ETC RSN-OPTO-8DIN is a DIN rail Response Opto-Splitter built for dependable DMX data distribution in installed lighting systems. It provides a DMX input and DMX thru connection along with multiple optically isolated output paths, helping maintain signal integrity across control networks in theatres, houses of worship, museums, convention spaces, and themed environments. Support for DMX512, DMX512 (1990), DMX512-A, and ANSI E1.20 RDM makes it suitable for modern systems that need both distribution and device communication.

This version is designed for DIN rail installation and uses a molded enclosure compliant with DIN43880 for 35/7.5 rail mounting. No configuration is required, which simplifies deployment for integrators and technicians working on permanent infrastructure or retrofit projects. Power and DMX activity indicators provide quick visual confirmation at the rack or enclosure, while support for connected ETC fixture updates adds serviceability within ETC-based systems.

With 12–48 VDC power input, operation from -10°C to 65°C, and support for up to 256 total RDM devices, the RSN-OPTO-8DIN fits a wide range of professional lighting control applications where clean DMX/RDM distribution and straightforward DIN mounting are priorities.

Downloads

View full details

Specifications

Functional
DMX Protocols
DMX512, DMX512 (1990), DMX512-A
RDM Support
ANSI E1.20 Remote Device Management (RDM)
Total RDM Devices Supported
Up to 256
Configuration
No configuration required
Mechanical
Enclosure Material
Molded plastic enclosure
DIN Rail Compliance
DIN43880 (35/7.5 rail)
Width
Nine DIN units wide
Power Indicator
Blue power indicator
DMX Activity Indicator
Green DMX activity indicator
Electrical
Input Connections
Supports DMX input and DMX thru
Outputs
Provides optically isolated DMX/RDM outputs
Power Input
12–48 VDC
Environmental
Ambient Operating Temperature
-10°C–65°C (14°F–149°F)
Operating Humidity
5–95% non-condensing
Storage Temperature
-40°C–70°C (-40°F–158°F)
Regulatory And Compliance
Listings
cETLus Listed
UL 924
cETLus Listed to UL 924 (Emergency DIN Boxes Only)
Compliance
CE compliant
Environmental Compliance
RoHS compliant
Disposal Compliance
WEEE
