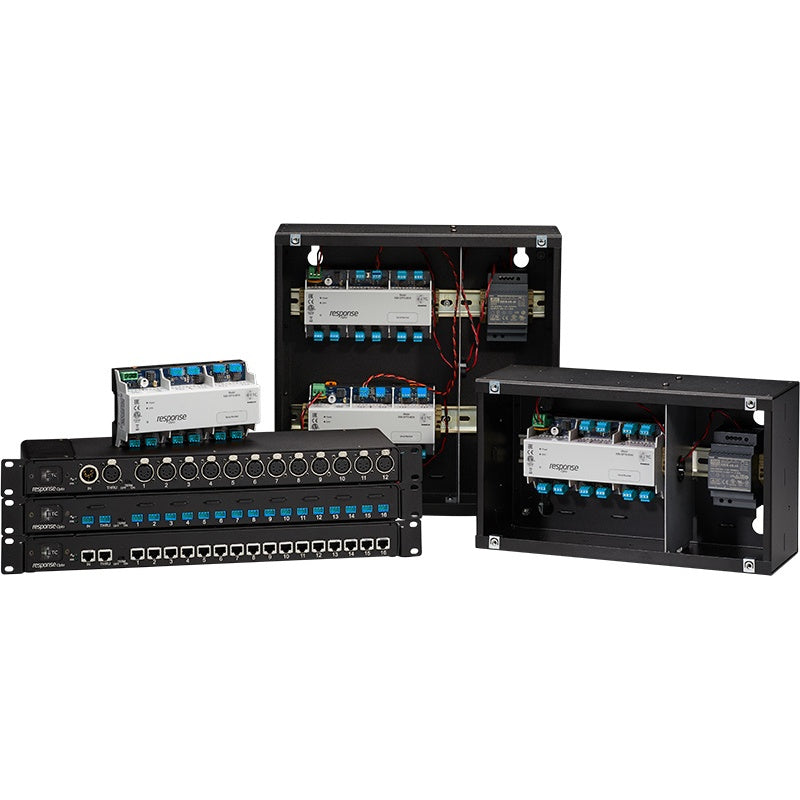

ETC RSN-OPTO-DBOX Response Opto-Splitter DIN Box With Dual Splitter

ETC RSN-OPTO-DBOX Response Opto-Splitter DIN Box With Dual Splitter

SoundPro Item: 127532 | Part Number: RSN-OPTO-DBOX

$3,180.00
$3,180.00 $3,180.00
Your Price Sold out
MSRP: $3,180.00 | MAP: $3,180.00

Usually ships in 5-7 business days

  • No Configuration Required For Fast Deployment
  • Optically Isolated Outputs Help Protect DMX Paths
  • RDM Support Enables Remote Device Management
  • DMX Input And Thru Simplify System Distribution
  • Status LEDs Provide Quick Visual Monitoring
  • DIN Rail Format Fits Installed Control Enclosures
Log in or register for YOUR best price

The ETC RSN-OPTO-DBOX is a DIN rail Response Opto-Splitter built for dependable DMX data distribution in installed and production lighting systems. It provides DMX input and DMX thru connectivity along with optically isolated DMX/RDM outputs, helping designers, integrators, and venue technicians distribute control data across multiple lighting paths while maintaining signal integrity. Support for DMX512, DMX512 (1990), DMX512-A, and ANSI E1.20 RDM makes it suitable for modern systems that require both control and device management.

This model is aimed at applications such as theatres, hotels, convention halls, houses of worship, museums, themed environments, and other architectural or entertainment spaces where DIN rail mounting is preferred. The unit requires no configuration, includes LED indication for power and DMX activity, and supports up to 256 total RDM devices. For ETC-based lighting networks, it also supports updating connected ETC fixtures, which can simplify service workflows in permanent installations.

Downloads

View full details

Specifications

Functional
DMX Protocol Support
DMX512, DMX512 (1990), DMX512-A
RDM Support
ANSI E1.20 Remote Device Management (RDM)
Total RDM Devices Supported
Up to 256
Configuration
No configuration required
Mechanical
Form Factor
DIN rail
Enclosure
Molded plastic enclosure
DIN Rail Compliance
DIN43880 (35/7.5 rail)
Width
Nine DIN units
Power Indicator
Blue LED
DMX Activity Indicator
Green LED
Electrical
Input Connectivity
DMX input and DMX thru
Outputs
Optically isolated DMX/RDM outputs
Power Input
12–48 VDC
Environmental
Ambient Operating Temperature
-10°C–65°C (14°F–149°F)
Operating Humidity
5–95% non-condensing
Storage Temperature
-40°C–70°C (-40°F–158°F)
Compliance
Certifications
cETLus Listed
UL 924 Listing
cETLus Listed to UL 924 (Emergency DIN Boxes Only)
Compliance
CE, RoHS, WEEE
