ETC S4WRDCII-A Source 4WRD Color II LED Upgrade | Eddison

ETC S4WRDCII-A Source 4WRD Color II LED Upgrade | Eddison

SoundPro Item: 138975 | Part Number: S4WRDCII-A

$935.00
$935.00 $935.00
Your Price Sold out
MSRP: $935.00 | MAP: $935.00

Usually ships in 5-7 business days

  • Fast Retrofit Minimizes Fixture Downtime
  • RGBA Mixing Expands Wash Color Options
  • DMX Dimming Supports Integrated Control
  • No Lamp Changes Reduces Maintenance Needs
  • Switched Power Fits Upgrade Applications
  • Long LED Life Supports Lower Service Cycles
Log in or register for YOUR best price

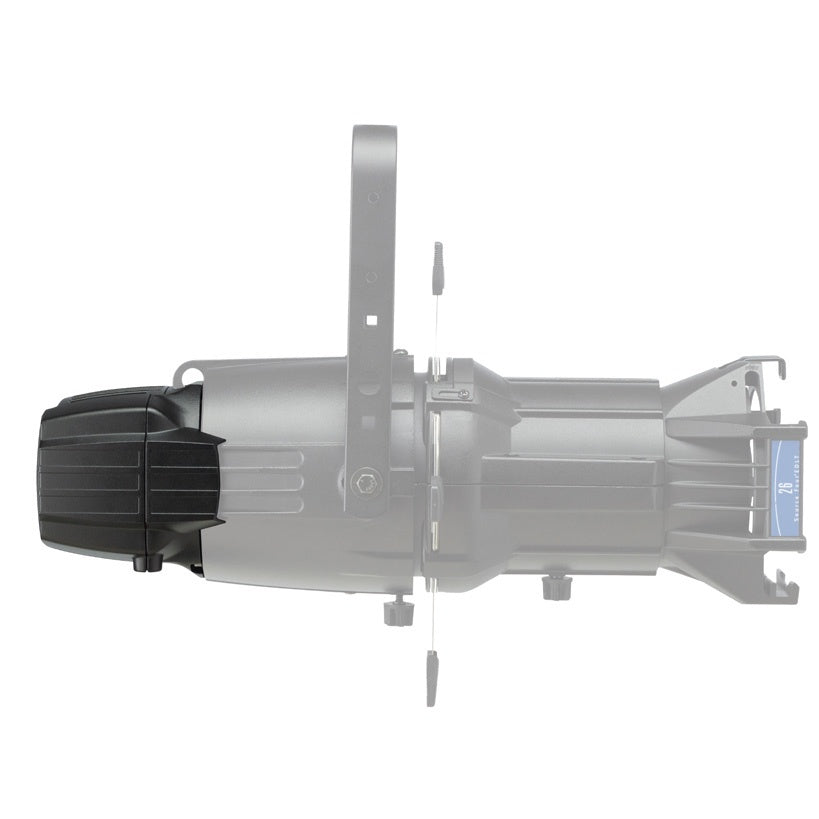

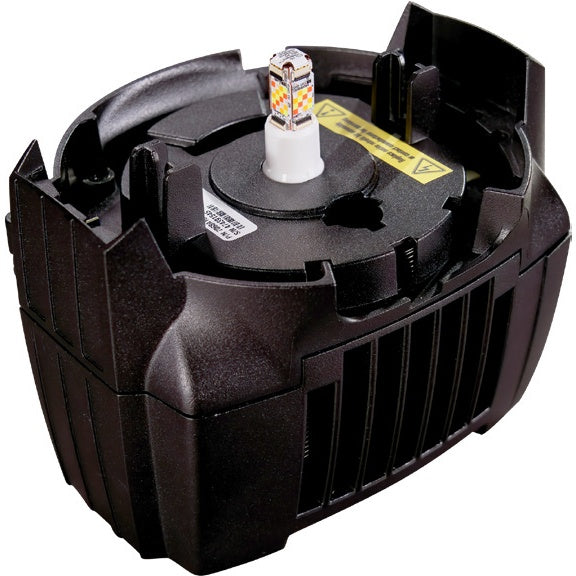

The ETC S4WRDCII-A Source 4WRD Color II is a static wash LED retrofit designed to convert an existing Source Four incandescent profile into a color-mixing fixture without replacing the entire luminaire. This approach is well suited to venues that want to modernize installed inventory, reduce maintenance, and expand creative flexibility while keeping familiar Source Four bodies in service. With RGBA color mixing and DMX control, it supports fast scene changes and a broader range of stage looks than a traditional lamp-and-gel workflow.

For theatres, houses of worship, schools, hospitality spaces, retail environments, exhibition centers, meeting rooms, and clubs, this upgrade offers a practical path to lower energy use and fewer service interruptions. The retrofit is nondestructive and can be completed in less than five minutes, making it useful for phased upgrades across larger systems. Source 4WRD Color II uses switched 100–240 VAC power and is intended for installations that need dependable color wash performance from existing Source Four infrastructure.

View full details

Specifications

Source
LED Details
Nichia LEDs
Max Lumens (26 EDLT) (Full On / 3200 K / 5600 K)
6,042 / 5,051 / 5,687
Lumens Per Watt (Full On / 3200 K / 5600 K)
42.2 / 46.3 / 45.9
L70 Rating (Hours To 70% Output)
>60,000 hours
Electrical
Voltage Range
100–240 V (50–60 Hz) (not dimmable)
Input Method
Hardwired, 1 m cord, bare end or various connector options (120 V); Hardwired, 1 m cord, bare end (240 V)
Inrush
32 A (first half-cycle) at 120 V; 60 A (first half-cycle) at 240 V
Fixtures Per Circuit, 120 V
10 (20 A switched circuit, R20 module or similar)
Fixtures Per Circuit, 240 V
10 fixtures per non-dimmed circuit
