ETC S4WRDG120-A Source 4WRD Gallery LED Retrofit Upgrade | Edison

ETC S4WRDG120-A Source 4WRD Gallery LED Retrofit Upgrade | Edison

SoundPro Item: 126364 | Part Number: S4WRDG120-A

$968.00
$968.00 $968.00
Your Price Sold out
MSRP: $968.00 | MAP: $968.00

Usually ships in 5-7 business days

  • Quick LED Retrofit For Existing Source Four
  • Nondestructive Upgrade Helps Preserve Fixture Value
  • Installs In Under A Minute For Faster Turnaround
  • May Keep Existing Focus During Conversion
  • DMX Or Line Dimming Fits More Control Setups
  • Cool Operation Reduces Heat In Performance Spaces
  • No Lamp Replacements Lowers Maintenance Needs
Log in or register for YOUR best price

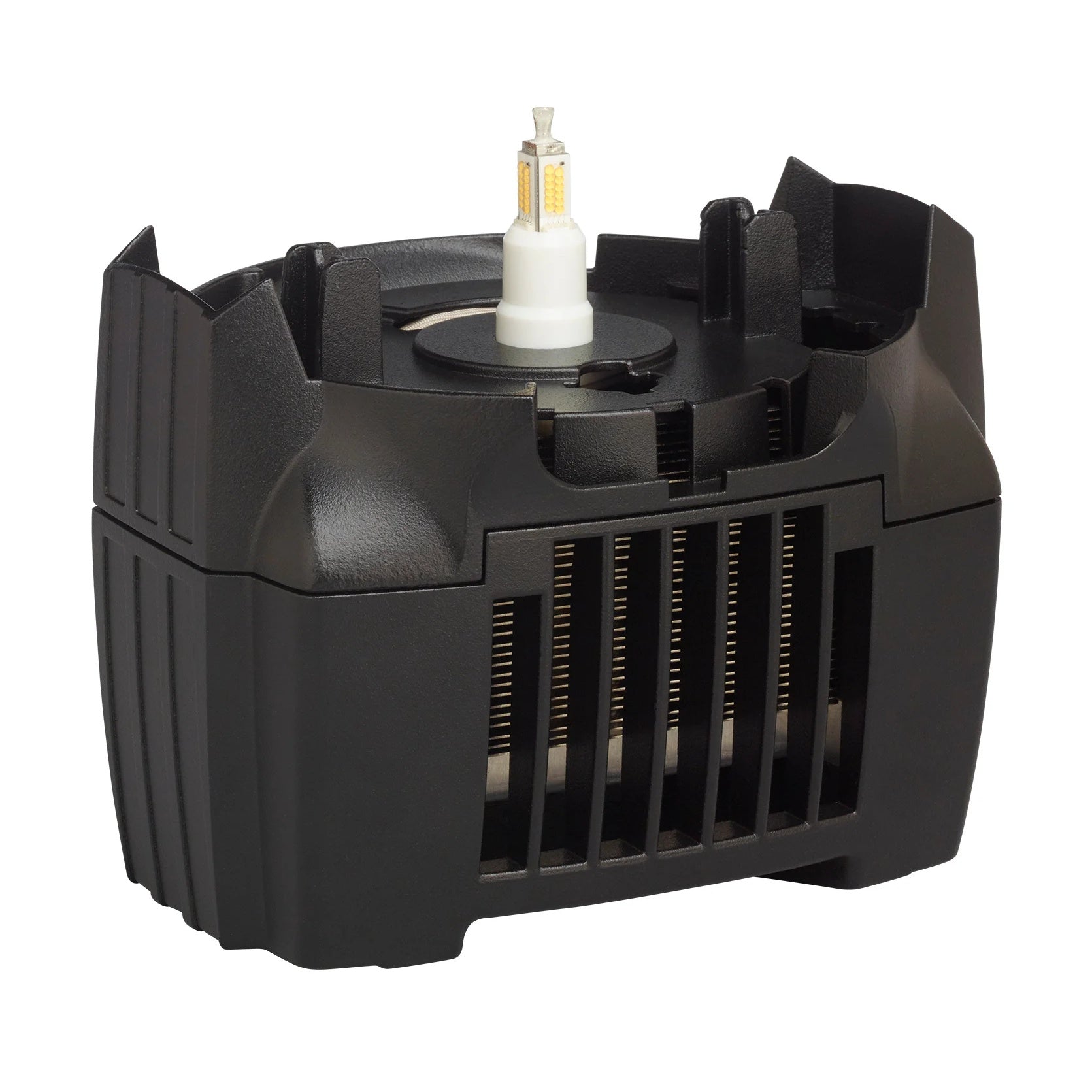

The ETC S4WRDG120-A is a Source 4WRD II white-light LED retrofit designed to replace the standard burner assembly in a Source Four fixture. It converts the HPL source to LED, giving venues and integrators a practical path to modernize existing inventory without replacing the full luminaire. The upgrade is nondestructive, installs quickly, and in many situations can be completed without disturbing fixture focus, making it a strong fit for active theatres, worship spaces, schools, hospitality venues, retail environments, and meeting facilities.

For buyers focused on operating efficiency, this retrofit supports a meaningful reduction in power consumption while also eliminating routine lamp changes associated with traditional HPL systems. It is theatrically dimmable through DMX or line dimmable with a traditional LED curve, allowing it to adapt to both performance and installed-audio-visual environments where control flexibility matters. As an LED source, it also runs cooler than lamp-based alternatives, which can be beneficial in spaces where fixture heat and maintenance overhead are ongoing concerns.

Downloads

View full details

Specifications

Source
LED Details
S4WRD II LED
Max Lumens (3200 K / 3200 K Gallery / Daylight Gallery)
11,430 / 9,716 / 10,333
Lumens Per Watt 120 V
76.2 / 64.8 / 68.9
Lumens Per Watt 230 V
65.3 / 55.5 / 59.0
L70 Rating (Hours To 70%)
>45,000 hours
Electrical
Voltage Range
114–125 V, 60 Hz (120 V); 209–252 V, 50/60 Hz (230 V)
Input Method
Hardwired, 1 m cord, bare end or various connector options (120 V); Hardwired, 1 m cord, bare end (230 V)
Inrush
30 A (first half-cycle) at 120 V; 12 A (first half-cycle) at 230 V
