ETC S4WRDT120-B Source 4WRD LED Retrofit Upgrade | Stage Pin

ETC S4WRDT120-B Source 4WRD LED Retrofit Upgrade | Stage Pin

SoundPro Item: 126354 | Part Number: S4WRDT120-B

$898.00
$898.00 $898.00
Your Price Sold out
MSRP: $898.00 | MAP: $898.00

Usually ships in 5-7 business days

  • Fast Retrofit Minimizes Fixture Downtime
  • Nondestructive Upgrade Protects Existing Inventory
  • DMX Or Line Dimming Fits More Installations
  • Traditional LED Curve Supports Theatrical Control
  • Lower Power Draw Helps Reduce Energy Use
  • Cooler Operation Benefits Enclosed Venues
  • No Lamp Changes Reduce Ongoing Maintenance
Log in or register for YOUR best price

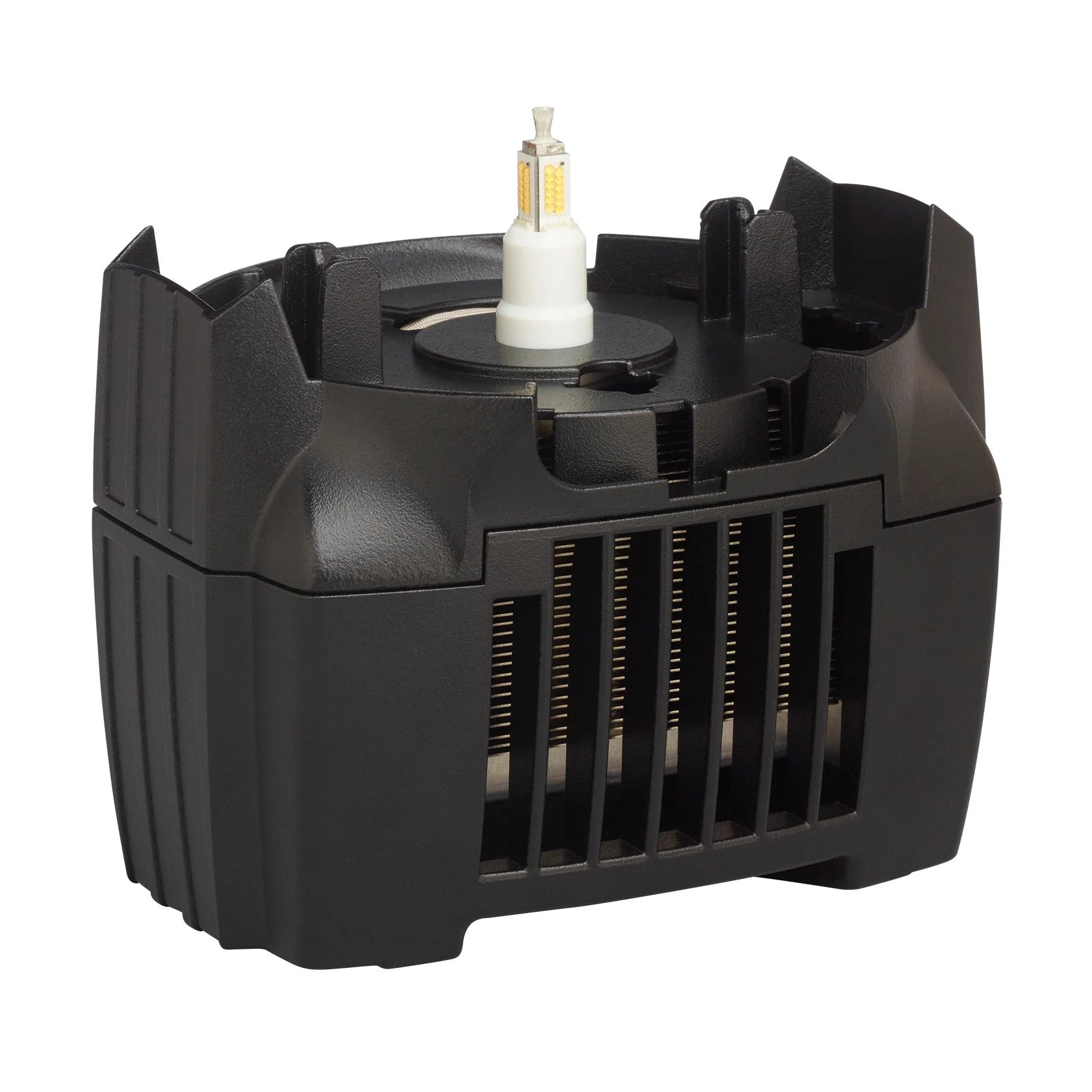

The ETC S4WRDT120-B is a Source Four white-light LED retrofit designed for facilities and production teams that want to modernize existing fixtures without replacing the full luminaire. By replacing the standard burner assembly, it converts an HPL-based Source Four into an LED fixture while supporting a fast, nondestructive upgrade path. In many installations, the change can be completed in less than a minute and often without disturbing fixture focus, making it practical for active theatres, worship spaces, schools, hospitality venues, and meeting environments.

This retrofit is well suited to energy-saving projects where maintaining an established Source Four inventory matters. It supports theatrical dimming via DMX or line dimming with a traditional LED curve, giving integrators and lighting teams flexibility across permanent installations and performance spaces. As an LED source, it also helps reduce ongoing maintenance demands associated with lamp-based operation.

For venues seeking a more efficient white-light solution from existing Source Four fixtures, the S4WRDT120-B offers a straightforward path to cooler-running operation and lower power consumption while preserving the familiar fixture platform already in service.

Downloads

View full details

Specifications

Source
LED Details
S4WRD II LED
Max Lumens (3200 K / 3200 K Gallery / Daylight Gallery)
11,430 / 9,716 / 10,333
Lumens Per Watt At 120 V
76.2 / 64.8 / 68.9
Lumens Per Watt At 230 V
65.3 / 55.5 / 59.0
L70 Rating (Hours To 70%)
>45,000 hours
Electrical
Voltage Range
114–125 V, 60 Hz (120 V); 209–252 V, 50/60 Hz (230 V)
Input Method
Hardwired, 1 m cord, bare end or various connector options (120 V); Hardwired, 1 m cord, bare end (230 V)
Inrush
30 A (first half-cycle) at 120 V; 12 A (first half-cycle) at 230 V
