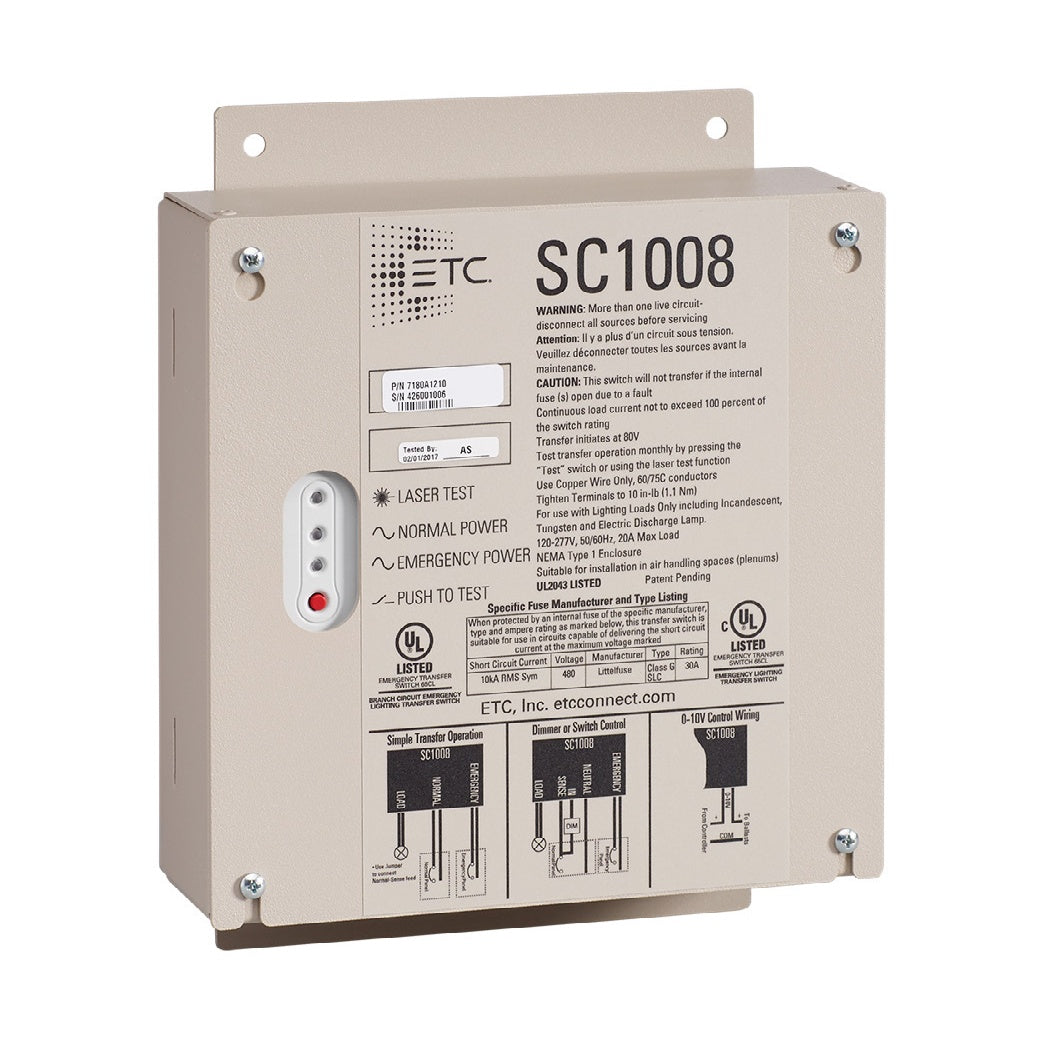

ETC SC1008 Emergency Lighting Transfer Switch NEMA 1

ETC SC1008 Emergency Lighting Transfer Switch NEMA 1

SoundPro Item: 127322 | Part Number: SC1008

$580.00
$580.00 $580.00
Your Price Sold out
MSRP: $580.00 | MAP: $580.00

Usually ships in 5-7 business days

  • UL1008 Listed For Code-Compliant Emergency Transfer
  • Break-Before-Make Relays Help Protect Circuit Switching
  • 0–10 V Or DALI Bypass Supports Controlled Loads
  • Front Test Controls Simplify Commissioning Checks
  • Marked Terminations Speed Field Wiring Work
  • NEMA 1 Steel Enclosure Suits Indoor Installations
Log in or register for YOUR best price

The ETC SC1008 Branch Circuit Emergency Lighting Transfer Switch is built for emergency lighting applications that require UL1008 transfer of a single branch circuit. It automatically transfers a 20 A lighting load from the normal source to the emergency source when normal power is lost, then returns the load when utility power is restored. This makes it a practical fit for code-driven projects in assembly spaces, theatres, motion picture rooms, and other facilities where reliable emergency illumination is required.

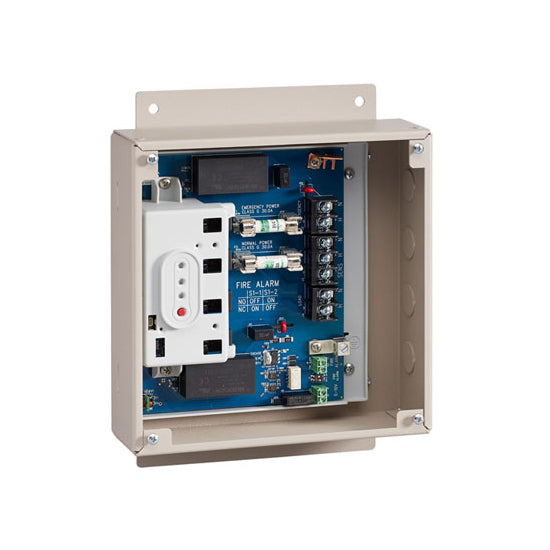

The unit supports single-phase 120–277 VAC input and is designed to work with controlled lighting circuits using Class 2 0–10 V or DALI low-voltage control wiring. It continuously monitors normal and emergency power, uses electrically interlocked break-before-make operation, and includes a field-configurable fire alarm dry contact input. Contractor-focused details such as clearly marked terminations, front access wiring space, and conduit entry from the top, bottom, or right side help streamline installation.

For maintenance and commissioning, the front panel provides a push button test switch, laser sensor test switch, and LED indicators showing normal and emergency power presence. The NEMA 1 steel enclosure with adjustable wall-mount plate supports installed environments where dependable emergency transfer and straightforward service access matter.

Downloads

View full details

Specifications

Regulatory And Compliance
Listing
ANSI/UL 1008 Listed Branch Circuit Emergency Lighting Transfer Switch (BCELTS)
Category Code
WPWR
UL File
E157852
CSA Compliance
CSA C22.2 No. 178 Transfer Switch Equipment
NFPA Compliance
ANSI/NFPA 110
NEC Compliance
Article 700, Article 701, Article 702, Section 518.3C, Section 520.8, Section 540.11C
Mechanical
Enclosure
NEMA 1 rated steel enclosure
Mounting
Wall mount unit with adjustable mounting plate
Finish
Fine-textured, scratch resistant epoxy paint
Wiring Access
Front access to wiring space
Conduit Entry
Top, bottom, or right side
Operation
Switched Conductors
Hot (line) and neutral
Interlock
Electrically interlocked
Contactor
Mechanically maintained (held) contactor
User Controls
Controls
Test button, laser test sensor
Indicators
Two LED status indicators for normal and emergency power
Electrical
Normal Source Feed Input
Single phase 120–277 VAC, up to 20 A
Normal Source Feed Wire Range
10–18 AWG solid or stranded copper
Normal Sense Circuit Input
Single phase 120–277 VAC, up to 20 A
Normal Sense Wire Range
10–18 AWG solid or stranded copper
Emergency Source Feed Input
Single phase 120–277 VAC, up to 20 A
Emergency Source Feed Wire Range
10–18 AWG solid or stranded copper
Earth Ground Wire Range
6–14 AWG solid or stranded copper
Low Voltage Control
Class 2 0–10 V or DALI control circuits
Low Voltage Wire Range
10–20 AWG stranded copper
Fire Alarm Input
Class 2 dry contact, field configurable NC or NO
Fire Alarm Wire Range
10–20 AWG stranded copper
Parallel Devices
Up to ten SC1008 devices
Maximum Fire Alarm Wire Length
300 m (1,000 ft)
SCCR Protection
Class G, 10,000 A RMS symmetrical
Continuous Load At 120 V
2,400 W per circuit
Continuous Load At 277 V
5,440 W per circuit
Overcurrent Protection
Located on load side of contactor
Relay Ratings
Magnetic Ballast
20 A
Electronic Ballast
16 A
Tungsten
20 A
Motor At 120 V
20 A (120 A locked-rotor)
Motor At 277 V
14 A (84 A locked-rotor)
Relay Type
Mechanically held
Life At Full Resistive Load
100,000 cycles
Life At Motor Inductive Or Tungsten Load
30,000 cycles
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Humidity
5%–95% non-condensing
Dimensions And Weight
Height
216 mm / 8.50 in
Width
267 mm / 10.50 in
Depth
70 mm / 2.75 in
Weight
2.8 kg / 6.2 lb
Shipping Weight
3.3 kg / 7.2 lb
