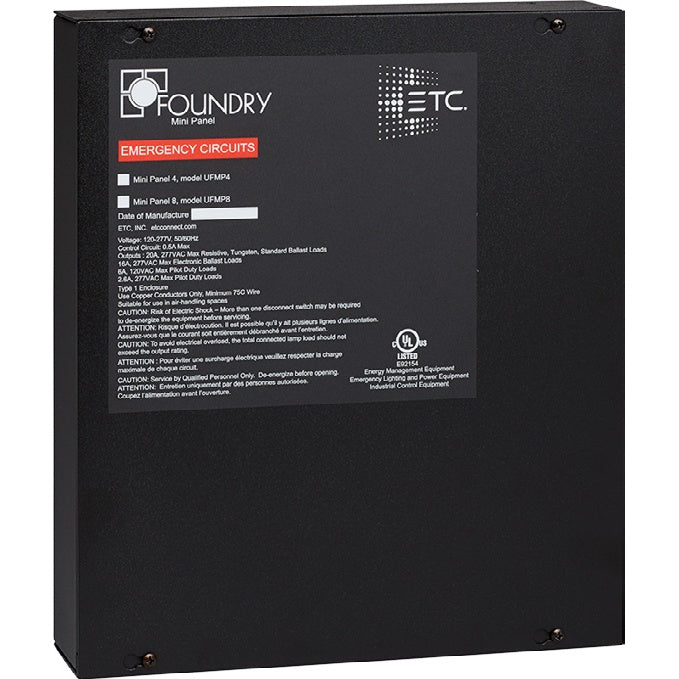

ETC UFMP8 Unison Foundry 8 Zone Mini DMX Lighting Control Panel

ETC UFMP8 Unison Foundry 8 Zone Mini DMX Lighting Control Panel

SoundPro Item: 127306 | Part Number: UFMP8

$1,085.00
$1,085.00 $1,085.00
Your Price Sold out
MSRP: $1,085.00 | MAP: $1,085.00

Usually ships in 5-7 business days

  • Controls Up To Eight Lighting Zones
  • Supports Switched And 0–10 V Outputs
  • Handles Mixed 120 VAC And 277 VAC Circuits
  • Enables Emergency Bypass For Life Safety
  • Allows RDM Setup For Faster Commissioning
  • Plenum Rated For Discreet Installation
Log in or register for YOUR best price

The ETC UFMP8 is a Foundry Mini Panel designed for distributed lighting control in commercial and institutional spaces where centralized switching and low-voltage dimming need to fit into a compact footprint. It provides DMX-controlled management of up to eight circuits and supports direct 0–10 V control for compatible LED drivers and fluorescent ballasts. With support for both 120 VAC and 277 VAC circuits in the same panel, it fits projects that require flexible branch circuit planning across mixed electrical environments.

For energy and life-safety integration, the UFMP8 includes a Demand Response contact input that can enforce maximum output levels while active, along with UL 924 emergency lighting control through contact closure and normal power loss sense feed terminals. RDM support simplifies addressing and device setup, while onboard indicators help confirm controller power, DMX signal, Demand Response status, and emergency control state during commissioning and service.

The enclosure is built from 16-gauge cold-rolled steel with a black powder-coat finish and is rated for wall-mount installation in plenum air space. This makes the UFMP8 a strong fit for arena suites, offices, classrooms, hospitality venues, houses of worship, conference rooms, healthcare spaces, and retail environments where discreet installation and dependable zone-based control are required.

Downloads

View full details

Specifications

Electrical
Power Input Per Circuit
100–277 VAC, 50/60 Hz, single-phase
Sense Feed Input
100–277 VAC single phase
Relay Per Output
20 A fully-rated bi-state latching relay
0–10 V Output
Up to 100 mA sink per output
0–10 V Isolation
2500 V RMS from ground
Control Circuit Power Draw
0.5 A
Demand Response Input
Normally Open (NO)
UL 924 Contact Input
Normally Open (NO) or Normally Closed (NC)
Control And Protocol
DMX Standard
USITT DMX512-A (ANSI E1.11)
RDM Support
ANSI E1.20
DMX Input Isolation
Optically-isolated
DMX Fault Withstand
Up to 250 VAC
DMX/RDM Termination
Integrated
Relay Ratings
Magnetic Ballast (HID)
20 A
Electronic Ballast
16 A
Tungsten
20 A
Motor @ 120 VAC
20 A (120 A locked-rotor)
Motor @ 277 VAC
14 A (84 A locked-rotor)
Relay Hold
Mechanically held
Resistive Load Lifespan
100,000 cycles at full load
Motor/Inductive/Tungsten Lifespan
30,000 cycles
Mechanical
Construction
16-gauge cold-rolled steel
Finish
Fine-textured black powder coat
Installation
Wall-mount
Plenum Rating
Rated for installation in plenum air space

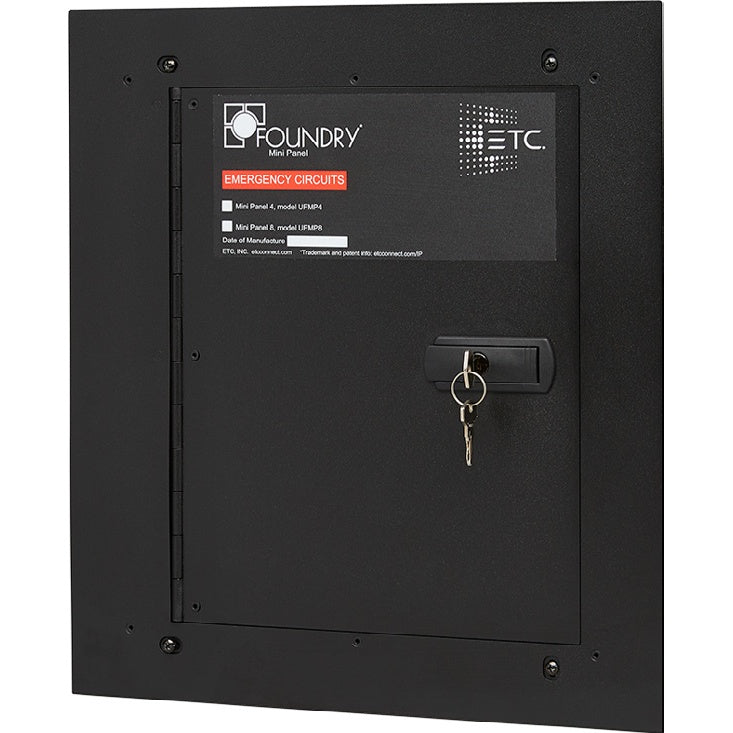

Mounting Options
Flush-mount or surface-mount
Environmental
Ambient Temperature
0°C to 50°C (32°F to 122°F)
Humidity
5%–95% non-condensing
Compliance
Listings
cULus and UL 924 LISTED
Plug Load Control
Suitable for plug load control
Dimensions
Height
14 in / 356 mm
Width
12 in / 301 mm
Depth
3 in / 76 mm
Weight
9 lb / 4.08 kg
