ETC 7179A1024 Dual Zone DMX Relay Controller

ETC 7179A1024 Dual Zone DMX Relay Controller

SoundPro Item: 54083 | Part Number: 7179A1024

$295.00
$295.00 $295.00
Your Price Sold out
MSRP: $295.00 | MAP: $295.00

Usually ships in 5-7 business days

  • Controls Two Circuits For Zoned Power Switching
  • 20A Fully Rated Relays Handle Diverse Load Types
  • RDM Support Simplifies Remote Device Setup
  • Optically Isolated DMX Input Helps Protect Control
  • Junction Box Mounting Supports Clean Installs
  • LED Indicators Aid Local Address Configuration
Log in or register for YOUR best price

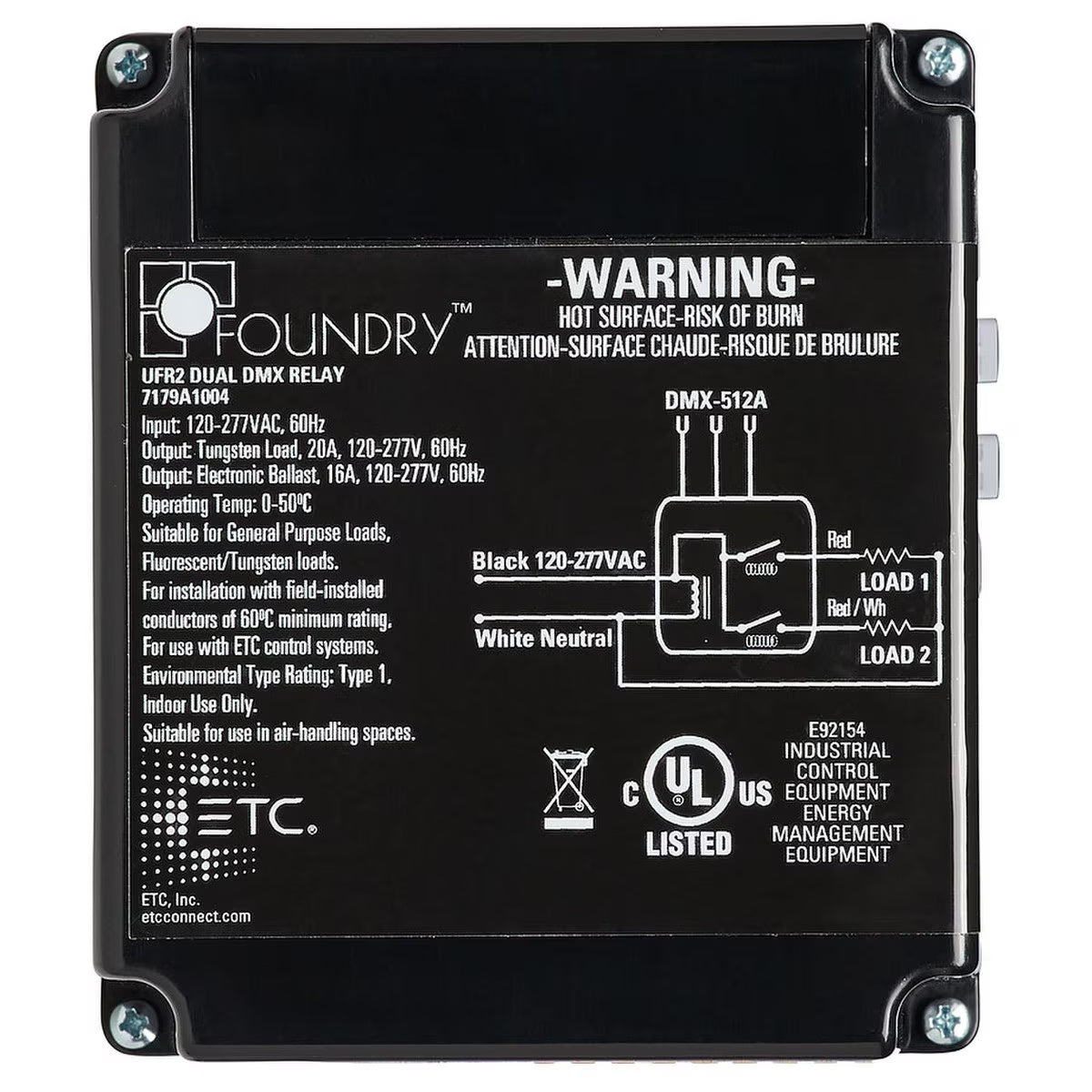

The ETC 7179A1024 Foundry Relay Controller is designed for DMX-controlled switched power of two circuits in installed lighting environments. It provides fully rated 20A relays for controlling general purpose, tungsten, fluorescent, and LED loads, making it a practical fit for projects that need reliable on/off control rather than dimming. With support for 120-277VAC input, it can be deployed across a wide range of commercial and architectural power systems.

This controller is well suited for applications such as conference rooms, classrooms, hospitality spaces, healthcare facilities, retail environments, houses of worship, and arena suites where centralized lighting control is required. RDM support allows remote setup through compatible controllers, gateways, consoles, and software, while onboard button and LED indicators support local configuration of the starting DMX address when needed.

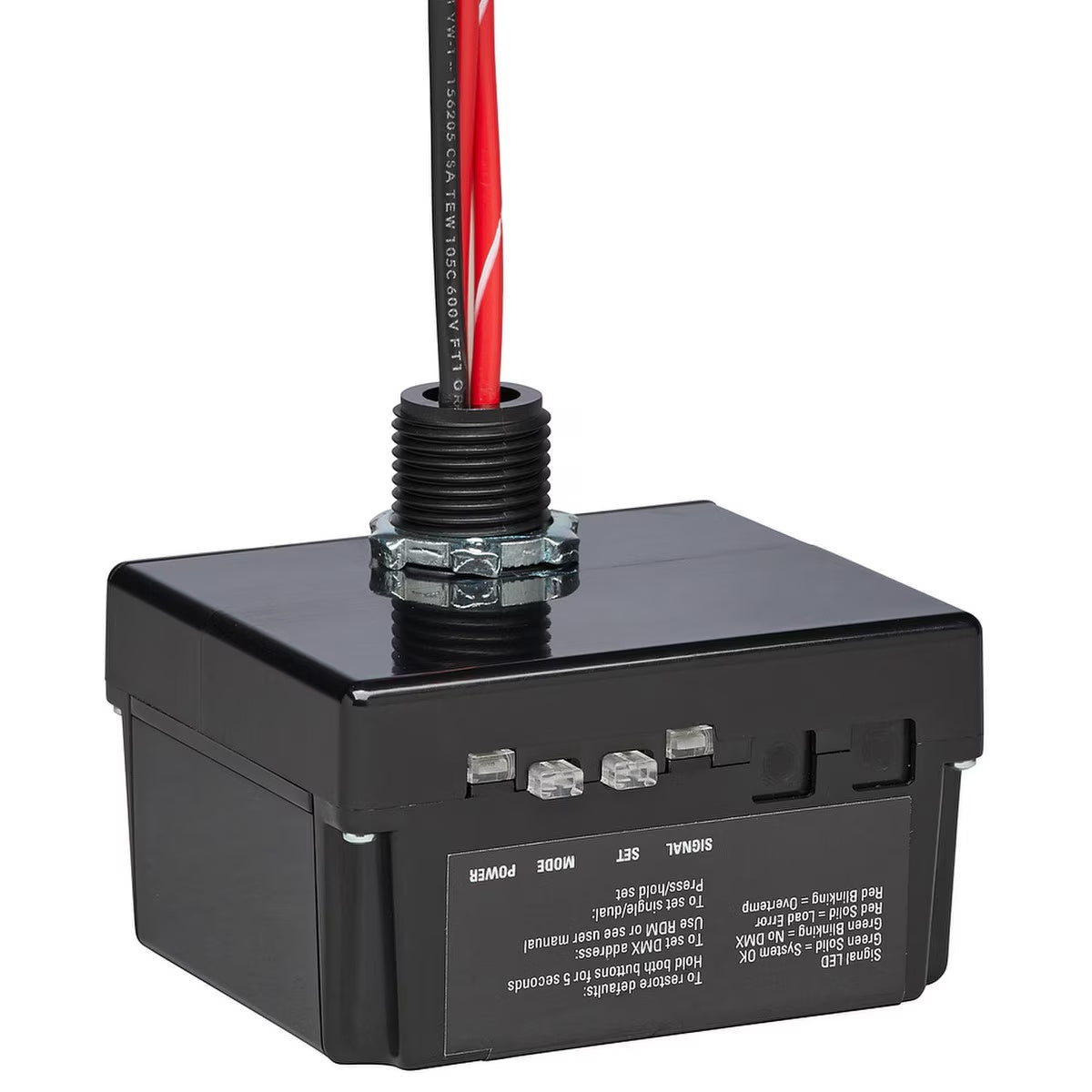

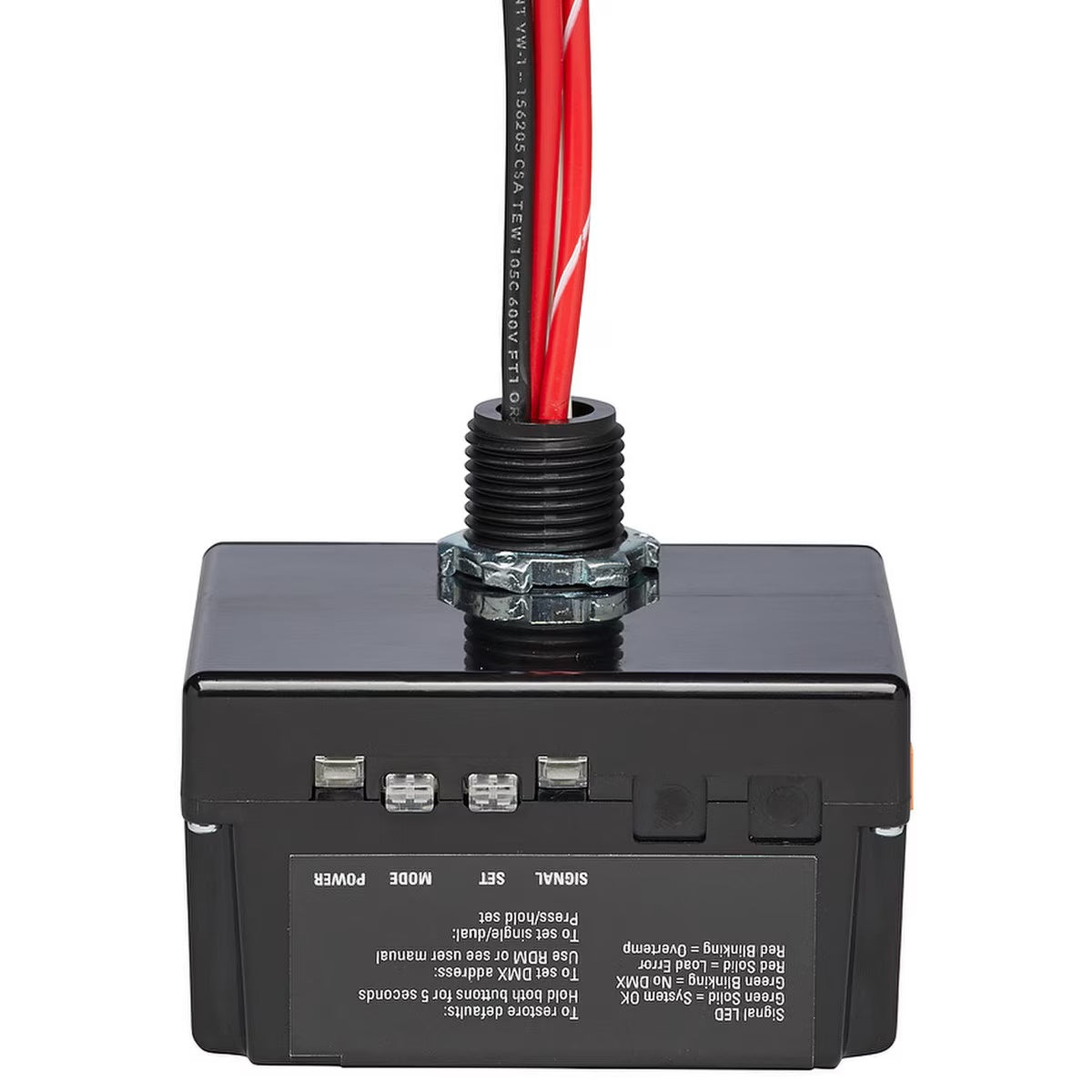

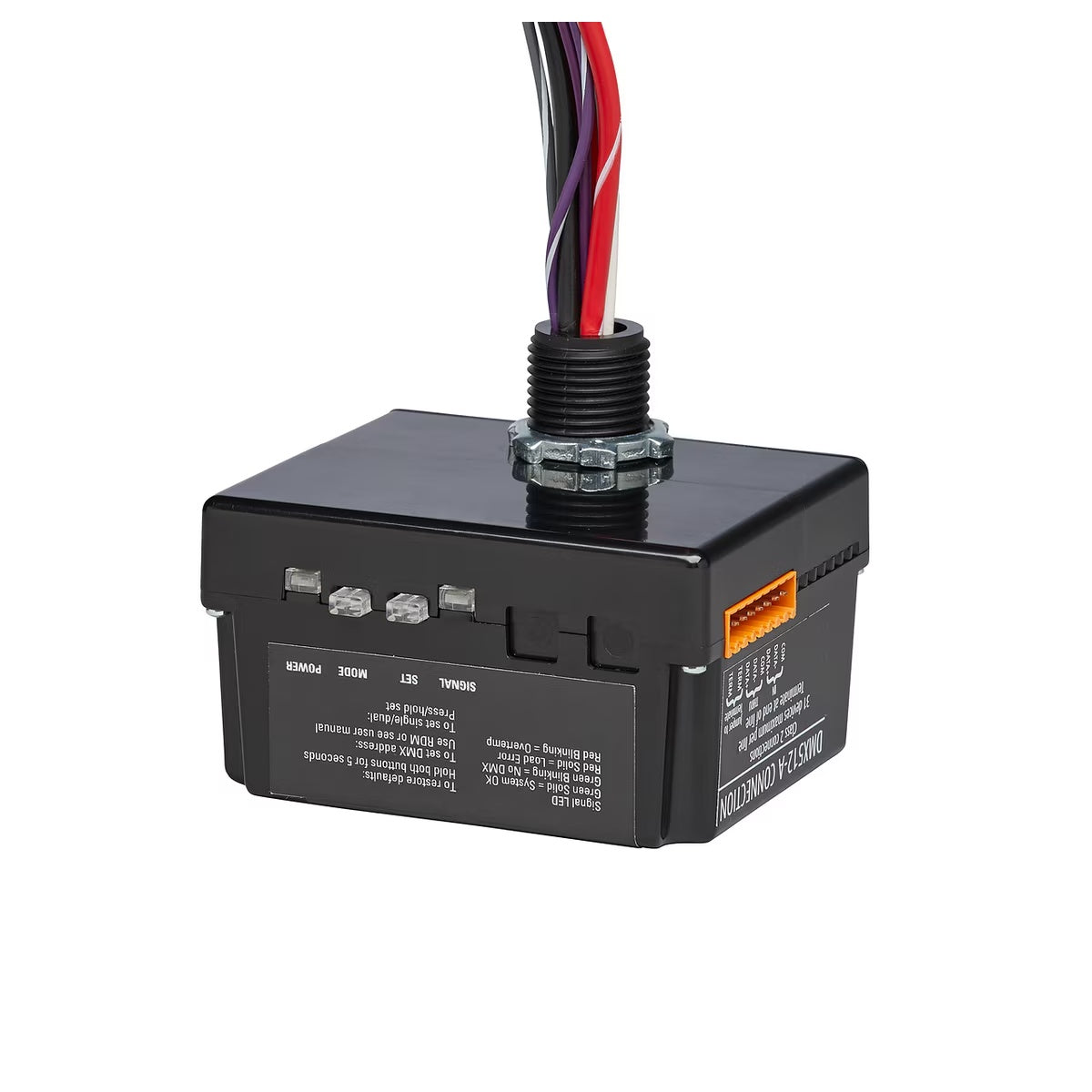

The compact housing mounts to an electrical junction box and uses a half-inch conduit knockout for mains-voltage and 0-10V control wiring exit, with DMX wiring connected at the side of the controller. The DMX input port is optically isolated from controller electronics and includes integrated DMX/RDM termination, supporting dependable installation in professional AV and lighting control systems.

Downloads

View full details

Specifications

Electrical
Power Input
120-277 VAC, 50/60 Hz, 1 pole
Relay Type
Normally Open (NO) 20 A, fully-rated relay
Supported Loads
General purpose, tungsten, fluorescent, LED, plug loads
Control
Protocol Support
USITT DMX512-A (ANSI E1.11)
RDM Support
ANSI E1.20
Configuration
Manual starting DMX address on controller
Remote Configuration
Via RDM controllers, ETC Concert, ETC console, third-party products
DMX Input Port
Isolation
Optically-isolated from controller electronics
Fault Voltage Withstand
Up to 250 VAC
Termination
Integrated DMX/RDM termination
Mechanical
Construction
Injection-molded ABS plastic
Interface
Button interface and LED indicators
Mounting
Half-inch conduit knockout mounted
Mains Power Input Connections
Hot (black wire) - 4 mm² (12 AWG); Neutral (white wire) - 2.5 mm² (14 AWG)
Relay Output Connections
Zone 1 (red wire) - 4 mm² (12 AWG); Zone 2 (red/white wire) - 4 mm² (12 AWG)
Optional Accessory
Optional mounting plate available for low-voltage wiring in conduit
Environmental
Ambient Room Temperature
0°C to 50°C (32°F to 122°F)
Ambient Humidity
5%-95%, non-condensing
Compliance
Listings
cULus Listed
Plenum Rating
Rated for plenum use
Dimensions
Height
51 mm / 2.0 in
Width
89 mm / 3.5 in
Depth
77 mm / 3.0 in
Weight
0.4 kg / 0.8 lb
