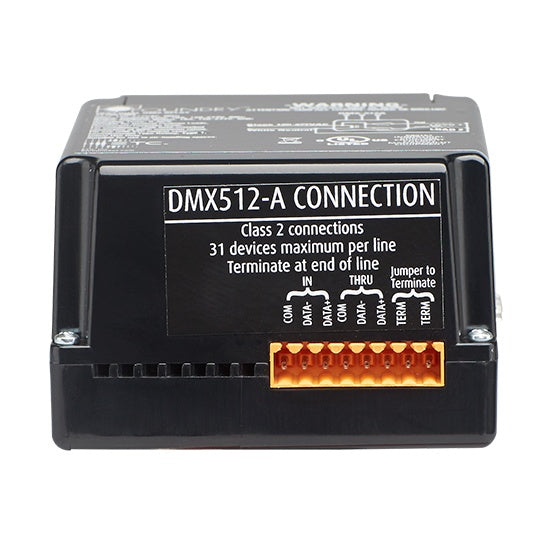

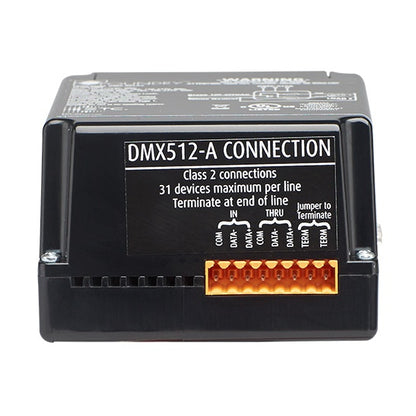

ETC UFR2-LV Dual Zone DMX 0-10V Dimming Controller

ETC UFR2-LV Dual Zone DMX 0-10V Dimming Controller

SoundPro Item: 121949 | Part Number: UFR2-LV

$320.00
$320.00 $320.00
Your Price Sold out
MSRP: $320.00 | MAP: $320.00

Usually ships in 5-7 business days

  • Two 20A Relays For Dual Circuit Switching
  • Isolated 0-10V Outputs Help Protect Control Paths
  • DMX And RDM Support Simplifies Setup
  • Wide 120-277 VAC Input Fits More Projects
  • Junction Box Mounting Speeds Installed Deployment
Log in or register for YOUR best price

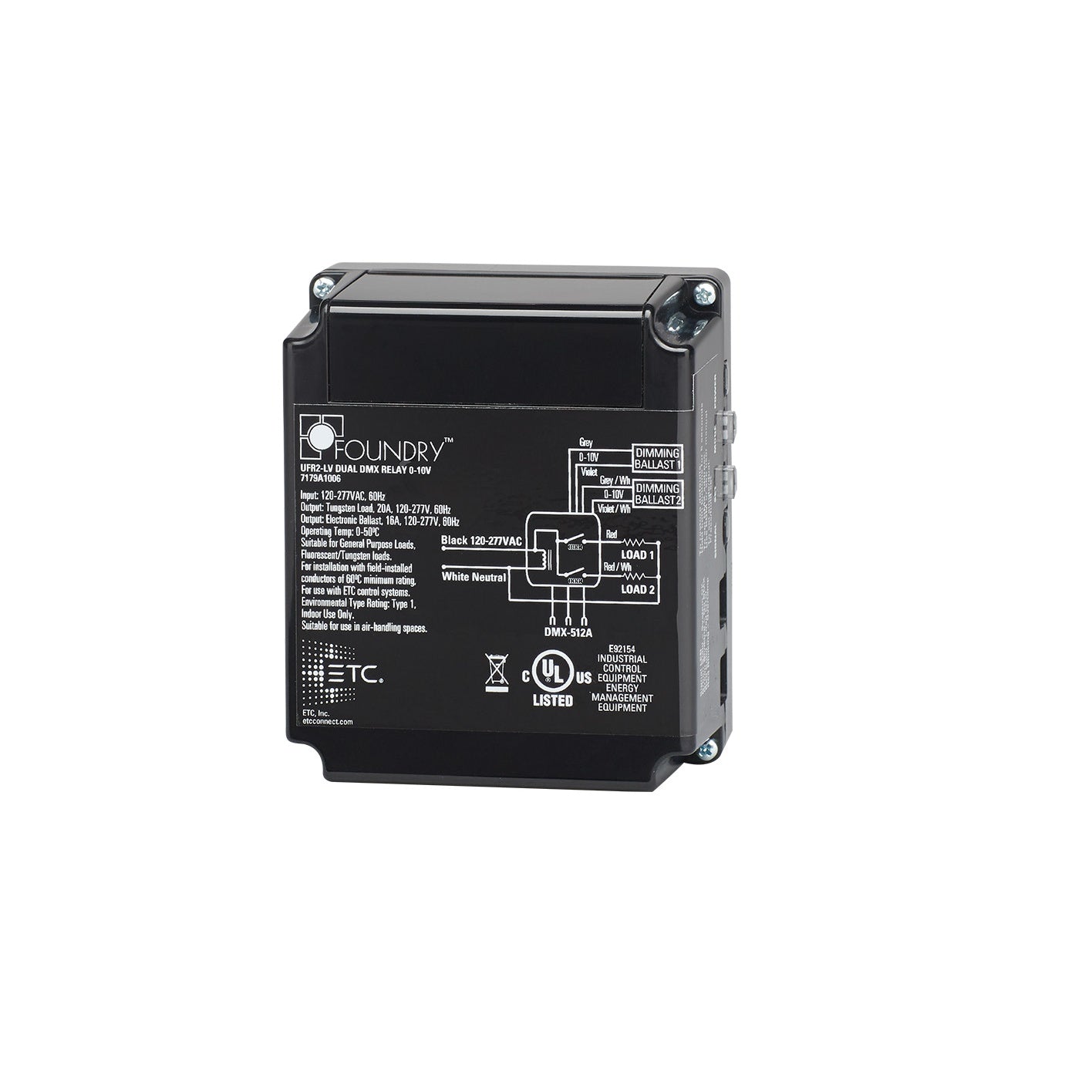

The ETC UFR2-LV is a Unison Foundry lighting control solution designed for switched power control of two circuits with integrated 0-10 V dimming. It combines DMX control, RDM configuration support, and fully rated relays in a compact unit that mounts to an electrical junction box, making it well suited for distributed architectural and commercial lighting systems.

This controller is built for direct control of compatible LED drivers and fluorescent dimming ballasts while also handling general purpose, tungsten, fluorescent, and LED loads. Fully isolated 0-10 V outputs help support dependable low-voltage dimming, while the 120-277 VAC input range fits a wide range of installed environments such as classrooms, hospitality spaces, conference rooms, healthcare facilities, houses of worship, and retail locations.

For integrators and facility projects that require flexible addressing and service access, the UFR2-LV supports USITT DMX512-A, RDM communication, manual DMX addressing, and remote setup through supported RDM controllers. Its compact ABS enclosure, onboard button interface, LED indicators, integrated DMX/RDM termination, and plenum rating make it a practical choice for distributed zone control in new construction and retrofit applications.

Downloads

View full details

Specifications

General
Power Input
120-277 VAC, 50/60 Hz, 1 Pole
Relay Type
Normally Open (NO) 20 A, fully-rated relay
Dimming Control
0-10 VDC
Dimming Output Rating
Up to 100 mA sink per output
Isolation
0-10 VDC connections fully isolated from ground to 2500 V RMS
Supported Loads
General purpose, tungsten, fluorescent, LED, plug loads
Protocols
DMX Standard
USITT DMX512-A (ANSI E1.11)
RDM Support
ANSI E1.20
DMX Input Port
Optically-isolated from controller electronics
Fault Voltage Withstand
Up to 250 VAC
Termination
Integrated DMX/RDM termination
Configuration
Manual DMX start address and remote configuration via supported RDM controllers
Mechanical
Construction
Injection-molded ABS plastic
Interface
Button interface and LED indicators
Mounting
Half-inch conduit knockout mounted
Mains Input Wiring
Hot (black) 4 mm² (12 AWG); Neutral (white) 2.5 mm² (14 AWG)
Relay Output Wiring
Zone 1 (red) 4 mm² (12 AWG); Zone 2 (red/white) 4 mm² (12 AWG)
0-10 V Wiring
Zone 1 (violet/gray) 1 mm² (18 AWG); Zone 2 (violet/white gray/white) 1 mm² (18 AWG)
Environmental
Ambient Temperature
0°C to 50°C (32°F to 122°F)
Humidity
5%-95%, non-condensing
Compliance
cULus Listed; Rated for plenum use
Dimensions
Height
51 mm (2.0 in)
Width
89 mm (3.5 in)
Depth
77 mm (3.0 in)
Weight
0.4 kg (0.8 lb)
