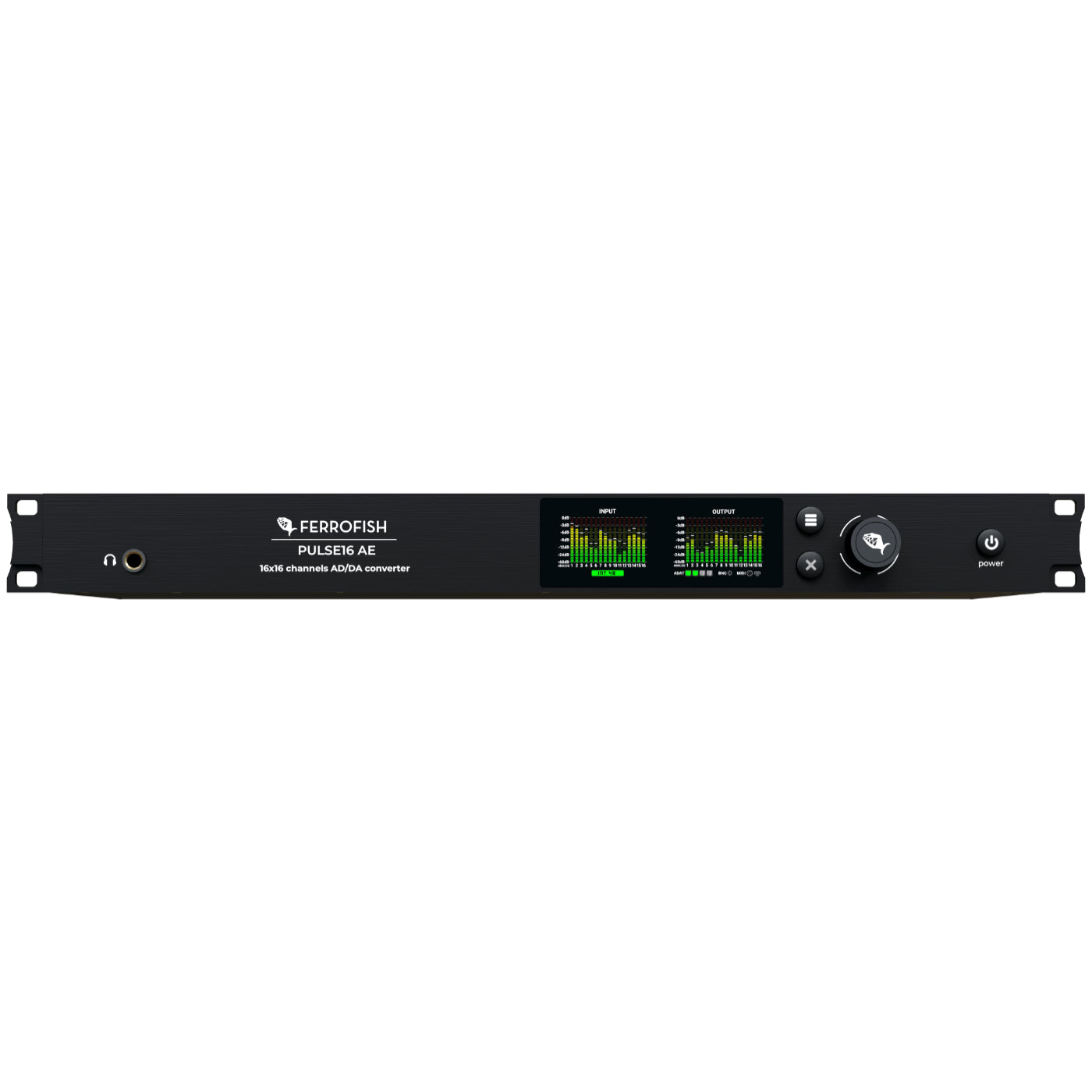

Ferrofish Pulse16 AE 16 in / 16 out AD/DA converter with ADAT

Ferrofish Pulse16 AE 16 in / 16 out AD/DA converter with ADAT

SoundPro Item: 203003 | Part Number: Pulse16 AE

$1,199.00
$1,249.00 $1,199.00
Your Price Sold out
MSRP: $1,249.00 | MAP: $1,199.00

Usually ships in 5-7 business days

  • Intuitive Visual Monitoring: The high-resolution front panel display provides immediate visual feedback of all input and output signals, offering professional-grade metering and system status at a glance. Multi-colored level meters ensure precise level monitoring in any environment.
  • Premium Conversion Architecture: Experience pristine audio quality through carefully selected ESS converters and temperature-compensated clock design. The PULSE16 AE maintains Ferrofish's reputation for exceptional sound quality, delivering crystal-clear conversion up to 192kHz with professional +20dBu headroom.
  • Professional Remote Control: Take command of your audio routing and settings through the comprehensive RemoteFish software for Mac and PC. The USB-C connection provides instant access to all parameters, while MIDI I/O enables integration into larger systems and ensures easy firmware updates for continued improvement.
  • Flexible Integration Hub: Beyond simple conversion, the PULSE16 AE serves as a versatile routing solution with its comprehensive ADAT connectivity and word clock synchronization options. The unit seamlessly bridges analog and digital domains, making it an ideal centerpiece for both studio and live applications.
  • Advanced Headphone Monitoring: The dedicated headphone output, powered by a separate ESS DAC, delivers exceptional monitoring capabilities with precise 1dB-step volume control. Four-stage amplification ensures compatibility with any headphone impedance, making it perfect for critical listening and tracking sessions.
  • Future-Proof Expandability: Thanks to its modular design, the PULSE16 AE is ready for tomorrow's challenges with DSP expansion capability. The optional DSP stick slot allows for future processing power upgrades, protecting your investment while offering a path to enhanced functionality.
Log in or register for YOUR best price

The Ferrofish PULSE16 AE is a versatile and compact AD/DA converter designed for seamless integration into studio or live setups. With 16 high-quality balanced analog inputs and outputs, it ensures precise and clean signal conversion. The PULSE16 AE offers full visual control via its vibrant front-panel displays, simplifying real-time monitoring and configuration.

Built to accommodate professional workflows, its robust clocking options and compatibility with standard studio connections make it an essential tool for engineers seeking reliable performance in a 19″ 1HU rack form factor.

View full details

Specifications

ANALOG I/O
Analog Inputs
16 balanced TRS inputs (¼-inch / 6.3 mm)
Analog Outputs
16 balanced TRS outputs (¼-inch / 6.3 mm)
Headphone Output
¼-inch / 6.3 mm
ADAT CONNECTIVITY
ADAT Inputs
4 ADAT input ports
ADAT Outputs
4 ADAT output ports
SMUX Support
32 channels at 48 kHz; 16 channels at 96 kHz; 8 channels at 192 kHz
CLOCKING
Word Clock
Input and output (BNC connectors)
Clock Source
Internal high-stability clock; external sync via ADAT or Word Clock
ROUTING
Routing
Per-channel routing
SIGNAL MONITORING
Monitoring Displays
High-resolution front-panel displays for input and output level monitoring
LED Meters
Multi-colored LED meters
CONTROLS & USER INTERFACE
Front Panel Controls
Control knob and buttons for navigation and setup
CONNECTIVITY
Remote Control Interfaces
USB-C; TRS-MIDI Type A
Remote Control Support
Ferrofish RemoteFish software; MIDI CC
MIDI Port
Firmware updates and future features
HEADPHONE OUTPUT
Headphone Jack
6.3 mm
Amplification
Adjustable in four stages
Volume Control
Digital; 1 dB resolution
Monitoring Path
Dedicated path via separate ESS DAC
DSP PROCESSING
DSP Expansion
Expandable via optional DSP stick
DIGITAL-TO-ANALOG CONVERSION
DAC
ESS ES9017
Resolution
32-bit / 192 kHz
DNR
120 dB
THD+N
–110 dB
Output Impedance
110 Ω
ANALOG-TO-DIGITAL CONVERSION
ADC
ESS ES9840Q
Resolution
32-bit / 192 kHz
DNR
116 dB
THD+N
–108 dB
Input Impedance
6 kΩ
HEADPHONE OUTPUT SPECIFICATIONS
Output
¼-inch / 6.3 mm
Amplification
Adjustable in four stages
Volume Control
Digital; 1 dB resolution
Supported Impedance
15 – 600 Ω
Monitoring DAC
Separate DAC ES9023
INTERNAL WORD CLOCK
Oscillator
125 MHz high-precision
Initial Accuracy
±1.5 ppm
Temperature Drift
±2.5 ppm
Aging
±1 ppm
PLL (PHASE-LOCKED LOOP)
PLL
Digitally controlled with active jitter reduction
POWER SUPPLY
Voltage
12 V DC / 3 A
Power Consumption
12 VA (nominal); <1 VA (standby)
Connector
2.54 mm barrel jack with locking screw
Polarity
Center-positive
Included
Yes
FUSE
Fuse
Internal polyfuse; self-resetting
OPERATING CONDITIONS
Temperature Range
+5 °C to +45 °C
Humidity
<75 %; non-condensing
FORM FACTOR
Rack Format
19“ / 1HU
Dimensions
50 × 4.4 x 19 cm
Weight
2 kg
