Focusrite ISA ADN2 2-Channel AD Card
Focusrite ISA ADN2 2-Channel AD Card
SoundPro Item: 91171 | Part Number: ISA ADN2 DANTE A/D CARD
Usually ships in 5-7 business days
- Two-channel analogue-to-digital converter for ISA One
- Up to 24-bit/192kHz sample rate
- Two-channel XLR connection for AES3 output
- Dante connectivity via Primary and Secondary Ethernet ports with redundancy and auto switchover in case of failure
- Two-channel RCA connection for S/PDIF output
- Two-channel TOSLINK connector for ADAT output
- Word Clock I/O on BNC connectors
- RedNet Control and Dante Controller software
- Brainworx bx_console Focusrite – exclusive plug-in
ISA ADN2 is an optional two-channel A-D card that provides high-quality analog-to-digital conversion for the ISA One mic preamp and DI. Featuring Dante, AES3, ADAT andS/PDIF connectivity, the card operates at sample rates up to 24-bit/192kHz.

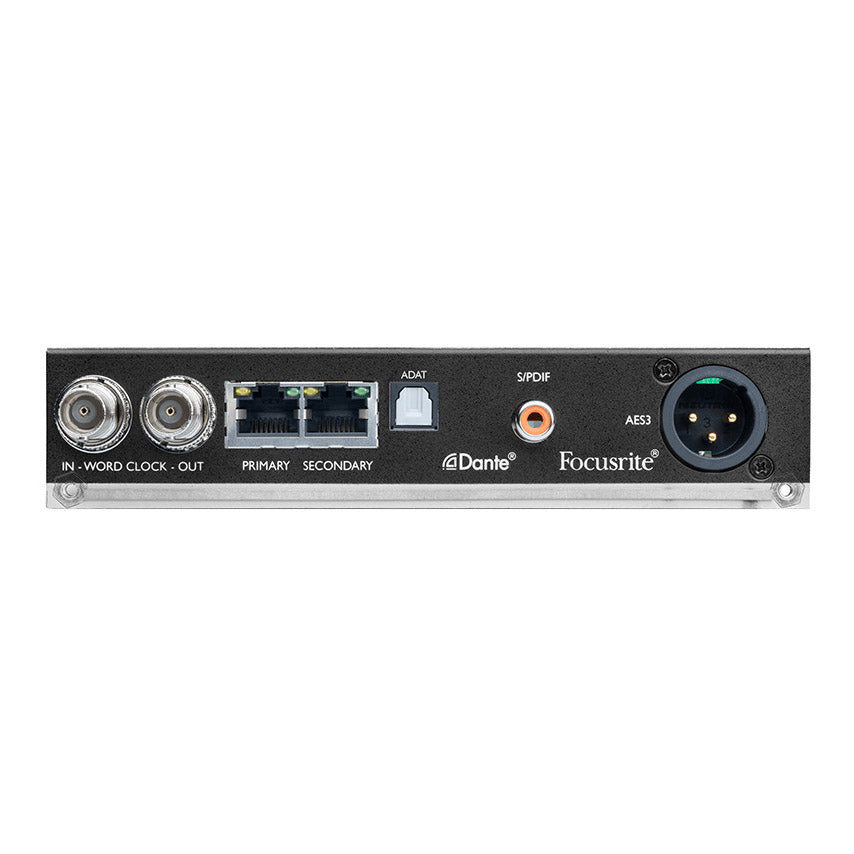

The card offers primary and secondary RJ45 Dante output ports, an XLR connector for AES3 output, a TOSLINK connector for ADAT output and RCA connector for S/PDIFoutput. Word Clock I/O on BNC connectors allows synchronisation to multiple digital sources. This also includes syncing the Dante network to house clock,or for syncing external equipment to the Dante network.
Dante outputs on the card provide ISA One with network connectivity to all Focusrite RedNet devices and Red interfaces, as well as any other Dante-enabled device from hundreds of manufacturers. Metering and settings are accessed through RedNet Control, routing is configured using Dante Controller.
- 0 DBFS reference levels 22dBu
- Frequency response 20Hz - 20kHz ±0.1dB
- THD+N -105dB (0.0006%) unweighted, 20Hz - 20kHz; -1dBFS input
- Noise in presence of signal -121dBu 'A'-Weighted (typical)
- Dynamic range 121dB 'A'-weighted (typical), 20Hz - 20kHz
- Supported sample rates 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
- Clock sources internal or word clock
- Word clock input 1x BNC 75Ω port (switchable termination)
- Word clock output 1x BNC 75Ω port
- Crosstalk input to input < -100dB; 20Hz - 20kHz (driven channel at -20dBFS)
- Front panel output connectivity
- Channel count: 2x Dante channels
- Output: 1x male XLR
- Dante
- Output: 2x Ethernet standard RJ45 connectors (compatible with Cat 5e and above)
- Channel count: 2x Dante channels
- AES3
- Channel count: 2x Dante channels
- Output: 1x male XLR
- ADAT
- Channel count: 2x ADAT channels
- Output: 1x TOSLINK connector
- Channel assignments @ 44.1 KHz, 48 KHz: Port 1 Channels 1-2
- Channel assignents @ 88.2 KHz, 96 KHz SMUXI: Port 1 Channels 1-2
- Channel assignments @ 176.4 KHz, 192 KHz SMUXII: Port 1 Channels 1-2
- S/PDIF
- Channel count: 2x S/PDIF channels
- Output: 1x RCA phono socket
