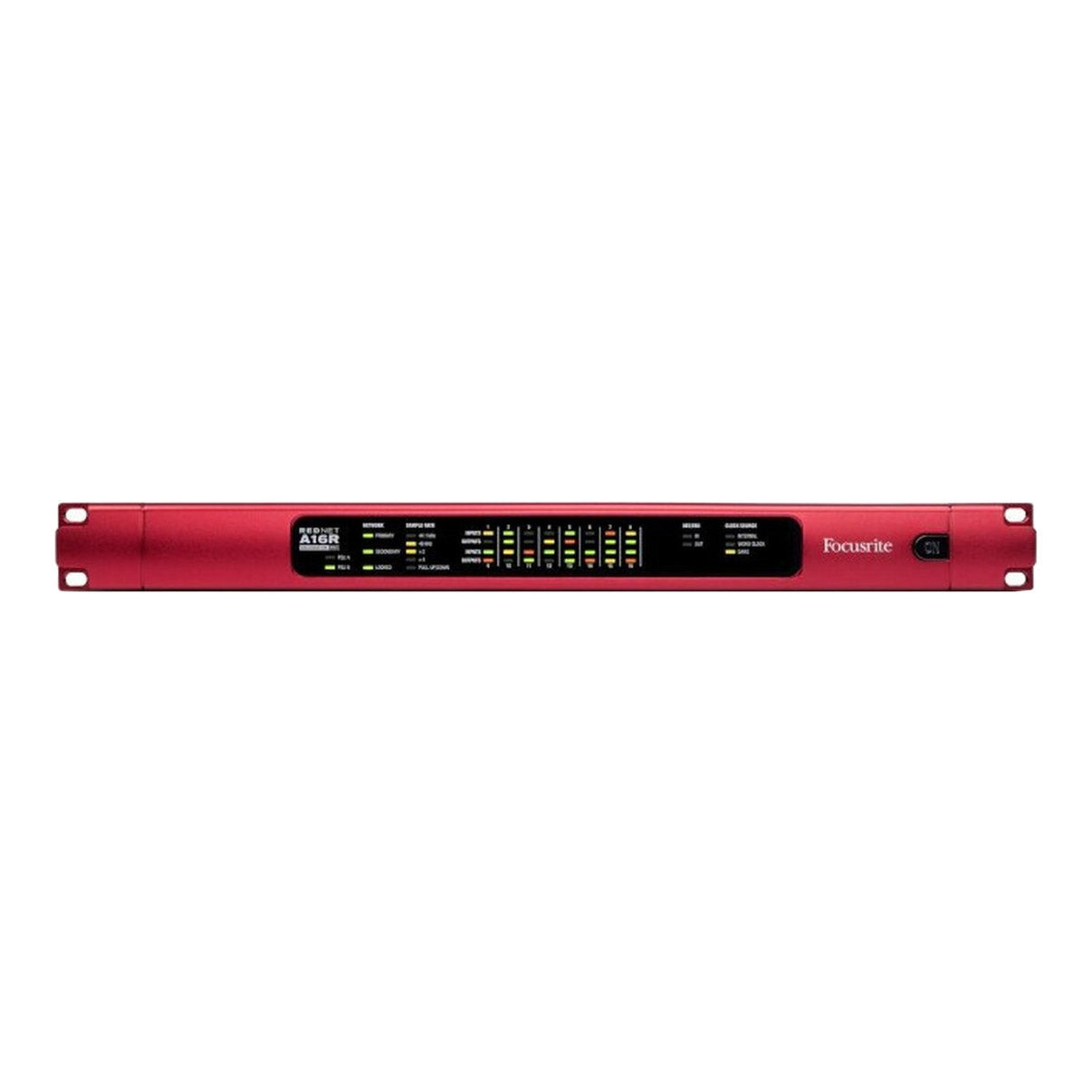

Focusrite RedNet A16R MkII 16x16 Analogue Dante Interface

The Focusrite RedNet A16R MkII 16x16 Analogue Dante Interface is a 16-channel analog interface for Dante® networks. Individual input and output channel level controls deliver precise adjustment of all I/O levels with RedNet Control. Sound quality excels with A-D and D-A conversion, 119 dB of dynamic range, and more features. Two power supplies and EtherCON network connectors make the RedNet A16R MkII perfect for recording, post production, live sound, and broadcast.

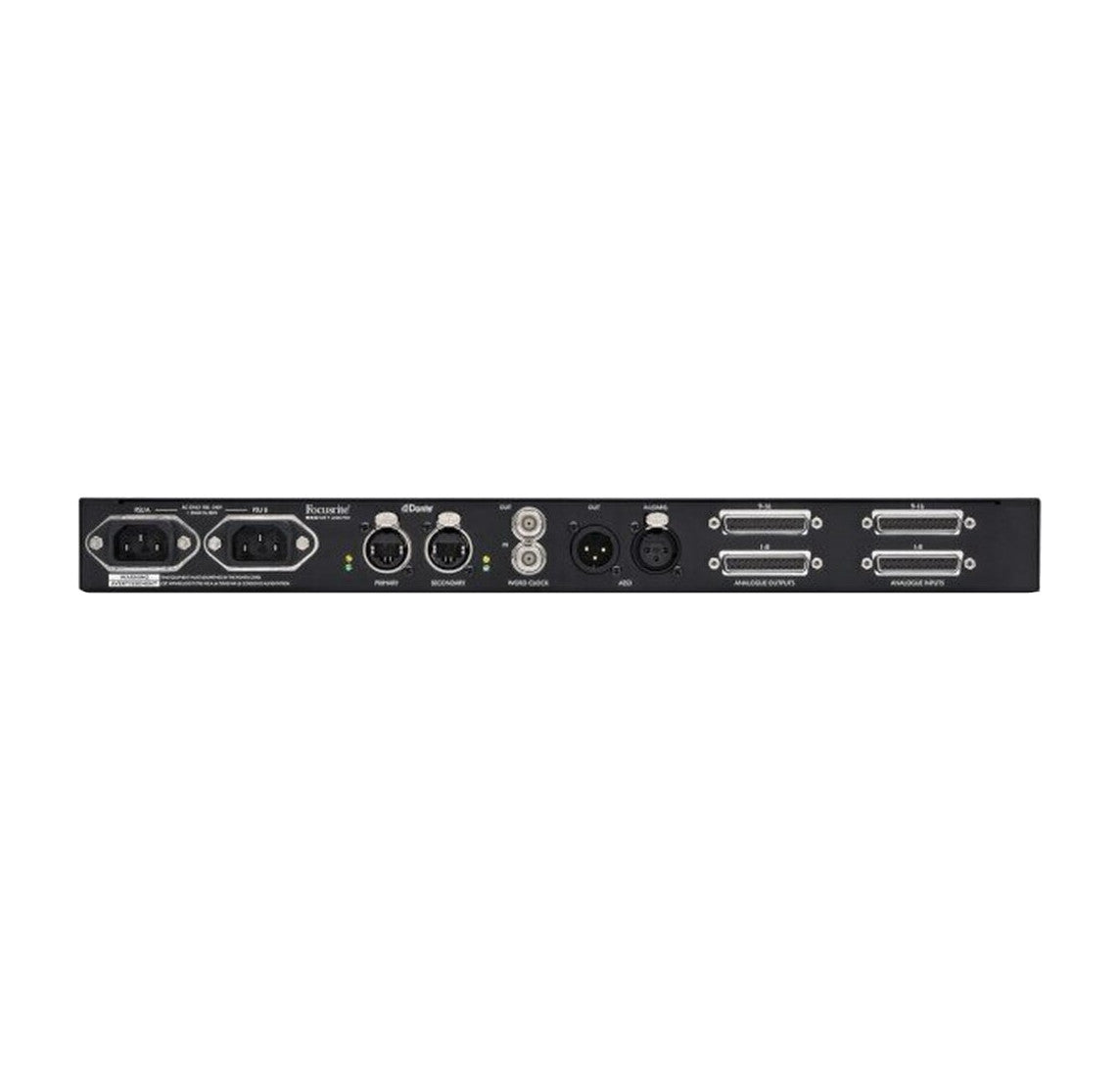

Conveniently merge external mic preamps, mixer channels and cue systems with DB25 connectors that provide 16 channels of line-level analog audio to and from the Dante audio network. EtherCON ports offer further Dante connectivity. Beyond the 16 inputs and 16 outputs are 2 stereo AES3 I/O on XLR jacks and dual sample rate converters for AES3 inputs. BNC wordclock input and output ports, and XLR input supporting DARS both allow this audio interface to synchronize with a wide variety of external sources and hardware.

Two separate power supplies on the RedNet A16R MkII deliver sound you can rely on with auto-switchover capability to continue operation in the event of failure. Unintended power cable disconnection is also prevented with locking IEC inlets on the back of the unit. Trim faders allow for precise calibration and control over all levels with gain adjustment in 1 dB increments, and mute and dim capabilities. AD/DA converters are top-of-the line with 119 dB dynamic range and a flat frequency response to ensure steady recording and audio playback.

Software programs included with the RedNet A16R MkII provide high level capabilities during the audio engineering process. RedNet Control has many functions, even remote monitoring software from its powerful graphic user interface. Brainworx bx_console Focusrite is also included for further editing power.

Travel gets a little easier when the RedNet A16R MkII is part of your sound system. Rugged construction of the interface makes it roadworthy, and it only takes up 1 RU of rack space. All connectors lock and remain terminated even under stress, making this interface well-suited for repeated strike and setup.
