Focusrite RedNet PCIeNX Dante Interface Card
Focusrite RedNet PCIeNX Dante Interface Card
SoundPro Item: 139949 | Part Number: AMS-REDNET-PCIENX
Usually ships in 5-7 business days
- 128x128 channels (24-bit/192kHz) with ultra-low round-trip latency
- Perfect for large recording sessions and post-production work using Dolby Atmos and other immersive formats
- Dual Ethernet RJ-45 connections allow for both switched and redundant mode, offering flexible connectivity
- Supports the latest standards, including AES67 and compliance for SMPTE ST 2110 (DDM required)
- Compatible with Windows or Mac computers (Intel and Apple Silicon supported)
- Easily installed in a PCIe slot or Thunderbolt chassisIntegrated network interface – allowing a single-cable connection for audio and network control
- Backed by Focusrite’s 3-year warranty award-winning 24/7/365 technical support
The Focusrite RedNet PCIeNX Dante Interface Card delivers 128 x128 audio channels (up to 192kHz) with ultra-low latency. For post-production professionals working in Dolby Atmos, RedNet PCIeNX offers the ability to integrate high-channel-count Dante audio seamlessly with the Dolby Renderer. For commercial recording studios and music production facilities, RedNet PCIeNX delivers performance, flexibility, and scalability, with 128x128 channels of uncompressed, high-resolution audio at ultra-low latency. Compatible with PC and Mac (including the latest Apple Silicon), RedNet PCIeNX integrates with your existing hardware and accelerates any Dante workflow.
Two Ethernet RJ-45 connections offer both switched and redundant modes, giving flexibility of connectivity as well as the option to have a secondary network in mission-critical situations. RedNet PCIeNX supports AES67, Dante Domain Manager, and is SMPTE ST 2110 compliant, which makes it perfect for broadcast deployment. The integrated network interface simplifies installation and connectivity, allowing a single-cable connection for audio and network control. RedNet PCIeNX works with RedNet Control, which provides a single application for control and monitoring of all RedNet devices on the network. Future-proof and designed for reliability, RedNet PCIeNX is backed by a 3-year warranty and Focusrite's award-winning 24/7/365 technical support.
- Simultaneous Inputs & Outputs128x128 (all sample rates)
- Digital PerformanceSupported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit
- Dante Connectivity2 x Ethernet standard RJ45 connectors (compatible with Cat 5e and above)
- Driver CompatibilityMulti-client ASIO and WDM (Windows) | CoreAudio (Mac)

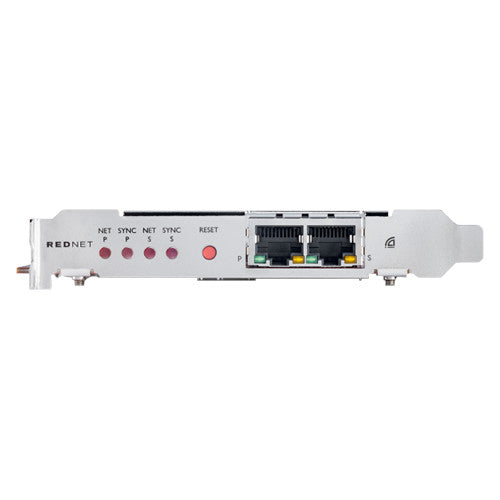

- Front Panel2x Network Active LED indicators (Primary/Secondary) | 2x Network Lock LED indicators (Primary/Secondary) | 1x Factory Reset button
- Card SizeFull Height, Half Width
- PowerPowered over PCIe
- Heat PerformanceMax internal case/chassis operating temperature: 50 degrees Celsius/122 degrees Fahrenheit
