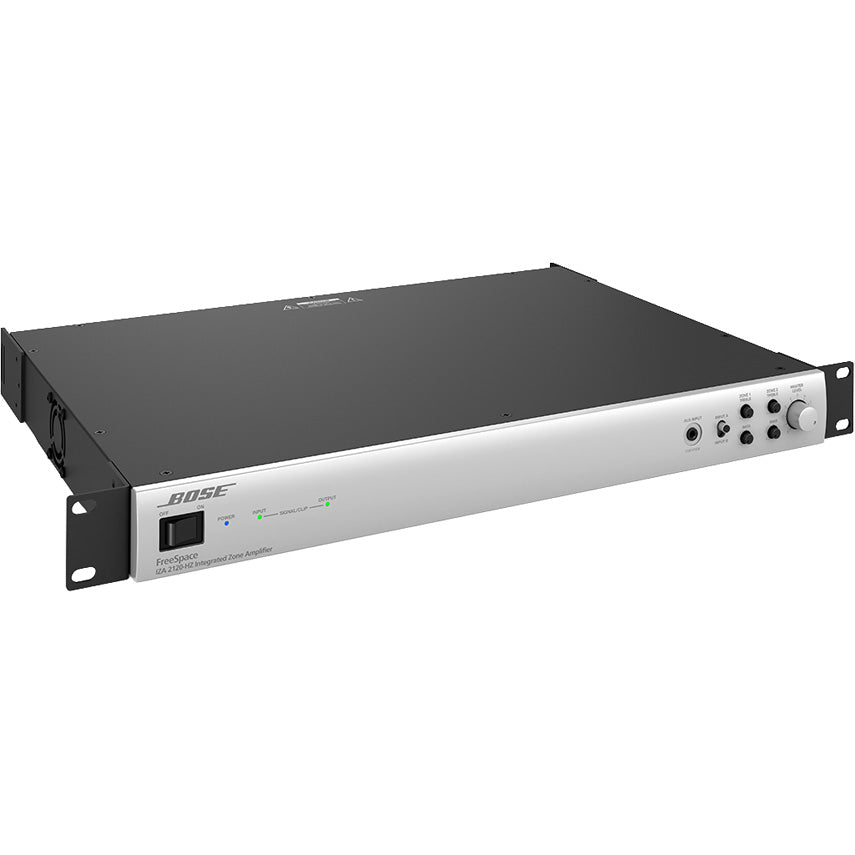

Bose FreeSpace IZA 2120-HZ Integrated Zone Amplifier

Bose FreeSpace IZA 2120-HZ Integrated Zone Amplifier

SoundPro Item: 107063 | Part Number: 719782-1430

$899.00
$899.00 $899.00
Your Price Sold out
MSRP: $899.00 | MAP: $899.00

Usually ships in 5-7 business days

  • True two-zone capability provides two independent outputs that each support volume/source selection remotes, EQ, tone controls, and paging/auxiliary routing options
  • Opti-Voice paging equalizes the vocal frequency range for clear speech intelligibility while providing seamless transitions
  • Dynamic EQ ensures full and balanced music at any volume level
  • Independent Loudspeaker EQ per output enriches audio quality and simplifies connection to Bose Professional loudspeakers: FreeSpace 3 systems, FS3 subwoofer, FS2, FS4 and DesignMax DM2
  • Dual remotes support optional volume/source selection for independent, or combined, zone control which eliminates the need for bulky, inefficient, and sound-altering 70/100V in-line volume controls
  • Reliable 2 x 120 W Class-D amplification optimized for 70/100V high-impedance applications
  • Intuitive feature setup enables the amplifier to be configured without a PC for remote, paging, auxiliary input/output and automatic standby options
  • Auto-Standby feature allows the amplifier to consume less power when not in use

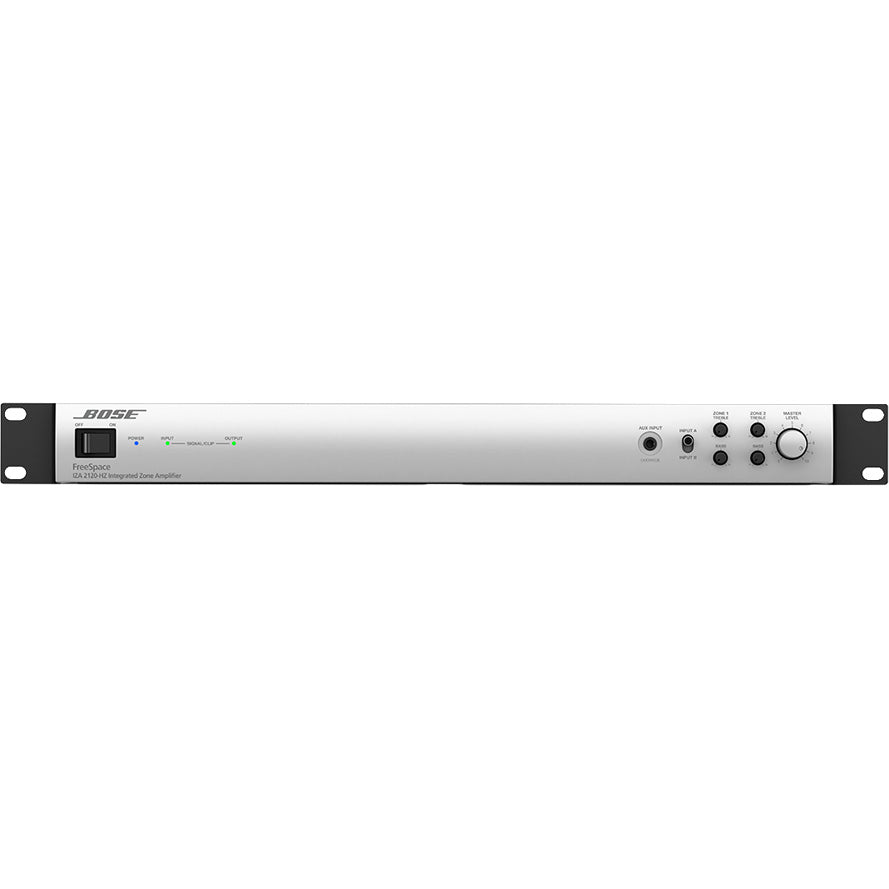

  • Simplified front panel interface provides end users with tone, source selection and master volume controls as well as a connection to mobile sources via a 3.5 mm connector
  • Remote muting allows the amplifier to be muted via a centralized control system
Log in or register for YOUR best price

For background/foreground music and paging applications, Bose Professional FreeSpace IZA 2120-HZ integrated zone amplifier elevates the audio experience when using FreeSpace loudspeakers. Optimized for commercial applications, FreeSpace IZA amplifiers feature selectable Loudspeaker EQ to enrich audio quality, Opti-Voice paging for clear speech intelligibility while providing seamless transitions and Dynamic EQ that ensures full and balanced music at any volume level.

View full details

Specifications

AMPLIFICATION
Channel Separation (Crosstalk)
≤ -58 dBu below rated power, 1 kHz
Dynamic Range
88 dB
Frequency Response
55 Hz - 20 kHz (+0 dB/-3 dB) at 1 W, 1 kHz reference
Number of Channels
2
Power Class
Class D
Rated Power, Symmetrical
120 W per channel at 70V, 100V
THD+N
0.3% at rated power
AUDIO INPUTS, ANALOG
Adjustment Range
0 dB to -30 dB, line / 0 dB to +50 dB, page / fixed, auxiliary
Input Channels
2 unbalanced, line + 2 balanced, line + 1 balanced, mic/line (page) + 1 unbalanced, line (auxiliary)
Connectors
(2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock, (1) 1/8-in (3.5 mm) TRS
Input Impedance
20 kΩ, line / 2 kΩ, page / 20 kΩ, auxiliary
Input Range
-8 dBu to +22 dBu, line / -58 dBu to +12 dBu, page / -60 dBu to -1 dBu, auxiliary
Maximum Input Level
22 dBu, line / 12 dBu, page / -1 dBu, auxiliary
Nominal Input Level
4 dBu, line / -38 dBu, page / -8 dBu, auxiliary
Sensitivity
-8 dBu, line / -3 dBu, auxiliary / N/A, page
AUDIO OUTPUTS, ANALOG
Channels
2
Connectors
(2) 2-pin inverted Euroblock, (1) RCA stereo pair
Nominal Output Level
2 x 120 W at 70V, 100V / 2 dBu (auxiliary)
Output Impedance
N/A (amplifier) / 400 Ω (auxiliary)
ELECTRICAL
Current Draw, Inrush
6.6 A at 120 VAC, 60 Hz / 12.6 A at 230 VAC, 50 Hz
Mains Connector
IEC C14 inlet
Mains Voltage
100-240 VAC (±10%), 50/60 Hz
Protections
High temperature, output short circuit, excessively low/high AC line voltage
AC Power Consumption
26 W standby, 300 W maximum
INDICATORS AND CONTROLS
Controls, Front Panel
(1) power switch, (1) input selection switch, (2) treble knobs, (2) bass knobs, (1) master level knob

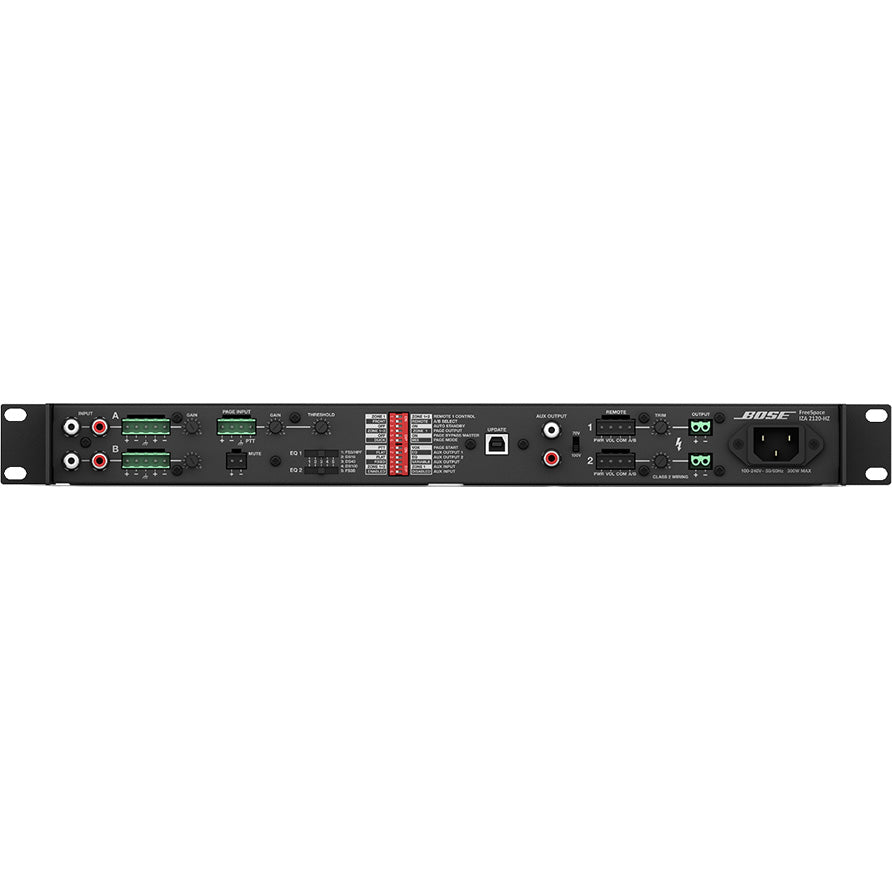

Controls, Rear Panel
Amplifier Mode DIP switches, Loudspeaker EQ preset selector, Input Gain (A/B/Page), Output trims, Remote (x2)
LED Status Indicators
(1) power LED, (1) input signal/clip LED, (1) output signal/clip LED
INTEGRATED DSP
A/D and D/A Converters
48 kHz / 24-bit
Audio Latency
10.4 ms (analog input to analog output)
Presets
High-pass filter, Bose Professional loudspeaker presets (FreeSpace FS2C/FS2P/FS2SE/FS4CE/FS4SE, FreeSpace 3 Acoustimass & DesignMax DM2C-LP/DM2S/DM3C/DM3SE)
Processing Functions
Loudspeaker EQ, Opti-Voice EQ (paging), Dynamic EQ (low-end compensation)
PHYSICAL
Cooling System
Single fan creates continuous left-to-right air flow
Product Dimensions (HxWxD)
1.7 in x 19.0 in x 12.8 in (44 mm x 483 mm x 324 mm)
Net Weight
9.0 lb (4.1 kg)
Rack Spaces
1 RU
