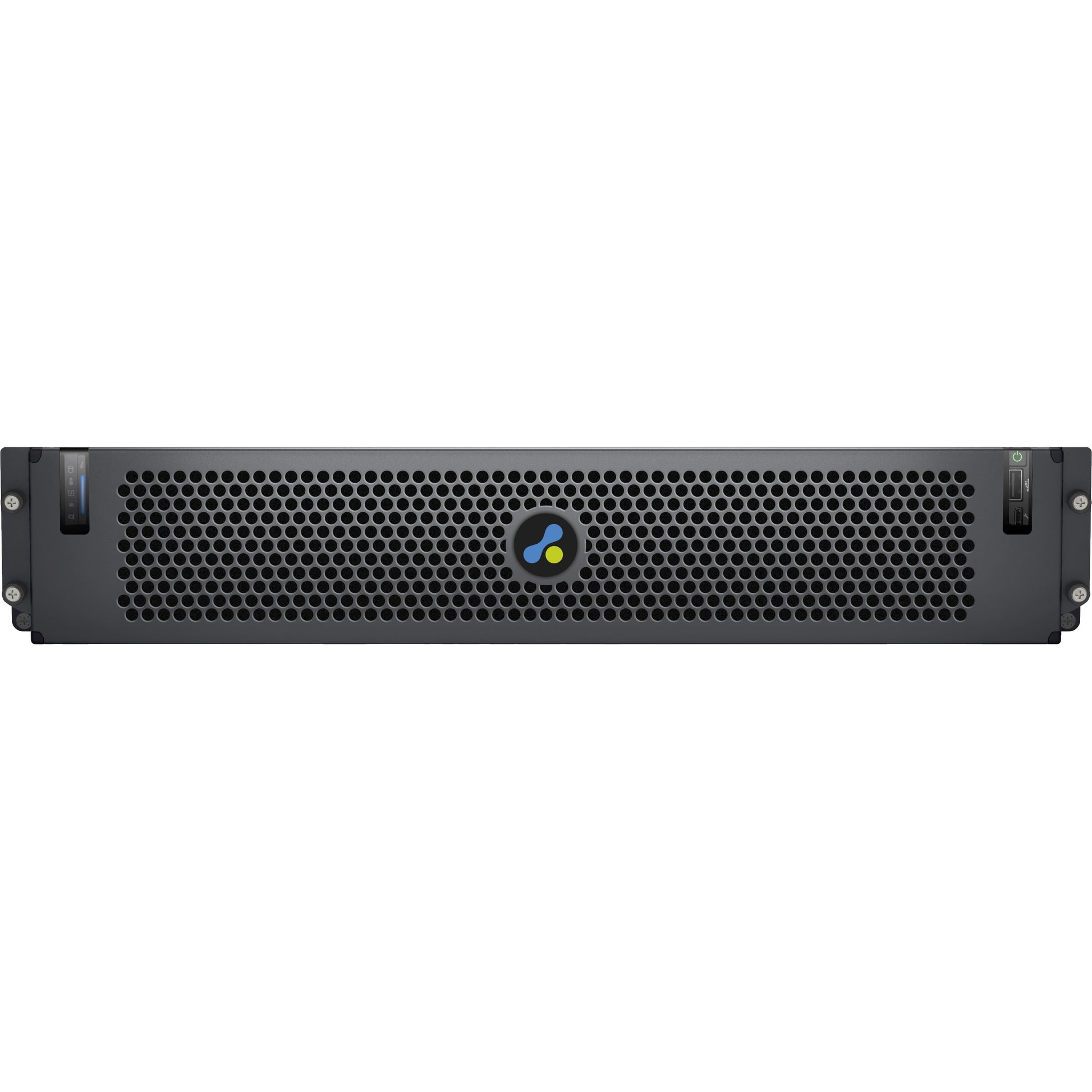

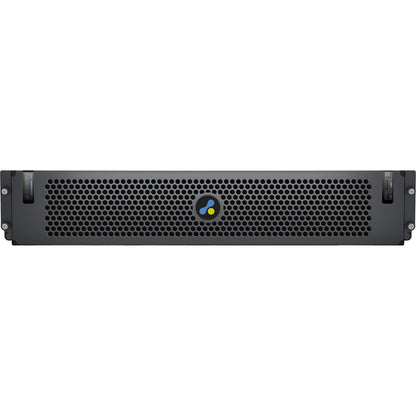

Fulcrum Venueflex-16 128 x 64 Immersive Audio Processor

Fulcrum Venueflex-16 128 x 64 Immersive Audio Processor

SoundPro Item: 202924 | Part Number: VENUEFLEX-16

$33,535.00
$33,535.00 $33,535.00
Your Price Sold out
MSRP: $33,535.00 | MAP: $33,535.00

Usually ships in 5-7 business days

  • Supports Immersive Audio Processing Workflows
  • Handles Active Acoustics Applications
  • Enables Object-Based Mixing In Dante Systems
  • Provides Active Bass Control Processing
  • Field-Upgradable For Future Expansion
  • Supports Steerable Loudspeaker Control
  • Integrates Routing Within Networked Audio
Log in or register for YOUR best price

The Venueflex-16 immersive audio processor is part of the Venueflex Pro platform, a proprietary, multi-function DSP solution engineered for advanced immersive audio applications. It enables key technologies such as active acoustics, object-based mixing, and active bass control, empowering designers to create highly controlled and adaptable acoustic environments tailored to a wide range of venues and experiences.

Beyond immersive processing, the Venueflex-16 supports a full suite of conventional DSP functions, including system EQ, dynamics processing, delay management, and complex routing. It also incorporates TQ™ processing and steerable loudspeaker control, allowing for precise optimization of loudspeaker performance and coverage. Operating within a Dante™ network, it integrates seamlessly with modern audio systems, offering scalable and flexible signal distribution.

This model provides robust processing capacity with support for up to 128 inputs or objects, 64 outputs or speakers, and 16 convolution engines. This configuration makes it well suited for medium-scale immersive installations such as theaters, houses of worship, and multi-purpose venues where higher channel counts and spatial precision are required.

As part of the Venueflex Pro family, the Venueflex-16 is field-upgradable, allowing users to expand processing capabilities as system requirements evolve. This scalability ensures long-term value and adaptability, making it a flexible solution for growing or changing installations.

Downloads

View full details

Specifications

Power
Power Supply

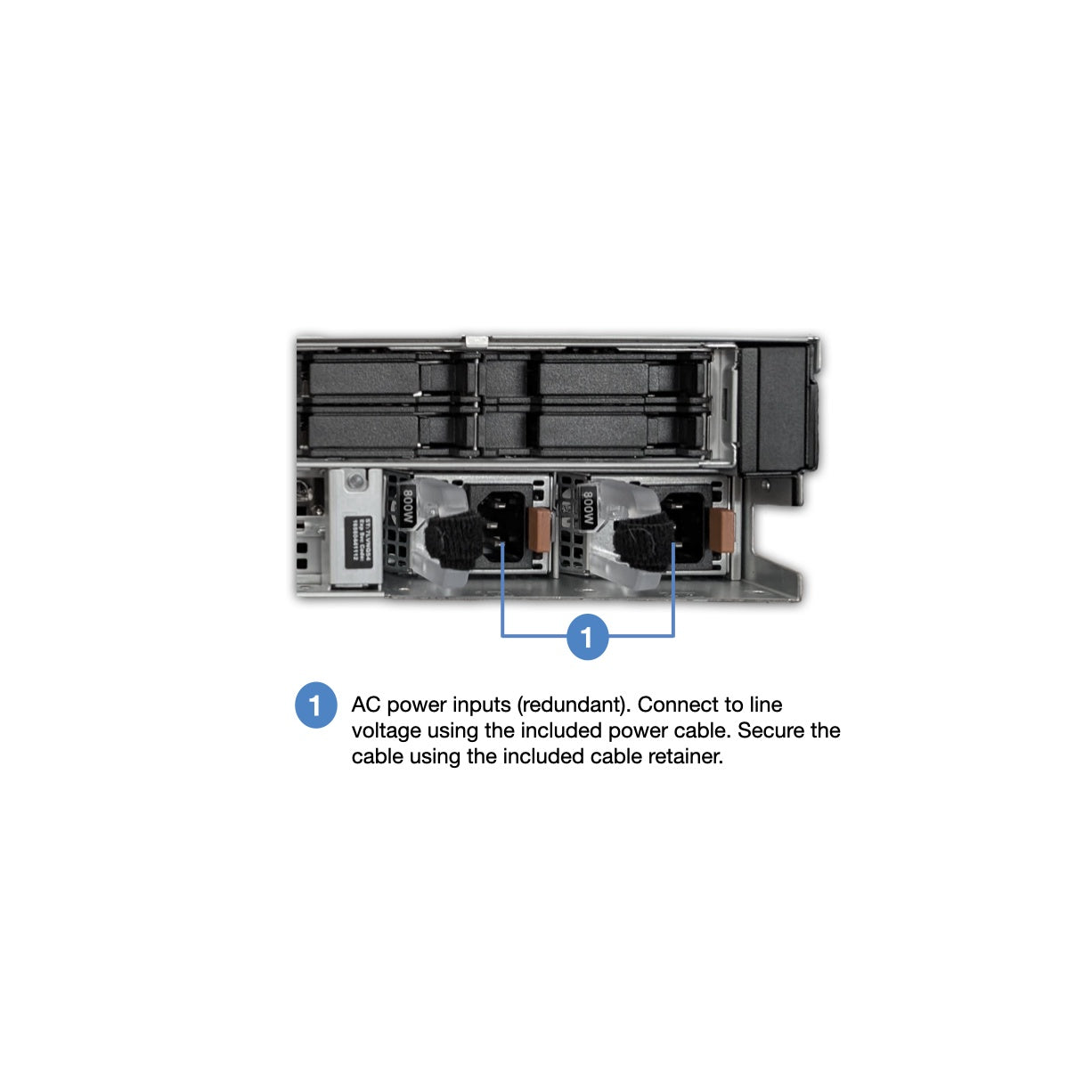

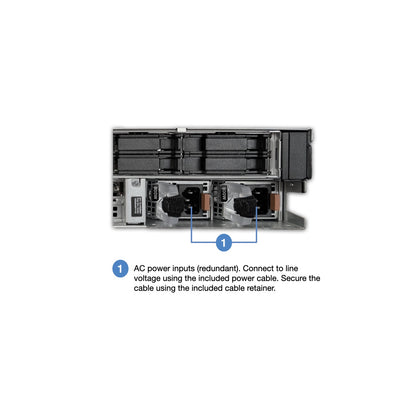

Internal 100V-240V at 50/60 Hz
Power Consumption
800W
Audio
Audio Input
Up to 128 Channels of Dante™ network audio (48kHz only)
Audio Output
Up to 64 Channels of Dante™ network audio (48kHz only)
Frequency Response
20Hz to 20kHz
Latency
2.7 ms plus Dante™ network latency (minimum Dante™ latency 1 ms)
Network
Network

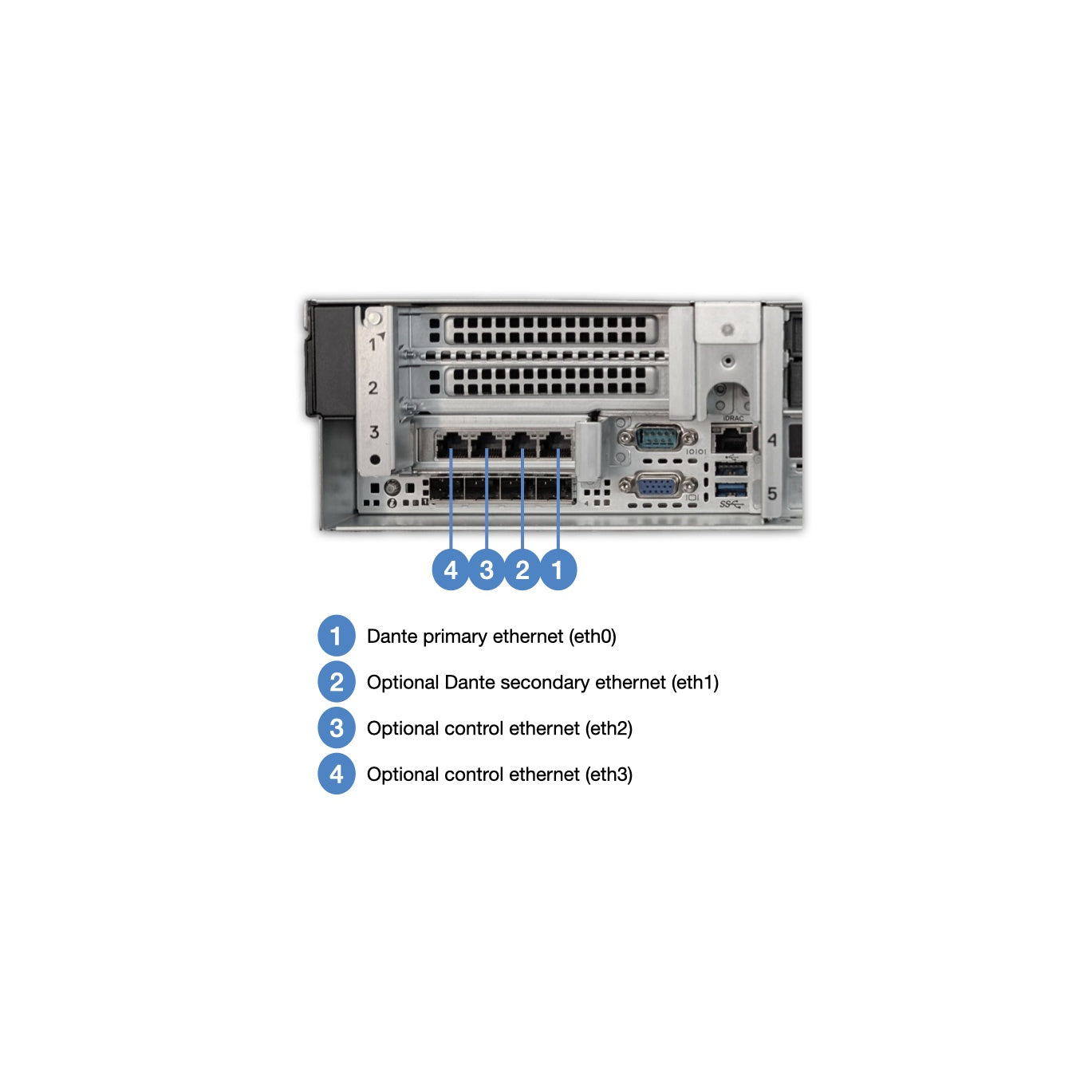

Two 1000/100 Mbps ethernet for redundant Dante™ and Control, plus two additional 1000/100 Mbps ethernet for optional Control
Physical
Dimensions (W x H x D)
482 x 42.8 496.8 mm (18.97 x 1.68 x 19.55 in) 1
Weight
10 kg (22 lb), accessories and packaging not included
