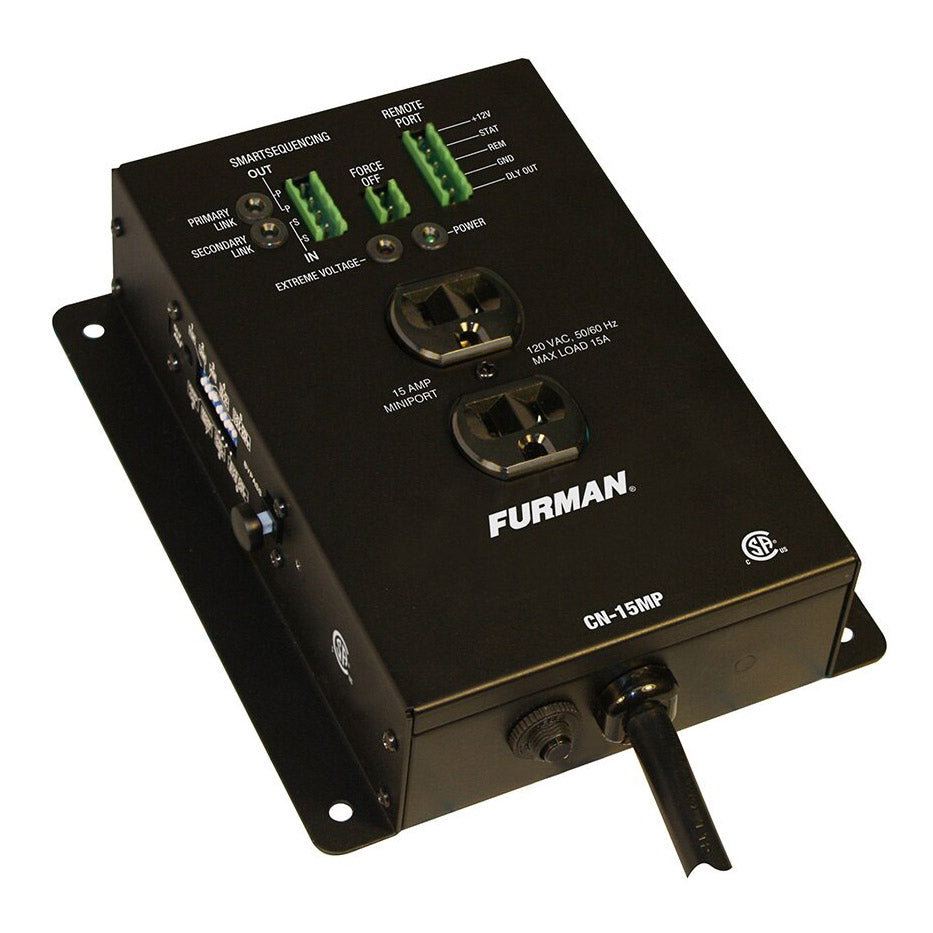

Furman CN-15MP Sequencer

Furman CN-15MP Sequencer

SoundPro Item: 46189 | Part Number: CN-15MP

$327.95
$369.99 $327.95
Your Price Sold out
MSRP: $369.99 | MAP: $327.95

Usually ships in 5-7 business days

  • SmartSequencing™ - SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.
  • Voltage Protection - Extreme Voltage Shutdown (EVS) safeguards from catastrophic under-voltage (under 80V sustained) or over-voltage (over 145V sustained) conditions. The EVS feature can be selectively enabled or disabled according to the preference of the user.
  • BlueBOLT Compatible® - IP Control (Telnet or cloud-based BlueBOLT) via SmartSequencing (when connected to CN-1800S/CN-2400S with BB-RS232 Adaptor).
  • Diagnostic Lights - Diagnostic lights provide valuable system information including power quality.
  • 15 Amp Output Current - 15 amp maximum current capacity with incorporated 15 amp thermal circuit breaker.
  • DIP Switch Customization - DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches.
Log in or register for YOUR best price

The CN-15MP can shut itself off automatically when triggered by a fire alarm.

Furman's Contractor Series MiniPorts extend the benefits of SmartSequencing to electronics outside of the equipment rack, providing tremendous flexibility to any installation scenario. Units may be daisy-chained and fully controlled via a Furman SmartSequencer, legacy Furman sequencer, third-party sequencers, via the Internet (with BB-RS232 adaptor and SmartSequencer), and/or control and automation systems.

DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches.

Sequencing of duplex initiated remotely by standard analog triggering (remote terminal) or digital link (SmartSequencing from CN-1800S or CN-2400S).

View full details

Specifications

Dimensions
Width
9.2 inches
Height
4.5 inches
Electrical
AC Voltage Input Range
90-139VAC, 50/60Hz
Maximum AC Current Rating
15 amps (Thermal breaker)
Circuit Breaker
Pushbutton, 15A
Power Consumption (No Load)
10 Watts
Line Voltage
120 (Volts)
Compatibility
RS-232 Compatible
Yes, indirectly, when connected via SmartSequencing to a Furman Smart Sequencer with an RS-232 port
Environmental
Operating Temperature Range
5C (40F) to 40C (105F) degrees
Humidity Range
<90% rH (Relative Humidity)
Shipping
Weight
5 lbs
Identifiers
Length
11.7 inches
UPC
654061028475
General
AC Cord
3/14AWG, 10 feet, black, fixed, NEMA 5-15P plug
AC Receptacles
2 NEMA 5-15R’s (1 duplex)
AC Undervoltage Protection
EVS, 77VAC+/-3VAC
AC Overvoltage Protection
EVS, 140VAC+/-5VAC
AC Overvoltage Reset Modes
Manual and Auto-reset (configurable)
Front Panel Diagnostic Indicators (LED)
Power, Extreme Voltage, Primary Link, Secondary Link
Side Panel
DIP Switch Features (with security cover) 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off GND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual
Remote Terminal
+5-30VDC In, 12VDC (12mA) Out
SmartSequencing
Phoenix-type 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)
Force Off
Phoenix-type 2-Pin Connector With Screw Terminals, FORCE OFF (Class 1 Wiring)
IP Accessibility
Optional IP control via Telnet, HTTP, or BlueBOLT® when used in conjunction with SmartSequencing
Voltmeter
Available with SmartSequencing Ethernet option, ± 2VAC accuracy
Ammeter
Available with SmartSequencing Ethernet option, ±1A accuracy
Safety Agency
CSA, RoHS Compliant
Family
Contractor Series
