Specifications
Certifications
Compliance
NRTL-C
Dimensions
Dimensions (WxWxD)
4x17x14.75″ (Standard 2 RU height without feet)
Dimensions (LxWxD)
21.6x19.7x8.4"
Electrical
Line Voltage
120 (Volts)
Voltage Regulation
No
Power Consumption
12 Watts for display and control circuits independent of actual load
Under-Voltage Shutoff
85V
Over-Voltage Shutoff
140V ±3V
Maximum Current Rating
20 (Amps)
Connectivity
USB Charging
N/A
Included Items
Rack Ears Included
Yes
Shipping
Weight
18 lbs
General
Family
Elite Series
Number of Outlets
13
Number of Isolated Banks
3
General

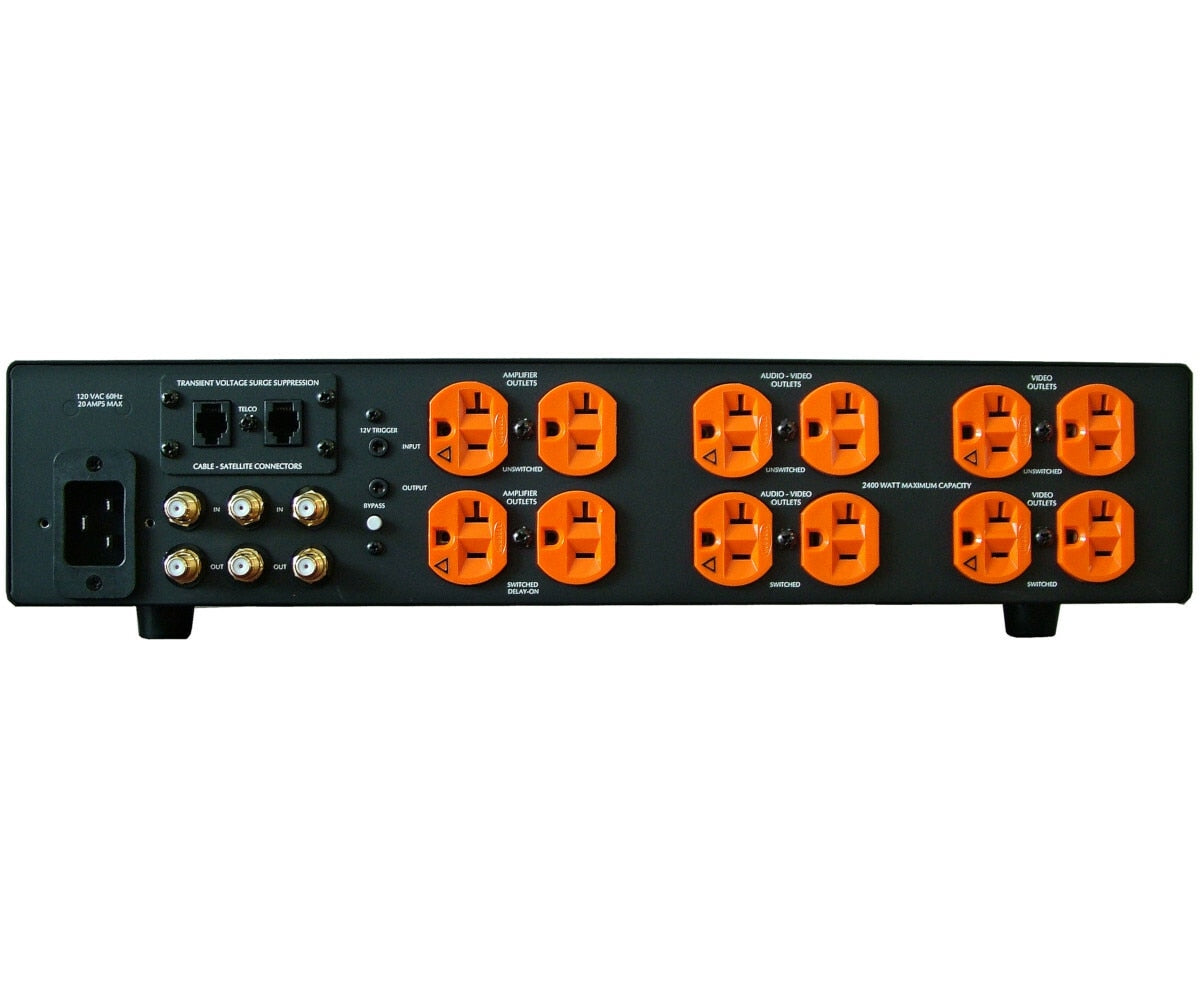

Outlet Descriptions 1 (Ultra-Linearly filtered outlet – front panel)8 (Ultra-Linearly filtered outlets with additional ultrasonic filtering for either video or audio components, 4 with 12V triggering)4 (Power Factor Technology amplifier outlets – 4.5 amps RMS reserve – reactive load – over 55 amps peak charge, 2 with 5 second delay via 12V triggering), Low Voltage Trigger12 V, In/Out
Rack Mountable
Yes
Front Panel Meter(s)
No
Front Media Light(s)
2 Retractable LED lamps
Control
On/Off switch and light dimmer knob on front panel. 12 Volt triggering for remote control.
AC Protection Technology
Extreme Voltage Shutdown
Series
Multi-Stage Protection; Non-sacrificial protection with zero ground contamination
Initial Clamping Level
188 VAC peak @ 3,000 Amps
Filtration Technology
LiFT
Filtration Rating Transverse (Differential) Mode
> 40 dB from 5Khz. – 100 kHz.>80 dB from – 100 kHz. 1GHz.
Filtration
Common Mode >40dB from 10Hz. 30 kHz.>20 from 40 kHz. 1MHz.(Linear attenuation curve from 0.05 – 100 ohms line impedance), Signal Line Protection1 Tel, 3 Cable/Satellite
