Furman M-8z Merit Z Series Rackmount Power Conditioner With USB Ports

Furman M-8z Merit Z Series Rackmount Power Conditioner With USB Ports

SoundPro Item: 205194 | Part Number: M-8z

Regular price $169.95
Regular price $186.99 Sale price $169.95
Your Price Sold out
MSRP: $186.99 | MAP: $169.95

Usually ships in 5-7 business days

  • Extreme Voltage Shutdown Disconnects Gear During Dangerous Over Or Under Voltage Events
  • Standard-Level Surge Protection With Protection OK Indicator Confirms Status At A Glance
  • AC Noise Filtration Reduces RFI And EMI Interference For Cleaner, More Stable Power

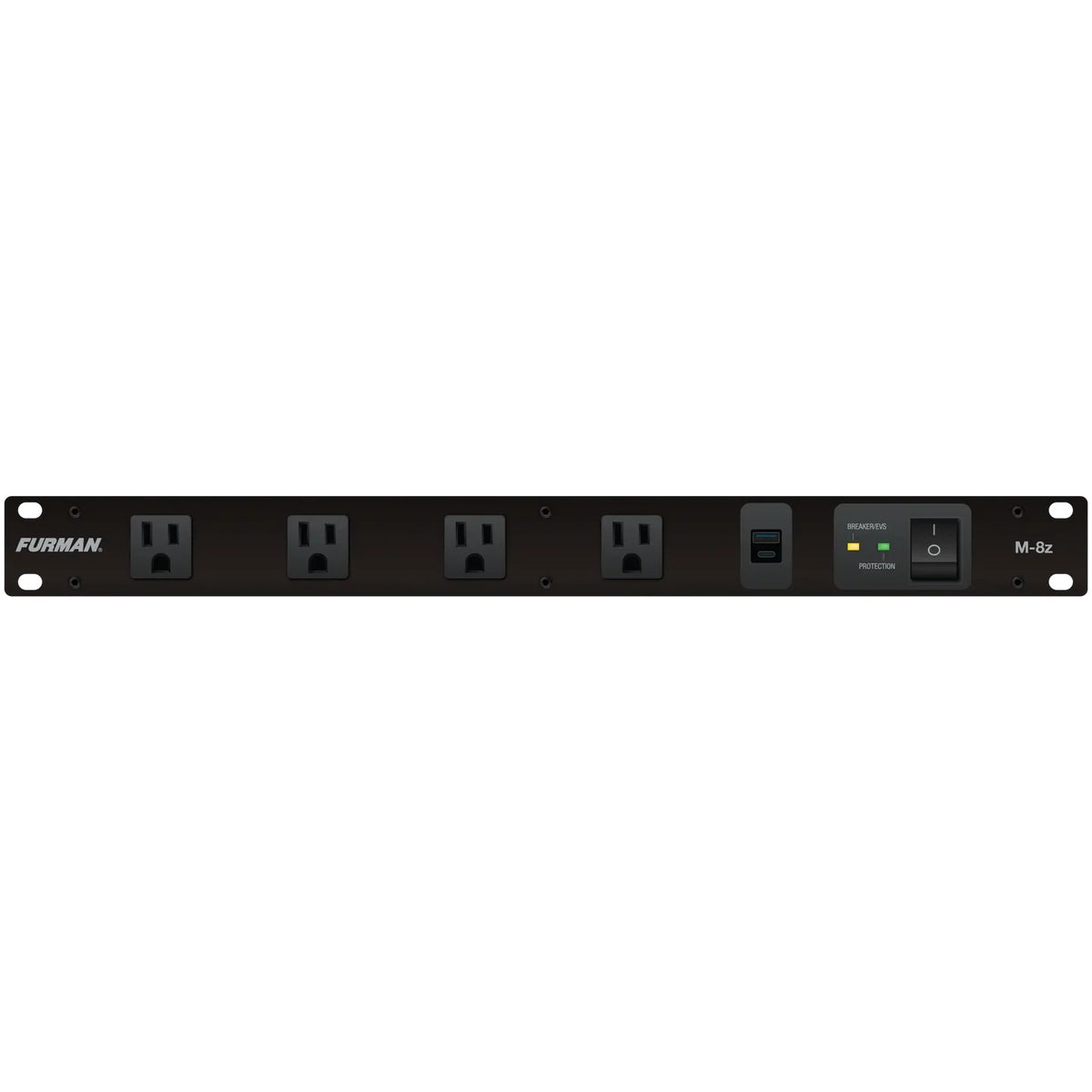

  • Front-Panel USB-C And USB-A Fast Charging Ports Keep Mobile Devices Powered From The Rack
  • Rackmount Form Factor Integrates Into Existing Equipment Racks

The M-8z is built for engineers, integrators, and production teams who need dependable AC protection in a rack without paying for a larger power distribution system. As the essential model in the Merit Z Series, it fits small touring racks, house of worship booths, rehearsal rooms, school auditoriums, and portable video or streaming setups.

Where venue power is unpredictable, line monitoring is what sets it apart. Surge-only strips do nothing about a sustained brownout or a bad generator feed, while this unit cuts power to amplifiers, mixers, and wireless receivers when the line leaves a safe window. That makes it a sensible first line of defense for gear that costs far more than the conditioner protecting it.

The rackmount format keeps power protection inside the same enclosure as the gear it serves, so crews can load in, plug in, and know the rig is covered. Charging at the rack also means fewer loose adapters at FOH, monitor world, or the broadcast desk. It is a straightforward upgrade over a consumer power strip for any rig that travels or lives in rooms with questionable electrical service.

Downloads

View full details

Specifications

Dimensions
Height
1.75"
Width
19"
Depth
3.75"
Weight
Product Weight
4.63 lbs (2.1 kg)
Electrical
Maximum Output Current
15 Amps
Operating Voltage
120V~50/60Hz
Line Cords
3x14 AWG
Under-voltage Shutoff
85VAC +/- 5%
Over-voltage Shutoff
140VAC +/- 5%
Performance
Spike Protection Mode
Line to neutral
Energy Dissipation
126 Joules
Peak Impulse Current
6500 Amps
Maximum Continuous Operating Voltage
225 VAC RMS
Maximum Clamping Voltage
455 Volts
Noise Attenuation
Greater than 20dB, 200kHz-10MHz
Connectivity
USB-C Charging Port
5V/3A
USB-A Charging Port
5V/2.4A
Shipping
Package Weight
5.5 lbs
Package Width
5.88"
Package Length
20.56"
Package Height
3.63"
