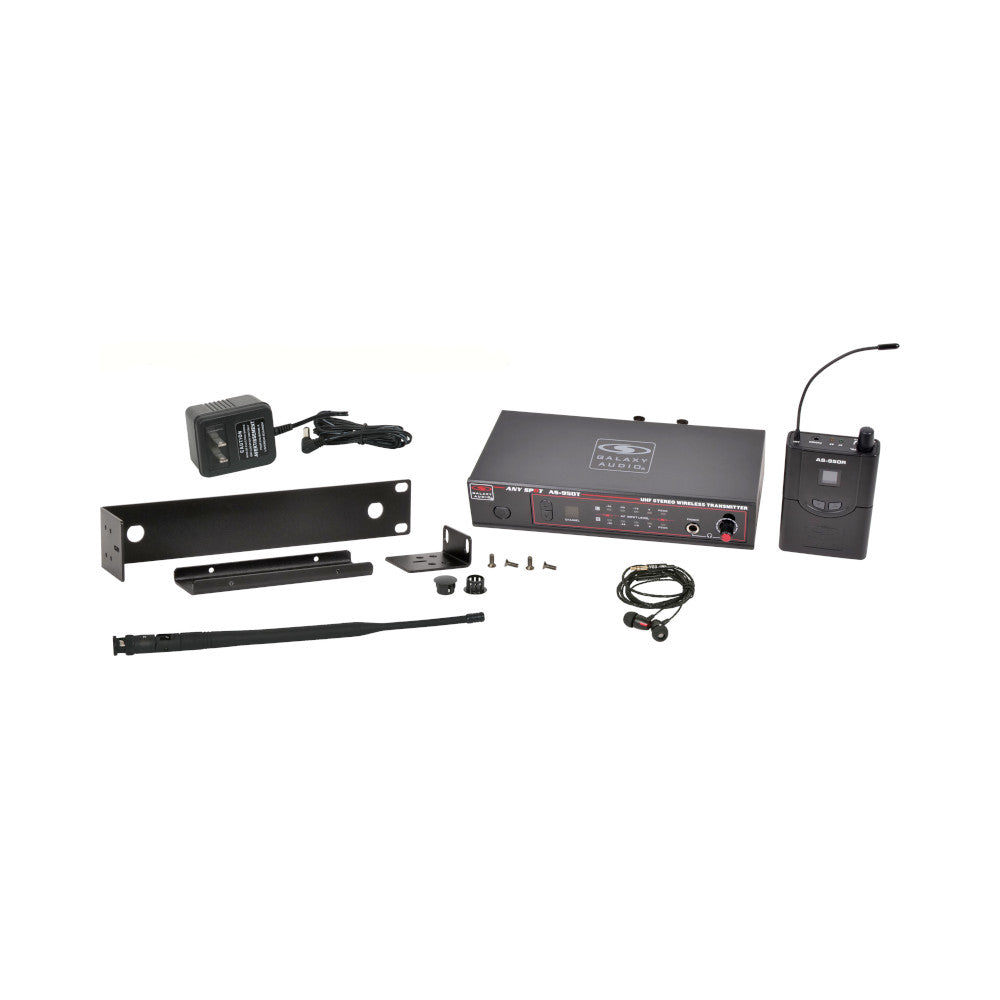

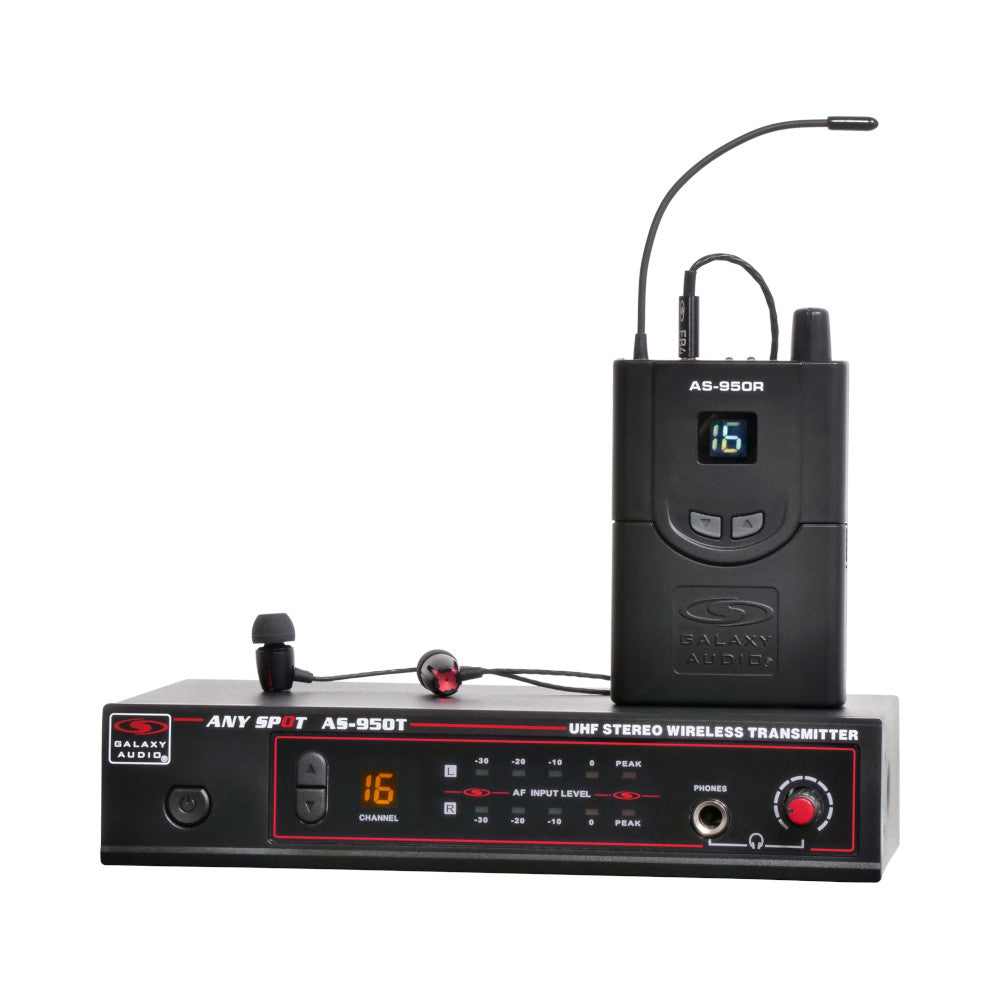

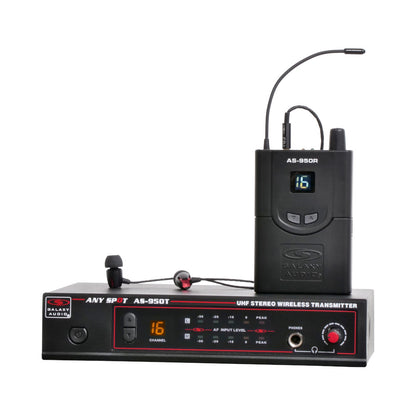

- AS-950 System
- Band: UHF
- Frequencies Range
- CODE N 518 MHz - 542 MHz,
- CODE P2 470 MHz - 489 MHz
- Frequencies: 16
- Transmitter Output Level: 10 mW
- Operating Range
- Under Typical Conditions 200' (61m)
- Note: Actual range depends on RF signal absorption, reflection, interference, and battery characteristics
- Audio Frequency Response: +/-3dB 50Hz - 15kHz
- Total Harmonic Distortion: <1% @ 1kHz
- Signal to Noise: >80dBA
- Maximum Deviation Range: +/-40kHz
- Dynamic Range: >90dB A-weighted
- Operating Temperature
- Range 14º F to 122º F (-10º C to 50º C)
- Note: battery characteristics may limit this range
- AS-950T Transmitter
- Main Frame Size: EIA STANDARD 1/2 U
- Modulation Mode: FM Stereo Modulation
- RF Output: 10 mW
- Max Audio Input Level: +6dBV
- Gain Adjustment Range: 40dB
- Controls: Headphone Volume, Channel Up/Down, and Power Button
- Indicators: LCD Display, Input Level
- Audio Input: Line Level X 2, XLR / 1/4" Combo Jack
- XLR Input
- Impedance balanced
- Pin 1: Ground (cable shield)
- Pin 2: Audio +
- Pin 3: No Audio -
- Transmitter Antenna Detachable 1/2 Wave BNC Antenna
- Dimensions (HxWxD): 1.73x8.34x3.77" (44x212x96 mm)
- Weight: 19.75 oz (560 g)
- Power Requirements: 12-18 V DC at 300 mA, supplied by external power supply
- AS-950R Receiver
- Audio Output Level: 50 mW x 2 Earphone Out with Volume Control
- Sensitivity: -94dBm for 30dB
- Stereo Separation: 40dB (at 1kHz)
- Output Connector: 1/8" (3.5 mm) Stereo Earphone Connector
- Controls: Volume, Channel Up/Down
- Indicators: LCD Display, Stereo LED, RF LED
- Dimensions (HxWxD): 3.54x2.51x0.9" (90x64x23 mm)
- Weight: 3.35 oz (95 g) without batteries
- Power Requirements: 2 AA alkaline or rechargeable batteries
- Battery Life: About 12 hours (alkaline)
