Specifications
System
Band
UHF
Frequency Range
534-552 MHz (CODE M4)
Selectable Frequencies
16
Operating Range
160' (50m) under typical conditions
Audio Frequency Response
60Hz – 17kHz +/-3dB
Total Harmonic Distortion
<0.5% @ 1kHz
Operating Temperature
14°F to 122°F (-10°C to 50°C)
Transmitter (AS-4100T)
Modulation Mode
Mono
RF Output Power
30 mW
Max Audio Input Level
+6dBV
Audio Input
Line Level, 1/4" (6.3mm) Jack
Antenna
Detachable 1/2 Wave BNC
Controls
Headphone Volume, Channel Up/Down, Power Button
Indicators
LCD Display, Channel, Frequency Band, Frequency, Lock, Mute
Power Requirements
12-18V DC at 500mA, external power supply
Dimensions
1.73" x 8.34" x 3.77" (H x W x D)
Weight
19.75 oz
Receiver (AS-4000R)
Audio Output Level
>65 mW
Output Connector
1/8" (3.5mm) Line Out & Earbud Connector
Controls
Volume, Power Button
Indicators
LCD Display, RF LED
Power Requirements
2 AA alkaline or rechargeable batteries
Battery Life
Approx. 8 hours (alkaline)
Dimensions
3.8" x 2.4" x 8.26" (W x D x H)
Weight
2.4 oz (without batteries)
Included Items
Contents

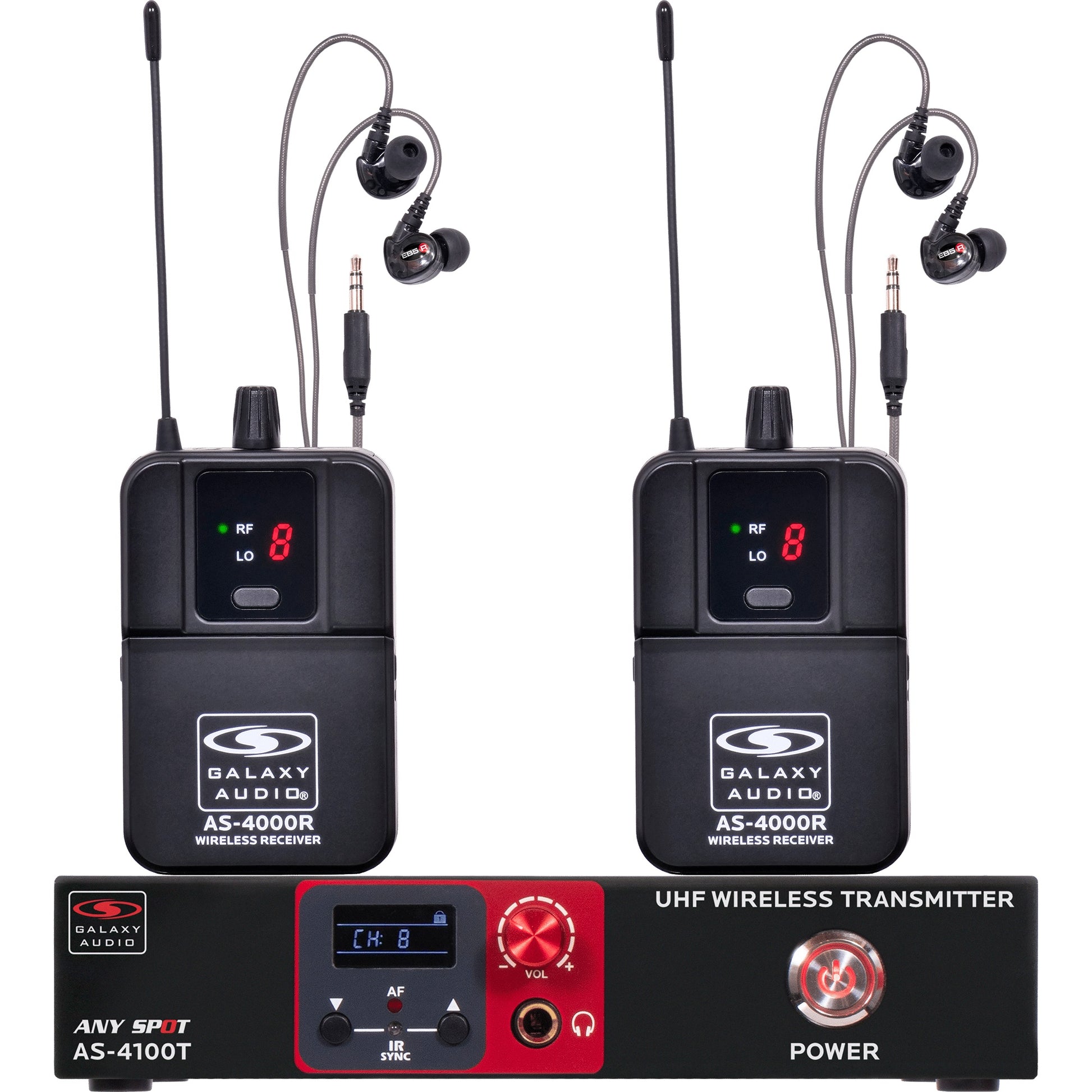

AS-4100T Transmitter, AS-4000R Body Pack Receiver (x2), EB5 Earbuds, 1/4" Line Level Audio Cable, Antenna, Power Supply, Single/Dual Rack Mount Kit, Quick Start Guide
Shipping
Product Weight
1.534 lbs
Package Weight
5.35 lbs
Package Dimensions
17" x 13" x 5"
