Galaxy Audio CSL4 4-Channel Rackmount Digital UHF Diversity Wireless System | (2) Handheld Vocal Mic Tranmitters and (2) Bodypack Transmitters

Galaxy Audio CSL4 4-Channel Rackmount Digital UHF Diversity Wireless System | (2) Handheld Vocal Mic Tranmitters and (2) Bodypack Transmitters

SoundPro Item: 207602 | Part Number: CSL4-HHBBM

$899.99
$1,349.99 $899.99
Your Price Sold out
MSRP: $1,349.99 | MAP: $899.99

Usually ships in 5-7 business days

  • Four Independent True-Diversity Receivers Share One 1U Rack Chassis For Space Efficiency

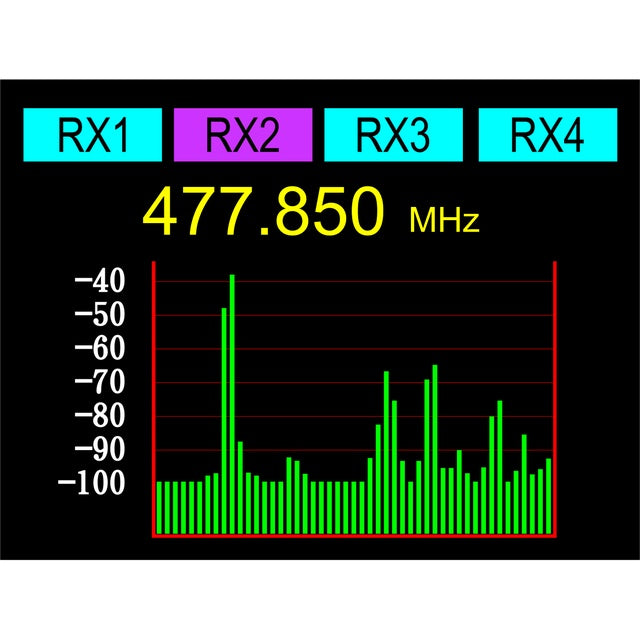

  • Auto Frequency Scanning And RF Spectrum Analyzer Simplify Coordination In Congested RF Environments
  • IR Sync Pairs Each MBP48 Bodypack To Its Receiver Channel Instantly

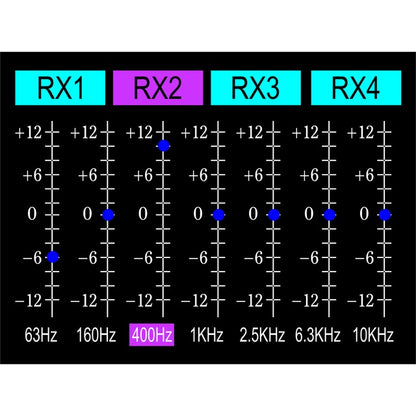

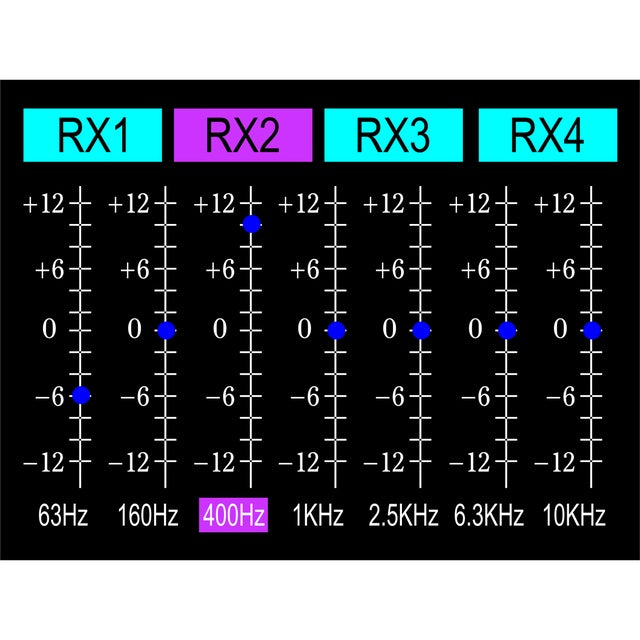

  • Per-Channel 7-Band Adjustable EQ Lets Operators Tailor Each Wireless Signal Independently
  • Color-Coded LCD Displays With Six Options Enable Fast Visual Channel Identification
  • 32-Bit Encrypted Digital Modulation Protects Transmission Security

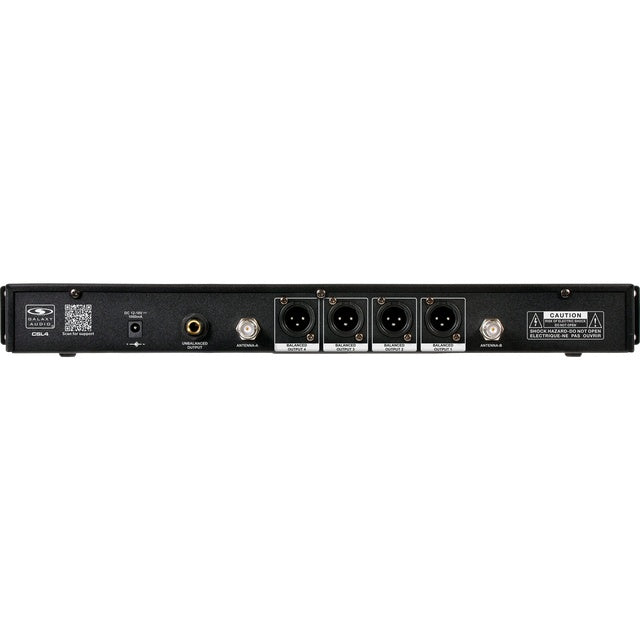

  • Balanced XLR Output Per Channel Plus Combined Unbalanced Output Supports Flexible Cabling
Log in or register for YOUR best price

The Galaxy Audio CSL4 is built for sound engineers and integrators who need to manage multiple wireless channels without consuming rack space or fighting interference. Four independent True-Diversity UHF receivers share a single 1U chassis, making it a practical solution for worship teams, theatrical productions, corporate AV installs, and multi-performer live sound where rack economy and RF reliability are both non-negotiable. The included MBP48 bodypacks offer four-position input gain switching and a full-status LCD, giving talent and crew clear feedback on frequency, battery, mute, and RF power at a glance.

Where single-channel systems require separate rack units and manual frequency coordination, the CSL4 consolidates that workflow. Auto Frequency Scanning and an onboard RF Spectrum Analyzer let operators find clean frequencies quickly across three available bands, supporting up to 18 compatible systems simultaneously in dense RF environments. IR Sync eliminates manual frequency entry by pairing each transmitter to its corresponding receiver instantly. Balanced XLR outputs on every channel feed directly into stage boxes or FOH consoles, while the summed unbalanced quarter-inch output provides a simplified feed option for smaller setups or monitoring. Per-channel 7-band EQ and color-coded LCD displays let operators differentiate and tune each channel independently without leaving the rack.

Downloads

View full details

Specifications

System
Available Frequencies
Up to 1,480
Band
Digital UHF
Frequency Range (P-Band)
470–507 MHz, 1,480 frequencies, up to 18 compatible systems
Frequency Range (M-Band)
520–554 MHz, 1,360 frequencies, up to 17 compatible systems
Frequency Range (B-Band)
572–596 MHz, 960 frequencies, up to 14 compatible systems
Operating Range
300' (92 m) under typical conditions
Operating Temperature Range
14° F to 122° F (-10° C to 50° C)

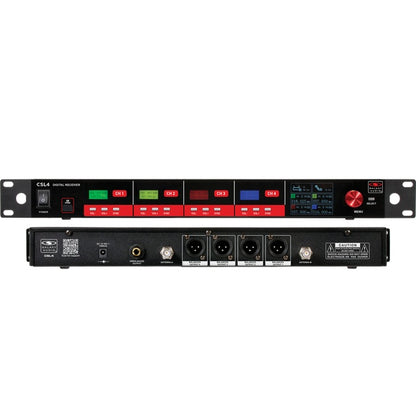

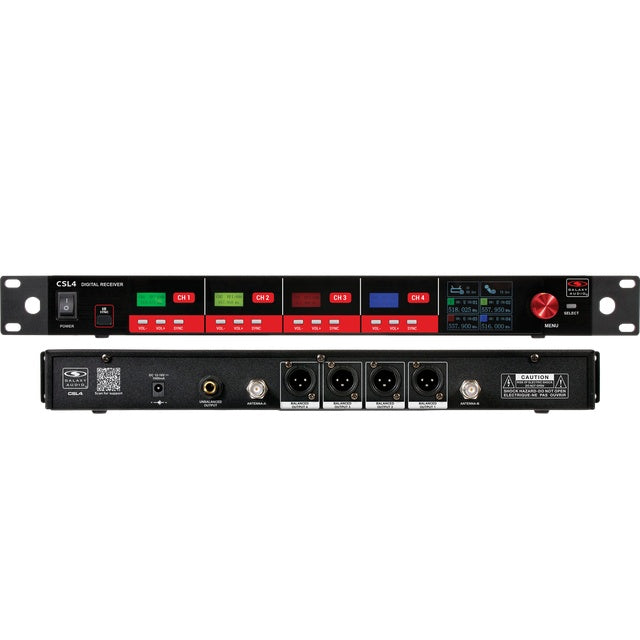

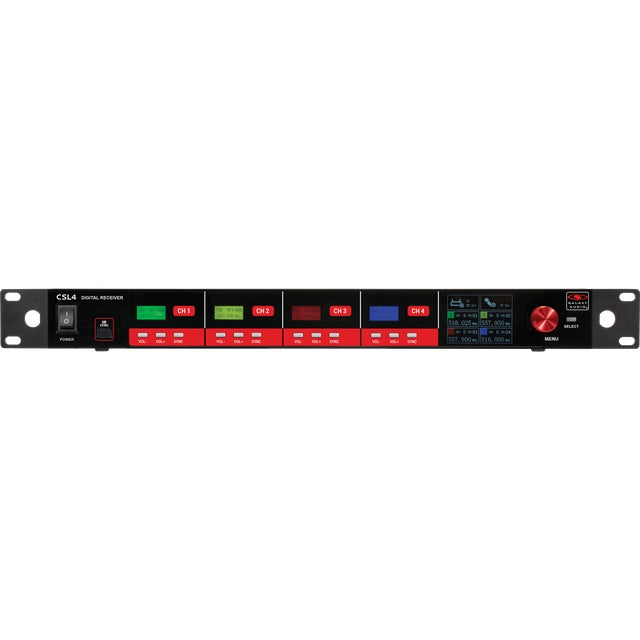

CSL4 Quad Receiver
Rack Size
EIA Standard 1U
Dimensions
1.79" x 19" x 7" (45 x 483 x 178 mm) (H x W x D)
Weight
3.34 lbs (1,515 g)
Frequency Pairing
IR Sync Transmitter w/ Receiver
Oscillation
Synthetic Module Chip
Digital Modulation
32-bit Encrypted
Latency
Less than 3ms
Bandwidth
<100 kHz
Sensitivity
-6 dBm
Signal-To-Noise Ratio
>80 dB
Frequency Response
50 Hz – 16 kHz
Sound Processing
7-Band Adjustable EQ
T.H.D.
<0.5% @ 1 kHz
Output Connections
Balanced XLR (1 per channel), 1 Unbalanced 1/4" for Combined Output
Power Requirements
12 Vdc, 1,000 mA

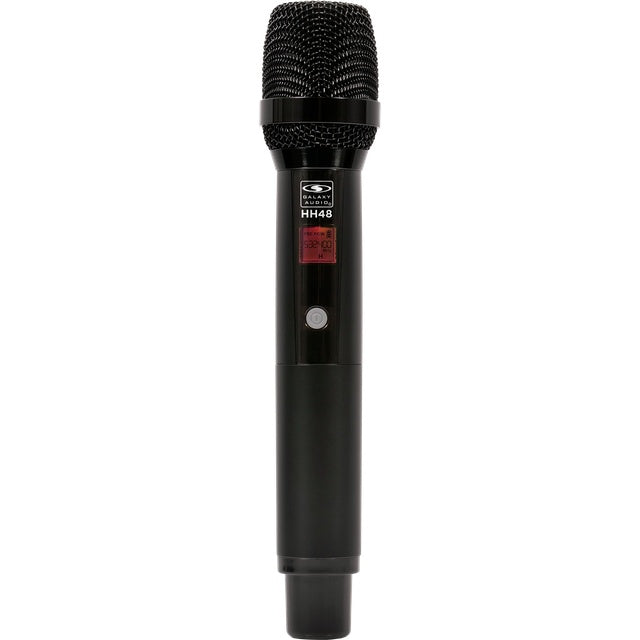

HH48 Handheld Transmitter
Polar Pattern
Cardioid
Element Type
Dynamic
LCD Display
Frequency, Battery Life, Mute
Oscillation Mode
PLL Phase-Locked
Digital Modulation
32-bit Encrypted
Max Transmission Power
10 mW
Current Drain
<130 mA
Gain
Fixed
Power Requirements
2 AA Batteries (alkaline or rechargeable)
Battery Life
About 8 hrs
Dimensions
10" x 1.9" (254 x 49.5 mm) (L x W)
Weight
12.2 oz (345 g)

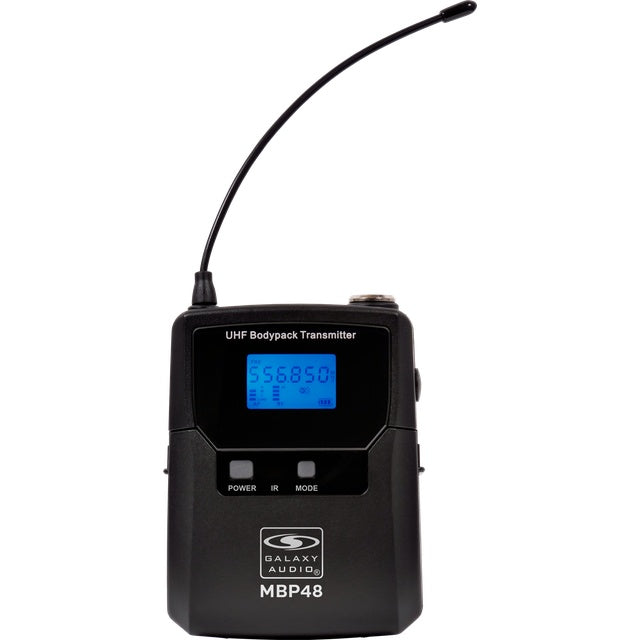

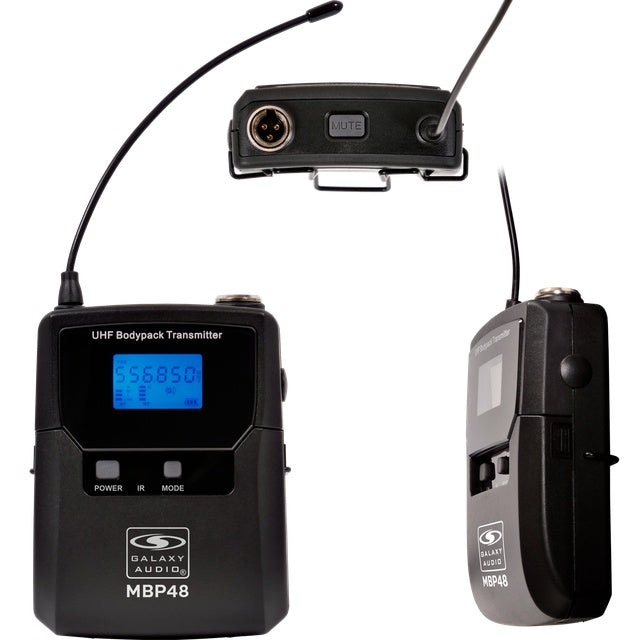

MBP48 Bodypack Transmitter
LCD Display
Frequency, Battery Life, Mute, Gain, RF Power
Oscillation Mode
PLL Phase-Locked
Digital Modulation
32-bit Encrypted
Input Gain
4 Position Line to Mic
Max Transmission Power
10 mW
Current Drain
<130 mA
Power Requirements
2 AA size alkaline or rechargeable batteries
Battery Life
About 8 hrs
Dimensions
3.31" x 2.44" x 1.04" (84 x 62 x 26.4 mm) (H x W x D)
Weight
2.6 oz (74 g)

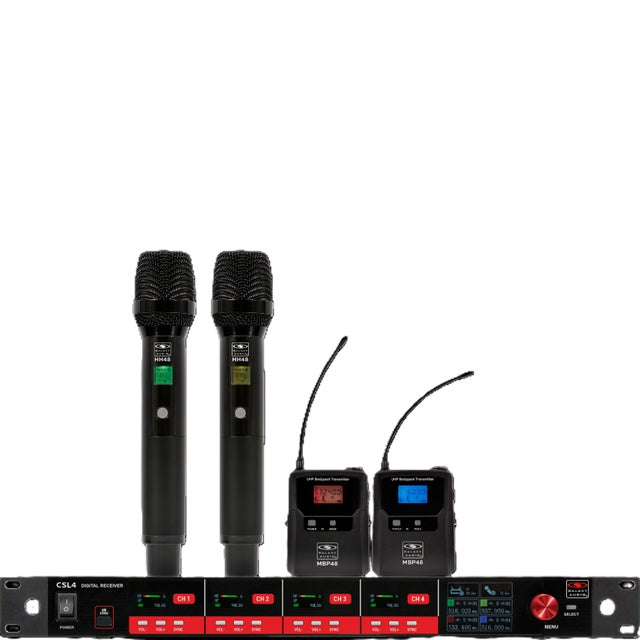

Included Items
Receiver
CSL4 4-Channel Rackmount Receiver
Handheld Transmitters
2x HH48 Handheld Dynamic Cardioid Vocal Mic Transmitters
Bodypack Transmitters
2x MBP48 Bodypack Transmitters (no mics)
Also Included
Antennas, power supply, unbalanced 1/4" cable, quick-start guide
