Specifications
Audio
Band
UHF
Frequency Band
524-547 MHz (CODE B)
Transmission
Mono
Operating Range
Up to 100 ft (30 m)
Audio Quality
24-bit / 48 kHz
Channels
20
Frequency Response
20 Hz – 20 kHz (dependent on mic/input)
Dynamic Range
110 dB
Sensitivity
-88 dBm
T.H.D.
0.2%
RF Output Power
10 mW
Latency
<3 ms

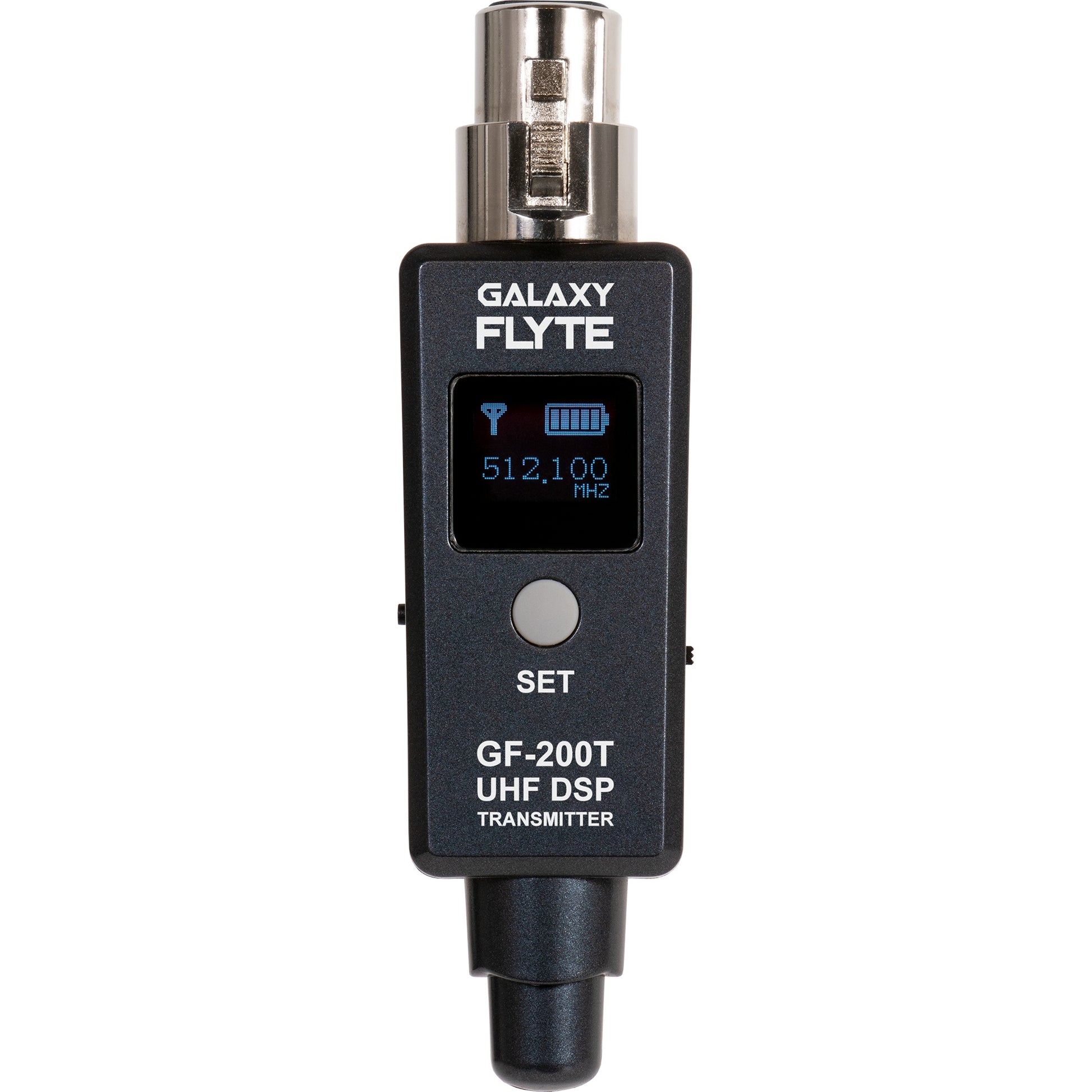

Transmitter (GF-200TB)
Connector
XLR Female
LCD Display
Frequency, Battery Life
Input Gain
2-Position (Line / Mic)
Power
3.7V 1000mA Lithium-Ion internal battery
Battery Life
Approx. 5 hours
Dimensions
Transmitter Length
1.21"
Transmitter Width
0.95"
Transmitter Height
4.46"
Weight
Transmitter Weight
2.12 oz (60g)
Product Weight
0.133 lbs
Shipping
Package Length
7.25"
Package Width
5.25"
Package Height
3.5"
Package Weight
1 lbs
Included Items
What's in the Box
Transmitter only
