Specifications
Camera
Image Sensor
1/1.8" High-Quality CMOS Sensor
Effective Pixels
8.42 Megapixels (16:9 aspect ratio)
Optical Zoom
30x (f = 7.1mm - 210mm)
Digital Zoom
16x
Aperture Range
F1.61 - F5.19
Field of View (Horizontal)
59.2° - 2.5°
Field of View (Vertical)
34.6° - 1.4°
Minimum Illumination
0.5 Lux (F1.8, AGC ON)
Shutter Speed
1/30s - 1/10000s
Signal-to-Noise Ratio
≥55dB
PTZ Performance
Pan Range
±170°
Tilt Range
-30° - +90°
Pan Speed
1.7°/s - 100°/s
Tilt Speed
1.7°/s - 69.9°/s
Preset Positions
255 (Accuracy: 0.1°)
Video Output
HDMI Formats
2160p60, 2160p50, 2160p30, 2160p25, 2160p59.94, 2160p29.97, 1080p60, 1080p50, 1080p59.94, 1080p30, 1080p29.97, 1080i60, 1080i50, 1080i59.94, 720p60, 720p59.94
3G-SDI Formats
1080p60, 1080p50, 1080p30, 1080p29.97, 1080p59.94, 1080p25, 1080i60, 1080i50, 1080i59.94, 720p60, 720p59.94
Video Compression
H.264 / H.265 / MJPEG
Video Streams
Main Stream, Sub Stream
Main Stream Resolution
3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, 640x360
Sub Stream Resolution
720x480, 720x408, 640x480, 640x360, 480x320, 320x240
Main Stream Bit Rate
32 - 51200 kbps
Sub Stream Bit Rate
32 - 20480 kbps
Bit Rate Control
CBR, VBR
Frame Rate
50Hz: 1-50 fps; 60Hz: 1-60 fps
Audio
Audio Compression
AAC
Audio Bit Rate
96 kbps, 128 kbps

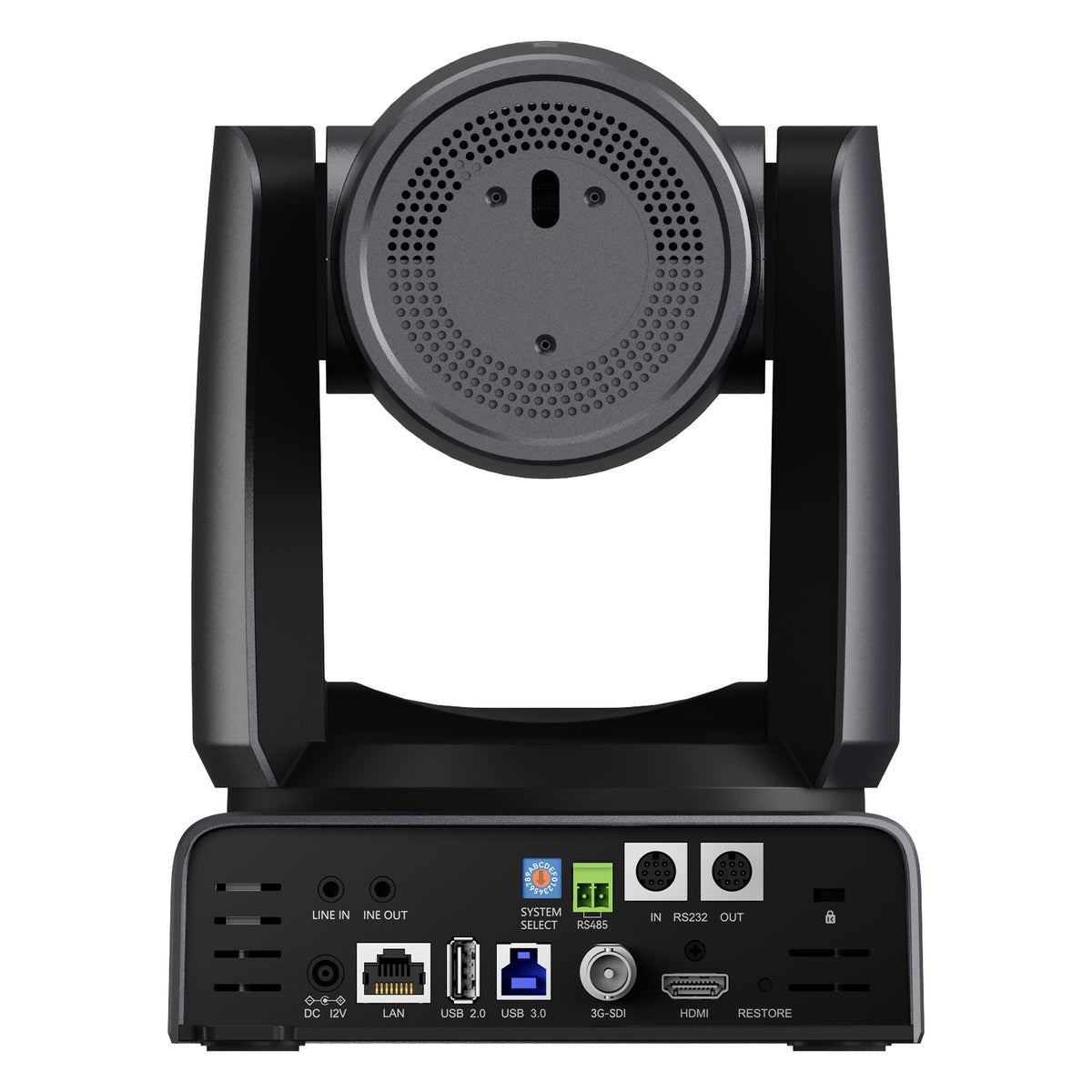

Connectivity
Audio I/O
1 x 3.5mm LINE IN; 1 x 3.5mm LINE OUT
Network
1 x RJ45 10M/100M/1000M Adaptive Ethernet
Video Out
1 x 3G-SDI; 1 x HDMI 2.0
USB
1 x USB 2.0 Type-A; 1 x USB 3.0 Type-B
Communication
1 x RS485 (2-pin Phoenix Terminal); 1 x RS232 IN (8-pin Mini-DIN)
Power Input
DC 12V (JEITA Type)
USB Features
Protocol
UVC 1.1 - UVC 1.5
Color System/Compression
YUY2 / H.264 / H.265 / MJPEG
USB 3.0 Video Format
YUY2: 1080p30 max; H.264 AVC: 4K@30fps max; H.265 HEVC: 4K@30fps max; MJPEG: 4K@30fps max
USB 2.0 Video Format
YUY2: 1080p5 max; H.264 AVC: 4K@30fps max; H.265 HEVC: 4K@30fps max; MJPEG: 4K@30fps max
UVC PTZ
Yes
USB Audio
Yes
USB Video
Yes
Compatible OS
Windows 7/8/10, Mac OS, Linux, Android
Network
Supported Protocols
NDI|HX3, TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast
Electrical
Input Voltage
DC 12V / PoE+
Input Current
2A (max.)
Power Consumption
18W (max.)
Dimensions
Dimensions (L x W x H)
169 x 188 x 226mm
Net Weight
Approx. 2.3kg
Environmental
Operating Temperature
32°F - 104°F (0°C - 40°C)
Storage Temperature
-40°F - 140°F (-40°C - 60°C)
Included Items

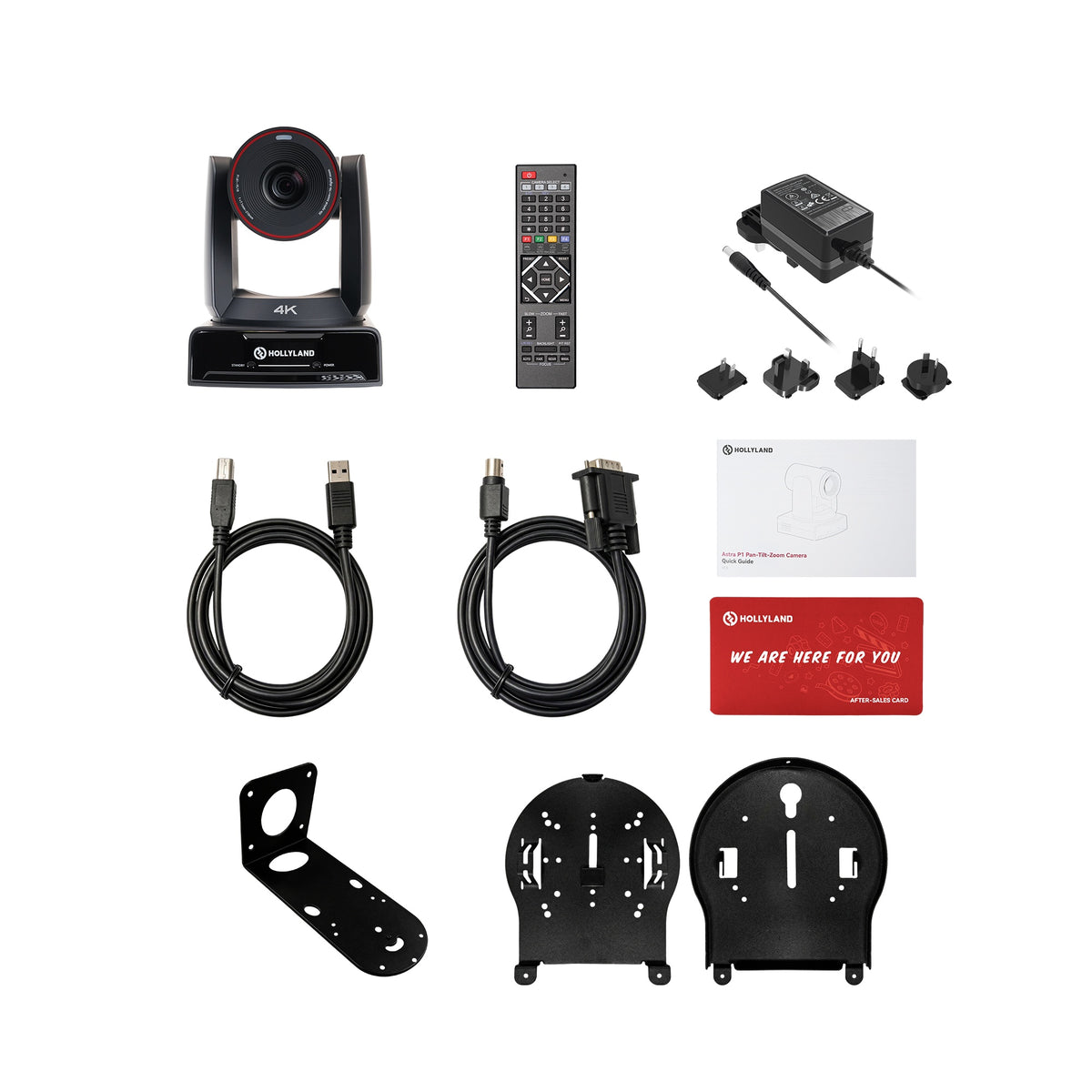

In The Box
PTZ Camera x1, Remote Controller x1, Power Adapter x1, USB-B to USB-A Cable x1, RS232 Cable x1, Wall Mount Bracket x1, Ceiling Mount Bracket x1, User Manual x1, Warranty Card x1, Packing List Card x1
