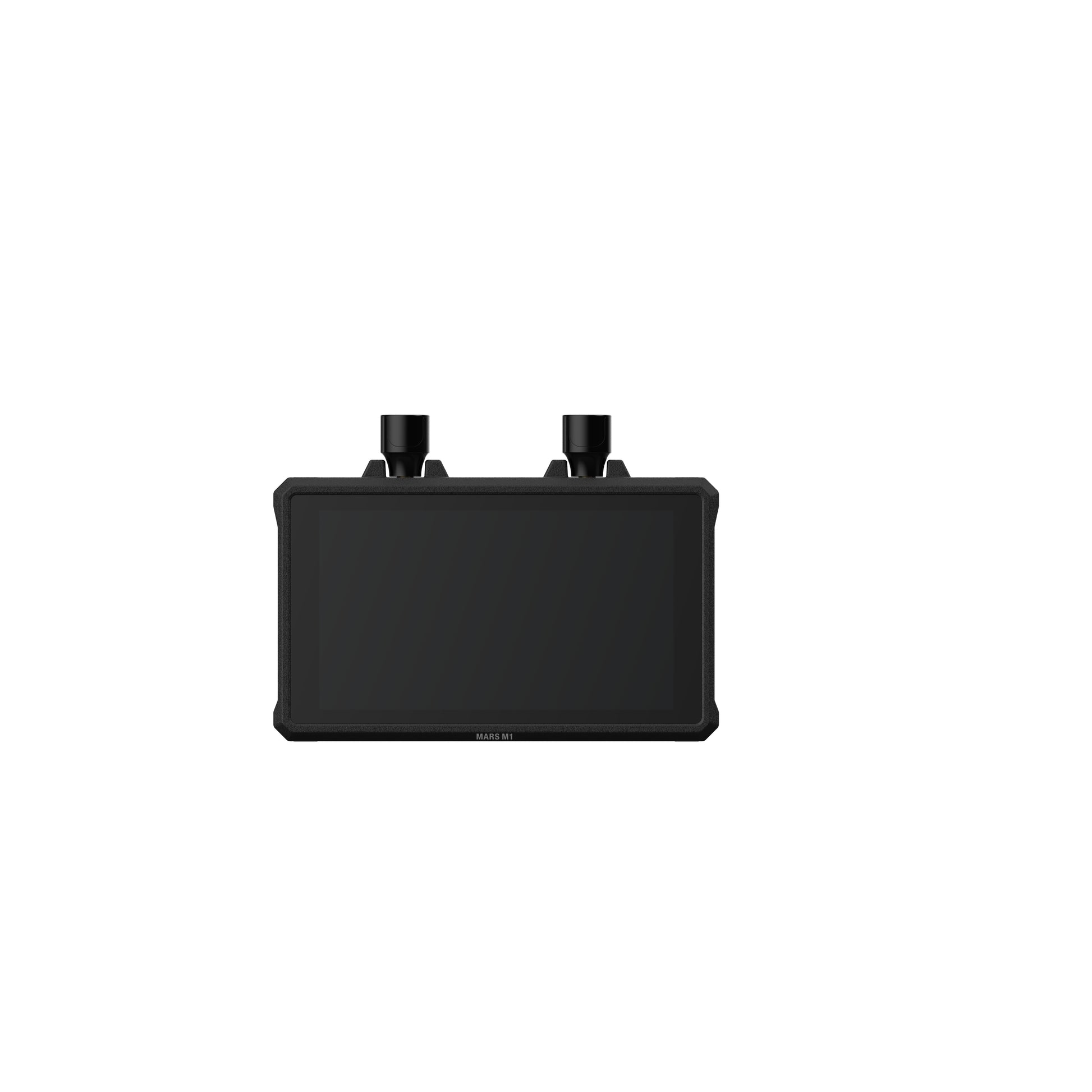

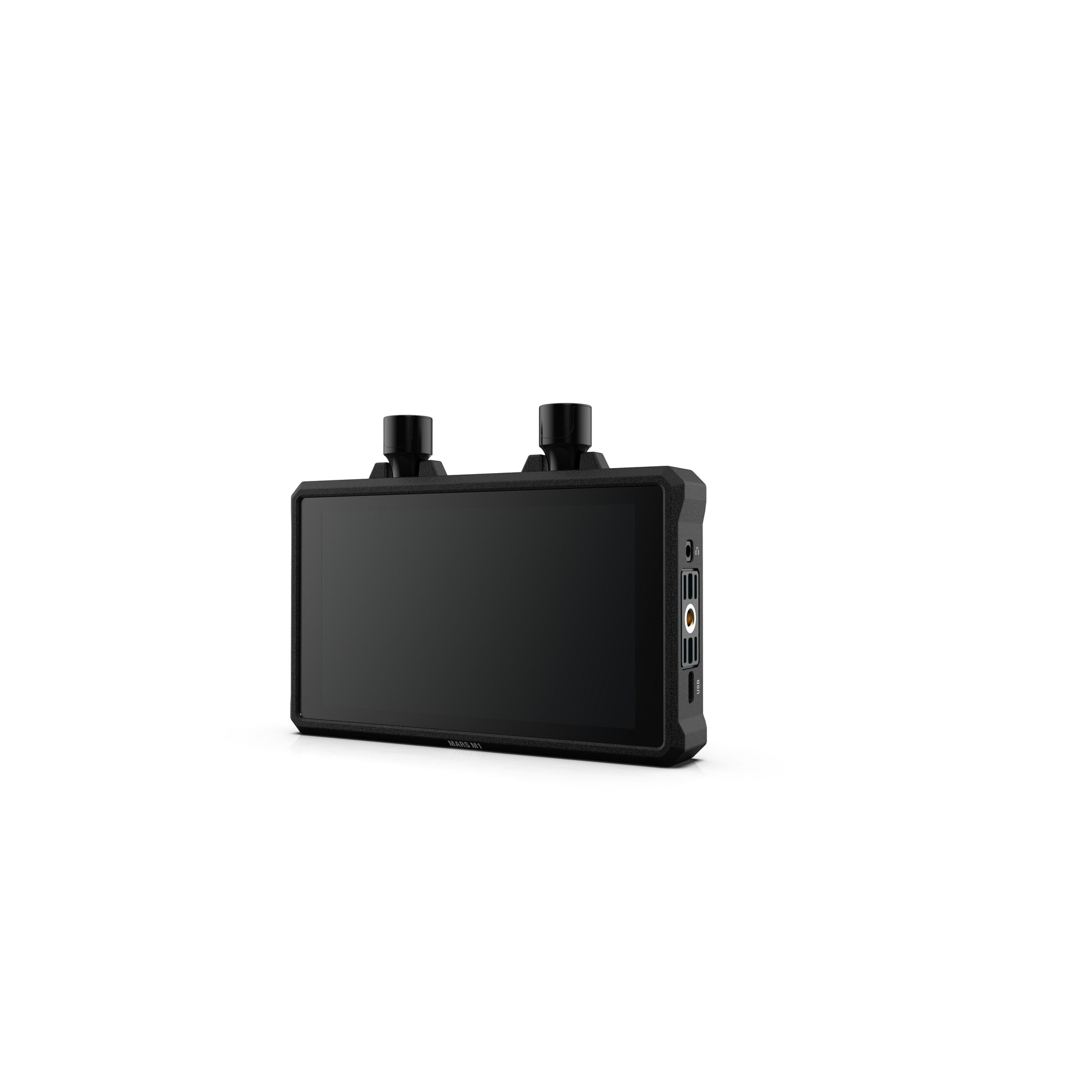

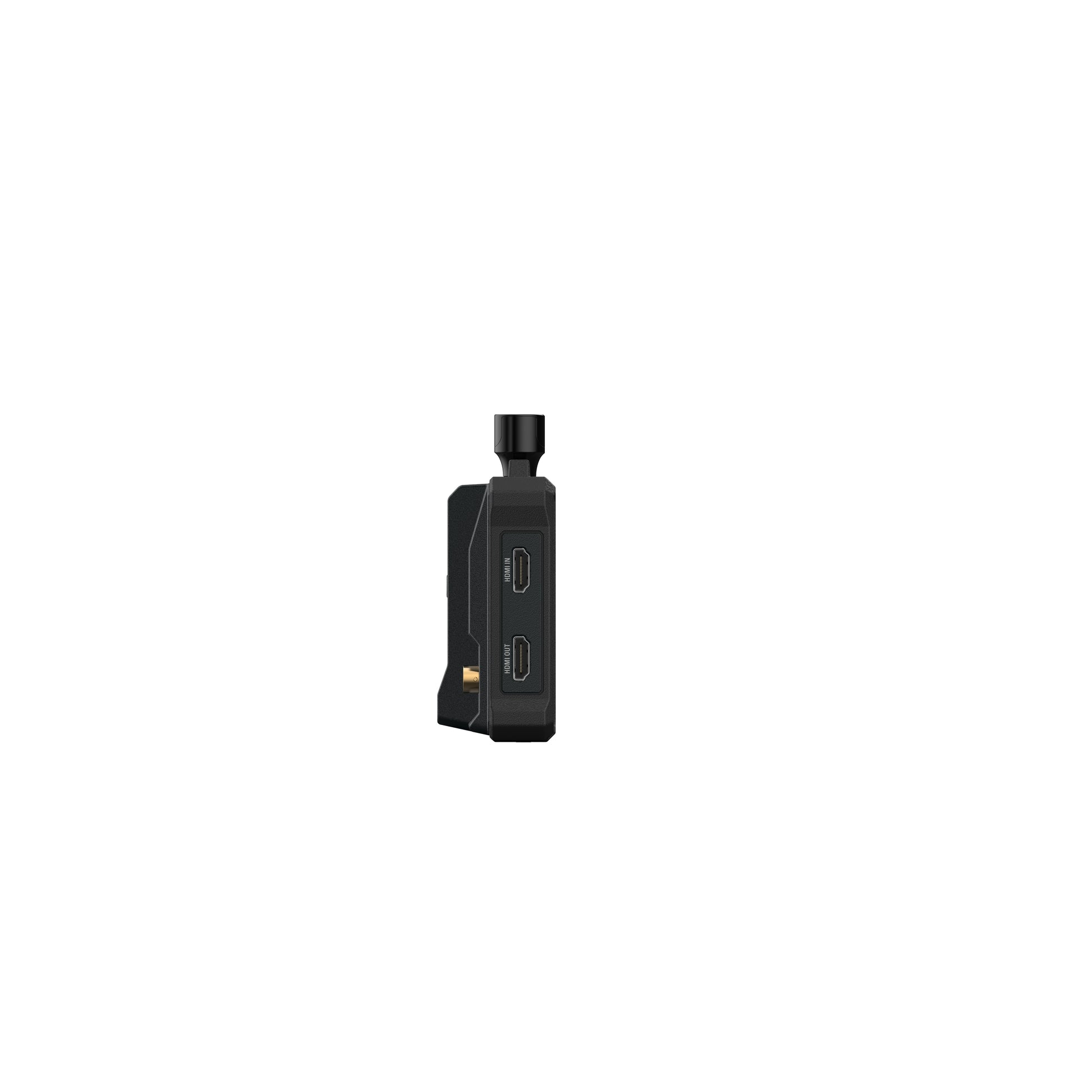

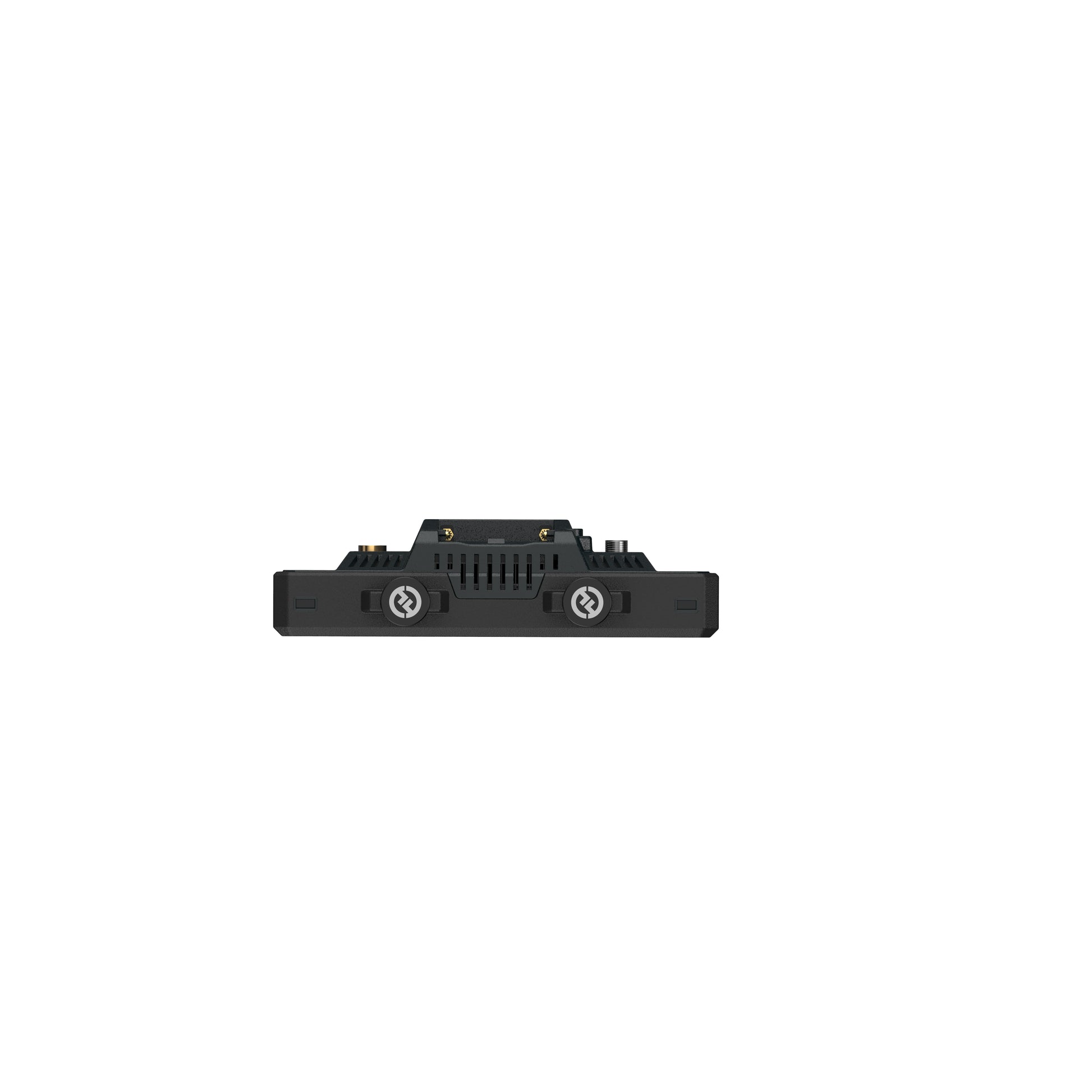

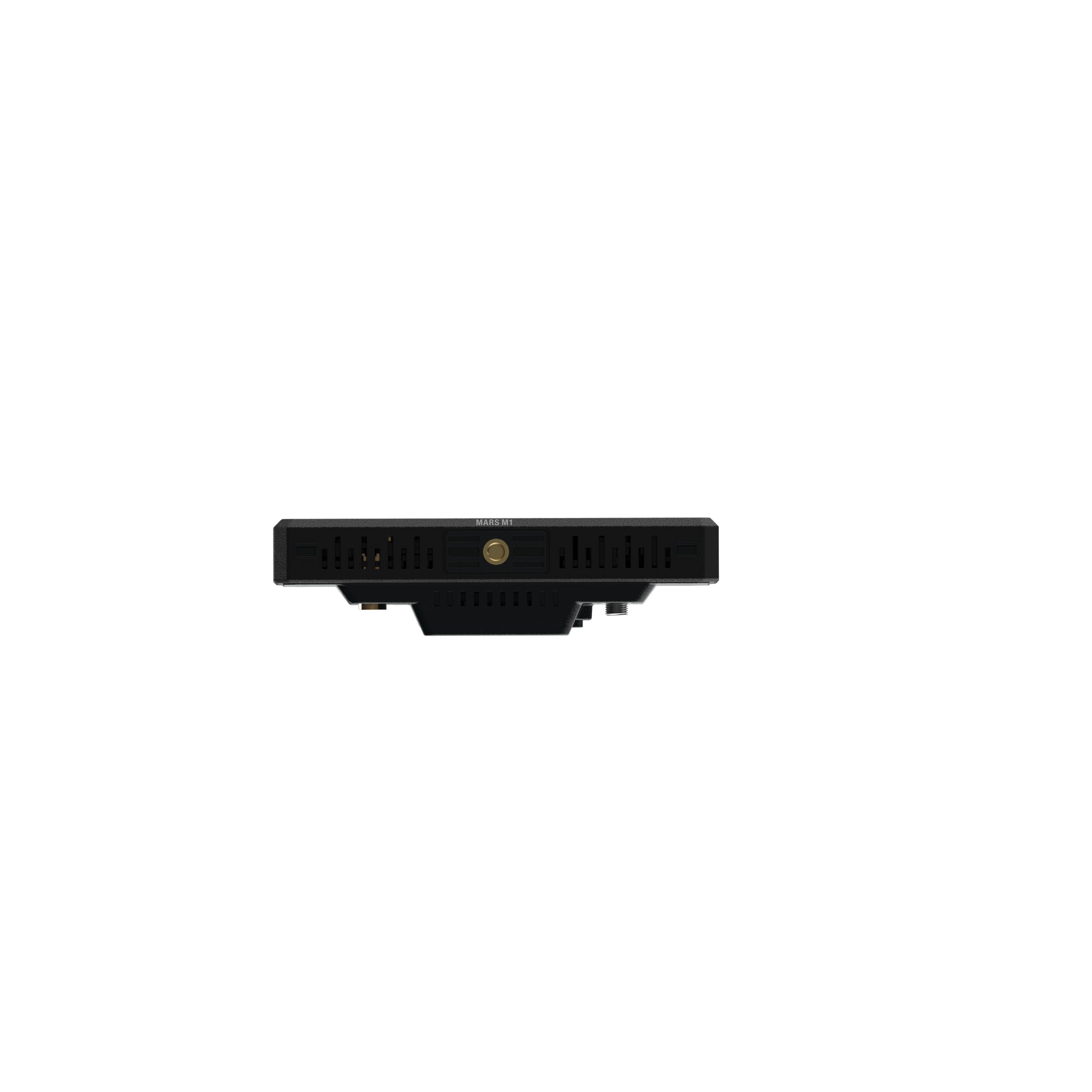

Hollyland Mars M1 Enhanced 5.5" Wireless Transceiving Monitor

Hollyland Mars M1 Enhanced 5.5" Wireless Transceiving Monitor

SoundPro Item: 142492 | Part Number: HL-Mars M1 Enhanced

$399.00
$399.00 $399.00
Your Price Sold out
MSRP: $399.00 | MAP: $399.00

Usually ships in 5-7 business days

  • All-In-One TX/RX Switching Eliminates Separate Transmitter And Receiver Units For Flexible Signal Routing
  • Factory Rec.709 Calibration And RGB Gain Control Ensure Accurate Color Representation Across Production Workflows
  • HollyOS Monitoring Suite Provides Waveform, Vectorscope, And Peaking Tools For Professional Image Analysis
  • Dual HDMI And SDI Connectivity Supports Cinema Cameras, Switchers, And Legacy Broadcast Equipment
  • Smart Channel Scanning Identifies Interference-Free Frequencies For Stable Wireless Links In Crowded RF Zones
  • NP-F Battery Compatibility And DC Output Enable Extended Runtime And Power Sharing With Accessories
  • Capsule Antenna Design Speeds Setup By Eliminating Threaded Antenna Assembly And Disassembly
Log in or register for YOUR best price

The Mars M1 Enhanced addresses critical workflow demands in live production, broadcast, and multi-camera setups where crew members need to both send and receive video signals from a single device. By integrating TX and RX modes with a professional-grade monitor, it eliminates the need to transport separate transmitters, receivers, and field monitors. Directors, camera operators, and video engineers gain flexibility to reconfigure signal paths on location without swapping hardware.

Engineered for outdoor and high-ambient-light environments, the monitor delivers factory color calibration to Rec.709 standards and 1,000-nit brightness, ensuring accurate image assessment under direct sunlight. HDMI loop-out and SDI input provide compatibility with cinema cameras, switchers, and recorders, while the 80ms latency supports real-time focus pulling and shot framing. One transmitter connects to two receivers or four mobile apps simultaneously, streamlining distribution to multiple crew positions.

HollyOS monitoring tools—including waveform, vectorscope, false color, and peaking—deliver the image analysis capabilities typically reserved for dedicated field monitors. Smart channel scanning and 5GHz operation maintain stable transmission across 450 feet in congested RF environments. Compatibility with Mars Pro and Mars 4K systems allows incremental expansion of existing Hollyland ecosystems without protocol conversion or additional adapters.

Downloads

View full details

Specifications

Connectivity
Transmitter Video Input
HDMI 1.4b (Type-A female), 3G-SDI (BNC female)
Transmitter Video Output
HDMI 1.4b Loop-Out (Type-A female)
Receiver Video Output
HDMI 1.4b (Type-A female)
Headphone Jack
3.5mm
Antenna Interface
Two RP-SMA male
Display
Screen Size
5.5" touchscreen
Screen Resolution
1920 x 1080 pixels
Pixel Density
403 PPI
Aspect Ratio
16:9
Brightness
1,000 nits
Contrast Ratio
1000:1
Video
Transmitter HDMI Input Resolution
720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 3840x2160p23.98/24/25/29.97/30, 4096x2160p23.98/24/25/29.97/30
Transmitter SDI Input Resolution
720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60 (3G-SDI level A/B)
Transmitter HDMI Loop-Out Resolution (HDMI IN)
720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 3840x2160p23.98/24/25/29.97/30, 4096x2160p23.98/24/25/29.97/30
Transmitter HDMI Loop-Out Resolution (SDI IN)
720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60
Receiver HDMI Output Resolution
720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60
Audio Format
Eight channels HDMI 1.4b
Performance
Display Latency
<0.05s (1080p60)
Transmission Latency
0.08s (1080p60)
LOS Range
450' (150m)
Codec Technology
H.264
Bit Rate
12Mbps
Wireless
Operating Frequency
5.150–5.250GHz, 5.250–5.350GHz, 5.470–5.725GHz, 5.725–5.850GHz
Bandwidth
20MHz
TX Power
≤21 +/-1.5dBm
Power
Transmitter Power Input
DC 7–16V 2.5A (nominal 12V), NP-F battery 6.8–8.4V
Receiver Power Input
DC 7–16V 2.5A (nominal 12V), NP-F battery 6.8–8.4V
DC Output Voltage
8.4V ±5%
Transmitter Power Consumption
<16W
Receiver Power Consumption
<13.6W
Physical
Net Weight
Approx. 400g (14.1oz) (antennas excluded)
Dimensions (L x W x H)
152mm x 96mm x 40mm (5.98" x 3.78" x 1.57") (antennas excluded)
Environmental
Operating Temperature
–10°C to 60°C (14°F to 140°F)
Storage Temperature
–40°C to 60°C (–40°F to 140°F)
Included Items
Included Accessories
Capsule Antenna (2), Tempered Glass Screen Protector, Type-C OTG Converter, D-Tap to Locking DC Power Adapter Cable, User Manual, Quick Guide, Warranty Card
