Hollyland Mars M1 Enhanced Kit 5.5" Wireless Transceiver Monitor

Hollyland Mars M1 Enhanced Kit 5.5" Wireless Transceiver Monitor

SoundPro Item: 142493 | Part Number: HL-Mars M1 Enhanced Kit

$799.00
$799.00 $799.00
Your Price Sold out
MSRP: $799.00 | MAP: $799.00

Usually ships in 5-7 business days

  • All-In-One TX/RX Architecture Eliminates Dedicated Transmitter And Receiver Units
  • Dual-Mode Connectivity Supports Two Receivers Or Four Mobile Apps Per Transmitter
  • Rec.709 Color Gamut With Factory Calibration Ensures Broadcast-Grade Color Accuracy
  • HollyOS Monitoring Suite Provides Professional Image Analysis And Decimal Frame Rate Support
  • Capsule Antenna Design Streamlines Deployment Without Repeated Disassembly
Log in or register for YOUR best price

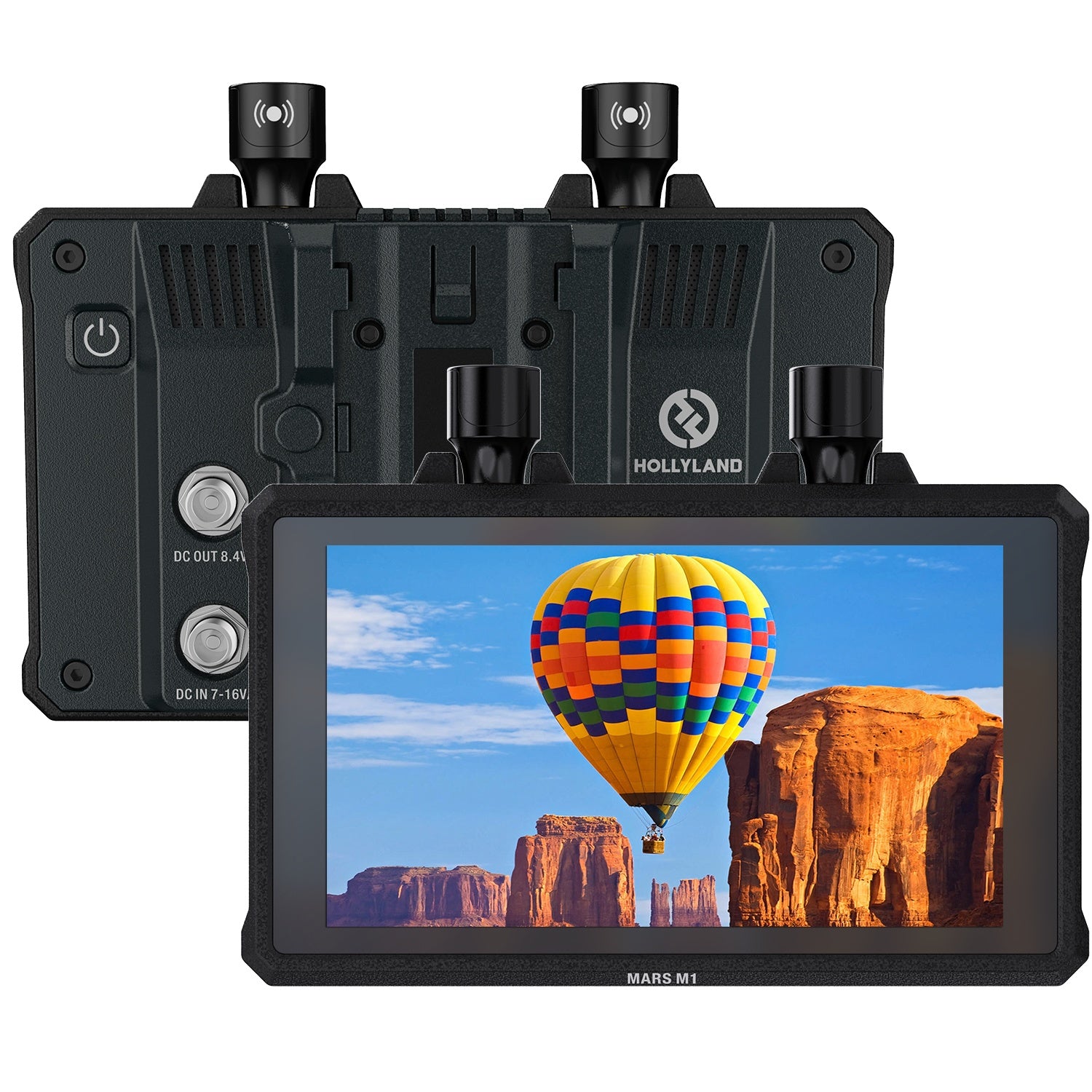

The Hollyland Mars M1 Enhanced Kit delivers a complete wireless video solution for professional field and studio productions. Each unit operates as a transmitter, receiver, or standalone monitor, allowing flexible deployment without dedicated hardware for each role. The system supports one transmitter connected to two receivers or four mobile apps simultaneously, enabling multi-viewer monitoring from a single source. Compatibility with Mars Pro and Mars 4K systems integrates seamlessly into existing Hollyland workflows.

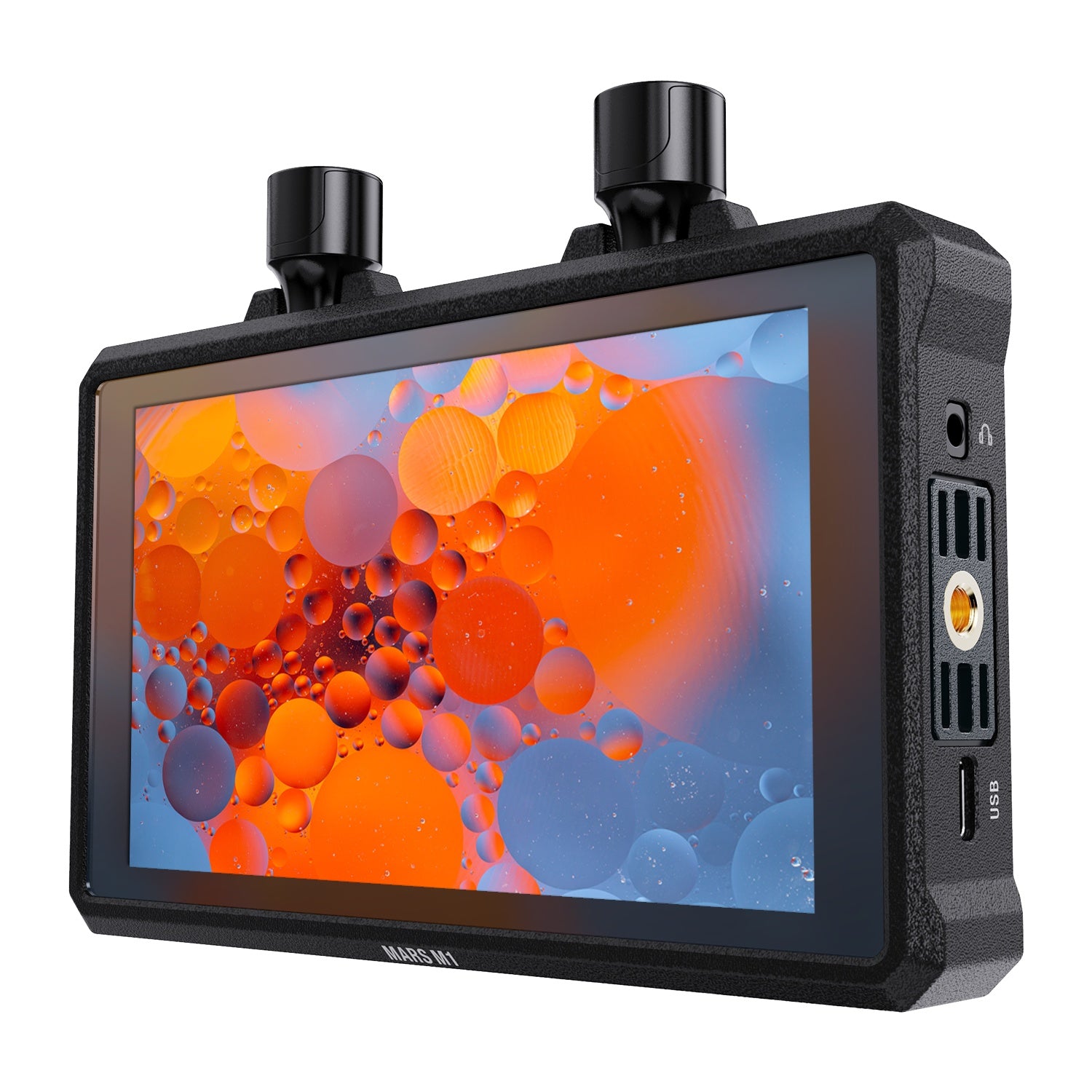

The color-calibrated 5.5" touchscreen displays 1,000 nits of brightness for outdoor visibility and professional monitoring tools powered by HollyOS. With HDMI 4K/30fps input, SDI connectivity, and HDMI loopout, the system accommodates broadcast and cinema cameras while maintaining an ultra-low 0.08-second latency across a 450-foot line-of-sight range. Smart channel scanning ensures interference-free operation, and automatic trigger recording with playback lets directors and DITs review footage on location.

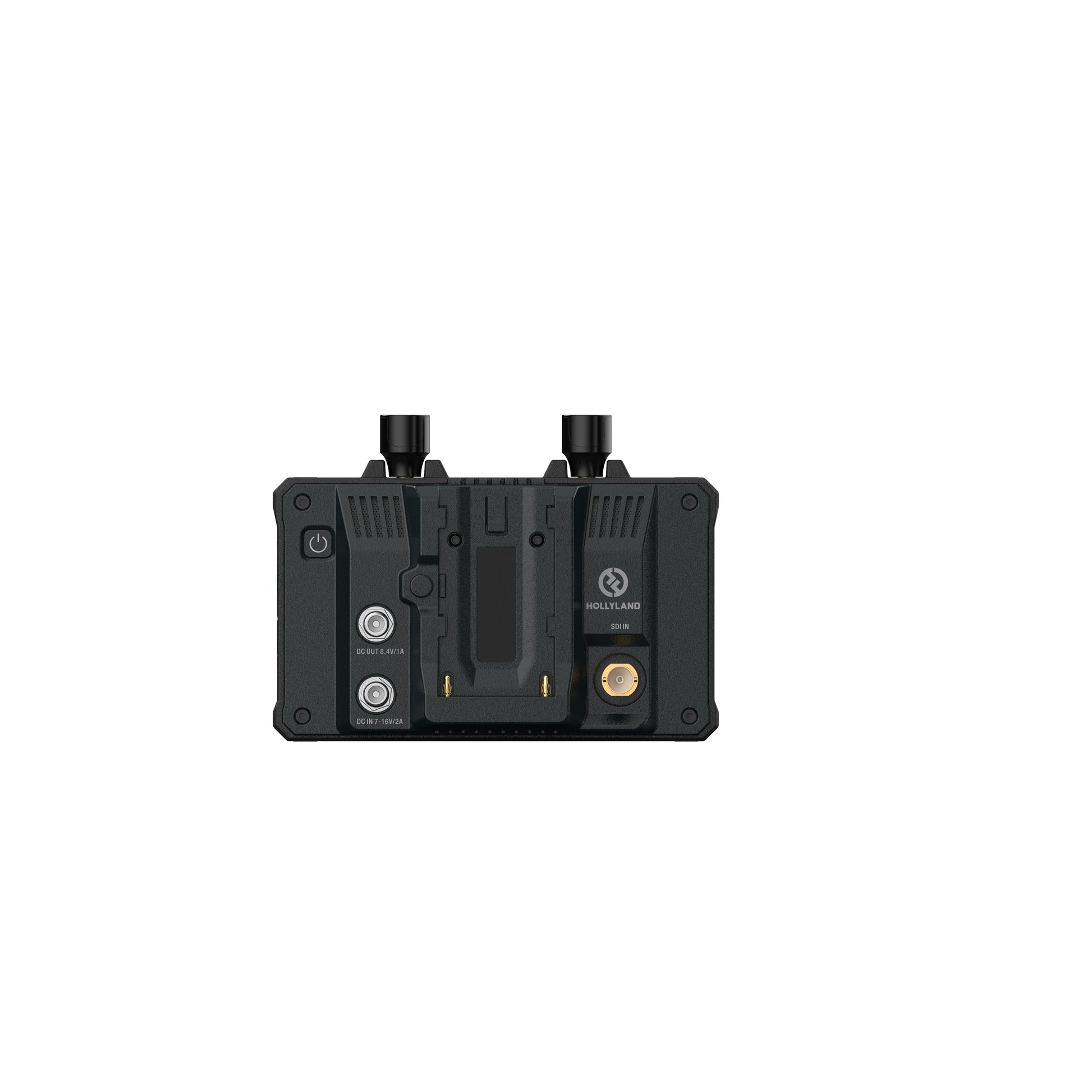

At 400 grams per unit with capsule antennas, the impact-resistant shell withstands field conditions while the frosted texture provides secure handling. Dual power options via DC or NP-F batteries and 8.4V output for accessories make the M1 Enhanced adaptable to run-and-gun and controlled production environments alike.

Downloads

View full details

Specifications

Transmitter Mode
HDMI Input Interface
HDMI 1.4b IN (Type-A female)
SDI Input Interface
3G-SDI IN (BNC female)
HDMI Output Interface
HDMI 1.4b LOOPOUT (Type-A female)
Headphone Jack
3.5mm
Upgrade Interface
USB-C (USB-2.0 OTG)
HDMI Input Resolution
720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 3840x2160p23.98/24/25/29.97/30, 4096x2160p23.98/24/25/29.97/30 Hz
SDI Input Resolution
720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60 (3G-SDI level A/B) Hz
HDMI Loopout Resolution (HDMI IN)
720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 3840x2160p23.98/24/25/29.97/30, 4096x2160p23.98/24/25/29.97/30 Hz
HDMI Loopout Resolution (SDI IN)
720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60 Hz
Display Latency
<0.05s
Power Consumption
<16W
Receiver Mode
HDMI Output Interface
HDMI 1.4b OUT (Type-A female)
HDMI Output Resolution
720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60 Hz
Power Consumption
<13.6W
Display
Screen Size
5.5" touchscreen
Screen Resolution
1920×1080 pixels
Pixel Density
403 PPI
Aspect Ratio
16:9
Brightness
1,000 nits
Contrast Ratio
1000:1
Wireless Transmission
Operating Frequency
5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 GHz
Codec Technology
H.264
Bit Rate
12 Mbps
TX Power
≤ 21+/-1.5 dBm
Transmission Latency
0.08s (1080p60)
LOS Range
450 ft (150 m)
Bandwidth
20 MHz
Audio
Audio Format
Eight channels (HDMI 1.4b)
Power
DC Input Voltage
7–16V 2.5A (nominal 12V)
NP-F Battery Input
6.8V–8.4V
DC Output Voltage
8.4V±5%
Power Input Interface
DC IN (2.0mm core socket)
Power Output Interface
DC OUT (2.0mm core socket)
Physical
Dimensions (L x W x H)
152 x 96 x 40 mm (5.98" x 3.78" x 1.57") with external antennas excluded
Net Weight
400 g (14.1 oz) with external antennas excluded
Antenna Interface
Two RP-SMA male
Environmental
Operating Temperature
–10℃ to 60℃ (14°F to 140°F)
Storage Temperature
–40℃ to 60℃ (–40°F to 140°F)
Included Items
Wireless Transceiving Monitors
2

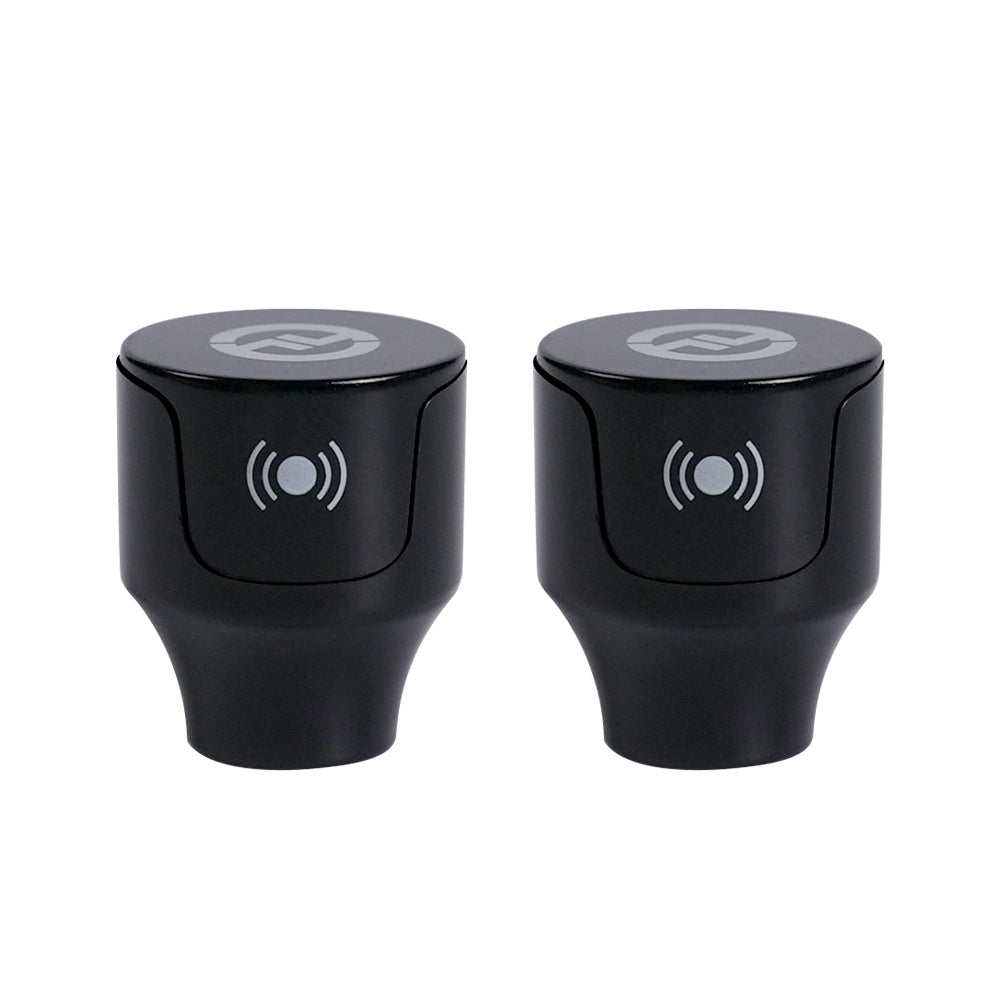

Capsule Antennas
4

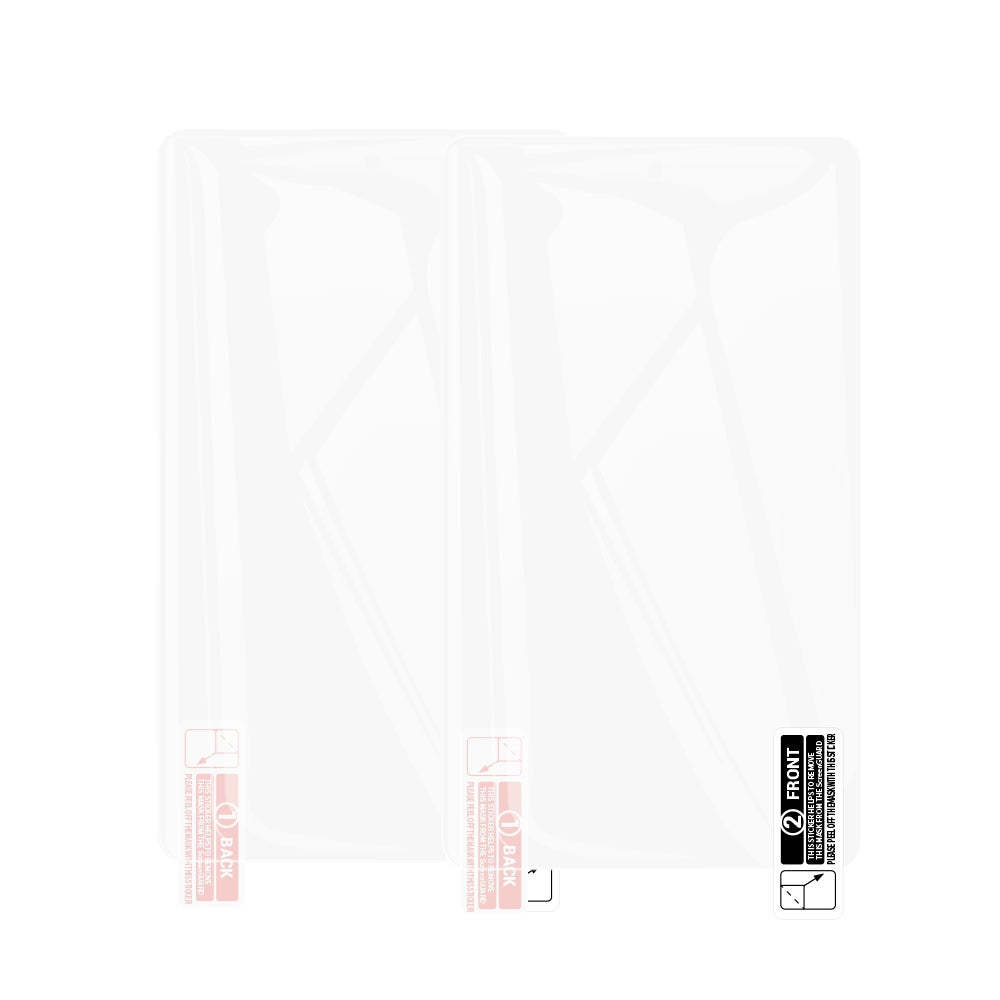

Tempered Glass Screen Protectors
2
Type-C OTG Converters
2

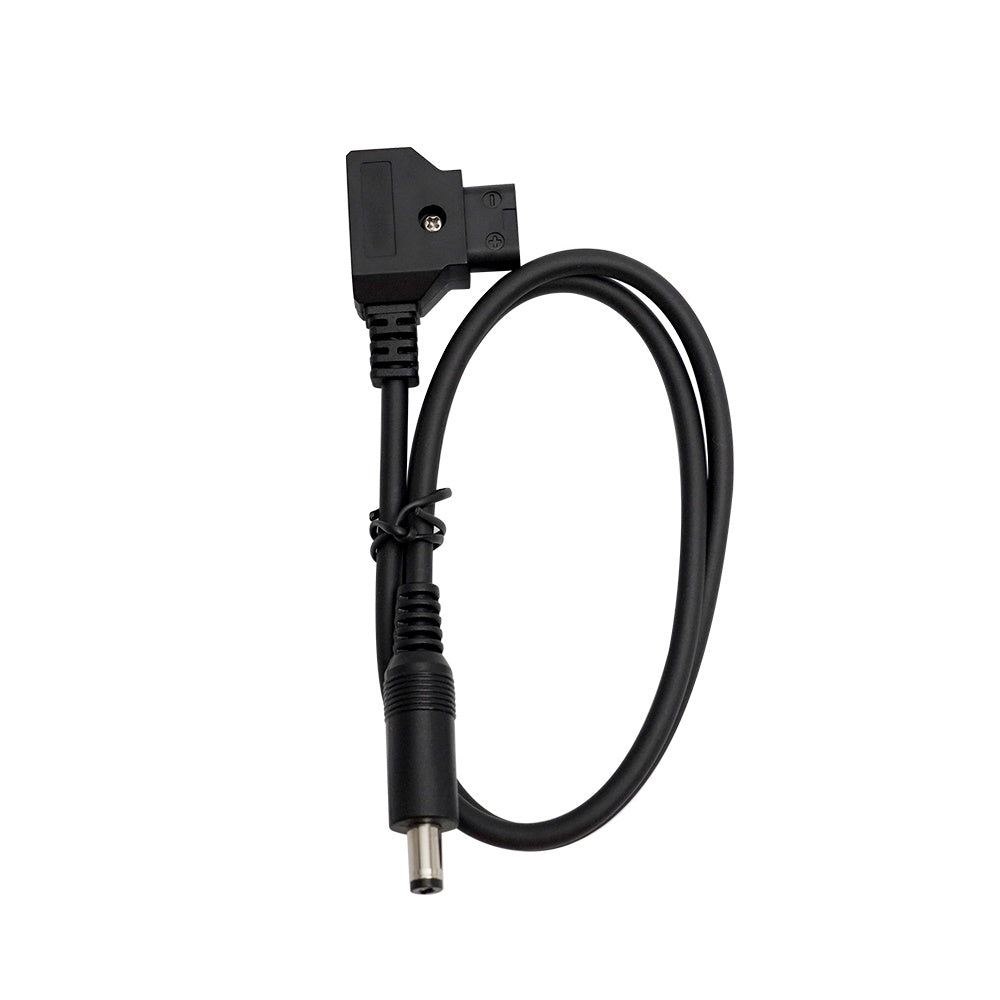

D-Tap to Locking DC Power Adapter Cables
2
User Manual
1
Warranty Cards
2
