Specifications
Audio
Audio Format
HDMI 1.4b 8-Channel
Connectivity
Input Port
HDMI 1.4b + 3G SDI
Output Port
HDMI 1.4b + 3G SDI
Antenna
RP-SMA Male x2
Headphone Jack
3.5mm
Upgrade Port
USB-C (USB 2.0 OTG)

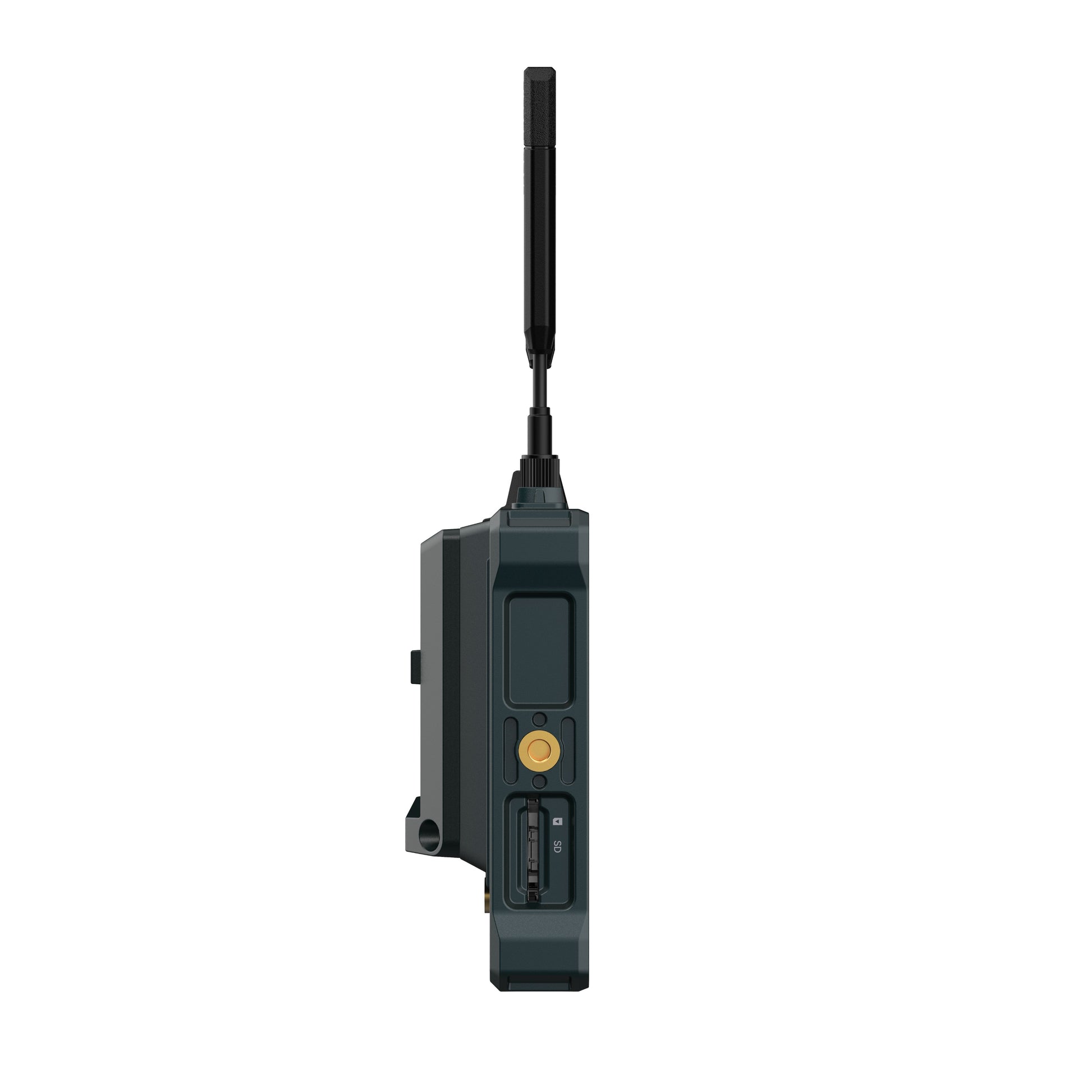

SD Card Slot
Yes
Display
Screen Size
7" Touchscreen
Screen Resolution
1920 x 1200 pixels
Pixel Density
323 PPI
Aspect Ratio
16:9
Screen Brightness
1500 nits
Contrast Ratio
1000:1
Electrical
Power Input Voltage
10 – 18V/2.5A DC Input (nominal 12V)
Power Input
DC Input (2.0mm core socket)
Power Consumption
< 22W
Performance
Operating Frequency
5.1 – 5.8 GHz; 2.412 – 2.484 GHz
Transmit Power
≤ 23 dBm
Receiver Sensitivity
-80 dBm
Display Latency
< 50ms
Transmission Latency
≈ 60ms (1080p60 in laboratory)
LOS Range
1,300ft (400m); 650ft (200m) in Broadcast mode
Bandwidth
20 MHz; 40 MHz in Broadcast mode
Video Format Support
HDMI Input
720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080p50/59.94/60, 3840x2160 23.98/24/25/29.97/30
HDMI Loopout
720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080p50/59.94/60, 3840x2160 23.98/24/25/29.97/30
SDI Input
1080p50/59.94/60 (Level A), 1080p50/59.94/60 (Level B), 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080psf23.98/24, 1080psf25/29.97/30, 720p50/59.94/60
SDI Loopout
1080p50/59.94/60 (Level A), 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080p23.98/24, 720p50/59.94/60
HDMI/SDI Output
720p50/60, 1080i50/60, 1080p24/25/30, 1080p50/60, 1920x1080 24/25/30
Dimensions
Dimensions (L x W x H)
180 x 127 x 31.8mm (7.1" x 5" x 1.25") with battery plate, antennas excluded
Weight
Net Weight
≈ 570g (20.1oz) with battery plate, antennas excluded
Environmental
Operating Temperature
-10℃ – 45℃
Storage Temperature
-40℃ – 60℃
Included Items

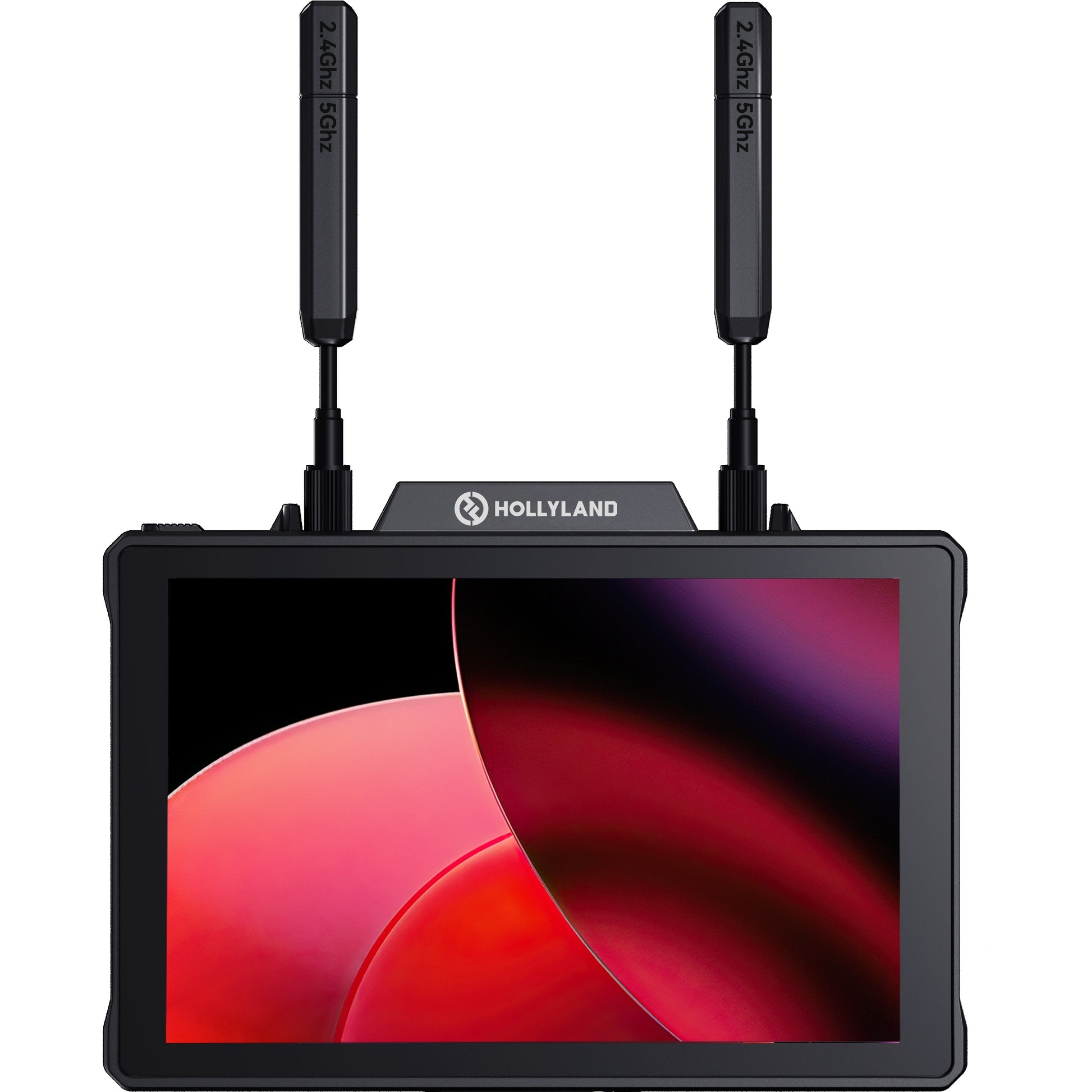

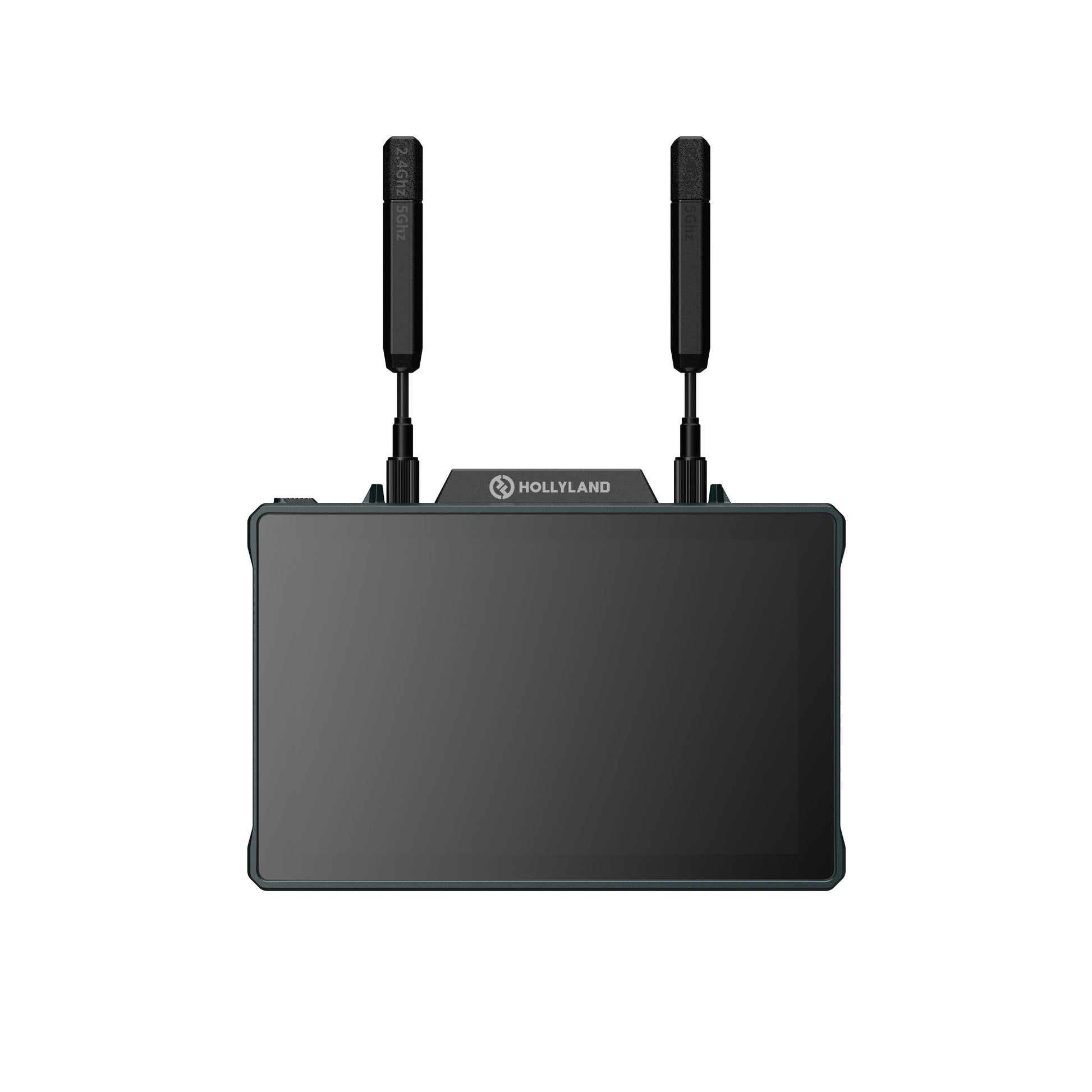

Pyro 7 Wireless Transceiving Monitor
1
Paddle Antenna (2.4 GHz & 5 GHz)
2
D-Tap to Locking DC Power Adapter Cable
1
Secure Digital Memory Card (32G)
1
USB-C OTG Adapter
1
User Manual
1
Warranty Card
1
