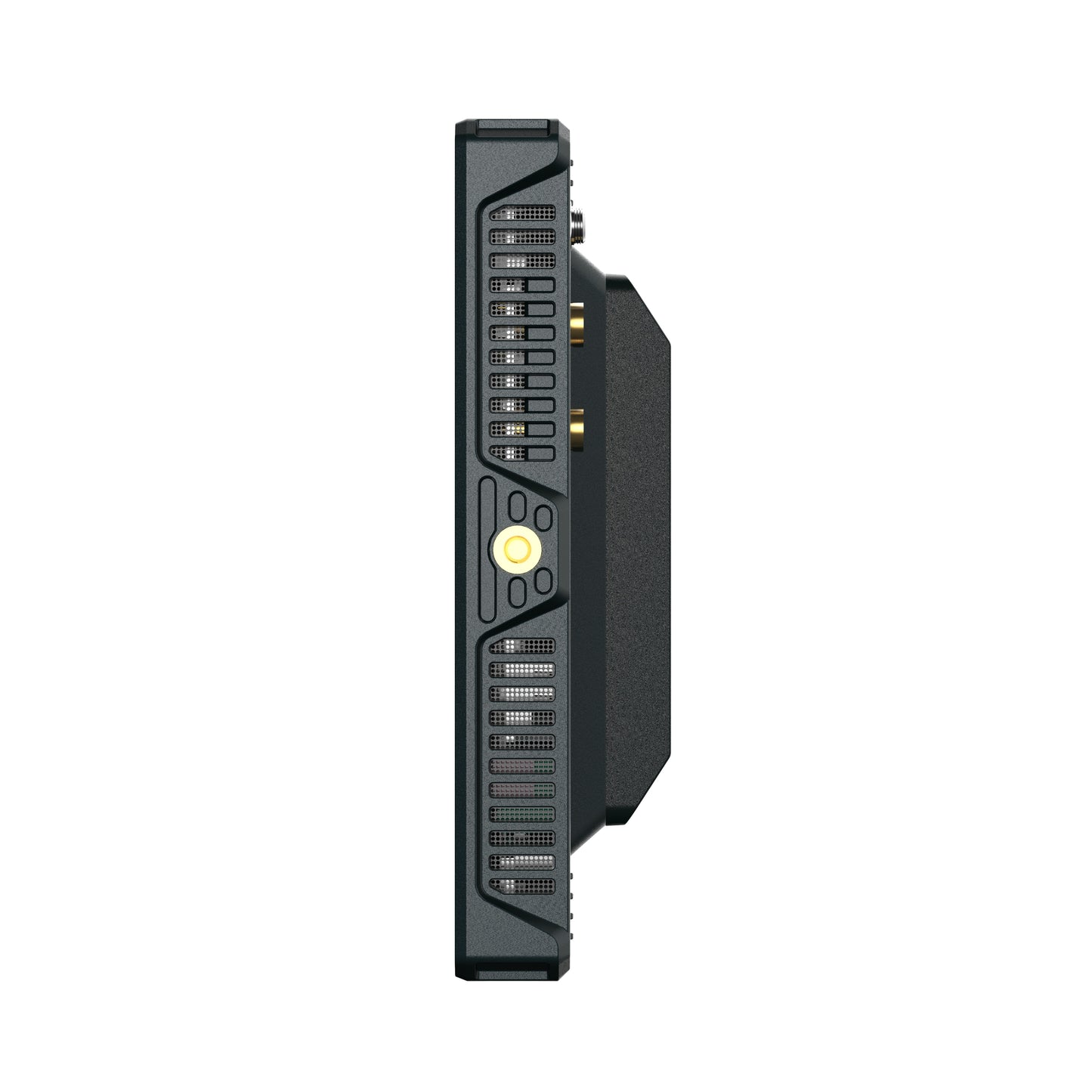

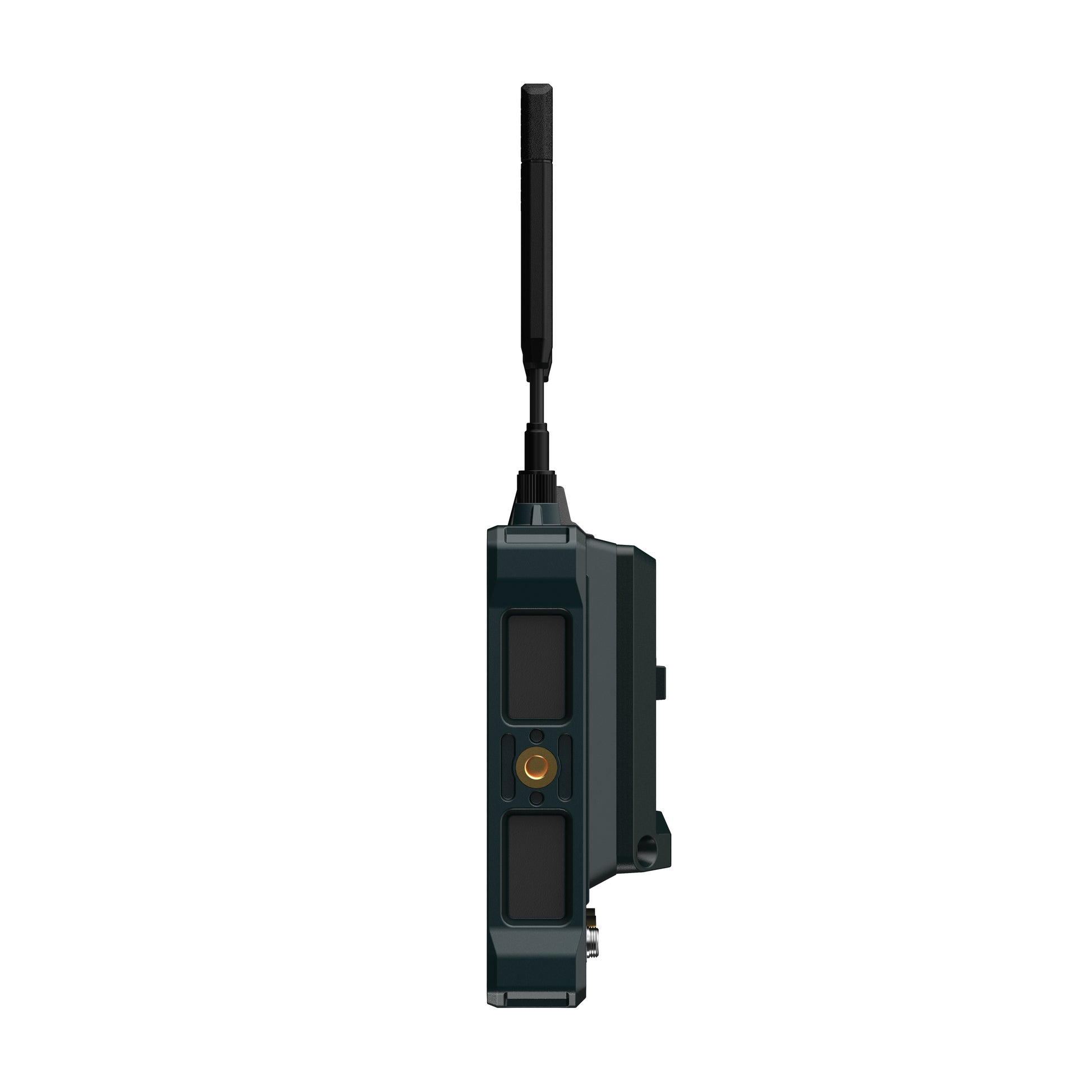

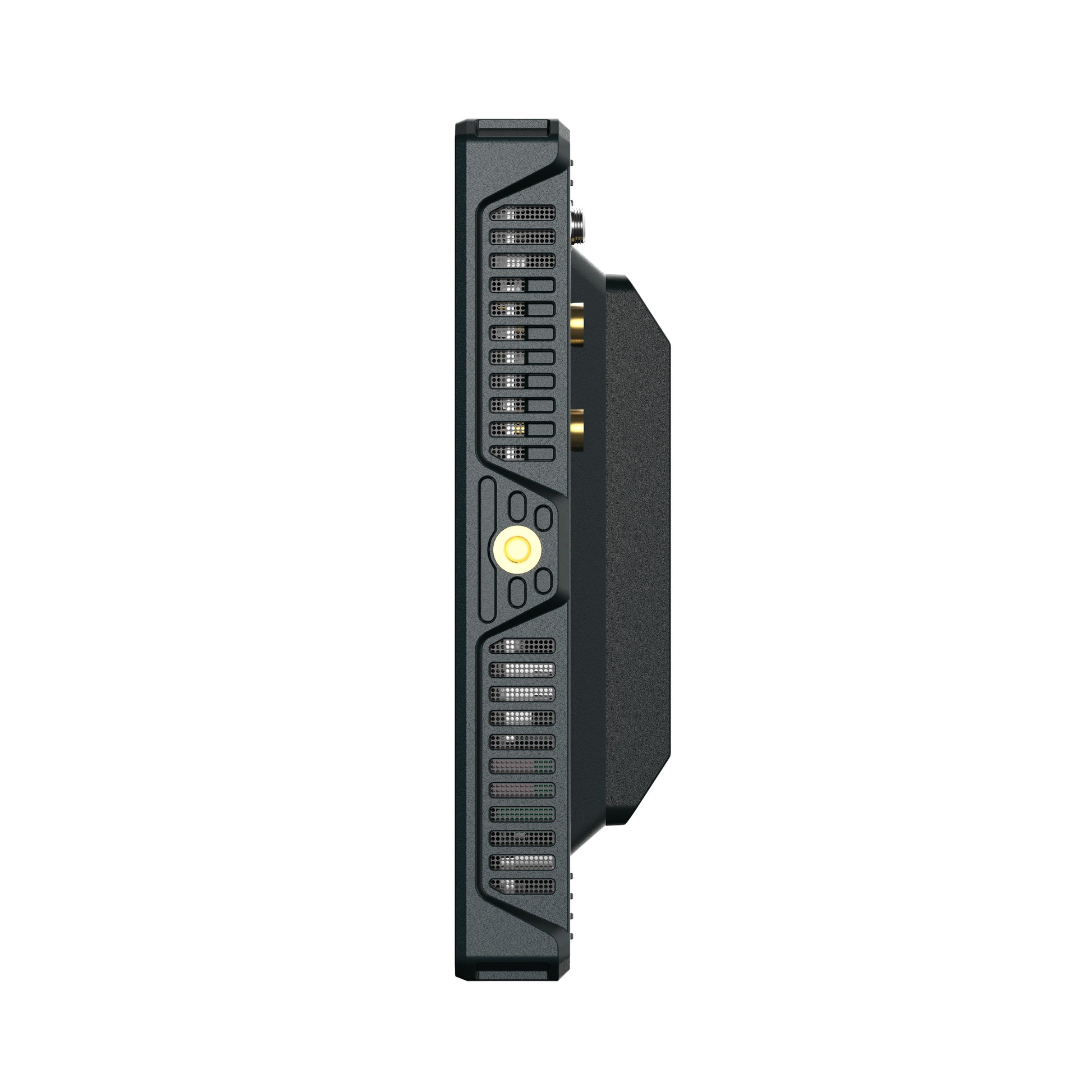

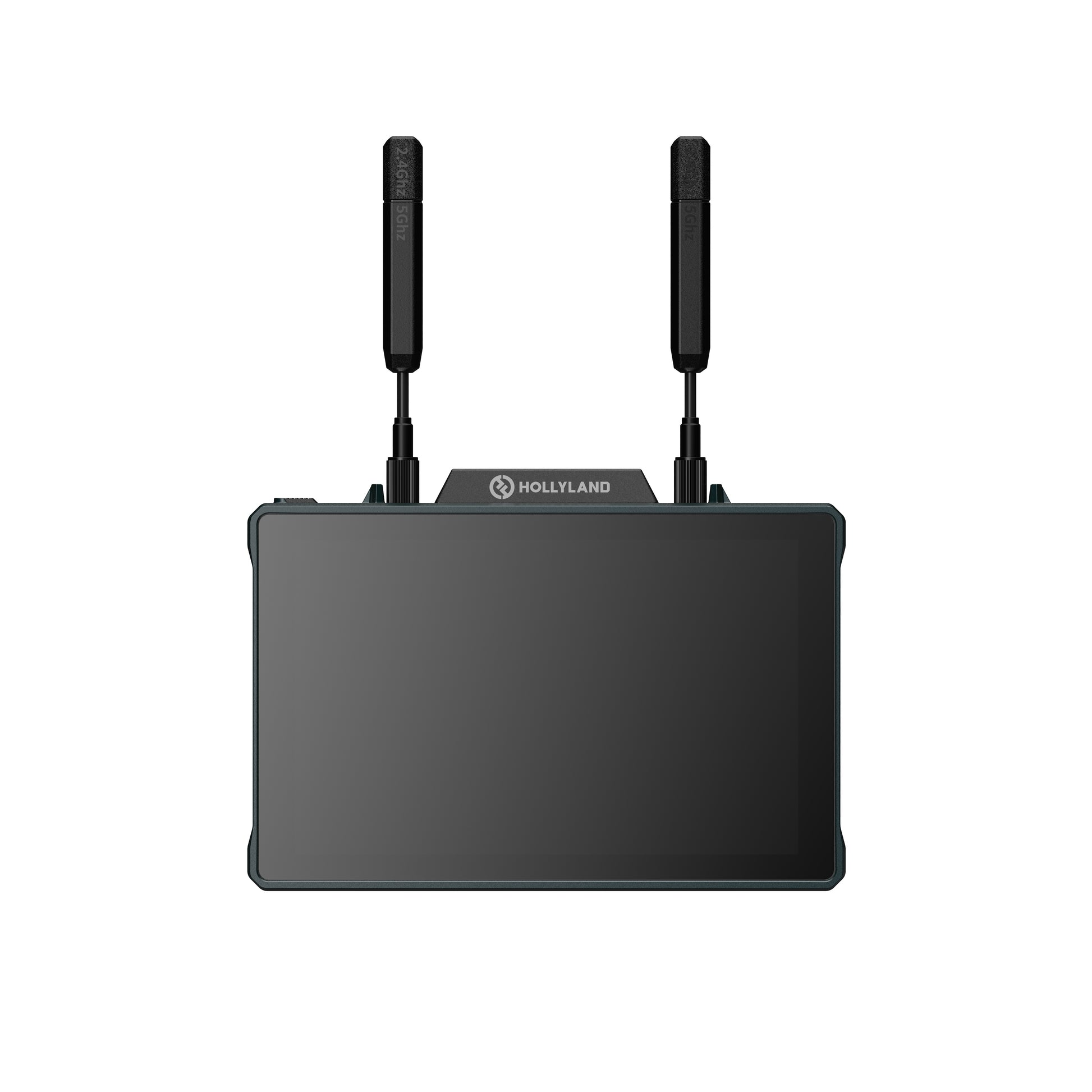

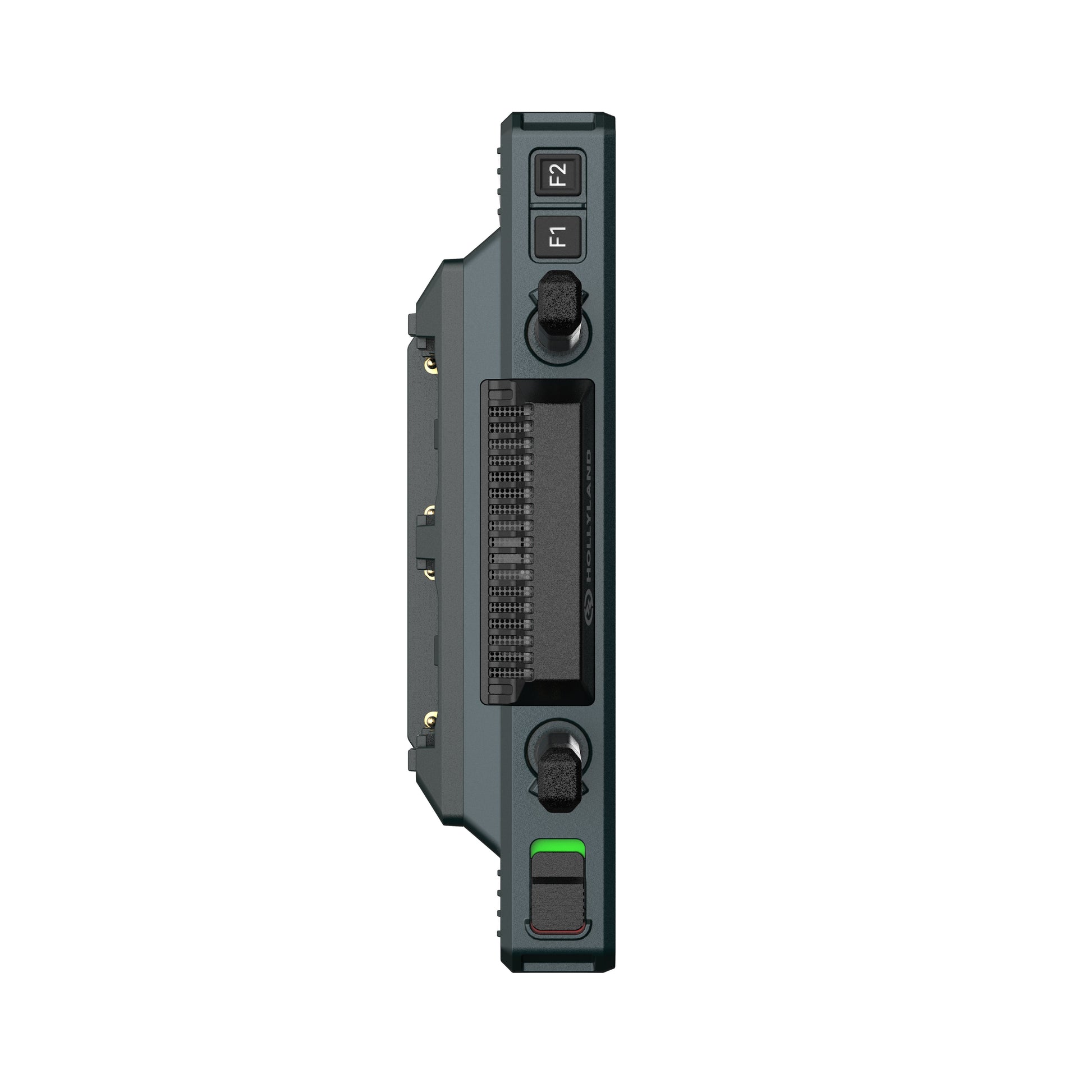

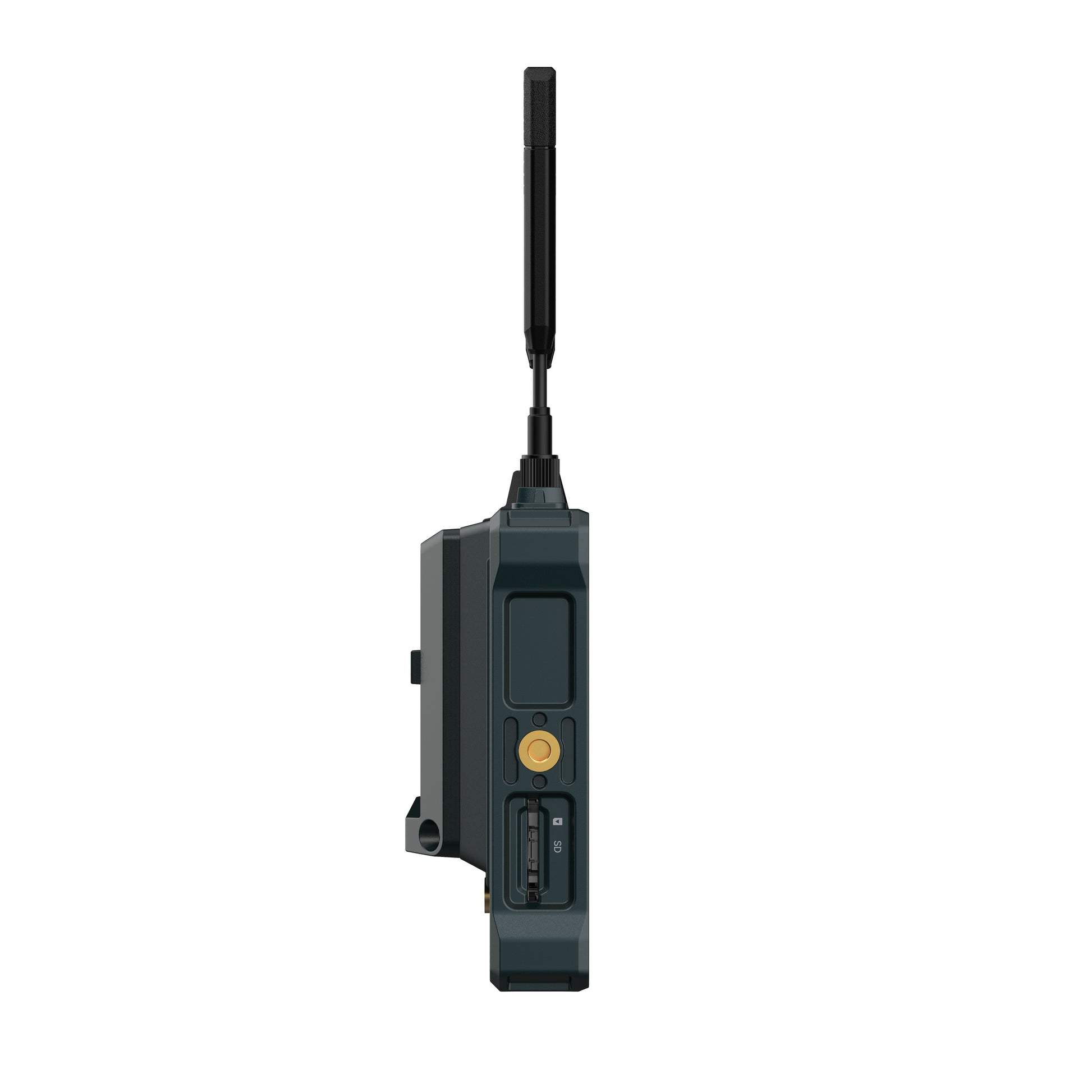

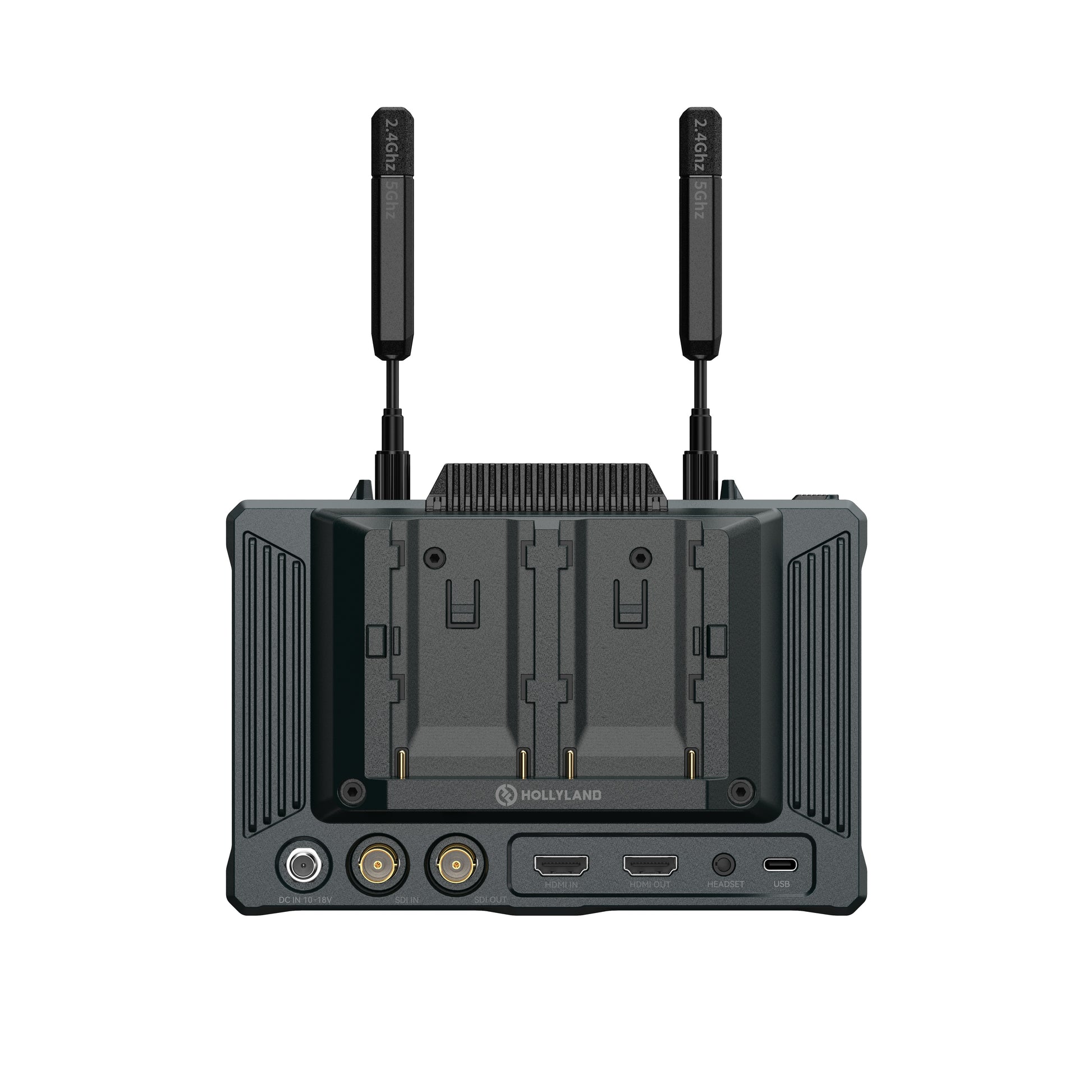

Hollyland Pyro 7 Kit Wireless Video System With Integrated TX/RX | 7"

Hollyland Pyro 7 Kit Wireless Video System With Integrated TX/RX | 7"

SoundPro Item: 145135 | Part Number: HL-Pyro 7 Kit

$999.00
$999.00 $999.00
Your Price Sold out
MSRP: $999.00 | MAP: $999.00

Usually ships in 5-7 business days

  • Auto Dual-Band Hopping Ensures Uninterrupted Signal In Crowded Spectrum
  • WiFiBroadcast Technology Distributes Feed To Four Receivers Simultaneously
  • Dual-View Switching Toggles Between Camera Sources In Under One Second
  • Customizable Shortcut Keys Trigger Waveform, Focus Assist, And Recording
  • SD Card Recording Captures Up To 40 Minutes With LUT Export Capability
  • RTMP Streaming Delivers Live Feeds To Broadcast Platforms Via HollyView App
  • SDI And HDMI Loop-Outs Preserve Signal Paths For Recorders And Switchers
Log in or register for YOUR best price

Built for live production crews and on-set directors who need immediate visual feedback without cable runs, this all-in-one wireless solution eliminates the need for separate transmission hardware and displays. The integrated design combines TX, RX, and a 7-inch touchscreen into a single housing, while WiFiBroadcast technology enables distribution to four receivers concurrently. Auto Dual-Band Hopping across 2.4 GHz and 5 GHz frequencies maintains clean signals in congested RF environments, critical for multi-camera shoots and broadcast workflows where interference is common.

Dual-view monitoring lets directors and operators switch between two camera sources in under one second using customizable shortcut buttons, streamlining multicamera coverage. Optimized encoding delivers 60ms latency across the full 1,300-foot range, maintaining sync for focus pulling and live switching decisions. SDI and HDMI loop-outs on both transmitter and receiver preserve signal paths to recorders and switchers without requiring additional distribution amplifiers.

Field recording to SD card allows up to 40 minutes of continuous capture with optional LUT application during export, enabling immediate review and proxy delivery. The 1500-nit display remains visible in direct sunlight, while integrated RTMP streaming via HollyView app supports direct transmission to YouTube Live, Twitch, or Zoom when paired with a 4G modem. Compatible with Pyro H and Pyro S units for scalable monitoring configurations across mixed equipment fleets.

Downloads

View full details

Specifications

Audio & Video
HDMI Input
720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080p50/59.94/60, 3840x2160 23.98/24/25/29.97/30
SDI Input
1080p50/59.94/60 (Level A), 1080p50/59.94/60 (Level B), 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080psf23.98/24, 1080psf25/29.97/30, 720p50/59.94/60
HDMI Loopout
720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080p50/59.94/60, 3840x2160 23.98/24/25/29.97/30
SDI Loopout
720p50/60, 1080i50/60, 1080p24/25/30, 1080p50/60, 1920x1080 24/25/30
HDMI/SDI Output
720p50/60, 1080i50/60, 1080p24/25/30, 1080p50/60, 1920x1080 24/25/30
Audio Format
HDMI 1.4b 8-Channel
Display
Screen Size
7" Touchscreen
Resolution
1920 x 1200 pixels
Pixel Density
323 PPI
Aspect Ratio
16:9
Brightness
1500 nits
Contrast Ratio
1000:1
Wireless Performance
Operating Frequency
5.1 - 5.8 GHz; 2.412 - 2.484 GHz
Transmit Power
≤ 23 dBm
Receiver Sensitivity
-80 dBm
LOS Range
1,300 ft (400 m); 650 ft (200 m) in Broadcast mode
Bandwidth
20 MHz; 40 MHz in Broadcast mode
Display Latency
< 50 ms
Transmission Latency
≈ 60 ms (1080p60 in laboratory)
Connectivity
Input Ports
HDMI 1.4b, 3G SDI
Output Ports
HDMI 1.4b, 3G SDI
Antenna
RP-SMA Male x2
Headphone Jack
3.5 mm
Upgrade Port
USB-C (USB 2.0 OTG)
SD Card Slot
Standard SD
Power
Power Input Voltage
10 - 18V/2.5A DC Input (nominal 12V)
Power Consumption
< 22 W
Power Input
DC Input (2.0 mm core socket)
Physical
Dimensions (L x W x H)
180 x 127 x 31.8 mm (7.1" x 5" x 1.25") excluding battery plate and antennas
Net Weight
≈ 570 g (20.1 oz) with battery plate, excluding antennas
Environmental
Operating Temperature
- 10°C - 45°C
Storage Temperature
- 40°C - 60°C
Included Items
Pyro 7 Wireless Transceiving Monitor
2
Paddle Antenna (2.4 GHz & 5 GHz)
5
USB-C OTG Adapter
1
D-Tap to Locking DC Power Adapter Cable
2
Secure Digital Memory Card (32G)
2
Hollyland Ecosystem Leaflet
1
User Manual
1
Warranty Card
1
