Specifications
Performance
LOS Range
1,600ft (500m)
Frequency Response
100 Hz – 7 kHz (±3dB) @1 kHz
SNR
> 55dB
Wireless
Operating Frequency (China)
1904 – 1919 MHz
Operating Frequency (Europe, South Africa, Asia, Hong Kong, Australia, New Zealand)
1880 – 1900 MHz (10 channels)
Operating Frequency (Taiwan)
1880 – 1895 MHz (8 channels)
Operating Frequency (Japan)
1893 – 1906 MHz (J-DECT)
Operating Frequency (Brazil)
1910 – 1920 MHz (10 channels)
Operating Frequency (Latin America excluding Brazil)
1910 – 1930 MHz
Operating Frequency (USA & Canada)
1920 – 1930 MHz
Transmit Power
≤ 21 dBm
Bandwidth
1.728 MHz
Modulation Mode
GFSK
Receiver Sensitivity
≤ -90 dBm
Antenna Gain
4 dBi (all directions)
Electrical
DC Voltage Range
7 – 30V, < 1A@12V
V/G Mount Battery Voltage Range
11 – 30V, < 1A@12V
Power Consumption
< 1A@12V
Dimensions

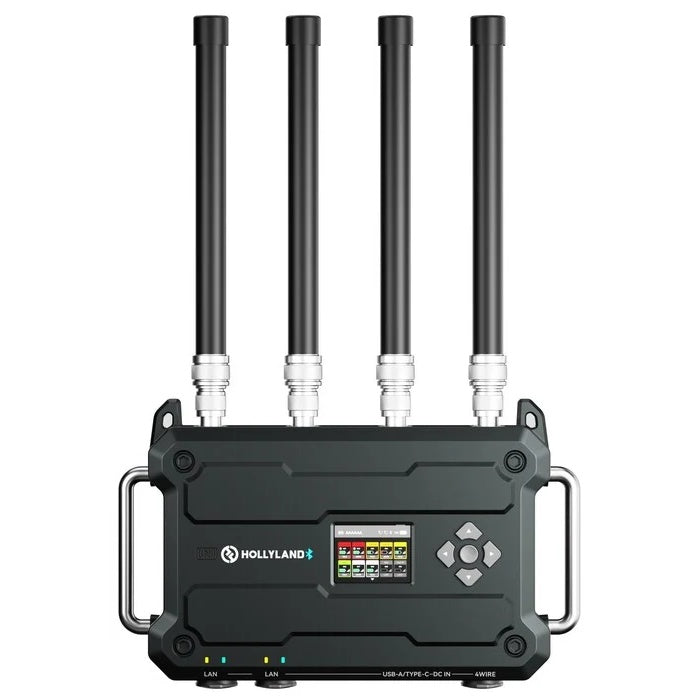

Hub Dimensions
302mm × 181.52mm × 63.6mm
Weight
Hub Weight
1797.5g (63.4oz)
Environmental
Operating Temperature Range
-10 – 45℃
Storage Temperature Range
-20 – 60℃

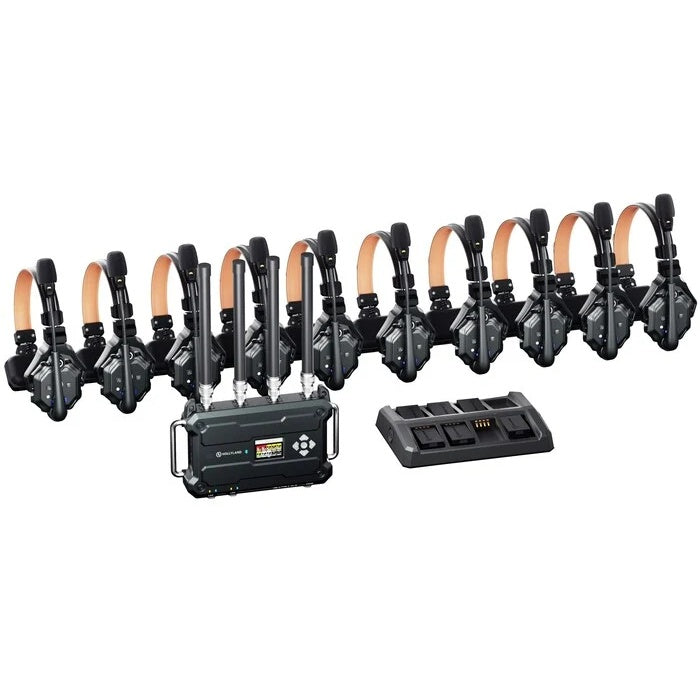

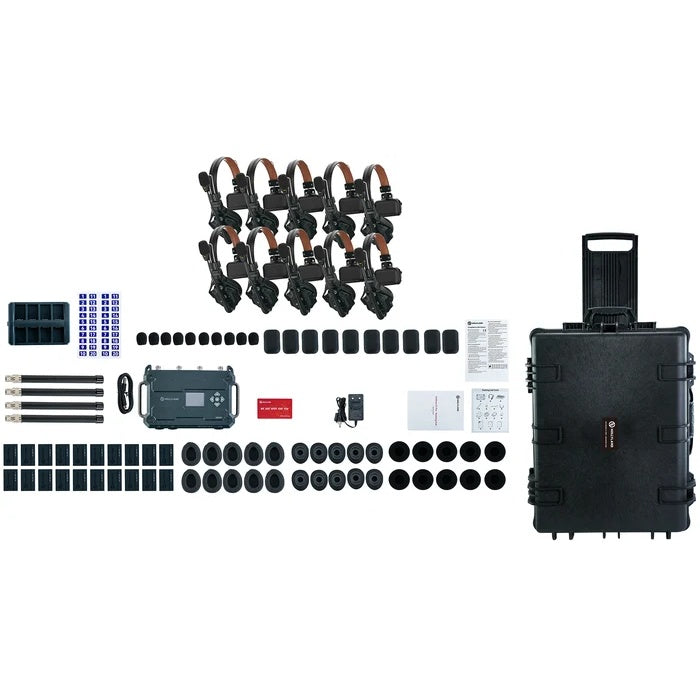

Included Items
Roaming Hub Base
1
Roaming Hub Antenna
4
Wireless Single-Ear Remote Headset
10
Battery
20
8-Slot Battery Charging Case
1
Over-Ear Earmuff
10
On-Ear Earmuff
10
Headset Ear Pad
10
Mic Cushion
10
Headset Sticker
1
12V/2A DC2.1 Power Adapter
1
USB Type-C Cable
1
User Manual
1
Warranty Card
1
Hardshell Suitcase
1
