Specifications

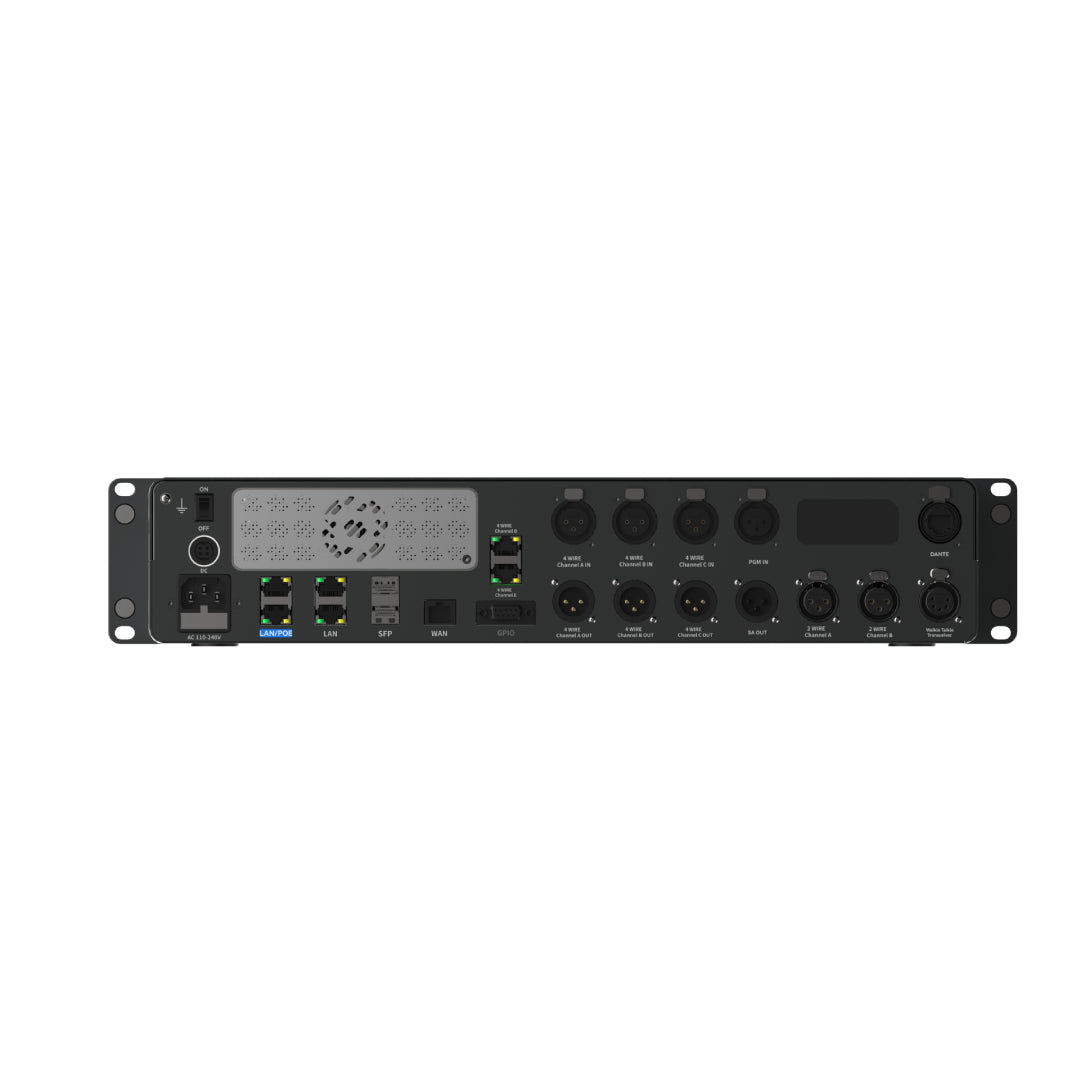

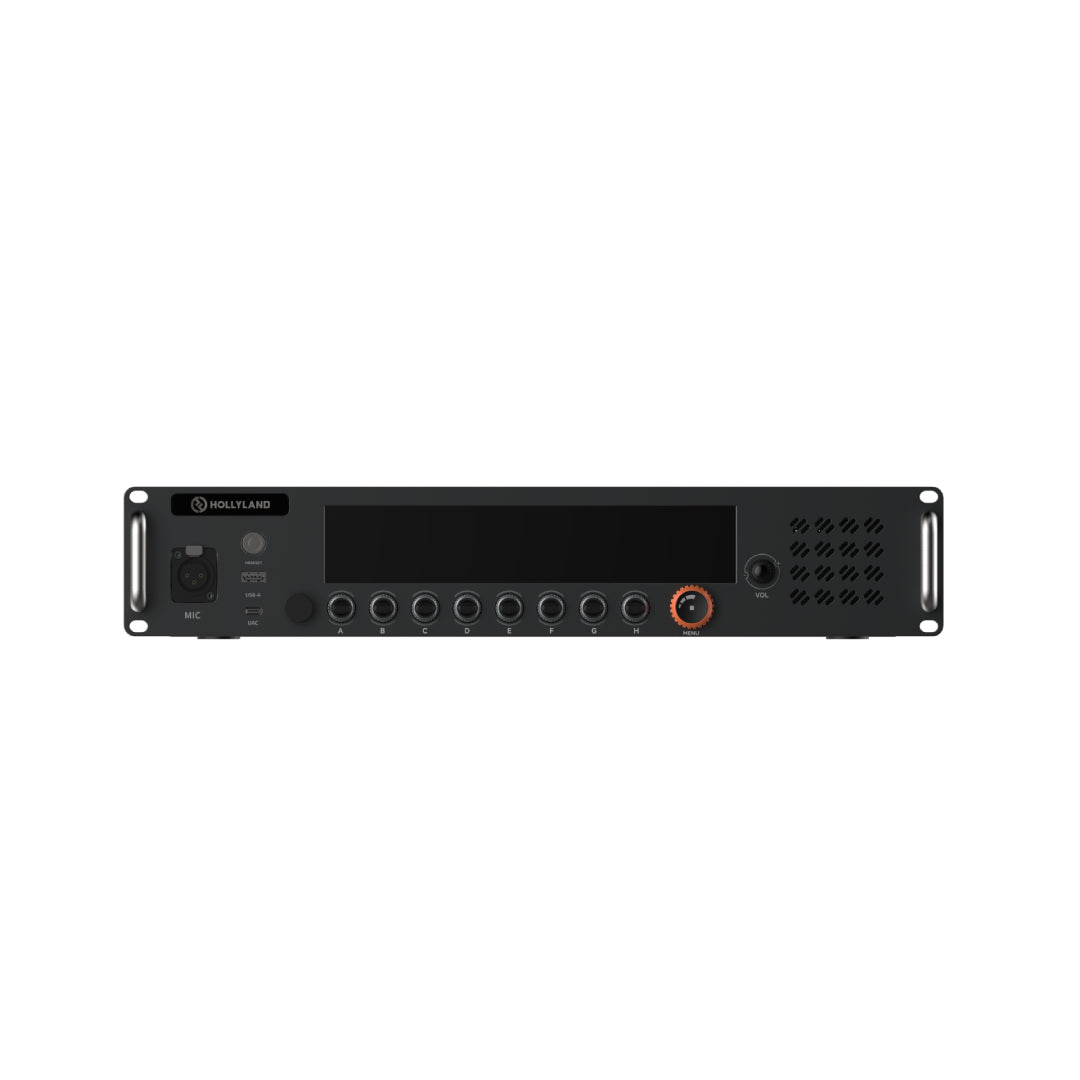

Geo Central Station
Total Power Consumption
44W
PoE Output Power
120W; 60W/Port
DC Input Voltage
46V – 54V
AC Input Voltage
85V – 264V
Dimensions
482.6mm x 88.1mm x 385mm
Weight
7.25kg
Operation Temperature
-10 ℃ – 45 ℃
Storage Temperature
-20 ℃ – 60 ℃

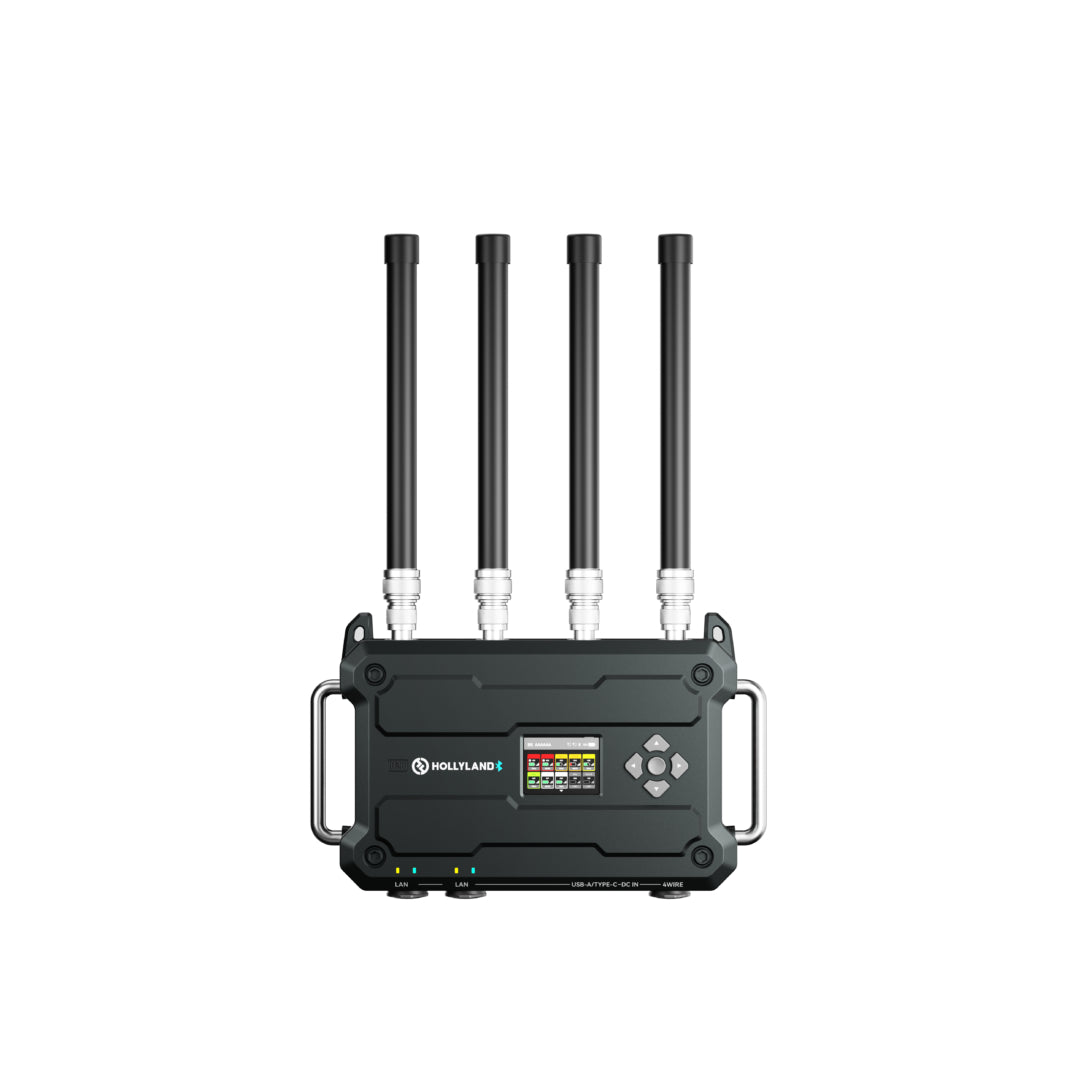

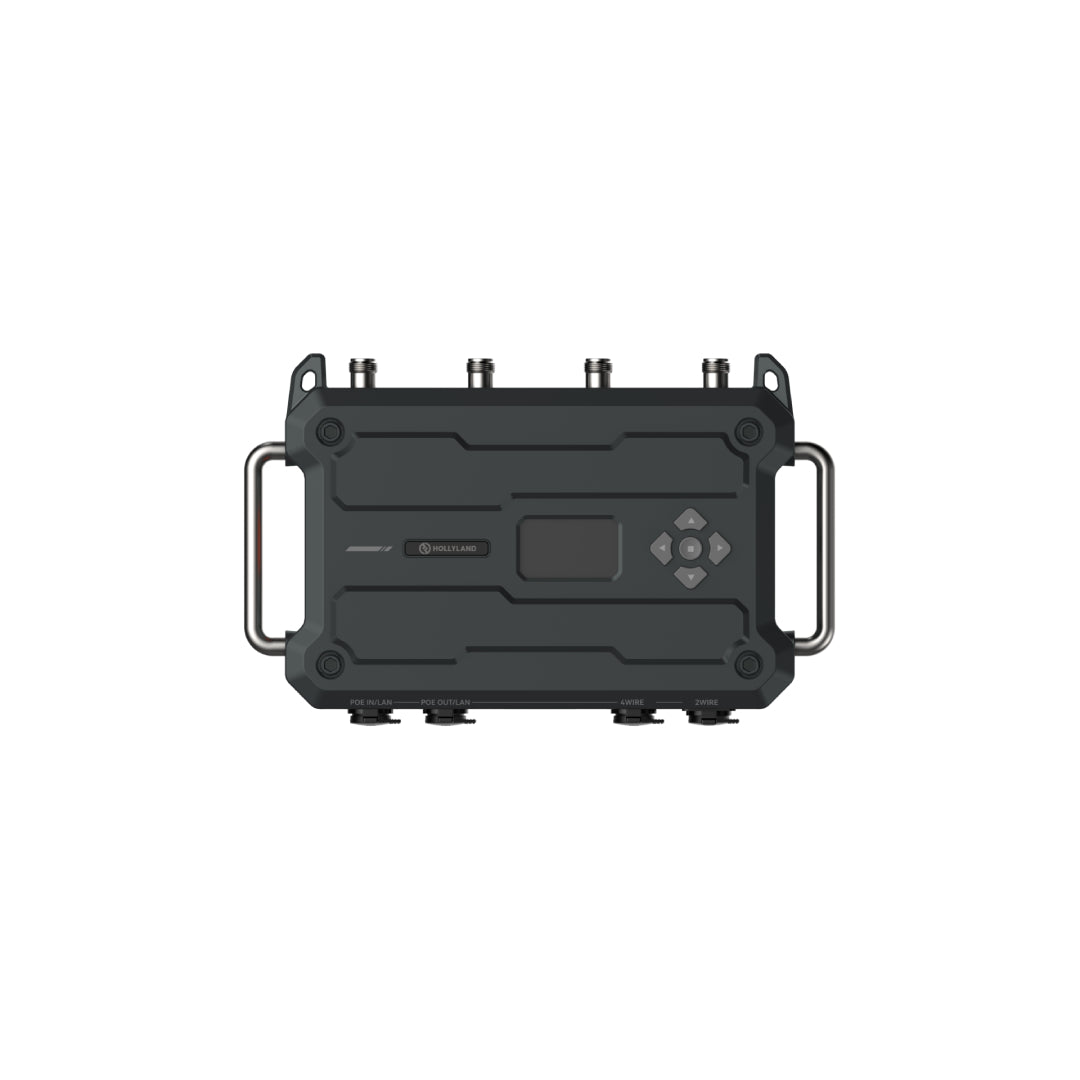

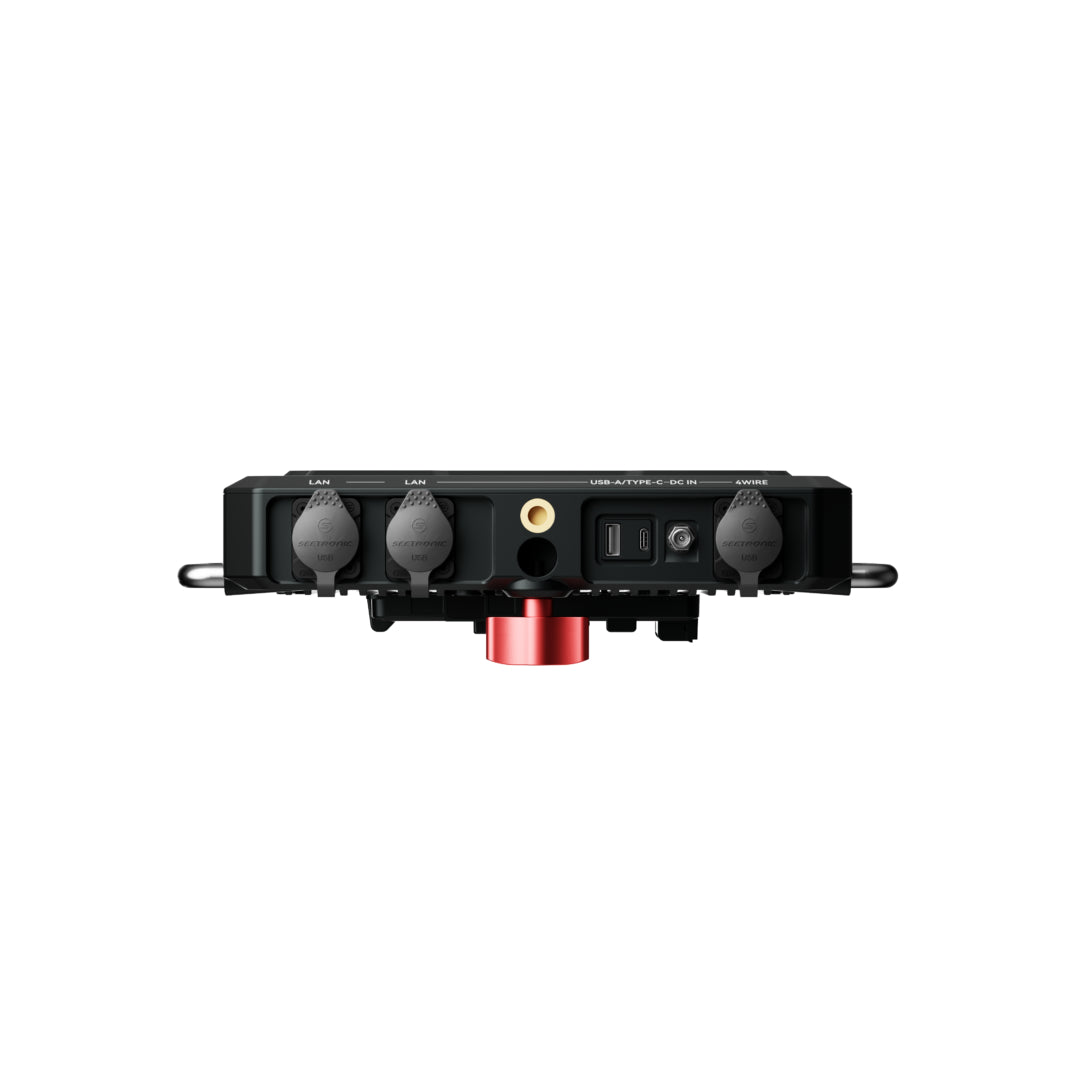

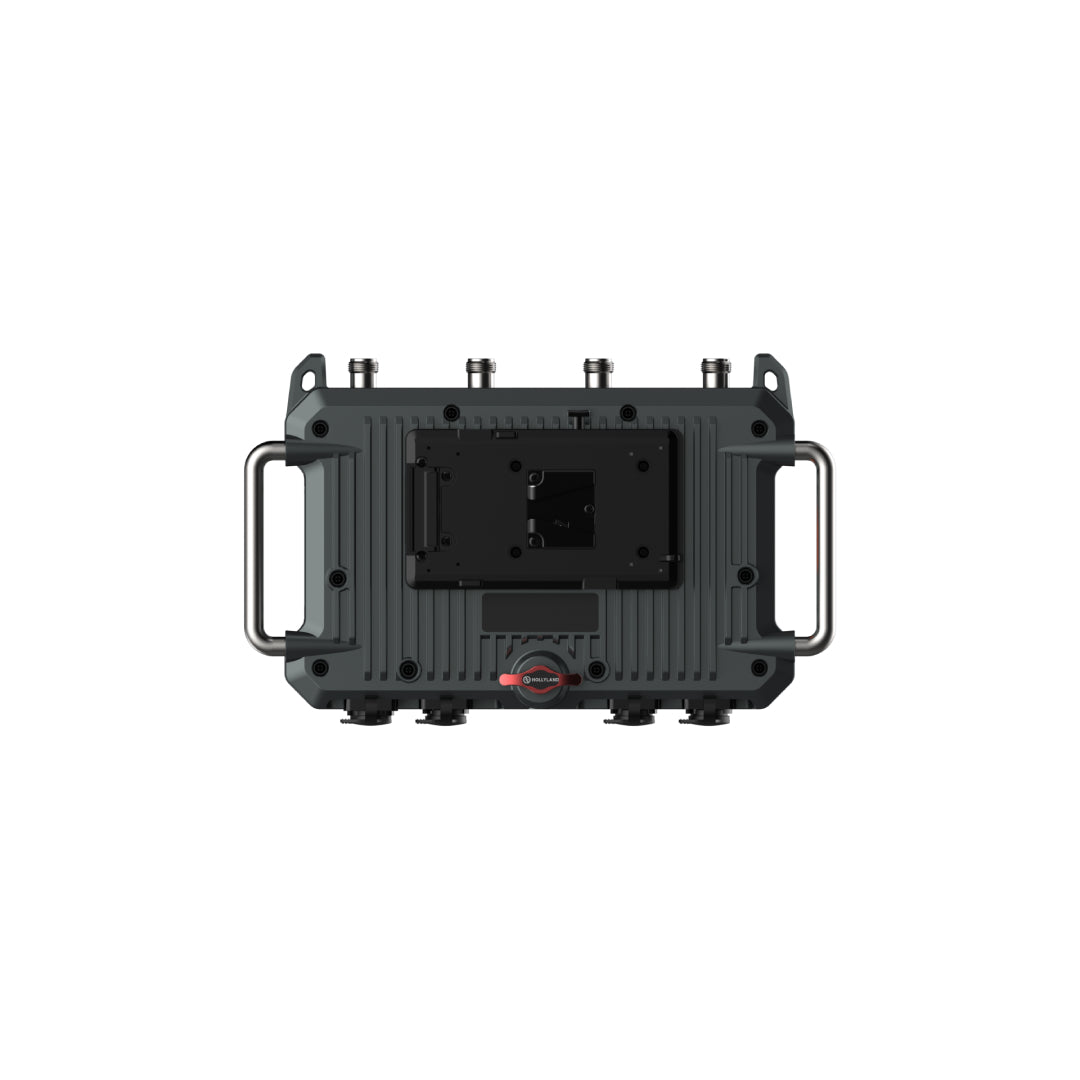

Solidcom ANT01
LOS Range
500m
Operating Frequency
DECT: 1880 - 1930 MHz; BT: 2402 - 2480 MHz; WIFI: 2.4G - 2.4835 Ghz
Transmit Power
24 dBm
Bandwidth
1.728 MHZ
Modulation Mode
GFSK
Receiver Sensitivity
-90 dBm
Antenna Gain
4dB
Power Consumption
15.5W
POE Output Power
≤ 45W
POE Input Power
≤ 60W
V/G Mount Battery Voltage Range
9 - 30V
Dimensions
302mm × 188.56mm × 64.6mm
Weight
1987g
Ingress Protection (IP) Rating
IP54
Operating Temperature
-10 - 45℃
Storage Temperature
-20 - 60℃

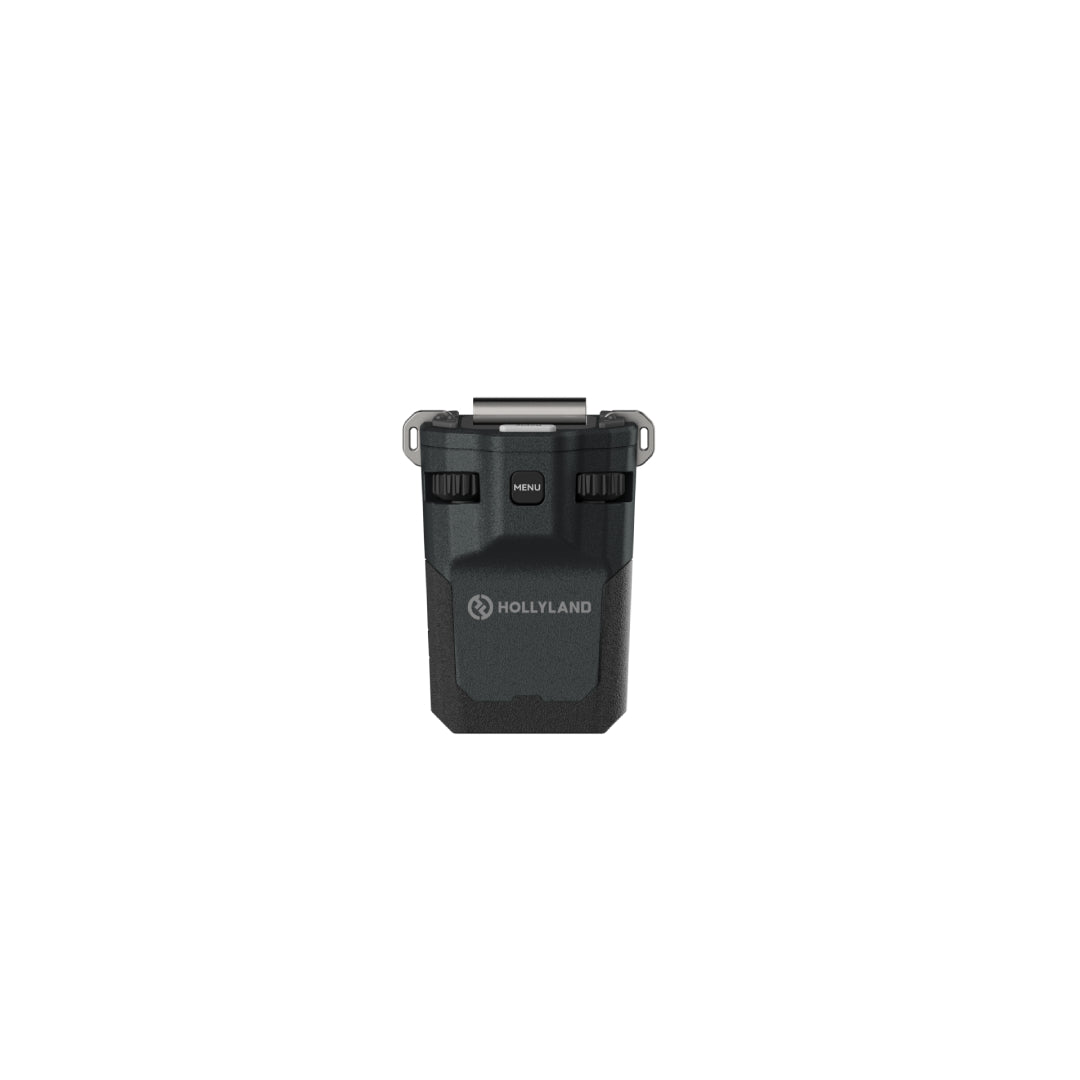

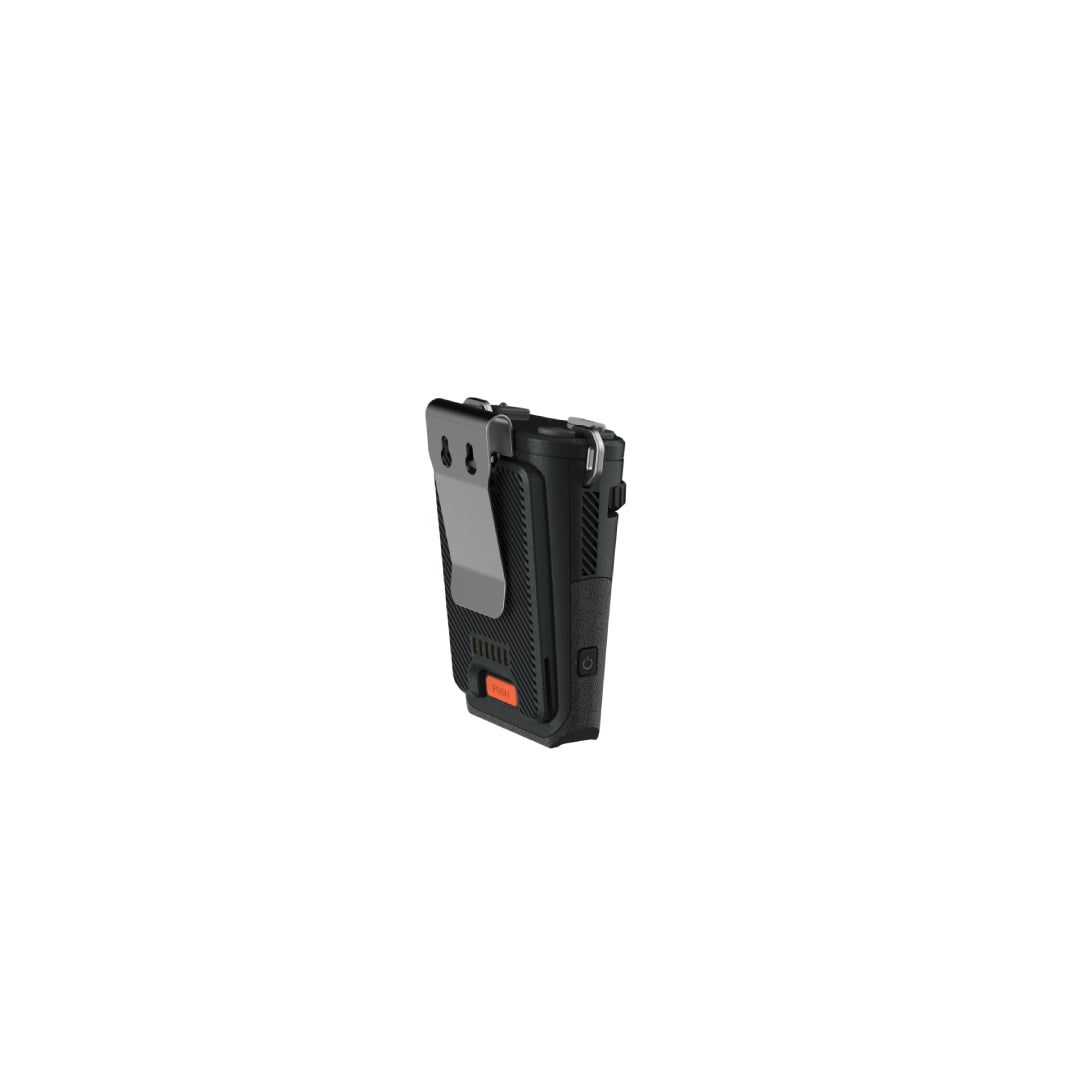

Soldicom BPK01
LOS Range
Full-Duplex Wireless Intercom System
Operating Frequency
DECT: 1880~1930 MHZ; BT: 2402~2480 MHZ
Transmit Power
DECT: 24 dBm; BT: 3 dBm
Bandwidth
1.728 MHZ
Modulation Mode
GFSK
Receiver Sensitivity
-90 dBm
Battery Life
>15h
Dimensions
114.65mm × 89.2mm ×61.8mm
Weight
305g
Ingress Protection (IP) Rating
IP65
Operating Temperature
-10-45℃
Storage Temperature
-20-60℃
Whats In The Box
Solidcom Hard-shell Carry Case(1 Antenna and 10 Beltpacks)
1
Solidcom ANT01 Antenna
1
Fiberglass Antenna
4
Solidcom BPK01 Beltpack
10
Solidcom BPK01 Beltpack battery
10
Solidcom Single-ear Headset
10
10-pin to 4-pin XLR Adapter Cable
10

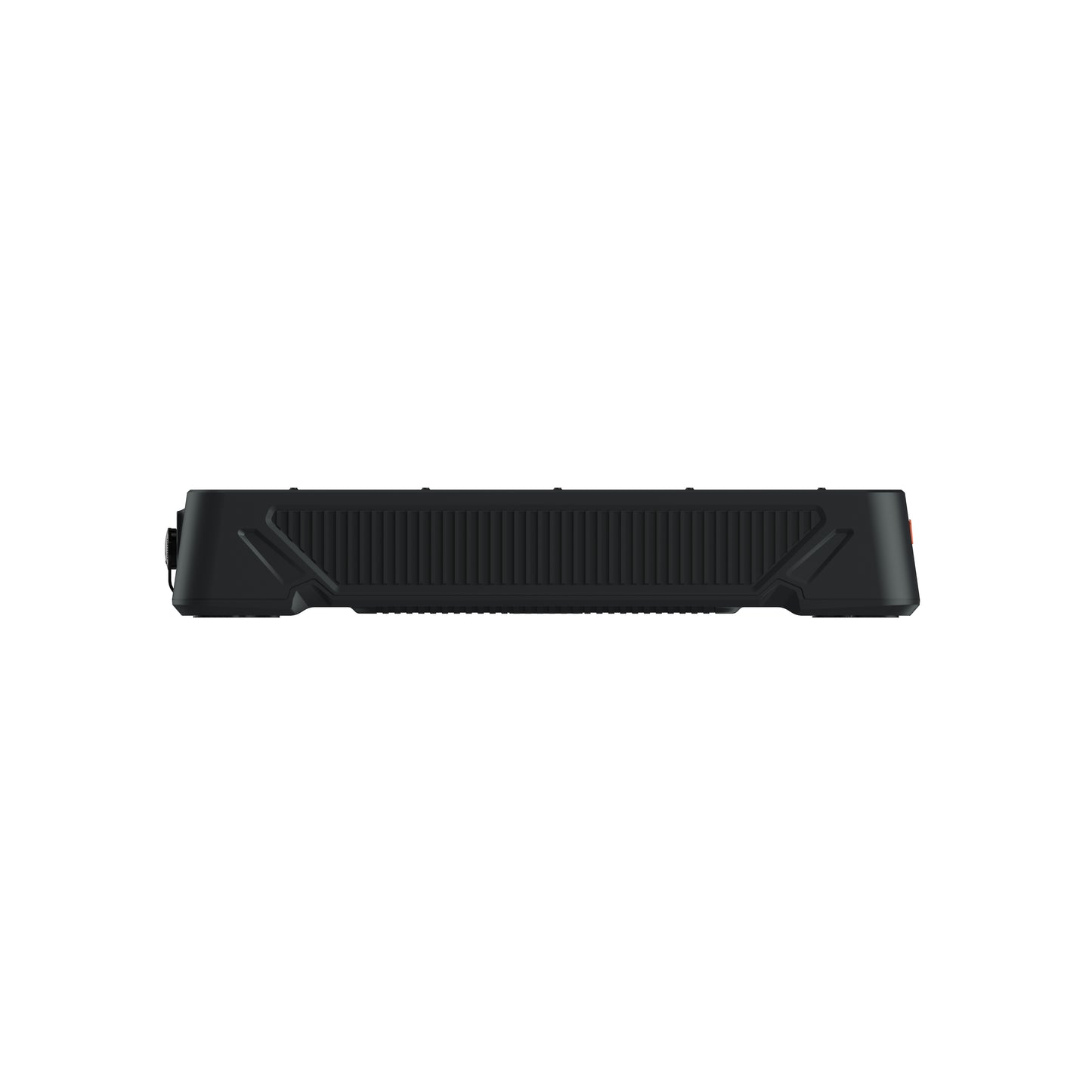

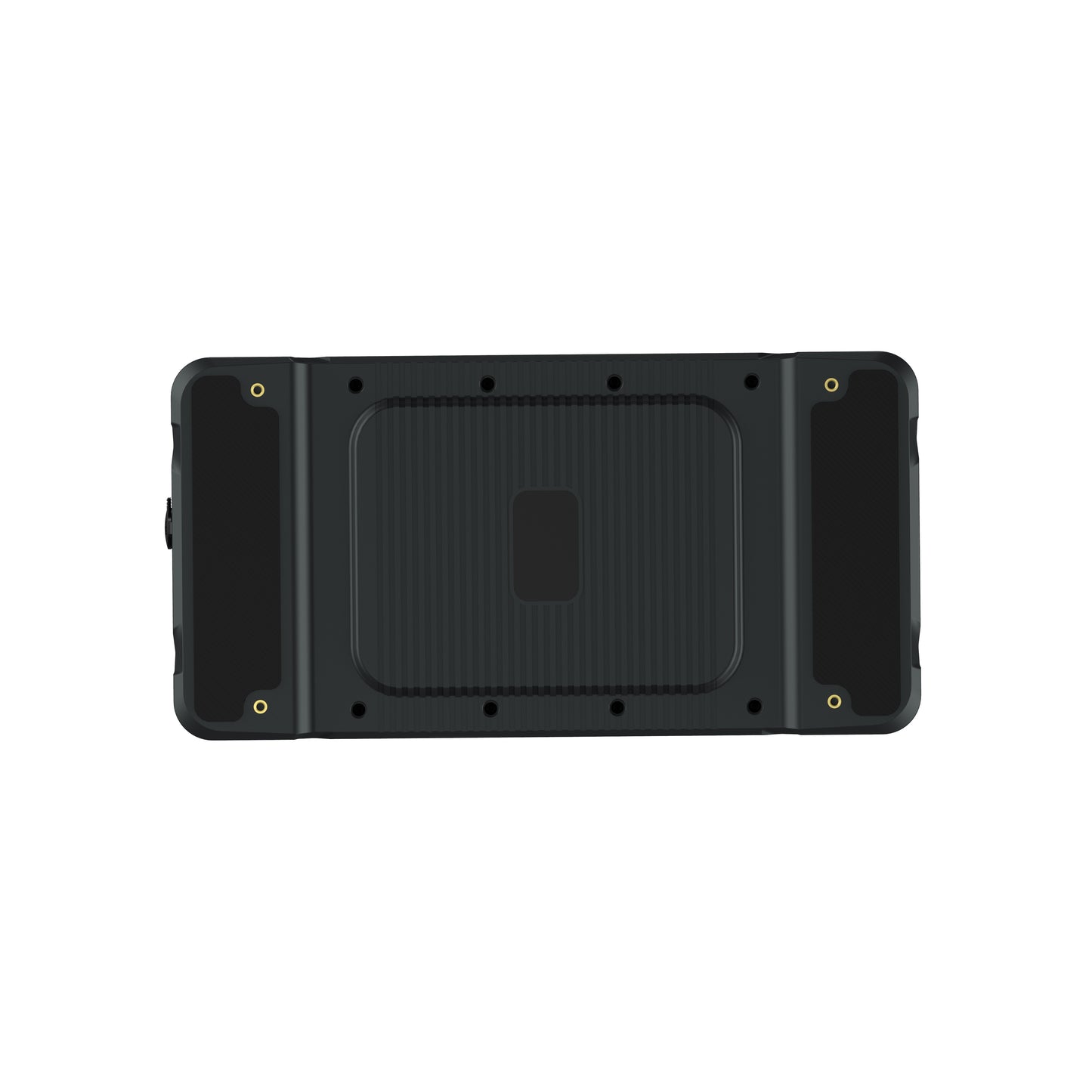

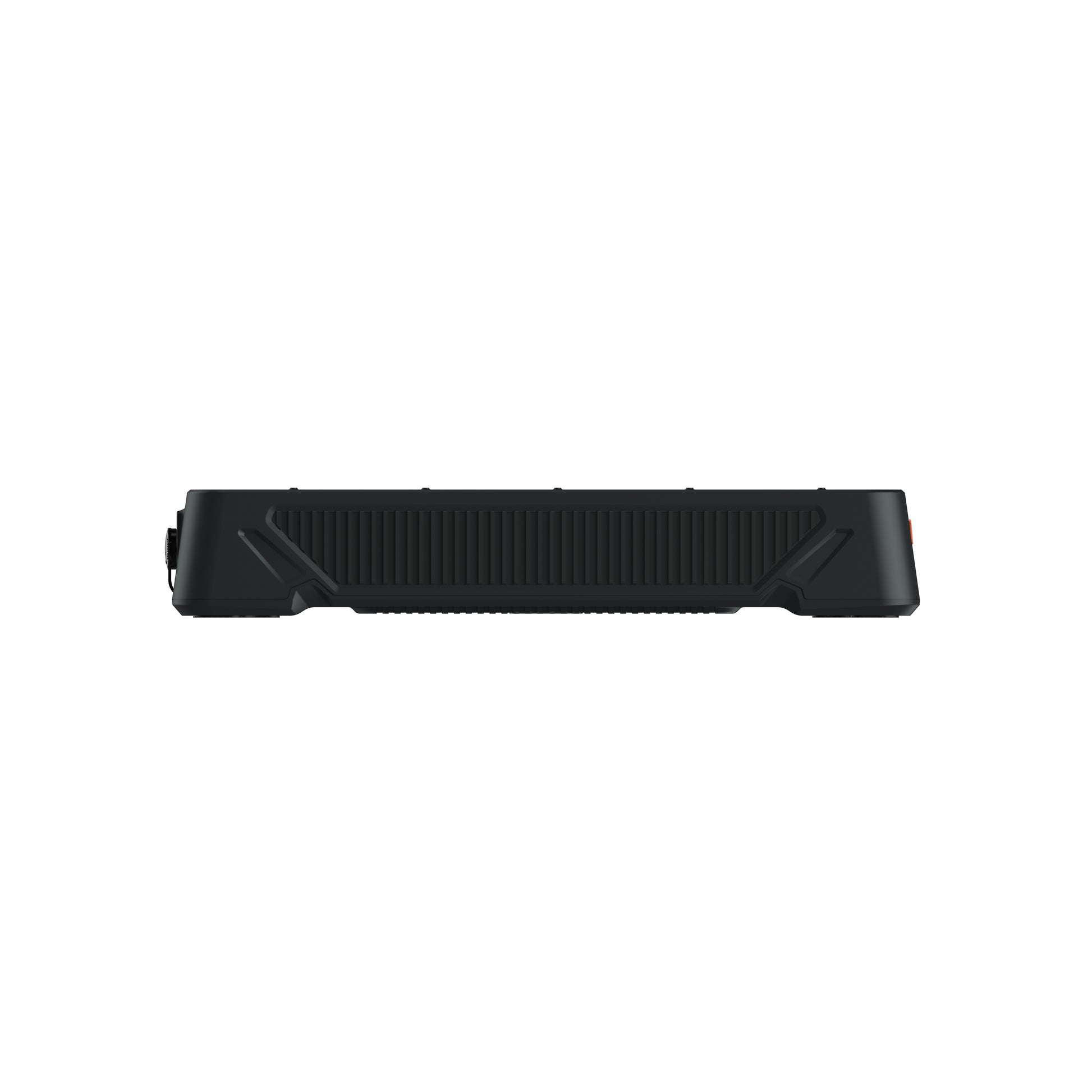

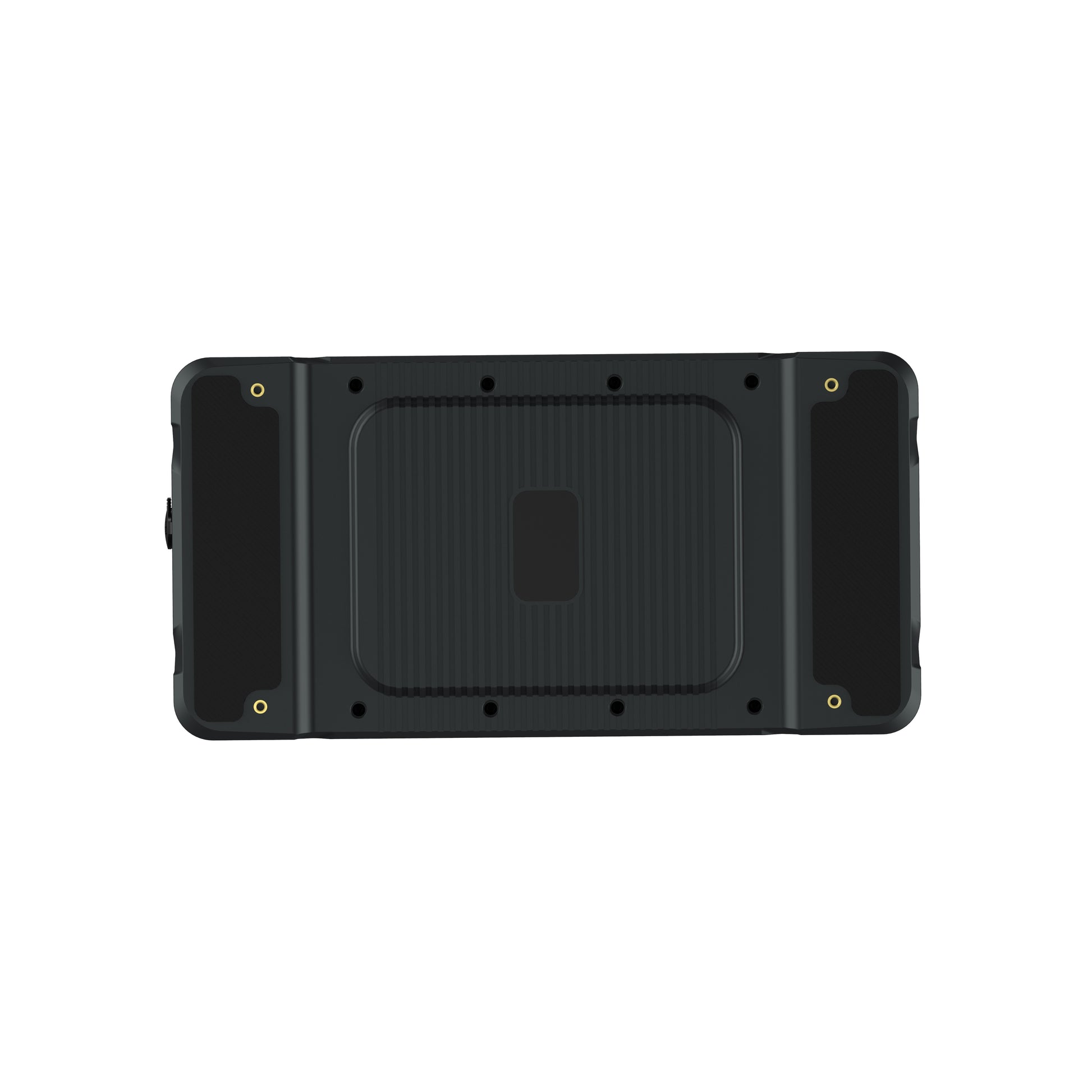

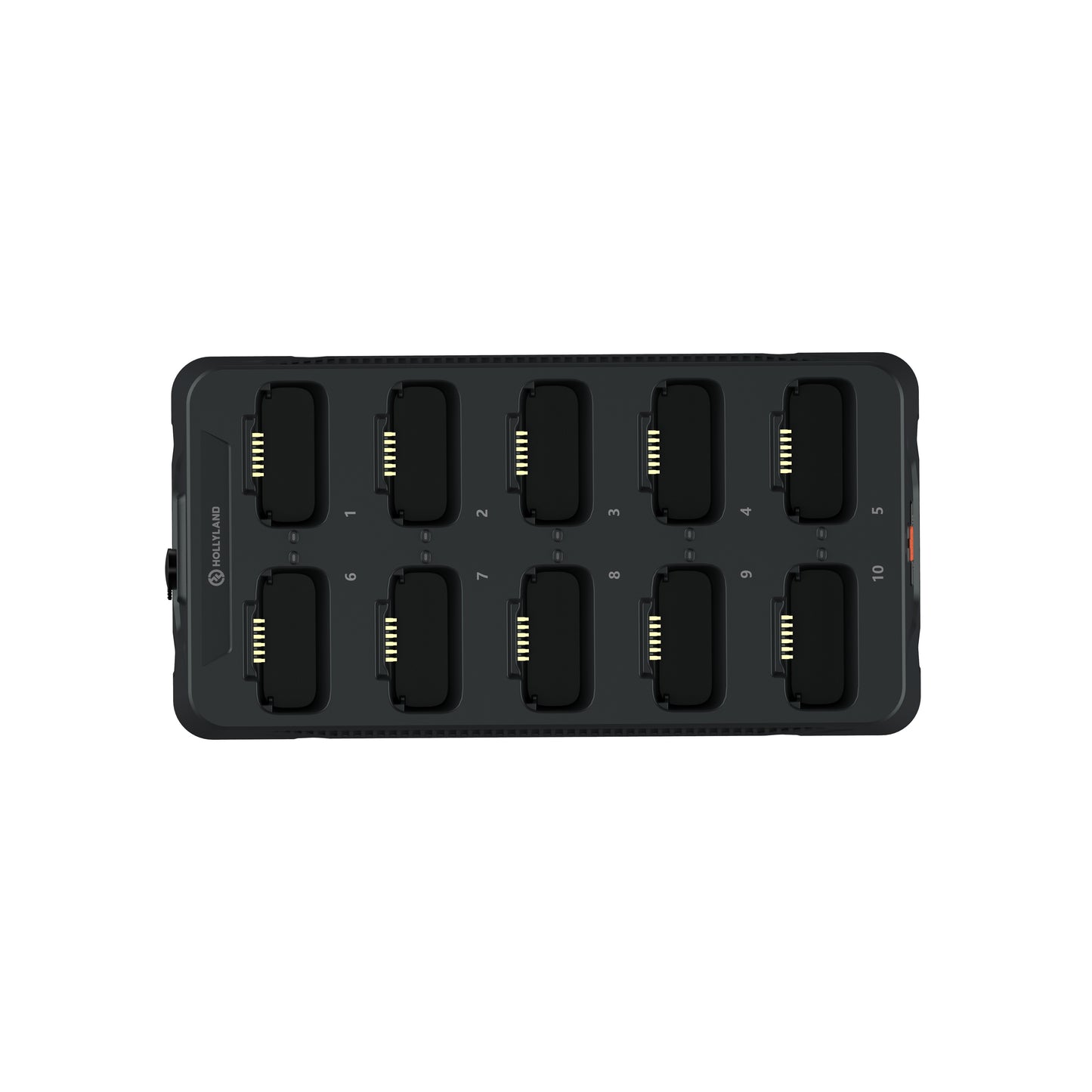

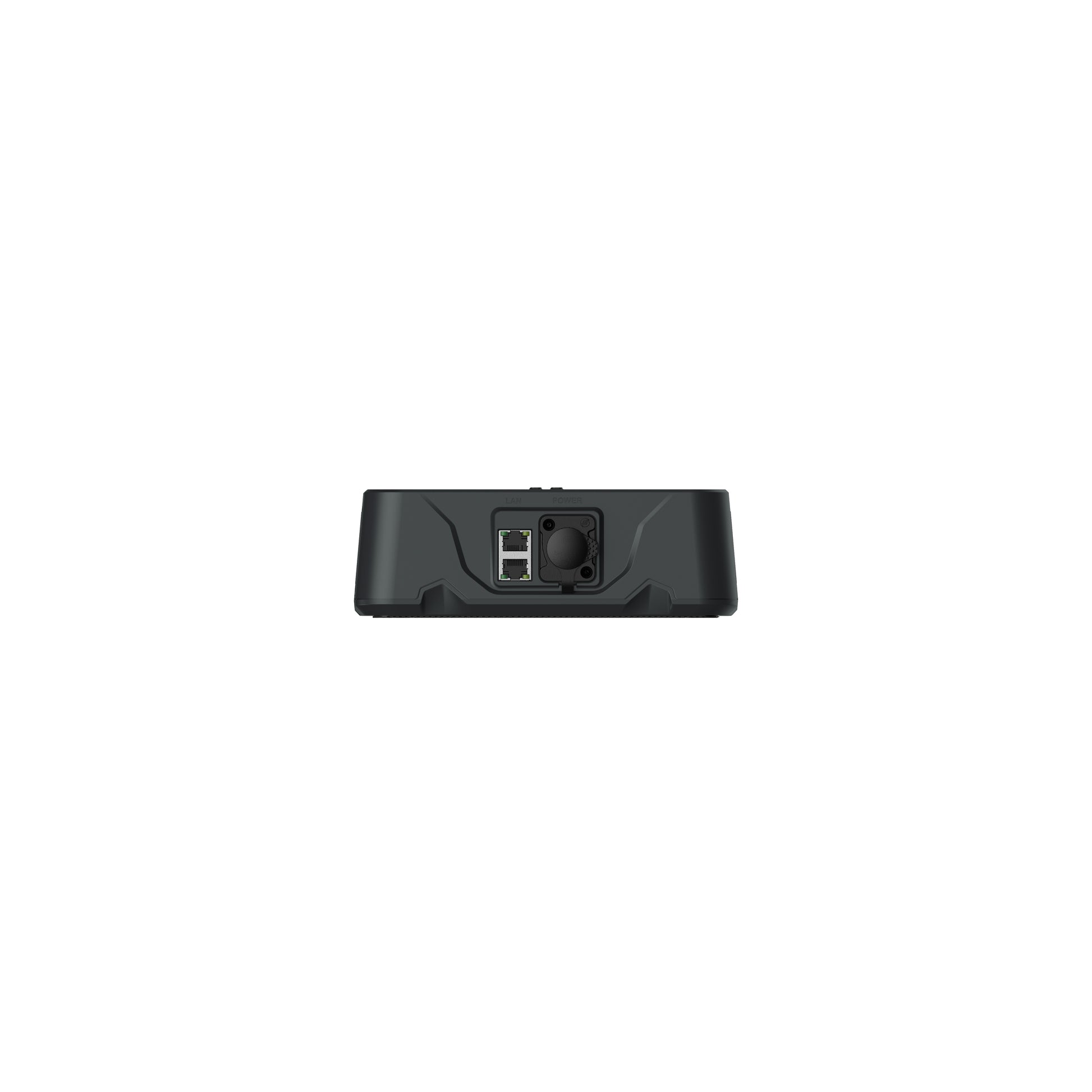

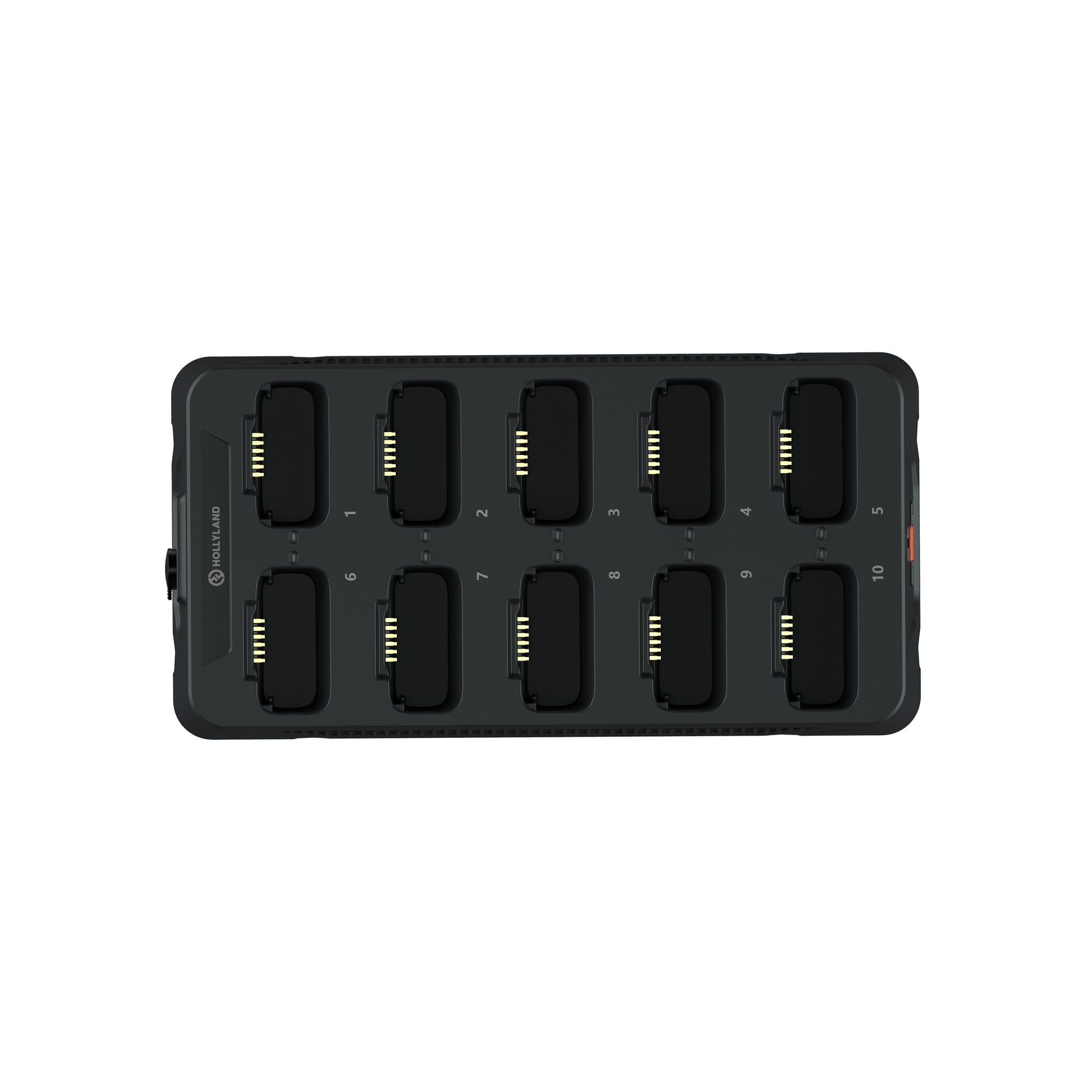

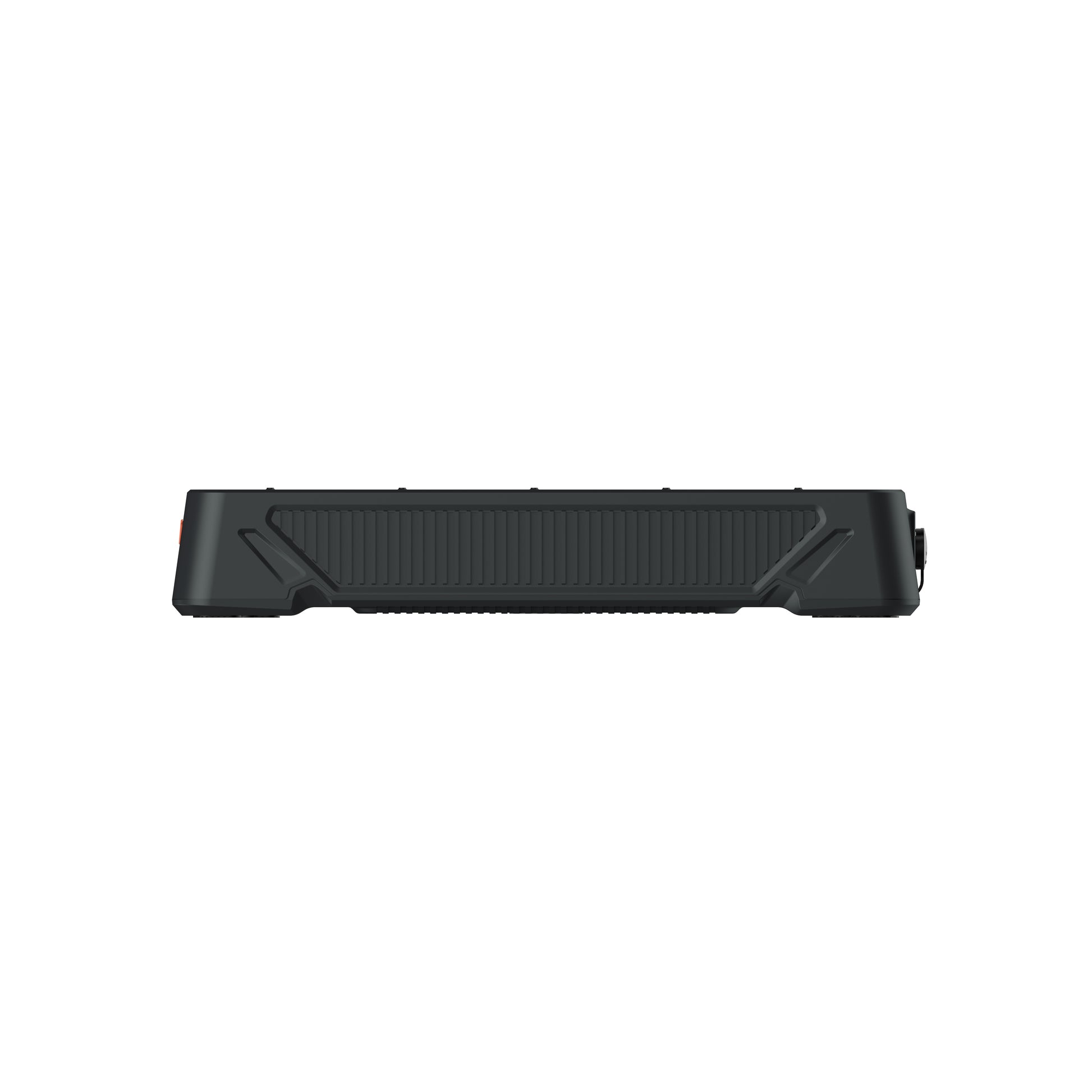

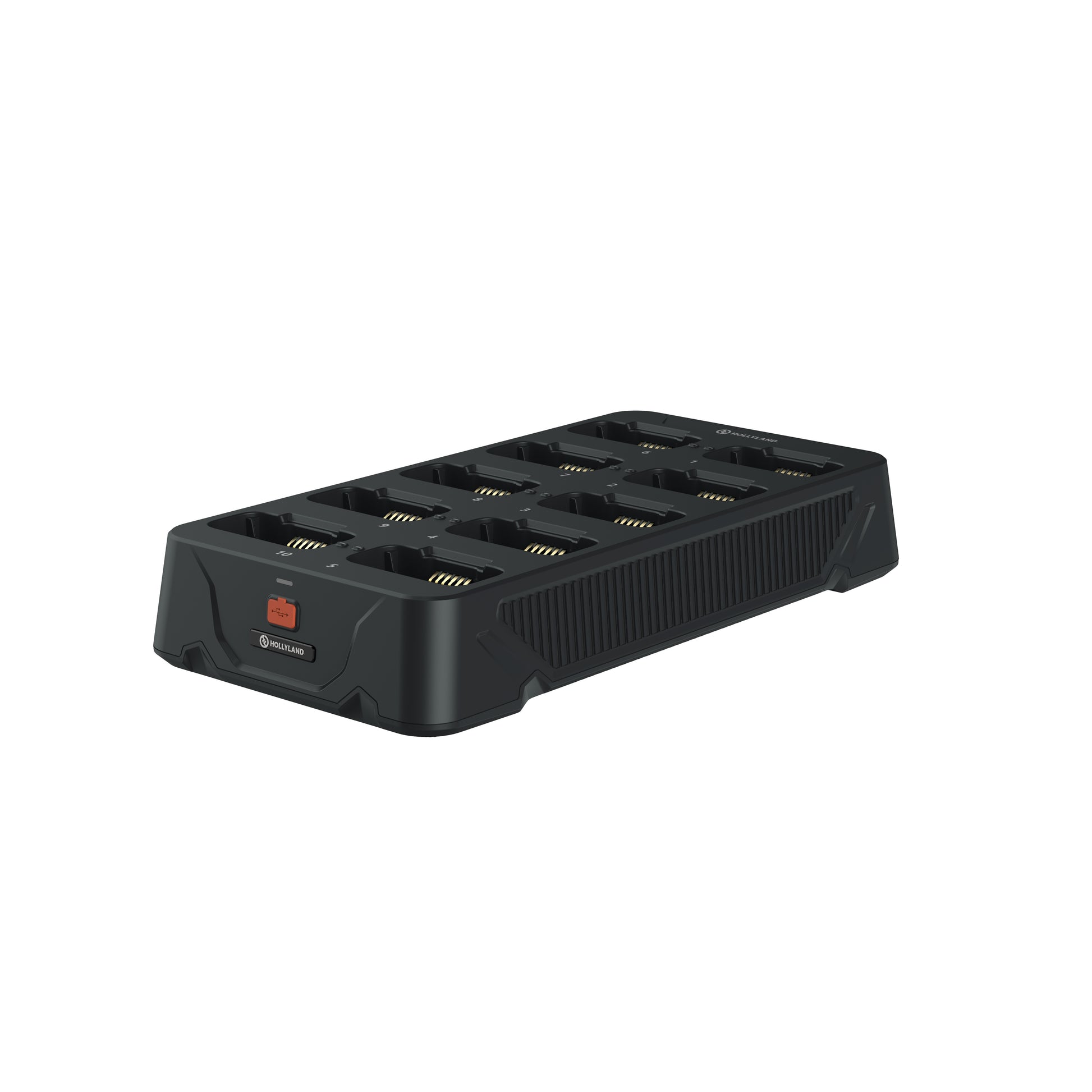

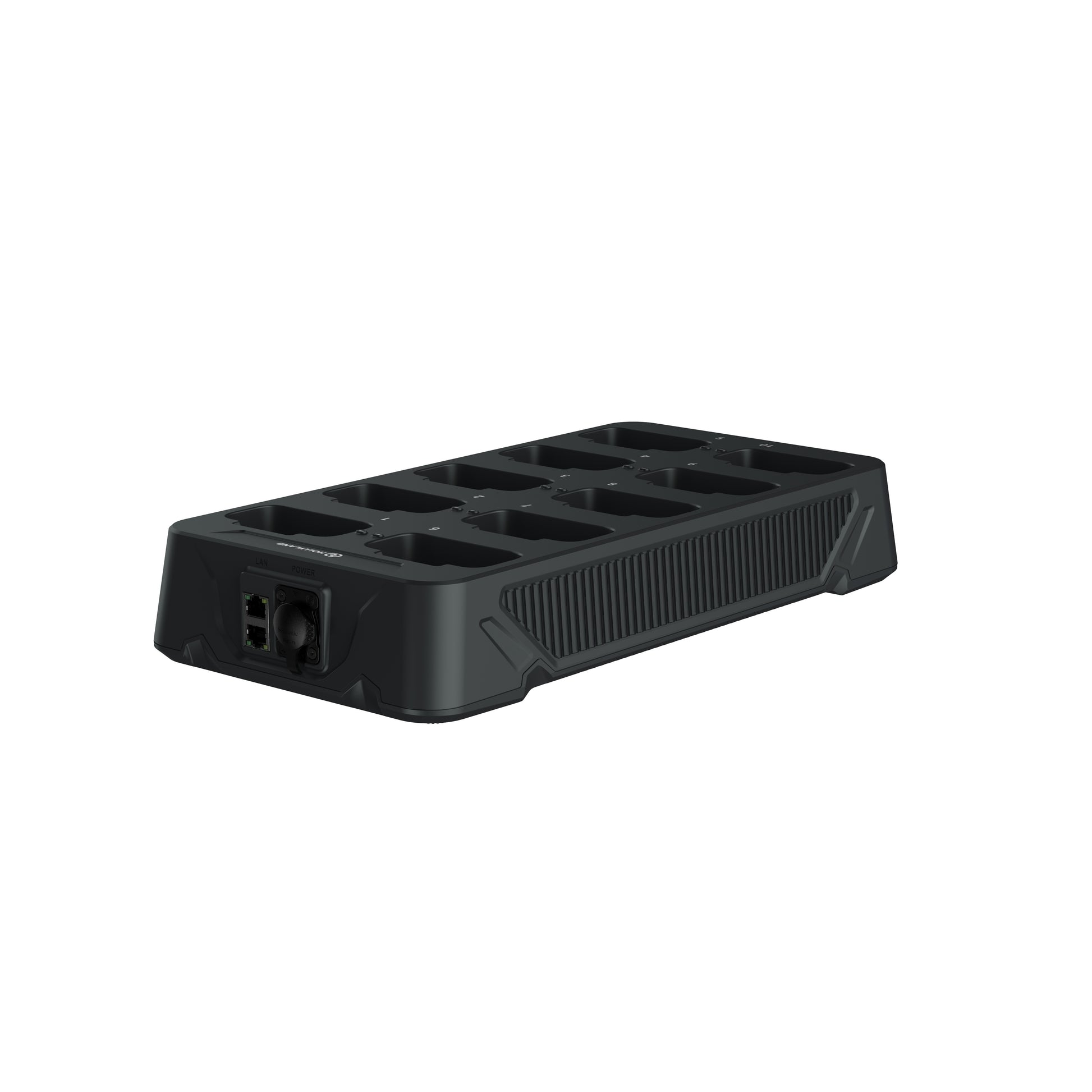

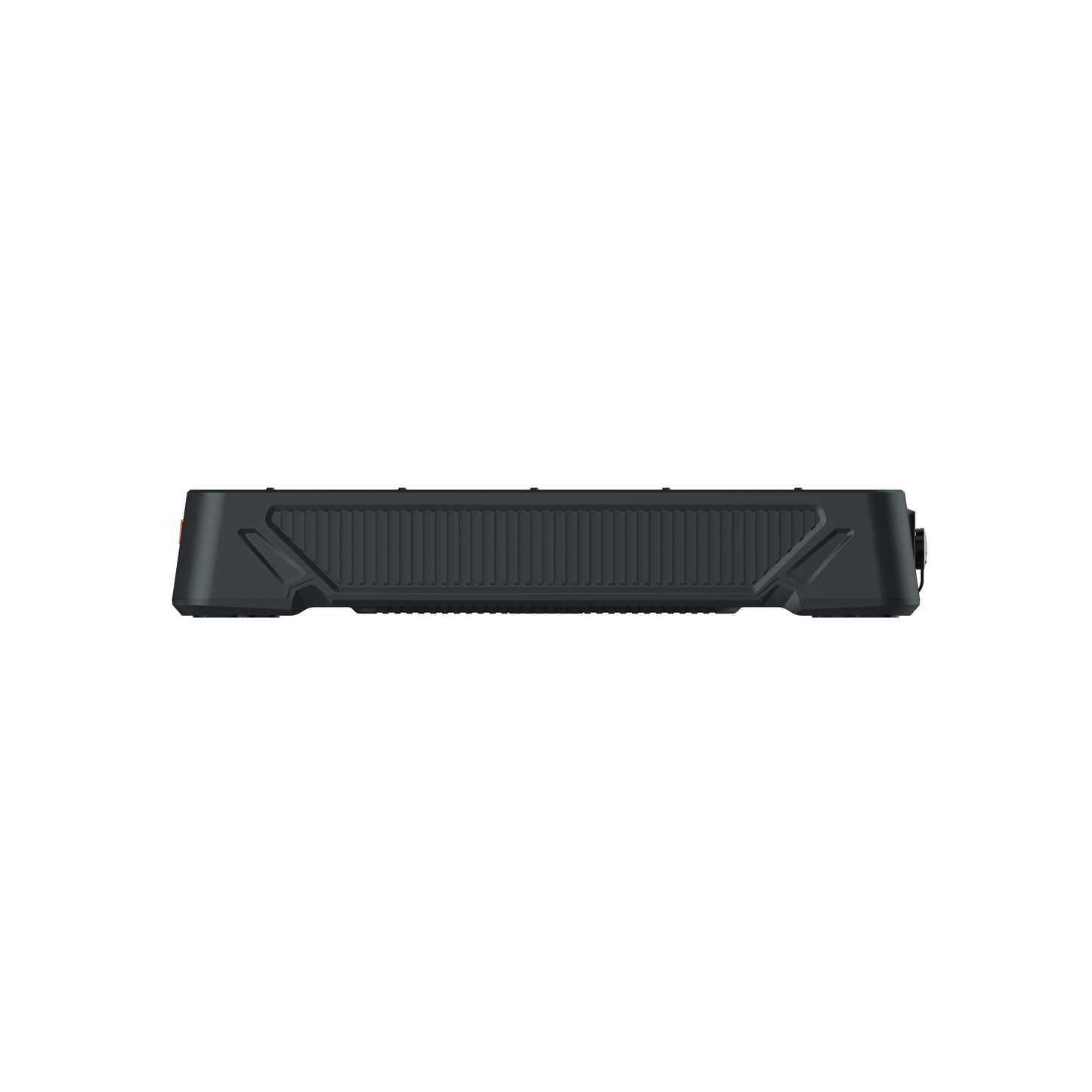

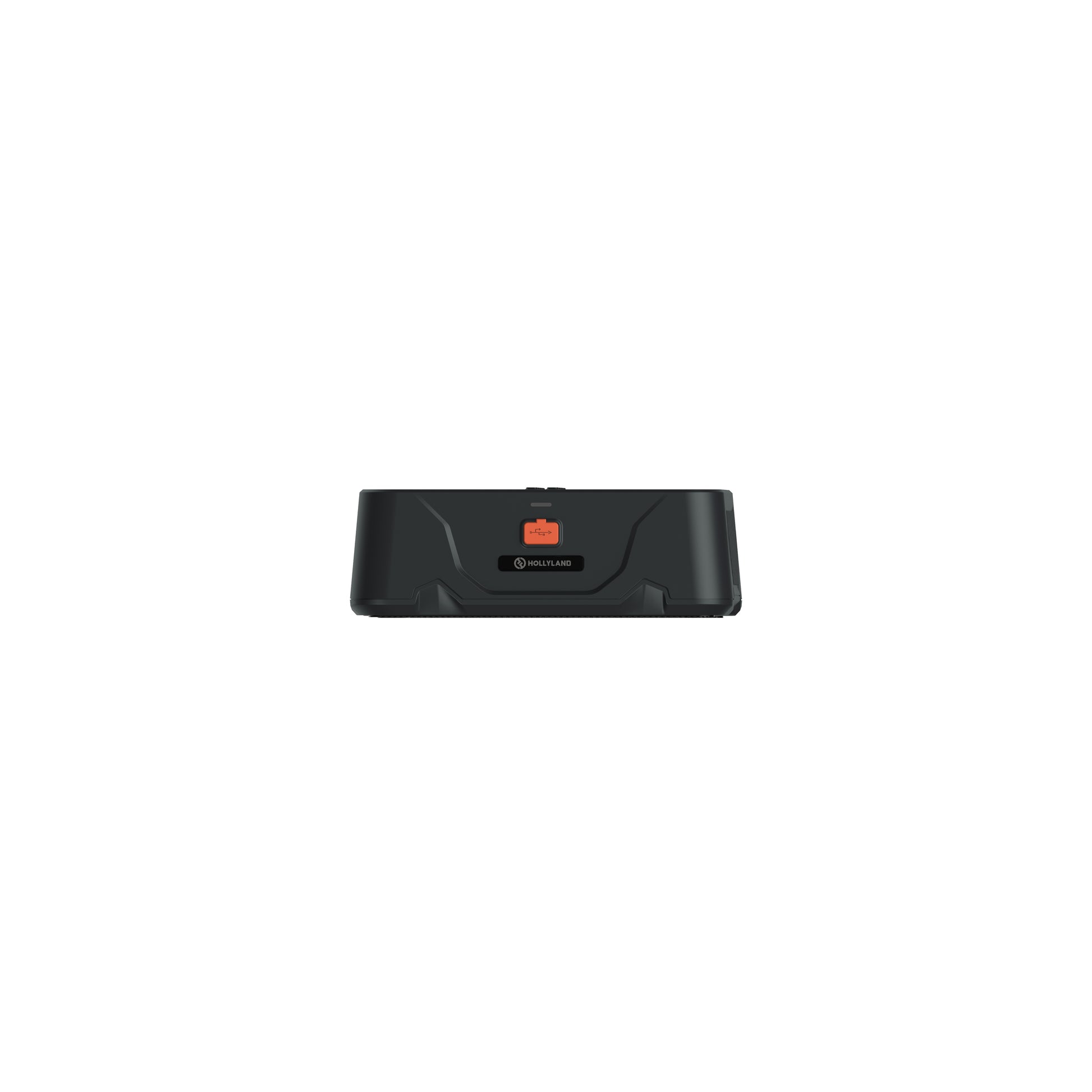

Solidcom BPK01 Battery Charging Base
1
Tempered Glass Screen Protector
10
RJ45 to Dual XLR Cable
1
XLR Network Cable
1
Solidcom ANT01 Antenna POE Power Adapter
1
DC Power Adapter
1
USB Type-A to Type-C Cable
1
User Manual
1
Warranty Card
1
