Specifications
Audio
Sample Rate and Bit Depth
48 kHz, 24-bit
Frequency Response
20 Hz – 20 kHz
Max Sound Pressure Level
120 dB SPL
Signal-to-Noise Ratio
≥67 dB
Mic Polar Pattern
Omnidirectional
Mic Sensitivity
-37 dBV±2 dBV@1 kHz, 94 dB SPL
Wireless
Wireless Transmission
2.4 GHz Adaptive Frequency Hopping (AFH)
Wireless Modulation Mode
GFSK 2 Mbps
Transmission Range
200 m
Power
Battery Voltage TX
3.8 V
Battery Voltage Charging Case
3.7 V
Battery Capacity TX
65 mAh
Battery Capacity Charging Case
460 mAh
Operating Time TX
Approx. 9 hours
Charging Cycle TX
<1.5 hours
Charging Cycle Charging Case
<1.5 hours
Charging Time
> 2 times charging for 2 Mic
Dimensions
TX Dimensions
30 x 16.3 x 8.8 mm
Mobile Version RX Dimensions
34 x 16.3 x 9 mm
Weight
TX Weight
Approx. 8 g
Mobile Version RX Weight
Approx. 5.9 g
Environmental
Charging Temperature
0 ~ 45°C
Operating Temperature
-10 ~ 60°C

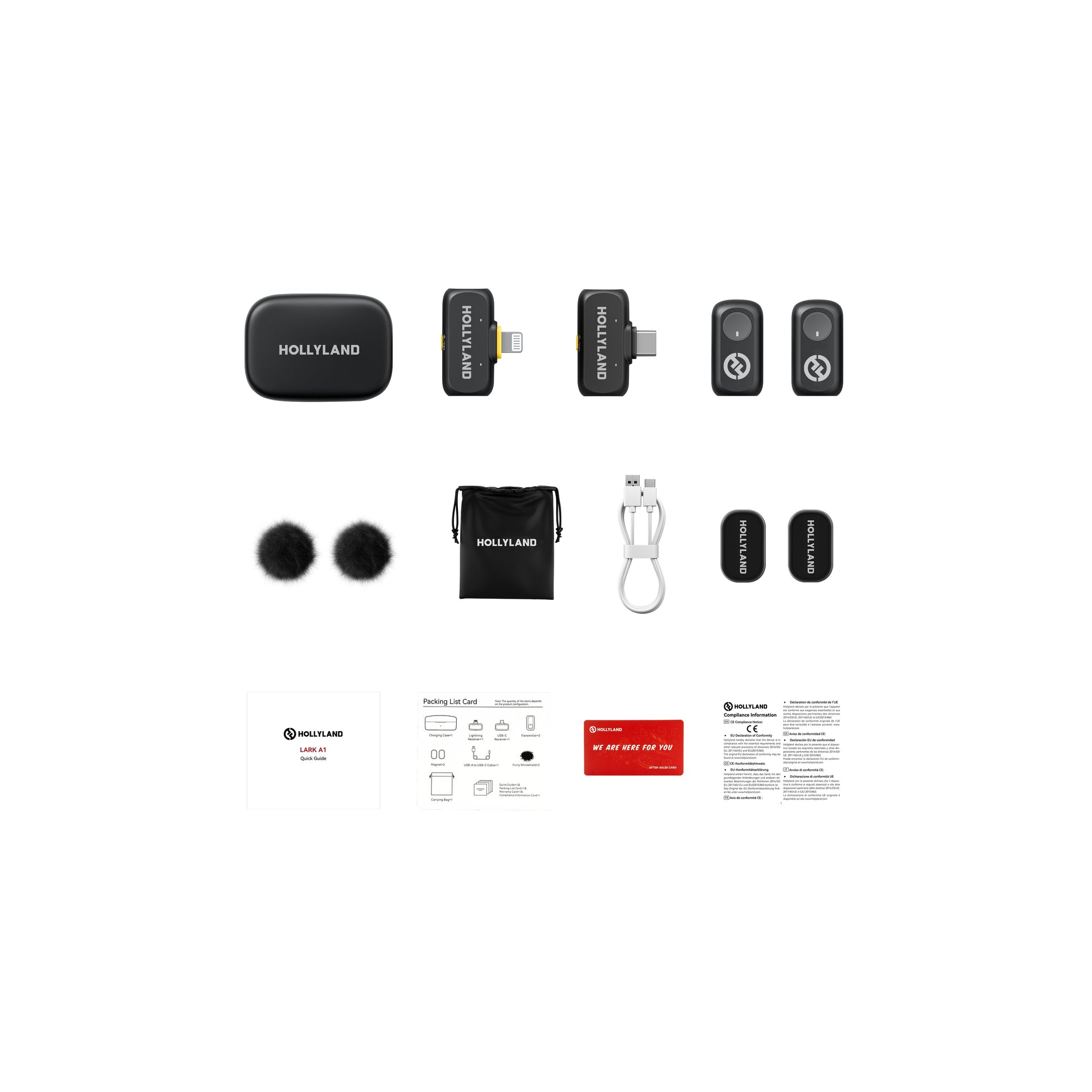

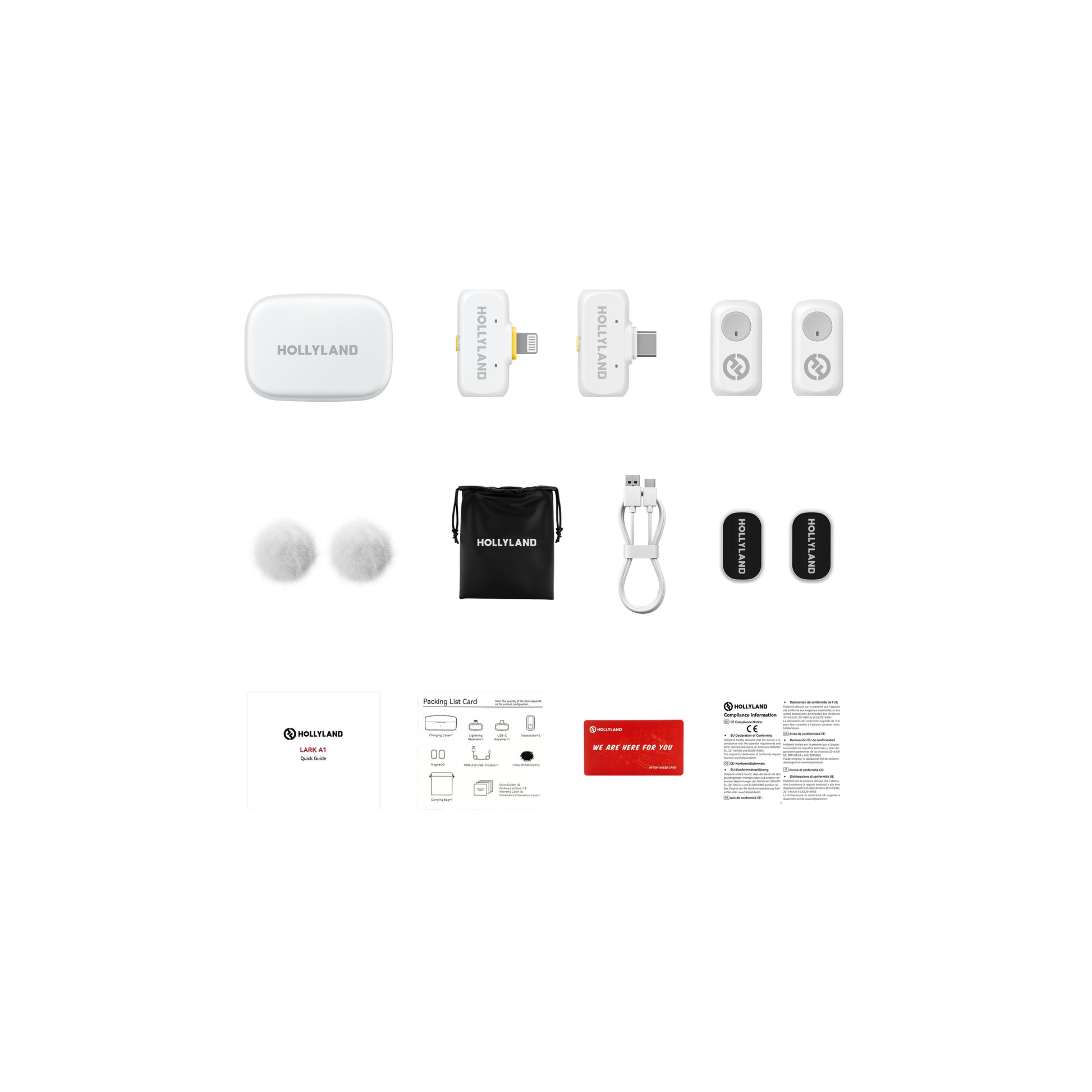

Included Items
Transmitter
2
Lightning Receiver
1
USB-C Receiver
1
Magnet
2
Charging Case
1
Furry Windshield
2
USB-A to USB-C Cable
1
Packing List Card
1
Quick Guide
1
Warranty Card
1
Compliance Information Card
1
