Specifications
Audio
Mic Sensitivity
-37 dBV ± 2 dBV @ 1 kHz, 94 dB SPL
Mic Polar Pattern
Omnidirectional
Frequency Response
20 Hz – 20 kHz
Signal-to-Noise Ratio
≥ 72 dB
Max Sound Pressure Level
128 dB SPL
Sample Rate and Bit Depth
48 kHz / 32-bit Float & 48 kHz / 24-bit
Wireless
Wireless Modulation Mode
GFSK 2 Mbps
Wireless Transmission
2.4 GHz Adaptive Frequency Hopping (AFH)
Transmission Range (TX)
1,115 ft (340 m) LOS / 197 ft (60 m) NLOS
Transmission Range (OWS Earphone)
328 ft (100 m) LOS / 197 ft (60 m) NLOS
Power
Battery Voltage (TX)
3.87 V
Battery Voltage (Camera RX)
3.87 V
Battery Voltage (Charging Case)
3.8 V
Battery Voltage (OWS Earphone)
3.7 V
Battery Voltage (Earphone Charging Case)
3.7 V
Battery Capacity (TX)
167 mAh
Battery Capacity (Camera RX)
300 mAh
Battery Capacity (Charging Case)
2000 mAh
Battery Capacity (OWS Earphone)
90 mAh
Battery Capacity (Earphone Charging Case)
500 mAh
Operating Time (TX)
Approx. 11 hours
Operating Time (Camera RX)
Approx. 12 hours
Operating Time (OWS Earphone)
Approx. 18 hours
Charging Cycle (Charging Case)
> 2.5 times for 2 TX and Camera RX simultaneously
Charging Cycle (Earphone Charging Case)
> 1.8 times for 2 OWS Earphones simultaneously
Charging Time (TX)
Approx. 1.5 hours
Charging Time (Camera RX)
Approx. 1.5 hours
Charging Time (Charging Case)
Approx. 2 hours
Charging Time (OWS Earphone)
Approx. 1.6 hours
Environmental
Charging Temperature
0 ~ 45° C
Operating Temperature
-10 ~ 55° C
Dimensions

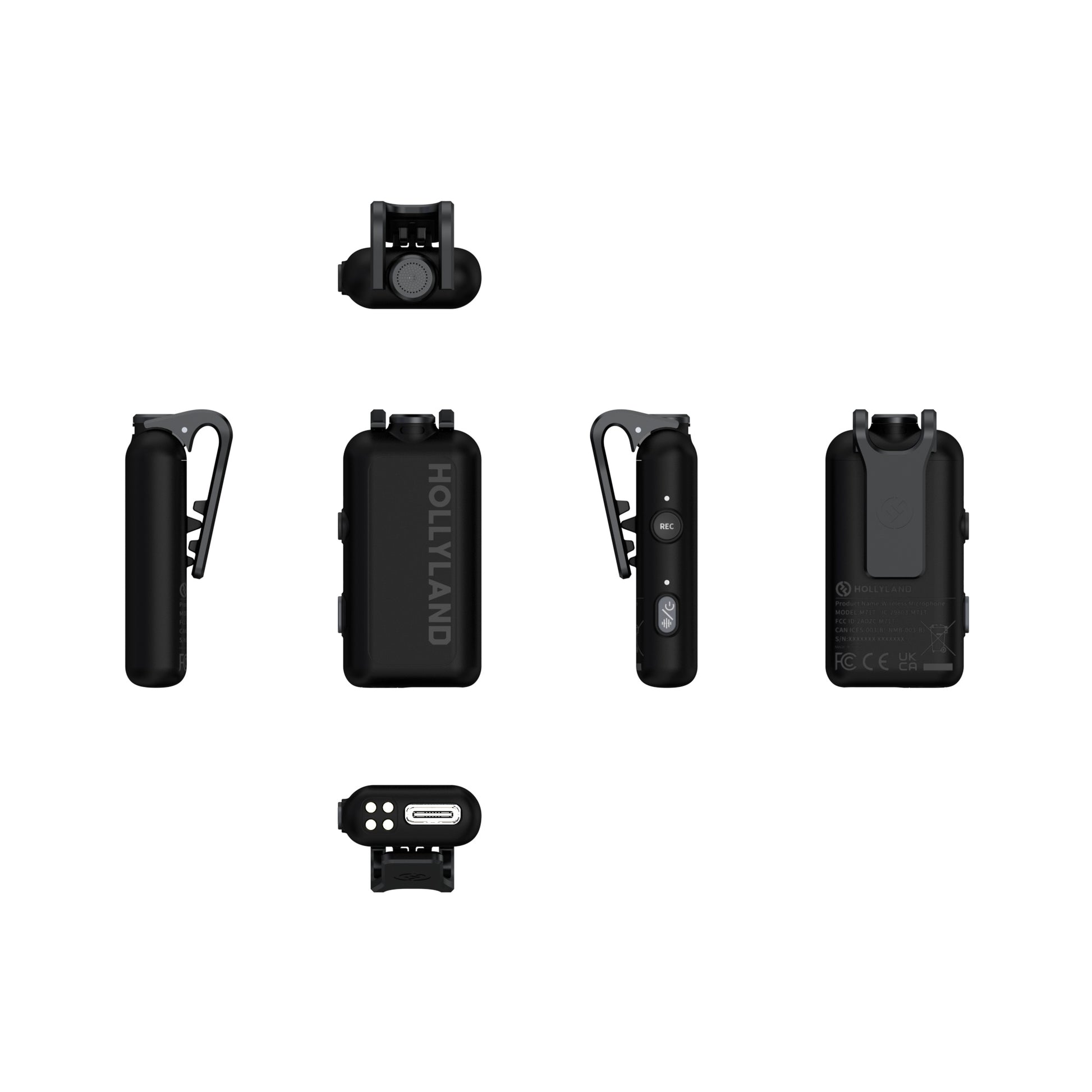

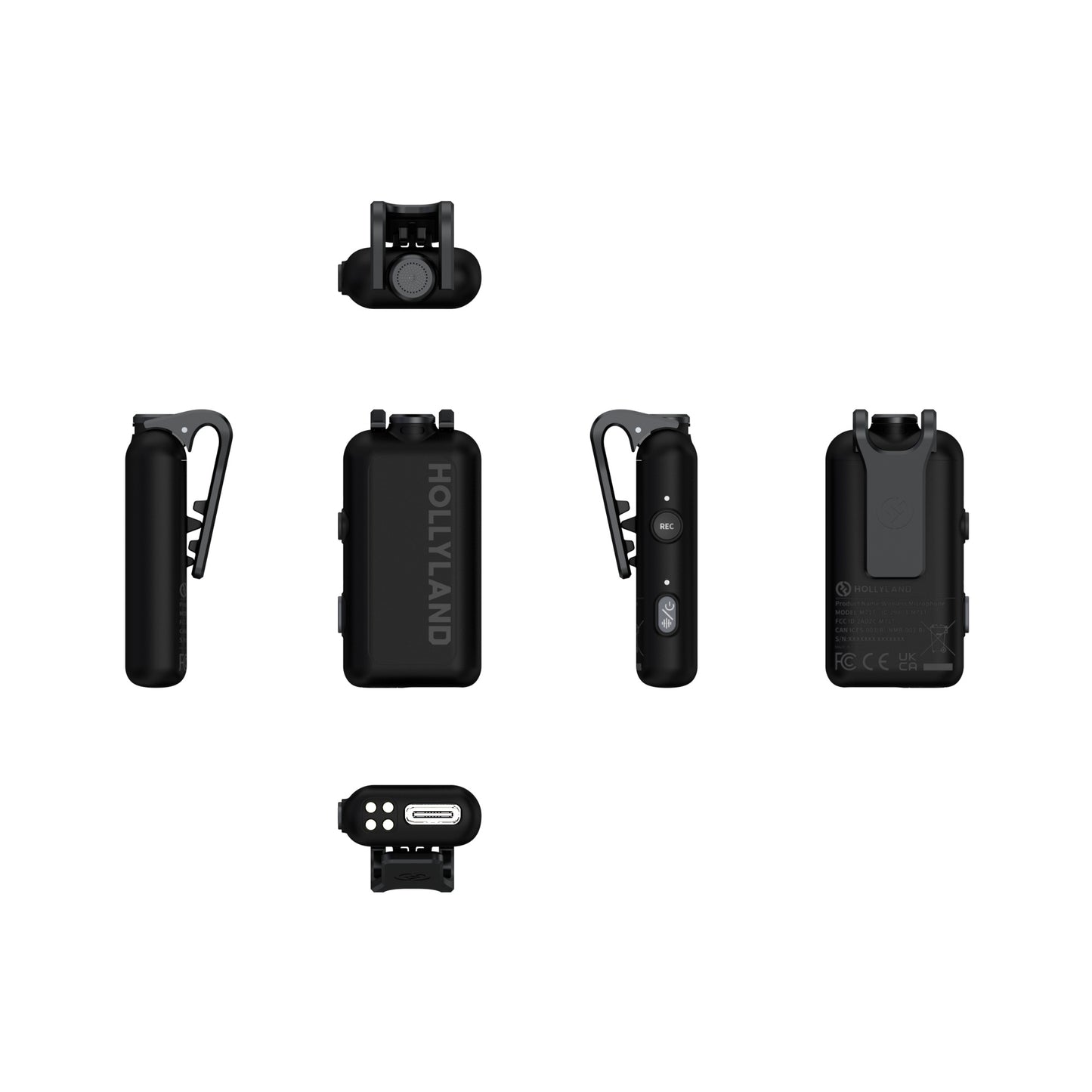

TX
23.4 x 10.2 x 45.1 mm (0.92" x 0.40" x 1.78")

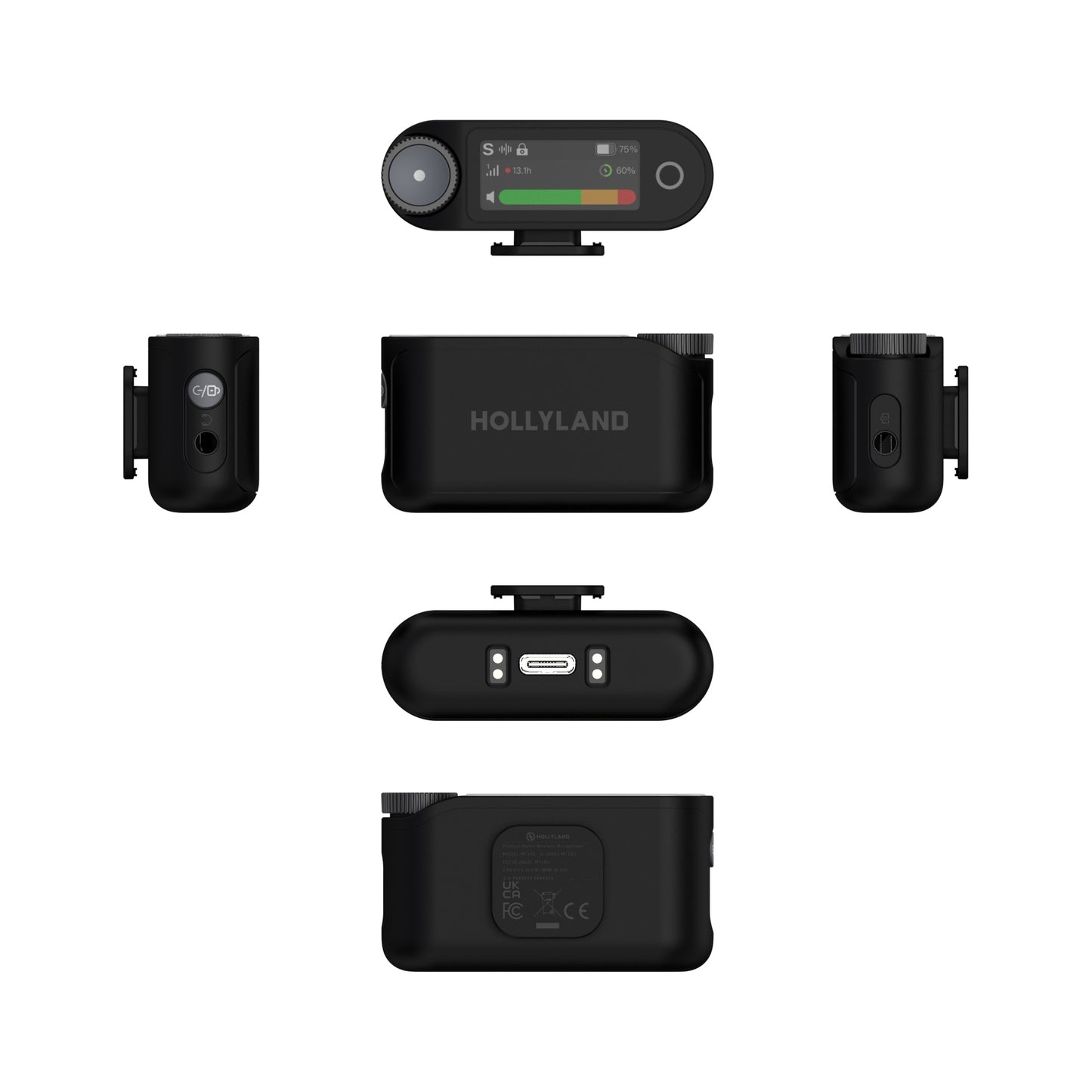

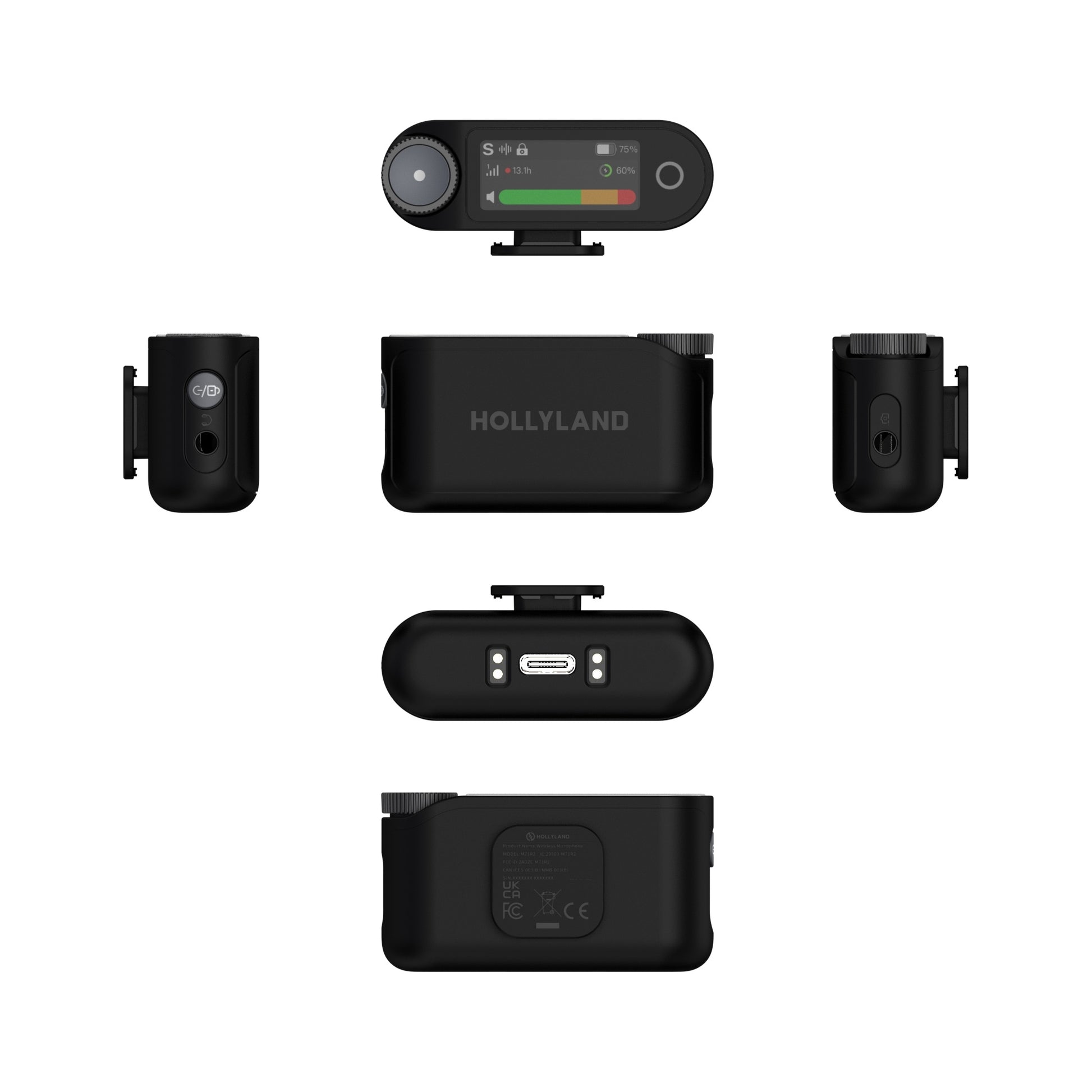

Camera RX
54.2 x 22.3 x 29.5 mm (2.13" x 0.88" x 1.16")

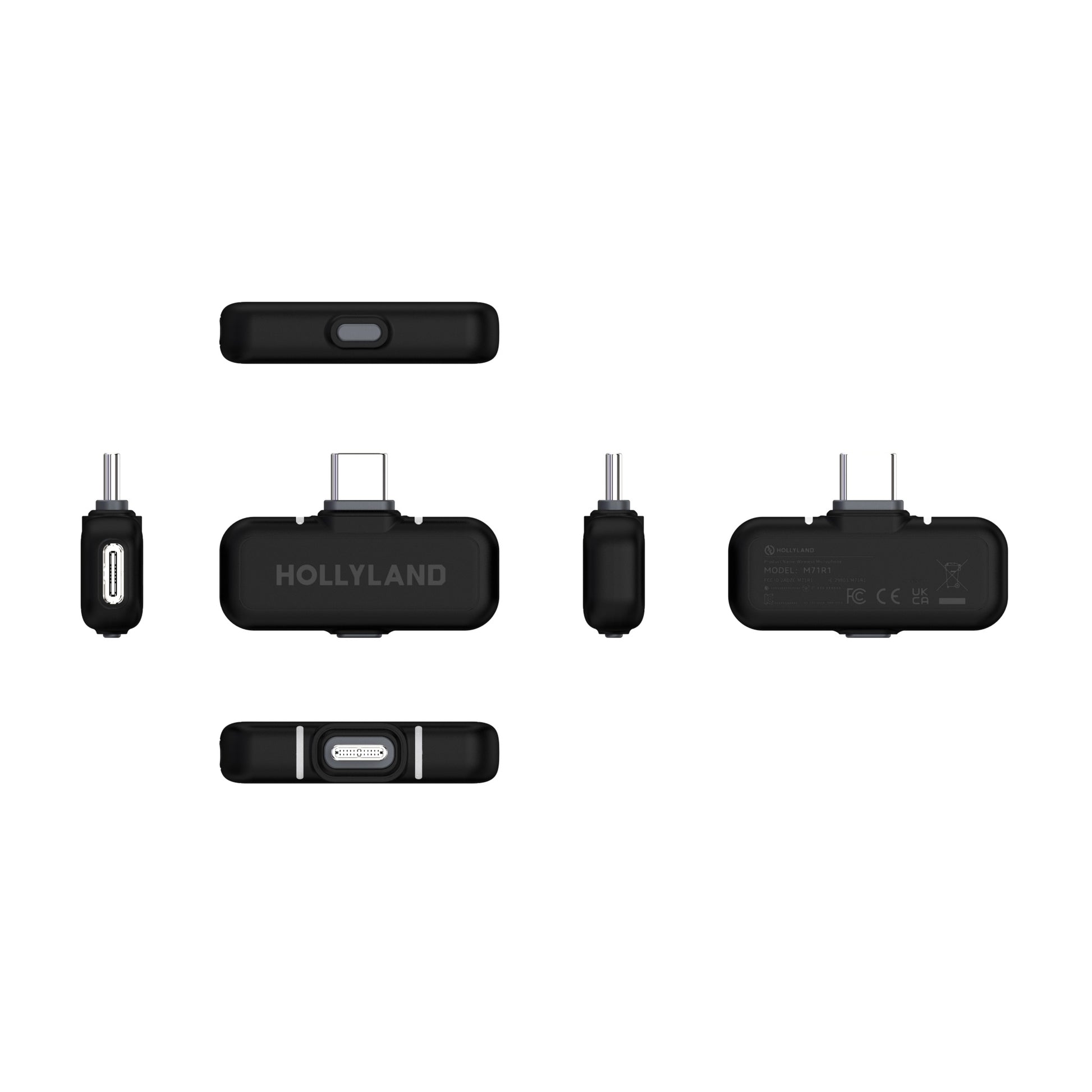

USB-C RX
40.7 x 9.1 x 27 mm (1.60" x 0.36" x 1.06")
Weight
TX
Approx. 14 g (0.51 oz)
Camera RX
Approx. 24 g (0.85 oz)

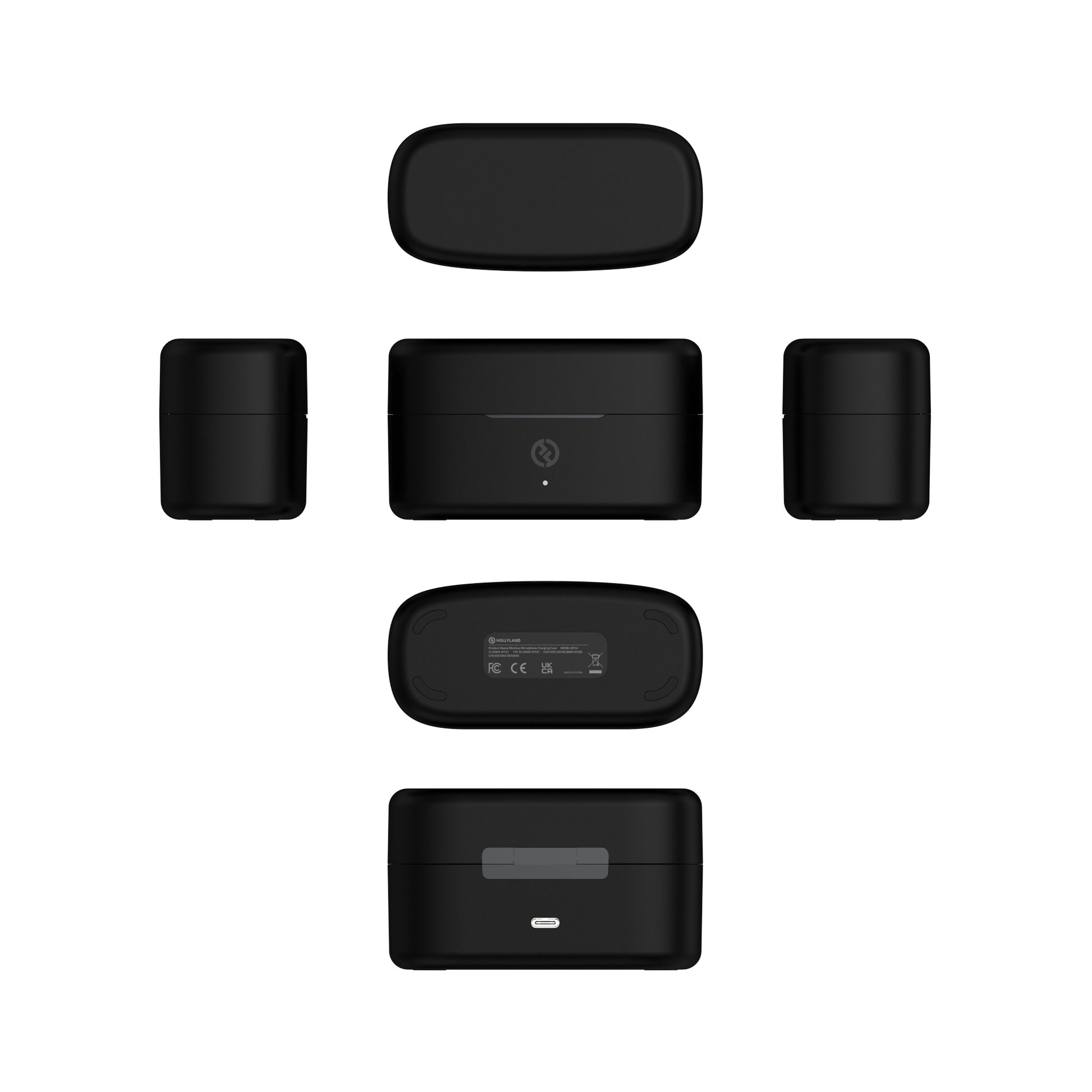

Charging Case
Approx. 136 g (4.8 oz)
USB-C RX
Approx. 5.9 g (0.21 oz)
Included Items
Transmitters
2
Camera Receiver
1
USB-C Receiver
1
Charging Case
1
Furry Windshield
2
USB-C to Lightning Cable
1
3.5mm TRS to 3.5mm TRS Cable
1
3.5mm TRS to 3.5mm TRS Cable (2.8-inch)
1
USB-C to USB-C Cable
1

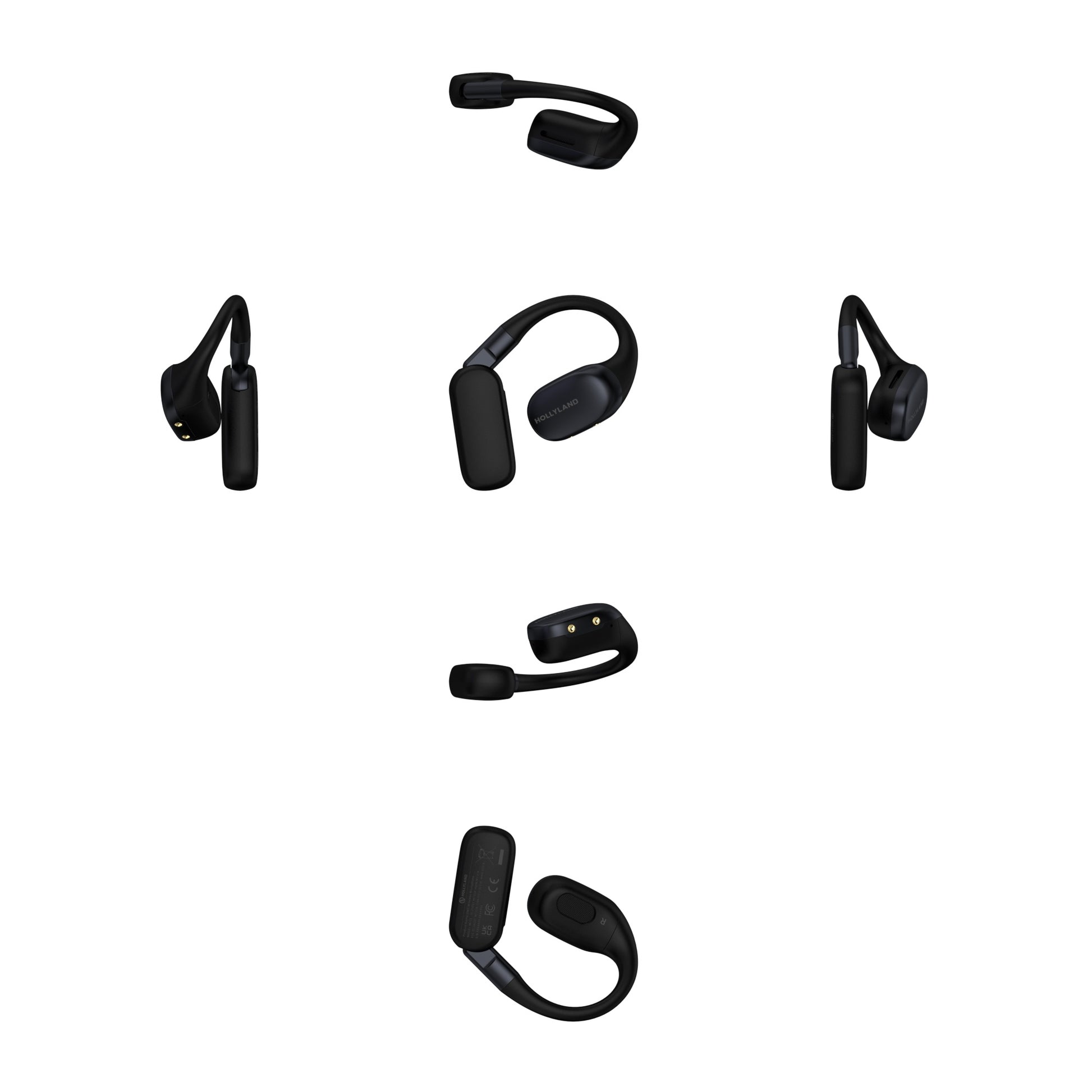

OWS Monitor Earphone
2

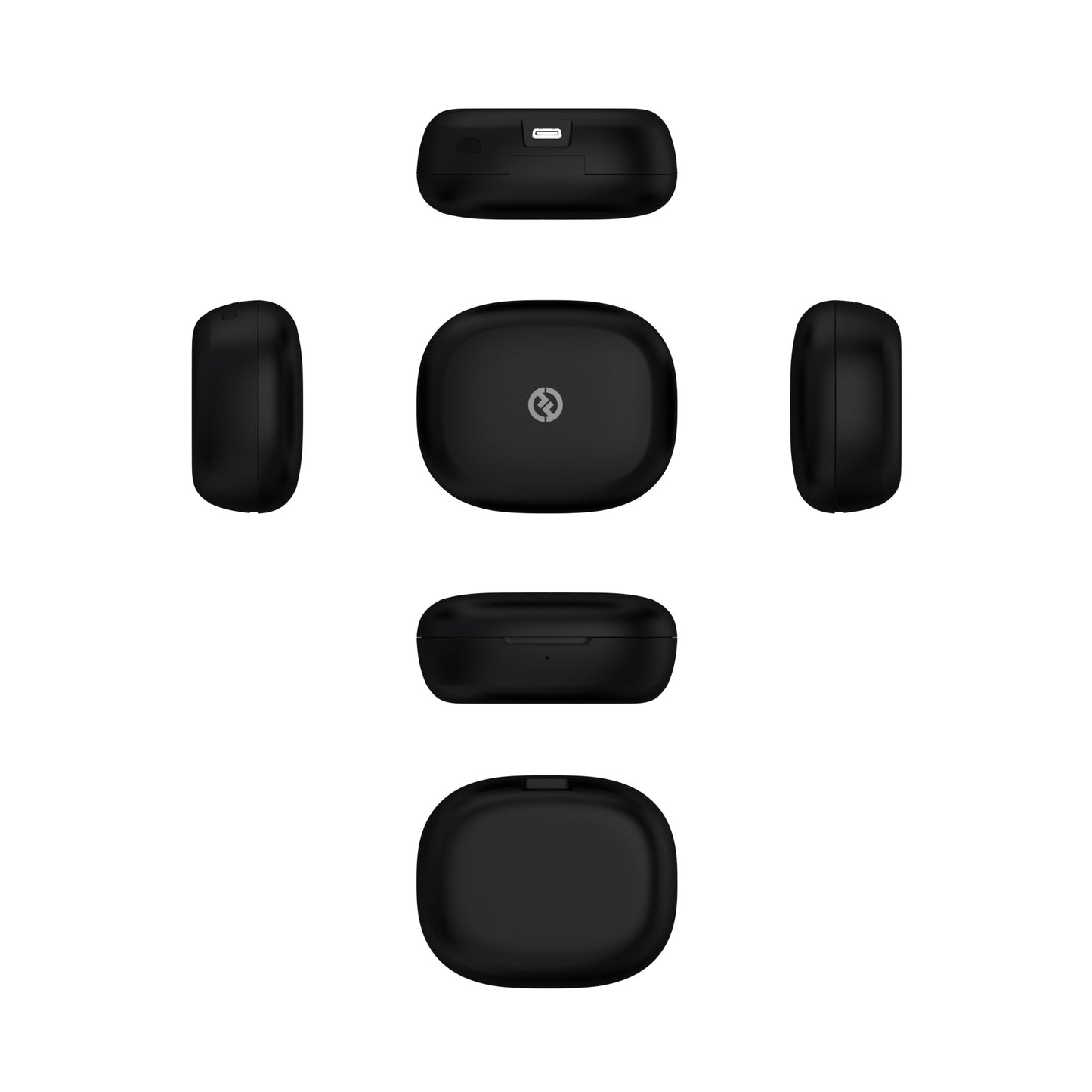

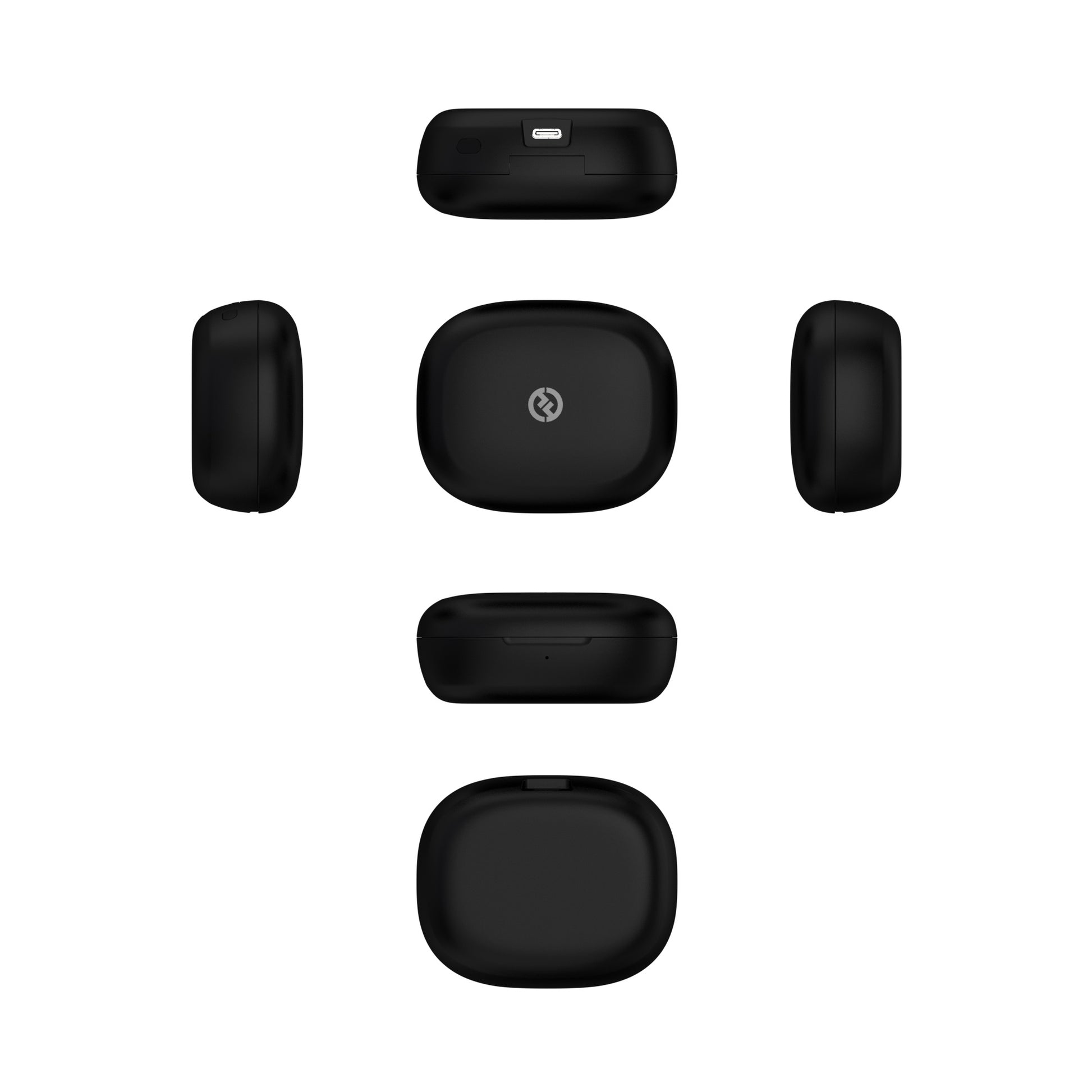

Earphone Charging Case
1
Omnidirectional Lavalier Microphone
2
USB-C to 3.5mm Adapter
2
Magnetic Silicone Sleeve
2
Magnet
2
Quick Guide
1
Warranty Card
1
Compliance Information Card
1
Packing List Card
1
