Specifications

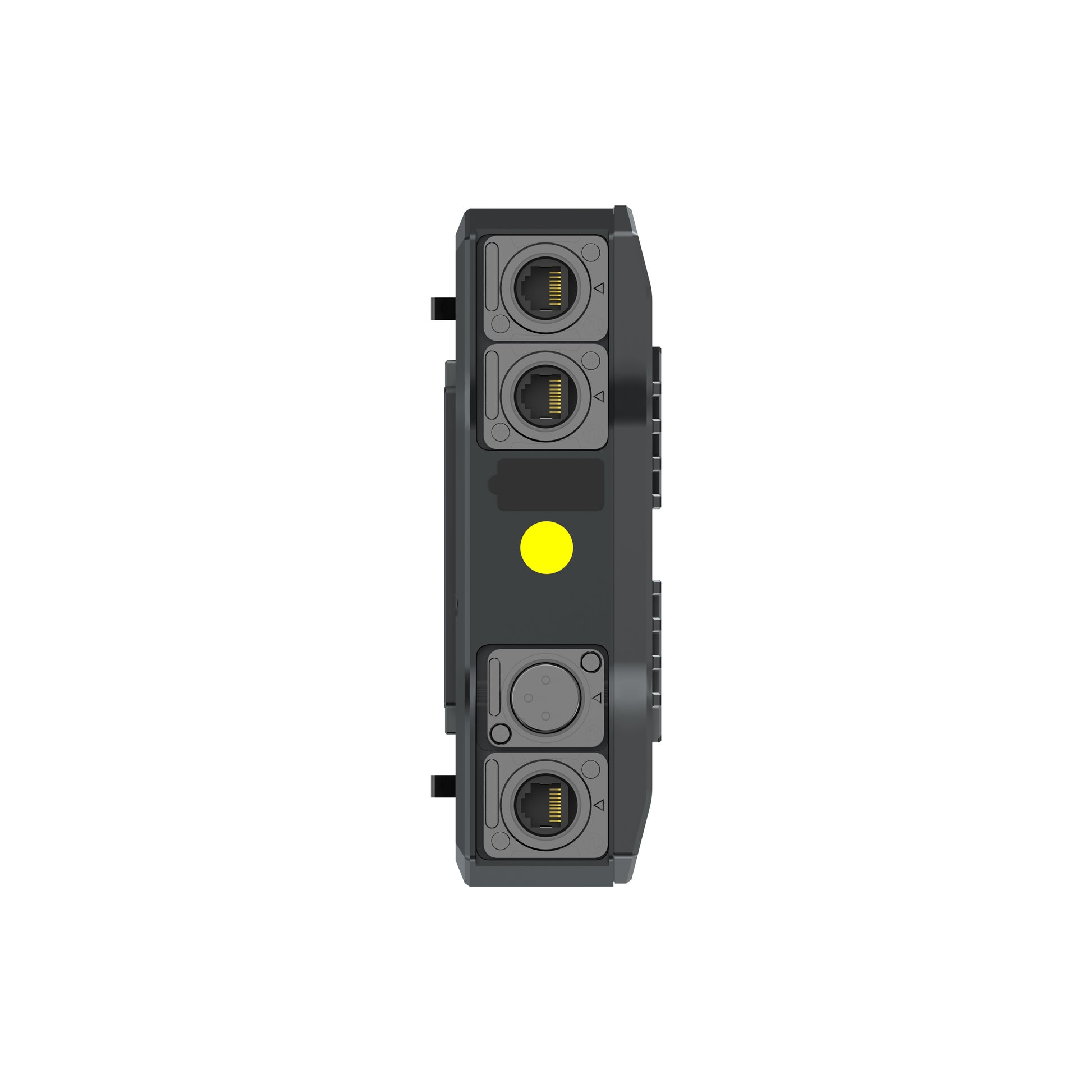

Interface
POE interface (RJ45); Power supply interface (RJ45); 4-wire audio interface; 2-wire audio interface; USB interface
Power Supply
POE power supply;NP-F battery
Frequency Response
150Hz-7kHz
Signal-to-Noise Ratio
>55dB
Distortion
<1%
LOS Range
1,300ft (400m)
Frequency Band
1.9GHz
Modulation Mode
GFSK
TX Power
<21dBm
RX Sensitivity
≤-93dBm
Bandwidth
1.728MHz
Power Consumption
<3W
Dimensions
(L x W x H): 255.5mm x 180.4mm x 48.5mm (10″ x 7.1″ x 1.9″)
Net Weight
Approx. 1560g (55oz)
ENC Level
/
Temperature Range
0℃ to 45℃ (working condition); -20℃ to 60℃ (storage condition)
Whats In The Box

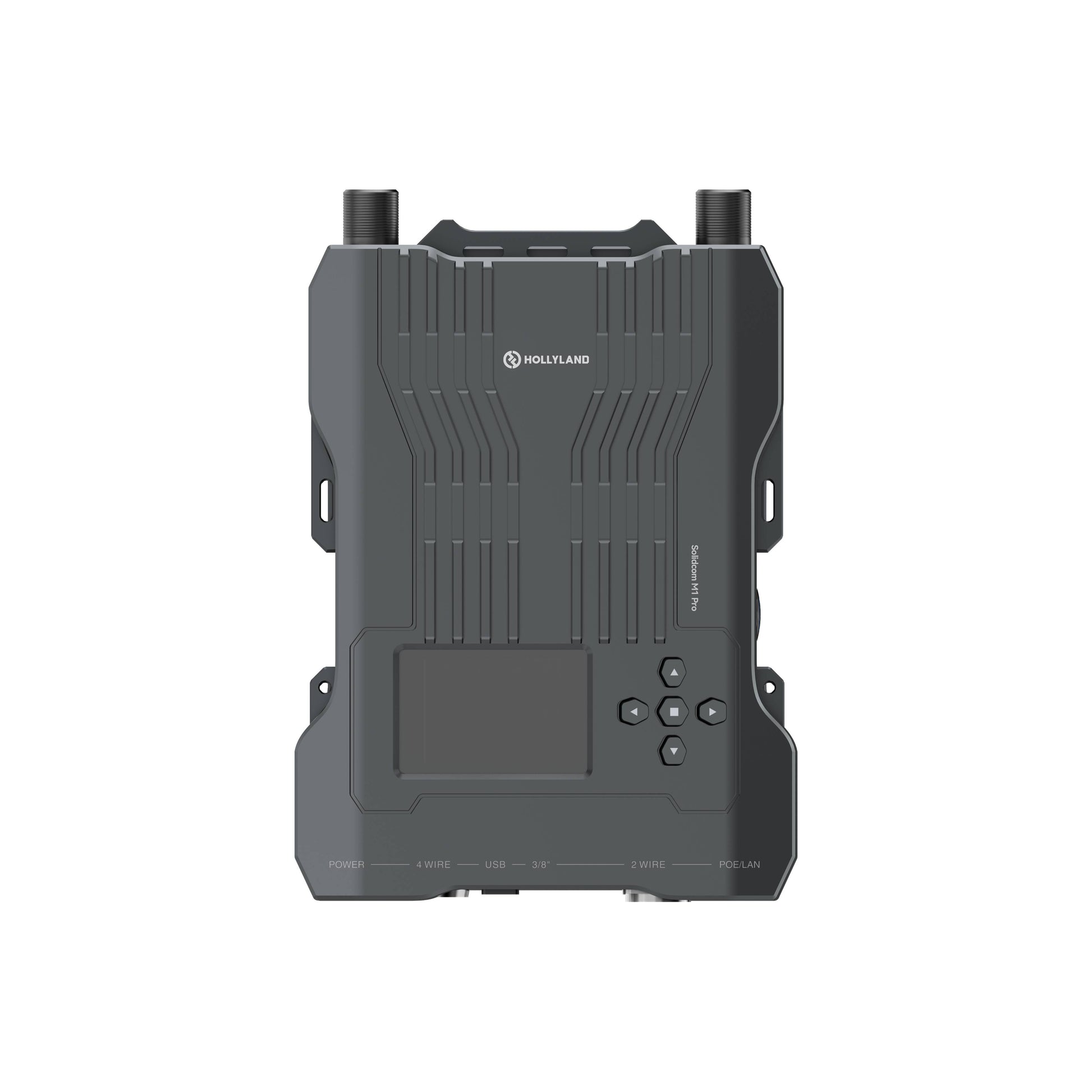

Solidcom M1 Pro RRU
1
User Manual
1
Warranty Card
1
