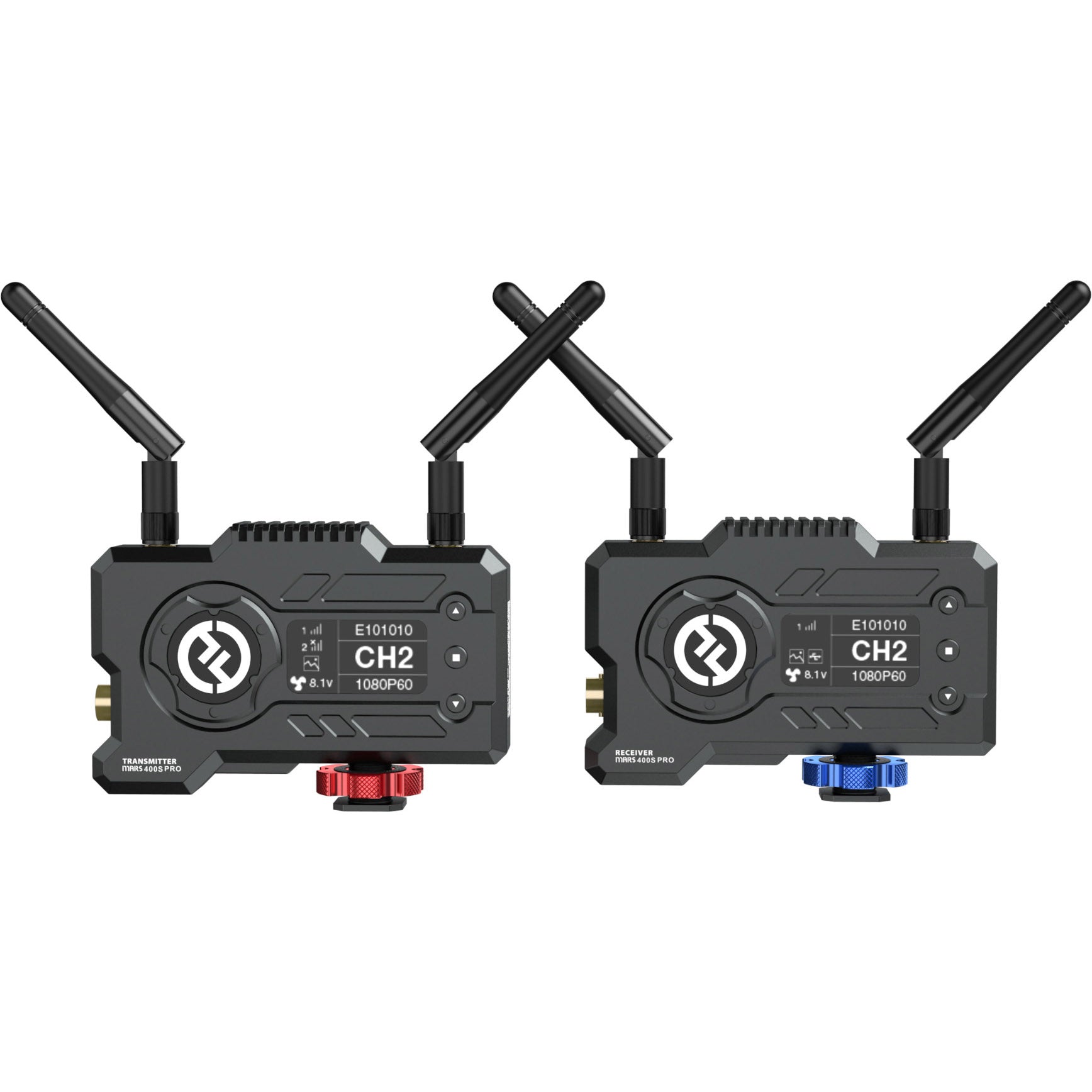

Hollyland Mars 400S PRO SDI/HDMI Wireless Video Transmission System
Hollyland Mars 400S PRO SDI/HDMI Wireless Video Transmission System
SoundPro Item: 132690 | Part Number: Mars 400S PRO
Usually ships in 5-7 business days
- Supports 1 transmitter connects with 2 receivers
- Supports up to 2 mobile devices monitoring while only 1 receiver Is connected; supports Up to 4 mobile devices monitoring without receiver connecting
- OLED display screen
- Channel scan
- Three application scene modes
- Battery voltage display
- 400ft transmission range (LOS)
- Lowest latency is 0.1s
- Both HDMI and SDI connection options
- USB firmware upgrade
- Integrated cold shoe for quick installation
- Supports DC power, USB Type-C power supply and battery power supply
MARS 400S PRO is using the latest coding, decoding technology, and 5G wireless transmission technology. It can achieve ultra-low latency wireless video transmission. It has a transmission range over 400ft with a clean line of sight (LOS) when the transmitter is connected to 1 or 2 receivers. MARS 400S PRO also can support 2 APPs monitoring when connection with 1 receiver. MARS 400S PRO is supports up to 1080P 60Hz image resolution. Both transmitter and receiver equipped with L-series battery plate or can be powered by DC adapter or by USB-C interface.
- Wireless
- Wireless Range: 400 ft
- Channel Bandwidth: 20 MHz
- Frequency Range: 5 GHz
- Latency: < 0.1 sec
- RF Power: ≤ 21 dBm
- RF Sensitivity: -80 dBm
- Wi-Fi: yes
- Interfaces
- Transmitter Antenna Ports: 2x RP-SMA male
- Receiver Antenna Ports: 2x RP-SMA male
- Transmitter Video Connectors: 1x BNC (3G-SDI/HD-SDI) input, 1x HDMI input
- Receiver Video Connectors: 1x BNC (3G-SDI) output, 1x HDMI output
- Transmitter Other I/O: 1x USB Type-C, 1x DC input
- Embedded Audio: SDI, HDMI
- Format Support (Video Format)
- SDI/BNC
- 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
- 1080i at 50, 59.94, 60 fps
- 1080PsF at 23.98, 24, 25 fps
- 720p at 50, 59.94, 60 fps
- HDMI
- 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
- 1080i at 50, 59.94, 60 fps
- 720p at 50, 59.94, 60 fps
- 576p at 50 fps
- 480p at 60 fps
- Display
- Transmitter Panel Type: OLED
- Receiver Panel Type: OLED
- Power
- Transmitter Battery Support: 1 x Sony L-Series / NP-F Type
- Receiver Battery Support: 1 x Sony L-Series / NP-F Type
- Transmitter Power Connector: 1 x Barrel (6 to 16V DC) Input
- Receiver Power Connector: 1 x Barrel (6 to 16V DC) Input
- Transmitter Power Consumption: device 11W
- Receiver Power Consumption: device 7W
- Transmitter Mounting
- 1 x 1/4"-20 Female
- 1 x Integrated Cold Shoe
- Receiver Mounting
- 1 x 1/4"-20 Female
- 1 x Integrated Cold Shoe
- Materialsmetal
- Transmitter Dimensions4.33" x 2.83" x 1.34"
- Receiver Dimensions4.33" x 2.83" x 1.34"
- Transmitter Weight0.5 pounds
- Receiver Weight0.5 pounds
