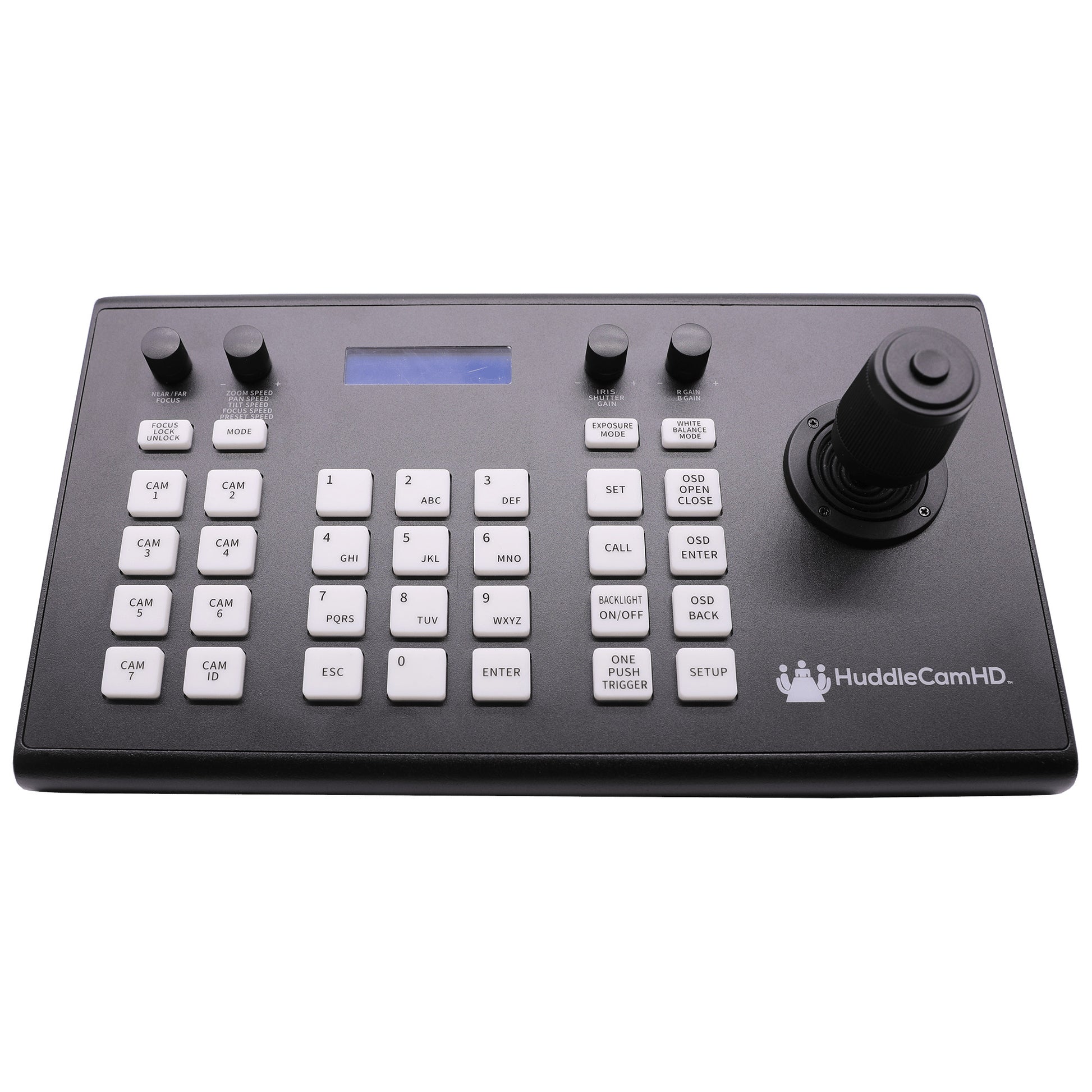

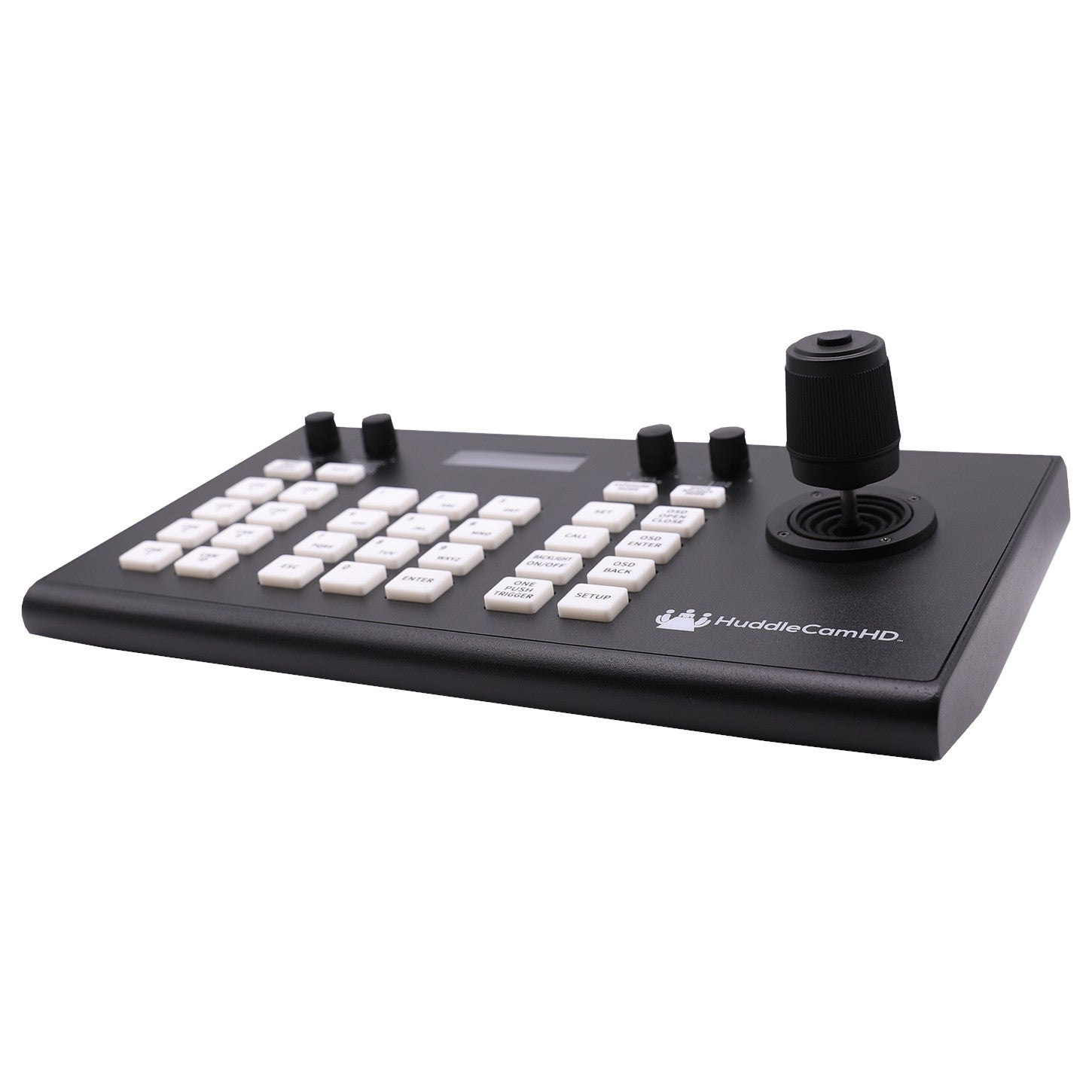

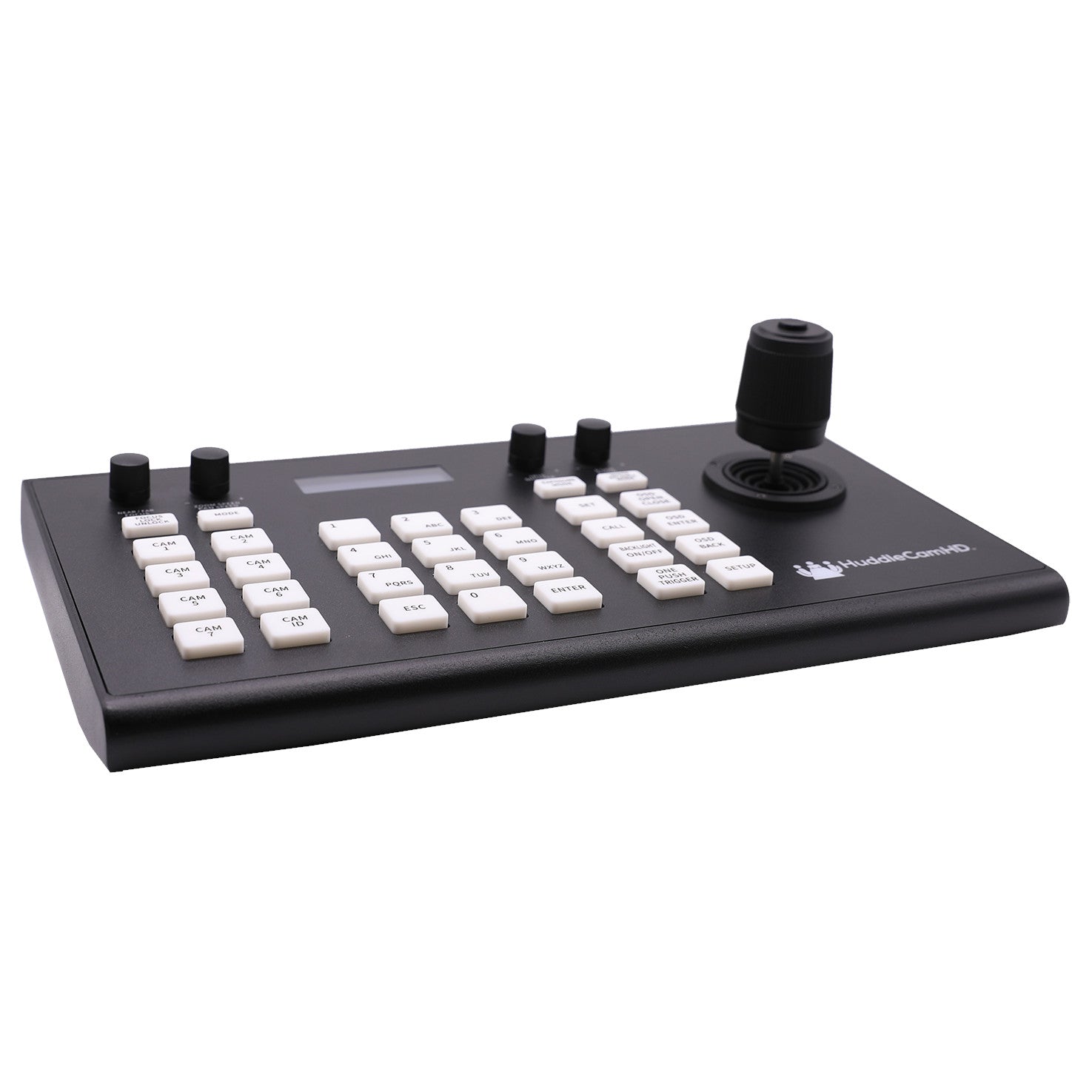

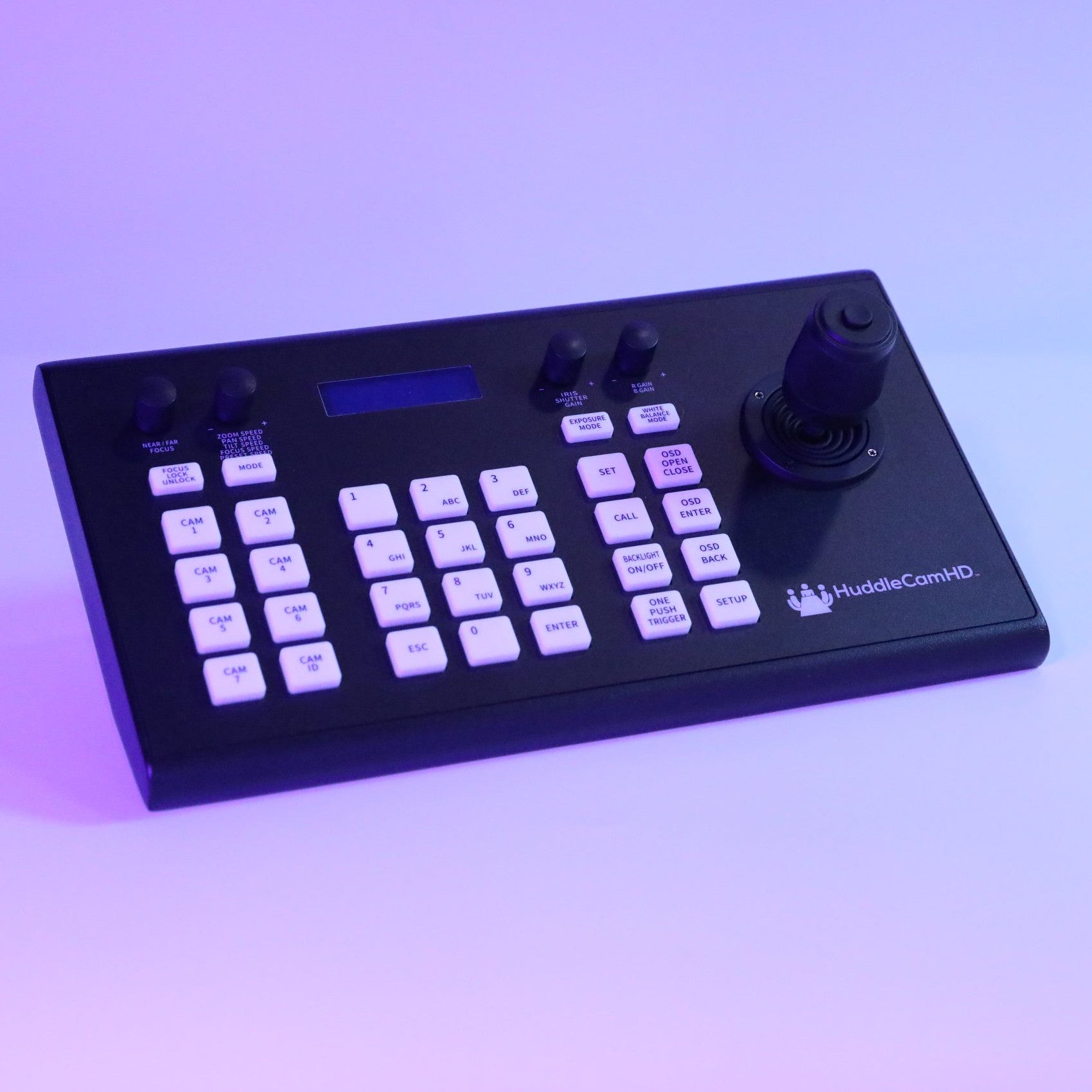

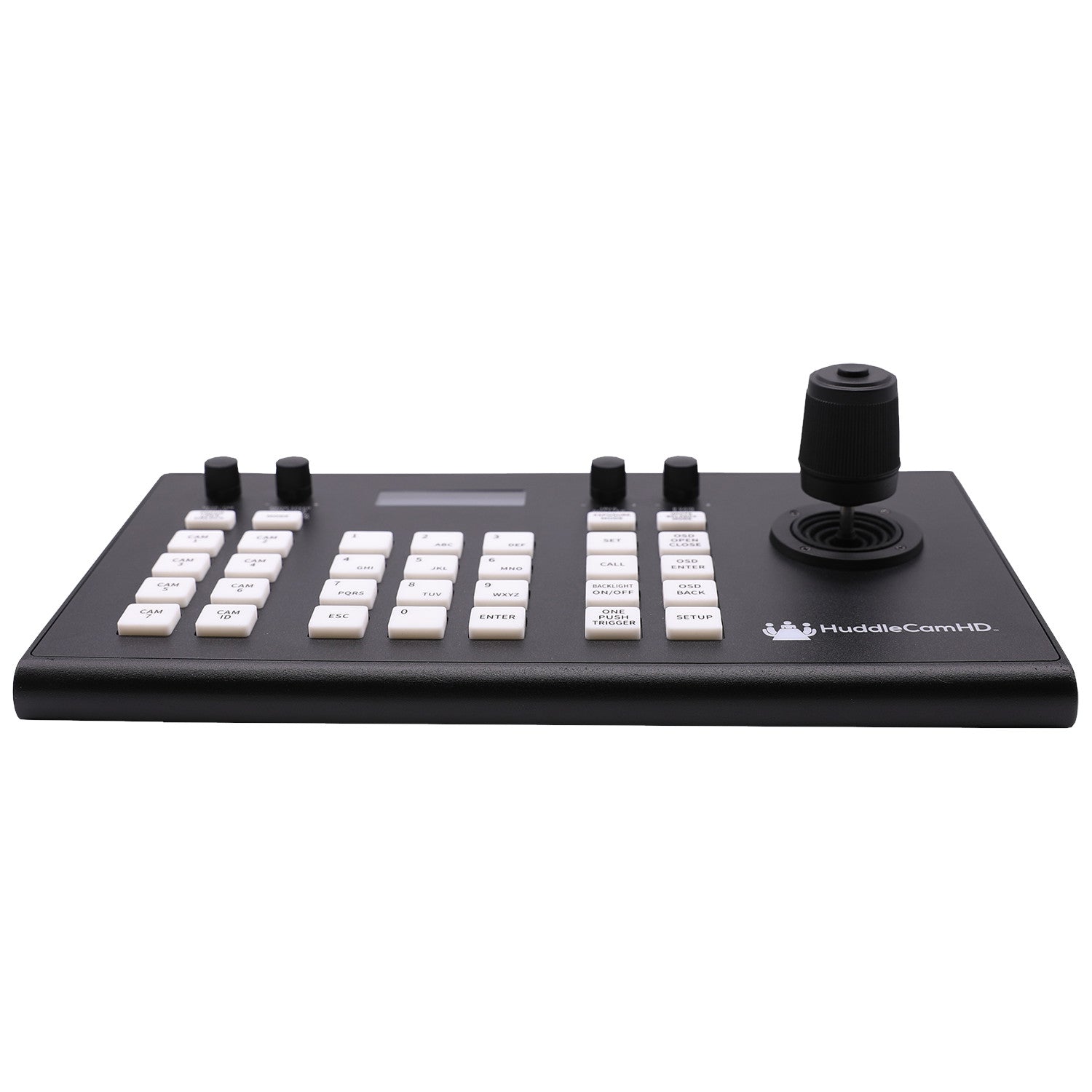

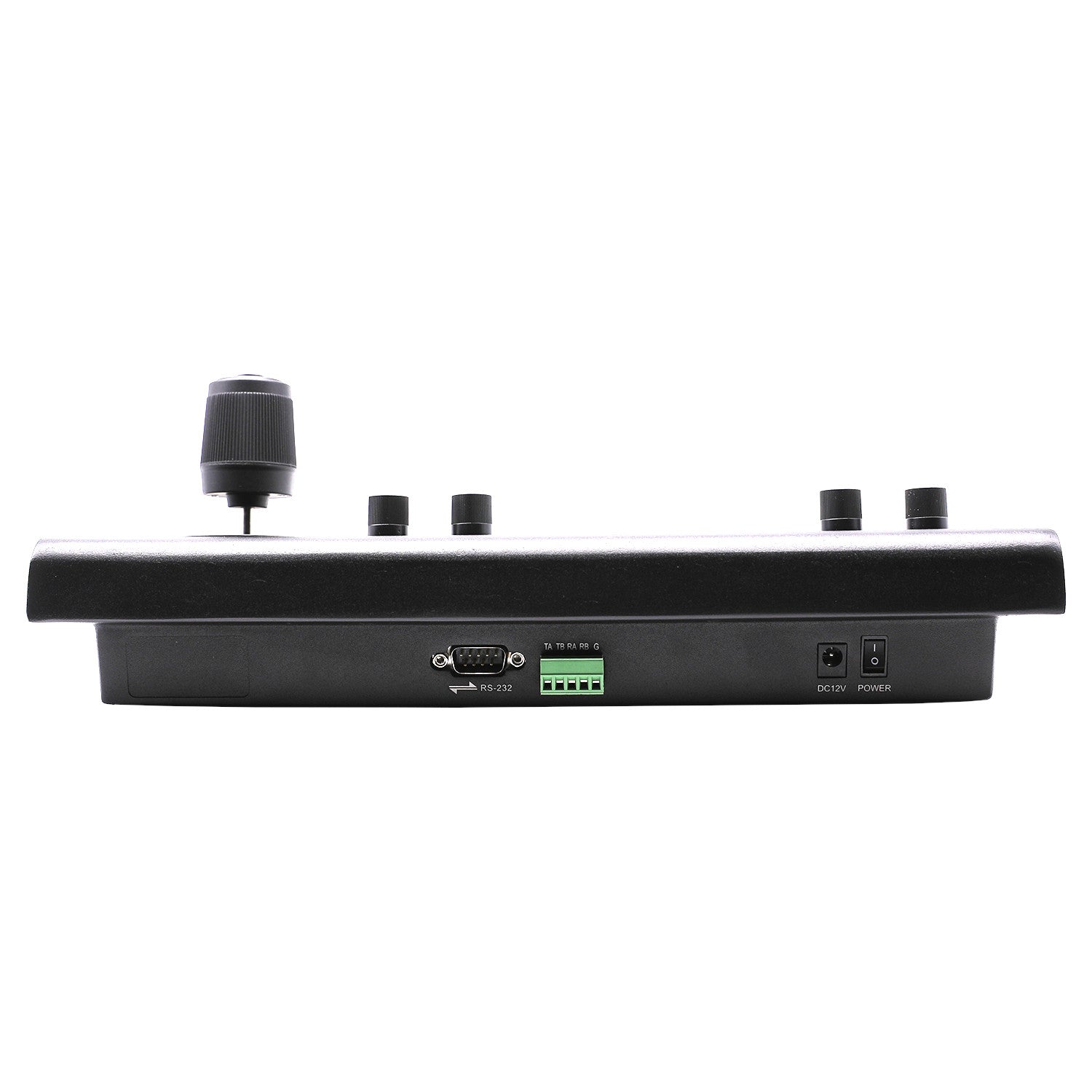

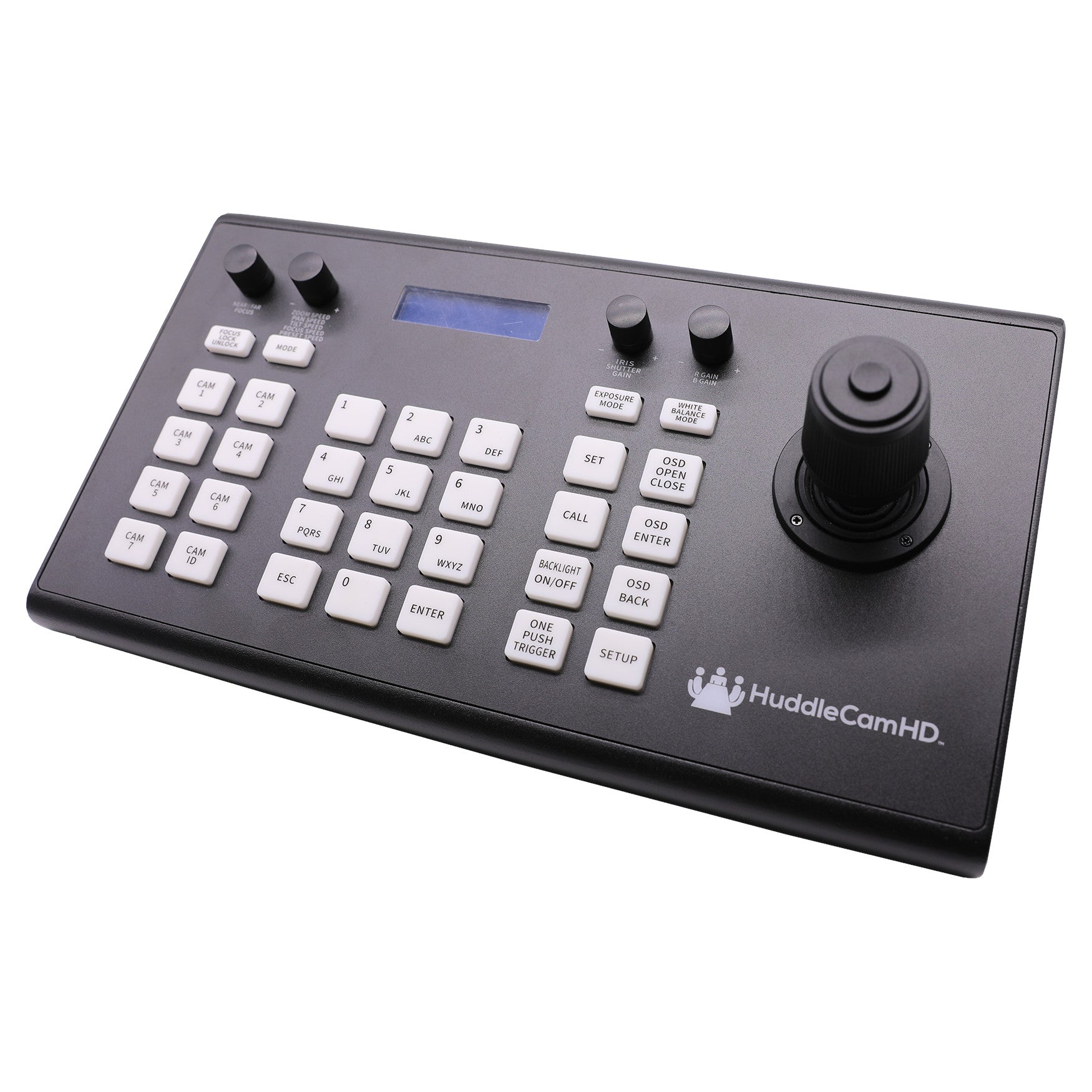

HuddleCam HC-JOY-G4 PTZ Camera Controller
HuddleCam HC-JOY-G4 PTZ Camera Controller
SoundPro Item: 139867 | Part Number: HC-JOY-G4
Usually ships in 5-7 business days
- Compatible with RS-232, RS-485, RS-422, VISCA, Pelco-D, Pelco-P
- 7 Quick Camera Select buttons
- 3-Axis Joystick Control
- Camera OSD Menu Control
- Exposure and White Balance Mode Cycle buttons
- Focus Lock Toggle
- Iris, Shutter, Gain, Red Gain, & Blue Gain knobs
- Basic, Basic PTZ, and Matrix Modes for users of all skill levels
- Durable metal housing and rubberized precision controls
The HuddleCamHD HC-JOY-G4 offers everything you love about serial control in one simple, reliable, super-sleek package.
- ConnectionsRS-232, RS-485, RS-422
- Baud RateVariable 1200 to 19200 bps
- Supported ProtocolsVISCA, PELCO-D, and PELCO-P
- Maximum CamerasControl up to 255 Cameras
- Maximum PresetsUp to 255 Presets
- Maximum Distance3,937′ (1200m) using 24 gauge twisted pair
- Power6W (12VDC voltage)
- Working Temp14°F ~ 122°F (-10°C ~ +50°C)
- Working Humidity10 ~ 90% (non-condensation)
- Weight3.4 lbs | 1.6 kg
- Dimensions (WxDxH)12.6x7.1x4.3″ (320x181x110mm)
