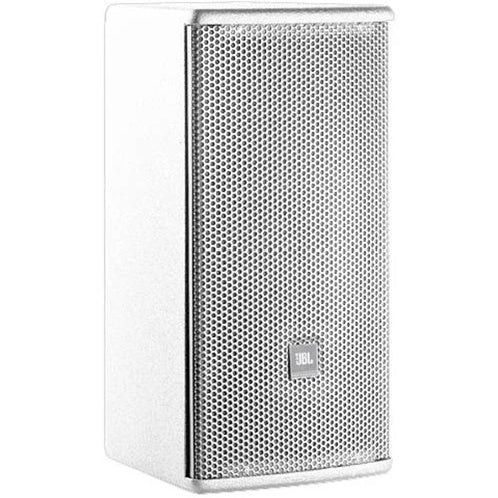

JBL AC18/26-WH Compact Passive Point Source Speaker | White

JBL AC18/26-WH Compact Passive Point Source Speaker | White

SoundPro Item: 50137 | Part Number: AC18/26-WH

$1,450.00
$1,450.00 $1,450.00
Your Price Sold out
MSRP: $1,450.00 | MAP: $1,450.00

Usually ships in 5-7 business days

  • 1" Exit Compression Driver With Coverage PT Waveguide Ensures Consistent Directional Projection
  • 205 mm Low-Frequency Transducer Balances Compact Size With Full-Range Output
  • FIR Tuning Set Delivers Optimized Frequency And Phase Response
  • Dual Neutrik NL4 Plus Screw Terminal Connectivity Supports Flexible Wiring
  • 500W Program Capacity Handles Mid-Scale Live Sound Reinforcement
  • Multiple Mounting Options Enable Rigging And Ground-Stacked Configurations
Log in or register for YOUR best price

The JBL AC18/26-WH is a lightweight passive point source speaker engineered for touring productions, rental fleets, and portable live sound installations where consistent directional coverage matters. Its compact enclosure houses a 1" high-frequency compression driver paired with a 205mm low-frequency transducer, tuned via proprietary FIR processing to maintain phase coherence and frequency response consistency across the coverage pattern. Built for integration into distributed systems where multiple speakers must work together without phase cancellation or frequency irregularities.

Dual Neutrik NL4 connectors and screw terminal wiring accept standard speaker-level signals from installed amplifiers, eliminating the need for powered modules. Mounting flexibility via U-bracket and standard pole cup attachments suits both ground-stacked arrays and overhead rigging in temporary and permanent installations. The 8-ohm impedance pairs predictably with multi-speaker amplifier configurations used in mid-scale productions and venue setups.

Downloads

View full details

Specifications

Frequency Response
Frequency Range (-10 dB)|52 Hz–20 kHz
Frequency Response (±3 dB)|63 Hz–19 kHz
Electrical
Impedance|8 ohms
System Power Rating (AES)|375 W
Continuous/Program/Peak (IEC)|250 W / 500 W / 1000 W
Connectivity
Speaker Connectors|Dual Neutrik NL4 plus Screw Terminal
Construction
High-Frequency Driver|1" Exit Compression Driver
Low-Frequency Transducer|205 mm (8 in)
Enclosure|Compact
Included Items
Mounting Options|U-bracket and Pole Cup Attachment Points
